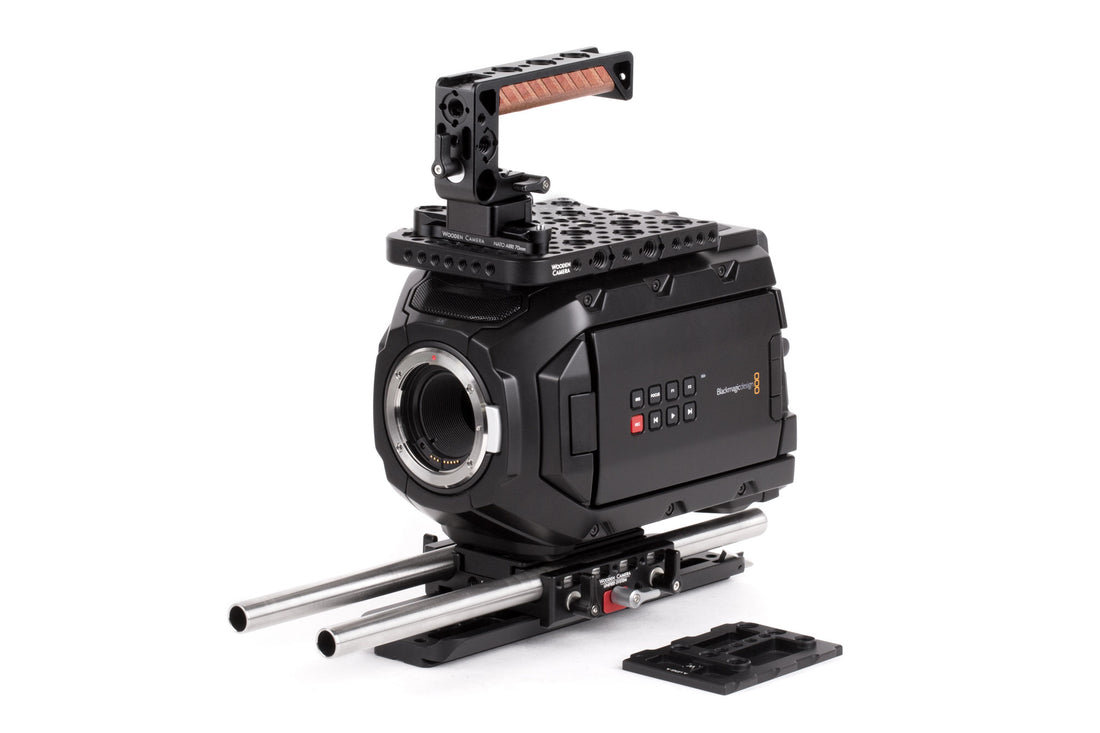

Blackmagic URSA Mini, URSA Mini Pro / 12K Unified Accessory Kit (Advanced)

The Blackmagic URSA Mini, URSA Mini Pro / 12K Unified Accessory Kit (Advanced) is a professional camera support package designed for the Blackmagic URSA Mini camera. The URSA Mini accessory package includes: Top Plate (URSA Mini, URSA Mini Pro / 12K), a top mounting camera cheeseplate for accessory attachment, Unified Baseplate (URSA Mini), a quick release baseplate for holding the two 15mm Rods (12") at the correct lens height, NATO Handle Plus v2 Kit, a quick release handle that attaches to the top plate, has a rotating top grip, multiple mounting points for accessories, integrated shoe mount, and a 15mm rod opening. The Unified Baseplate includes an ARRI dovetail slot on the bottom which attaches to the the included Safety Dovetail (8").


Included Items:

Top Plate (URSA Mini, URSA Mini Pro / 12K) - Top mounting cheese plate for Blackmagic URSA Mini Camera. Attaches to camera top by (4) 1/4-20 screws. Arrays of 1/4-20 holes in standard 9mm spacing and multiple 3/8-16 holes for large accessories. ARRI accessory mount also available in several places (3/8-16 screw hole with locating pins adjacent). Includes tape hook for accurate focus measuring. Original Blackmagic handle can be reinstalled on the Top Plate using center 1/4-20 threaded holes.

Unified Baseplate (URSA Mini) - A quick release baseplate for the Blackmagic URSA Mini that provides lightweight 15mm pass through rods at the correct lens height. The baseplate can attach to any tripod plate, ARRI dovetail, or ARRI standard bridgeplate such as Unified Bridgeplate (19mm) or Unified Bridgeplate (15mm Studio). When studio rods are not needed, the Unified Baseplate's ARRI dovetail slot can interface with 2060 Dovetails, Safety Dovetails, or Shoulder Rigs.

NATO Handle Plus v2 Kit - a quick release top handle that attaches and detaches without screws. Includes NATO Handle Plus V2 and NATO ARRI 70mm Rail at a reduced package price. To attach to camera, slide onto NATO rail and turn thumbscrew to lock in place. Loosen top knob to adjust grip rotation. Sideways 15mm tube clamp allows for attachment of UVF Mount v2 (No Clamp). Integrated shoe mount for attaching on camera lights, microphone shock mounts, etc. 1/4-20 and 3/8-16 holes on grip area for attaching additional accessories. 1/4-20 holes on handle front for attaching Rod Clamps which allow for pass through rods front to back. The NATO ARRI 70mm Rail, included in kit, attaches to two 1/4-20 screw points spaced up to 42mm apart center to center and features a standard ARRI Accessory Mount on one side.

2x 15mm Rods (12") - Two 15mm diameter iris rods 12 inches (30cm) in length.

Safety Dovetail (8") - ARRI standard dovetail with 8 inch (20cm) length. Attaches to any tripod plate with 1/4-20 or 3/8-16 screws.

Specifications:
Weight: 1451.5 g (3.2 lbs)
Dimensions: 330.2 x 152.4 x 101.6 mm (13 x 6 x 4 in)
