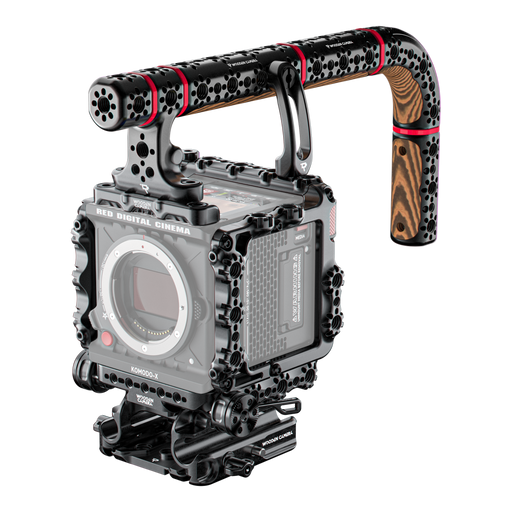

Take your compact camera setup to the next level by adding the Elite Accessory System for RED® KOMODO-X™. This top-tier system expands the reach of KOMODO-X™ for use in small and large production environments. This setup includes all the components users need to have a cinema-ready build right out of the box, including an ARCA Baseplate and ARCA Riser as well as a Full Cage System and Ultra Handle System. Even though this system comes with everything you need to get rolling on a big set, the design itself was made to build upon with additional accessories for greater control of your shooting environment. Included Items: ARCA Baseplate - RED® KOMODO-X™ ARCA Riser - RED® KOMODO-X™ Side Rails - RED® KOMODO®, KOMODO-X™ Top Cheese Plate - RED® KOMODO®, KOMODO-X™ Rear Cage System - RED® KOMODO-X™ Ultra Handle System - RED® KOMODO-X™ 2 x 25mm Bolt-On Rosette (3/8-16) Specifications: 1505 g (3.32 lbs) | 182 x 133 x 125 mm (7.2 x 5.25 x 4.9 in)

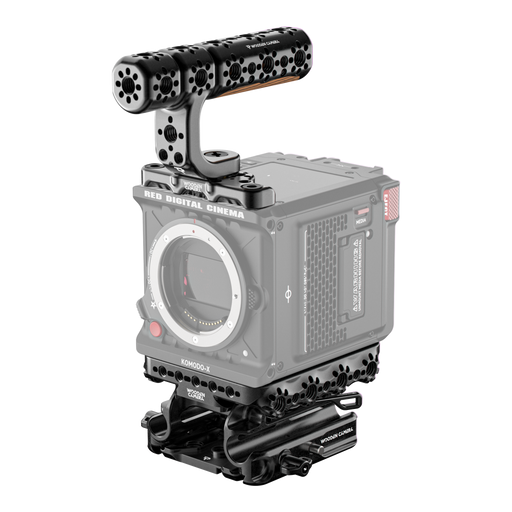

The Core Accessory System for RED® KOMODO-X™ is a lightweight approach to extending the camera's on-set capabilities. The system includes an ARCA Baseplate and ARCA Riser as well as a Top Cheese Plate and Ultra Handle 3” Kit. The intention behind this system is to keep the camera build compact, but effective– so we’ve added an abundance of mounting points allowing users to add accessories based on their needs. The Core Accessory System provides the fundamental building blocks users need to begin building out their rig. Included Items: ARCA Baseplate - RED® KOMODO-X™ ARCA Riser - RED® KOMODO-X™ Top Cheese Plate - RED® KOMODO®, KOMODO-X™ Ultra Handle 3" (3/8"-16, Universal) Specifications: 884 g (1.9 lbs) | 182 x 118 x 70 mm (7.2 x 4.6 x 2.75 in)

Expand your handheld game by adding Side Grips to your setup. These grips include cold shoe mounts at the top of each handle, allowing you to mount accessories like mics for those compact shooting scenarios. The lightweight grips include ⅜”-16 and ¼”-20 mounting points on the outside of the grips to allow for mounting any additional accessories. Included Items: Ultra Handle Side Offset - Top Right Ultra Handle Side Offset - Bottom Right Ultra Handle Side Offset - Top Left Ultra Handle Side Offset - Bottom Left 2 x Ultra Handle 4” 3/16” Hex Key Specifications: 95 g (0.2 lbs) | 53 x 33 x 97 mm (2.1 x 1.3 x 3.8 in)

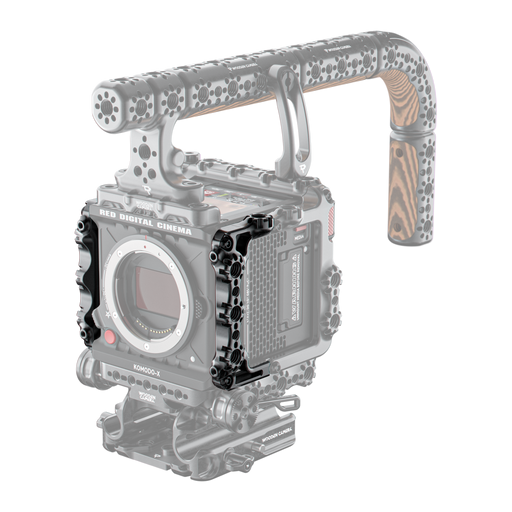

Add ⅜”-16 and ¼”-20 mounting points on the sides of your build by attaching these sleek, lightweight Side Rails. These rails give users the flexibility to mount accessories like Bolt-On Rods for lens motors and 25mm Bolt-On Rosettes on either side of the camera. Can be used as a stand-alone accessory or in addition to the Rear Cage and Top Cheese Plate to give users a complete Cage System, these side rails were made to give KOMODO® and KOMODO-X™ users much-needed real estate for adding accessories. The side rails are designed to be compatible with the Adapter Support Brackets for RED’s KOMODO RF to PL lens mount with their forward facing M4 holes. For KOMODO: Left side Rail does cover up the audio ports Microphone and Headphones. Included Items: Side Rail - Left - RED® KOMODO®, KOMODO-X™ Side Rail - Right - RED® KOMODO®, KOMODO-X™ Specifications: Weight: 95 g (0.2 lbs) Dimensions: 53 x 33 x 97 mm ( 2.1 x 1.3 x 3.8 in)

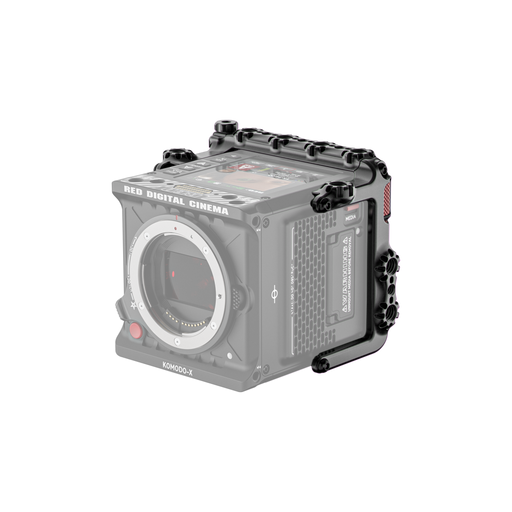

Utilizing the tie-in points at the top end of the camera's body, this Rear Cage System provides much-needed mounting points on the rear side of the camera. The cage allows users to tie into other components like the side rails , adding stability to the entire rig. A built-in Rail System utilizes Accessory Rails to further add a quick-release function to compatible accessories like Accessory Plates or the B-Box for (KOMODO™, KOMODO-X™, V-RAPTOR™). This Rear Cage System is also compatible with other accessories like the Rigging Top Plate. Included Items: Rear Cage - Right - RED® KOMODO-X™ Rear Cage - Left - RED® KOMODO-X™ Specifications: Weight: 123 g (0.27 lbs) Dimensions: 69 x 129 x 107 mm ( 2.7 x 5.1 x 4.2 in)

The Ultra Handle System is a modular, integrated system designed to adapt to any shooting style and camera build by adding or removing handle extensions as needed. This system comes with a riser allowing the contacts on the camera to pass a 3-pin connector with trigger ability through the handle, thereby allowing third-party options to start and stop the camera roll. Also included in the system is a ¼”-20 Support Bracket for added stability, a non-slip 4” Handle with durable Bocote hardwood inserts for comfort. The Handle has two pass-through holes for accessing the mounting bracket with the Hex Wrench while the handle is attached. It also includes two 3” Handle extensions, a 1” Extension, a Right Angle Extension with Bocote hardwood insert, and a Hex Wrench. Lastly, this full system includes 24 color rings (six each in red, blue, green, and yellow) to place between components. Included Items: 3/16" Hex T Handle Ultra Handle Upright for RED® DSMC3™) Ultra Handle Extension Module 1" Ultra Handle Extension Module 4" 2x Ultra Handle Extension Module 3" Ultra Handle Extension Module Right Angle Ultra Handle Support Bracket (1/4-20) Ultra Handle Color Ring Pack Ultra Handle Support Bracket (RED® KOMODO-X™ with RMI) Specifications: Weight: 649 g (1.43 lbs) Dimensions: 300 x 61 x 147 mm ( 11.8 x 2.4 x 5.8 in)

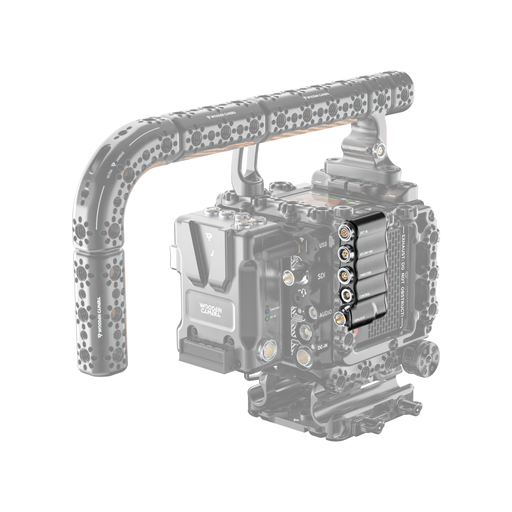

The B-Box enhances the capabilities of the EXT port by offering multiple ports like Run/Stop, timecode, control, and genlock. The B-Box has eight M2.5 threaded holes for additional accessory mounting like Accessory Rails and Bolt-On Plate Adapters. Mounting options included in the B-Box Kit are one 40mm Accessory Rail that is compatible with the Rear Cage mini clamp mount and a Bolt-On 3/8-16 Accessory Mount. This kit includes variations of EXT cables designed for use with our D-Box® for KOMODO-X™ Kit , allowing 24V Run/Stop power out of the 3-pin connector port on the B-Box or to be used directly with the camera's EXT port. Note: For V-RAPTOR and V-RAPTOR [X], user may need a Bolt-On Accessory Plate Adapter or Bolt-On Accessory Rail Clamp for compatibility with their camera cage system. Included Items: B-Box (RED® KOMODO®, KOMODO-X™, V-RAPTOR®) Mini Accessory Rail with Safety (40mm) Bolt-On 3/8-16 Accessory Mount EXT Cable (12-pin 0B Right-Angle Male to 12pin 0B Right-Angle Male, 3in) EXT Cable (9-pin Right-Angle Male to 12-pin Right-Angle Male, 4in) EXT Cable (9-pin Right-Angle Male to 12-pin Straight Male, 12in) EXT Cable (12-pin 0B Straight Male to 12-pin 0B Right Angle Male, 12in) Specifications: Weight: 87g (0.2 lbs) Dimensions: 42 x 30 x 75 mm ( 1.7 x 1.2 x 2.95 in)

This System includes the D-Box®, B-Box, cables, and mounting options to attach the B-Box to the Rear Cage. The D-Box® offers hot swap abilities when power is connected to the DC-In and an on-board battery. There are additional 12V 2-pin, a D-Tap port, and a 3-pin 24V power option. When connected to the EXT port of the camera, Run/Stop is enabled on both the D-Box and the B-Box. The B-Box has eight M2.5 threaded holes for additional accessory mounting like Accessory Rails , and Bolt-On Plate Adapters . Mounting options included with the B-Box are one 40mm Accessory Rail that is compatible with the Rear Cage mini clamp mount and a Bolt-On 3/8-16 Accessory Mount. Included Items: D-Box® - RED® KOMODO-X™ B-Box - RED® KOMODO™, KOMODO-X™, V-RAPTOR™ Specifications: D-Box® (Gold Mount) and B-Box System (RED® KOMODO-X™): 352 g (0.75 lbs) | 48 x 133 x 125 mm (1.9 x 5.2 x 4.9 in) D-Box® (V-Mount) and B-Box System (RED® KOMODO-X™): 367 g (0.8 lbs) | 48 x 133 x 125 mm (1.9 x 5.2 x 4.9 in) Pre-Order Terms and Conditions

Expand your power options on the KOMODO-X™ by adding the D-Box® to your system, this D-Box converts from the camera’s native V-Mount to Gold Mount. The D-Box offers hot swap abilities when power is connected to the DC-In and an on-board battery. There are additional 12V 2-pin, a D-tap port and a 3-pin 24V power options. When connected to the EXT port of the camera, Run/Stop is enabled on both the D-Box as well as the B-Box for (KOMODO®, KOMODO-X™, V-RAPTOR®) . On the assistant's side of the camera there is a DC-In port for connecting additional power items like block batteries and an EXT Out option is also included to pass connectivity options to a B-Box to be connected to the system, as needed. Included Items: EXT Cable (9-pin 0B RA Male to 9-pin 0B RA Male, 5in) Specifications: D-Box® - Gold Mount (RED® KOMODO-X™): 259 g (0.6 lbs) | 38.9 x 78.25 x 105 mm (1.5 x 3.1 x 4.1 in) D-Box® - V Mount (RED® KOMODO-X™): 273.5 g (0.6 lbs) | 48 x 103 x 100 mm (1.9 x 4.1 x 3.9 in)

The Ultra Handle Support Bracket helps stabilize longer handle configurations to prevent flexing while handle extensions are added to the camera system. When using the Ultra Handle System with the Rear Cage System and the DSMC3™ RED® Touch 7.0” Monitor, the RMI attachment is required for maintaining height consistency. Included Items: 3/16” Hex Key Specifications: Weight: 28.5 g (0.06 lbs) Dimensions: 18.5 x 22 x 70 mm (0.7 x 0.9 x 2.75 in)

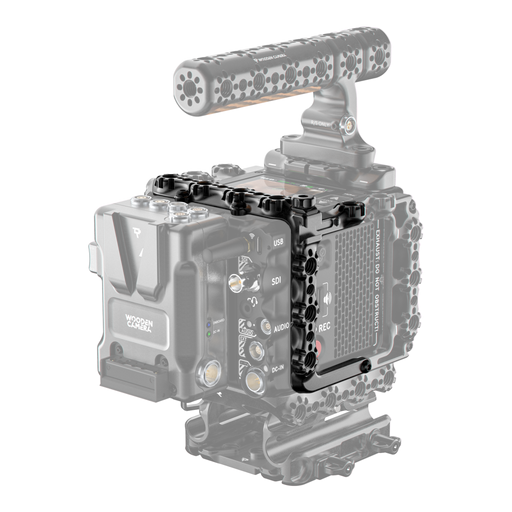

Making use of the tie-in points at the top end of the camera's body, this Rear Cage - Right provides rear mounting points on the back and right side of the camera. This piece offers eight ⅜”-16 and five ¼”-20 anti-twist mounting points for adding accessories to your build. A built-in Accessory Rail Clamp adds a quick-release function to certain compatible accessories, like Accessory Plates or B-Box for KOMODO®, KOMODO-X™, V-RAPTOR® . To connect this piece to the other parts of the Cage system, two screws will secure this piece to the Rear Cage - Left , and two screws attach to the body Included Items: 3mm Hex Key Specifications: Weight: 77.3 g (0.17 lbs) Dimensions: 69 x 111 x 107 mm (2.7 x 4.4 x 4.2 in)

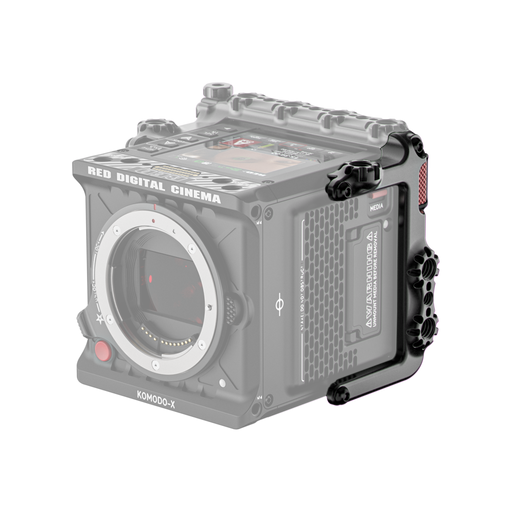

The Rear Cage - Left is one piece of the Rear Cage , singled out for purchasing if you only need mounting points on the left rear side of the camera or as a replacement part. This section of the cage includes three ⅜”-16, anti-twist mounting points and one ¼”-20, anti-twist mounting point. To connect this piece to the other parts of the Cage system, two screws will secure this piece to the Side Rail - Left and one screw connects this to the Rear Cage - Right . In order to not obstruct the functions of this camera, this side of the cage also includes a Battery Release cut-out. Included Items: 3mm Hex Key Specifications: Weight: 45.5 g (0.1 lbs) Dimensions: 64.5 x 16 x 102 mm (2.5 x 0.6 x 4 in)

Our line of Bolt-On Accessory Plate Adapters were designed to mount accessories that have M2.5 threaded holes to your build, like the Accessory Plate Collection or the B-Box for (KOMODO®, KOMODO-X™, V-RAPTOR®). Available in ⅜”-16 and ¼”-20 mounting screws in both variations of flat and right angle, these universal adapters allow you to add accessories to your build securely. Included Items: 3/16” Hex Key 2mm Hex Key Specifications: Bolt-On Accessory Plate Adapter (Flat, 3/8"-16) : 13 g (0.03 lbs) | 28 x 29.5 x 9.5 mm (1.1 x 1.2 x 0.4 in) Bolt-On Accessory Plate Adapter (Flat, 1/4"-20) : 13 g (0.03 lbs) | 28 x 29.5 x 9.5 mm (1.1 x 1.2 x 0.4 in) Bolt-On Accessory Plate Adapter (RA, 3/8"-16) : 14 g (0.03 lbs) | 24.5 x 29.5 x 16 mm (0.97 x 1.2 x 0.04 in) Bolt-On Accessory Plate Adapter (RA, 1/4"-20): 14 g (0.03 lbs) | 24.5 x 29.5 x 16 mm (0.97 x 1.2 x 0.04 in)

The Side Rail - Right gives users mounting points on the right side of the KOMODO® and KOMODO-X™ as well as Sensor Plane markings. This rail offers four ⅜”-16 and two ¼”-20 anti-twist mounting points where you can add accessories like Bolt-On Rods for lens motors or any of our universal accessories. Can work as a standalone item or in tandem with the Rear Cage and Side Rail - Left , this system together was designed to provide all-around rigging for the KOMODO-X. The side rails are designed to be compatible with the Adapter Support Brackets for RED’s KOMODO RF to PL lens mount with their forward facing M4 holes. Included Items: 3mm Hex Key Specifications: Weight: 47.5 g (0.10 lbs) Dimensions: 53 x 16.5 x 97 mm (2.1 x 0.65 x 3.8 in)

The Side Rail - Left gives users mounting points on the left side of the KOMODO® or KOMODO-X™ as well as Sensor Plane markings. This rail offers four ⅜”-16 and two ¼”-20, anti-twist mounting points where you can add accessories like Bolt-On Rods for lens motors or any of our universal accessories. Can work as a standalone item or in tandem with the Rear Cage and Side Rail - Right , this system together was designed to provide all-around rigging for the KOMODO-X. The side rails are designed to be compatible with the Adapter Support Brackets for RED’s KOMODO RF to PL lens mount with their forward facing M4 holes. Included Items: 3mmHex Key Specifications: Weight: 47.5 g (0.10 lbs) Dimensions: 53 x 16.5 x 97 mm (2.1 x 0.65 x 3.8 in)

The Ultra Handle 4” Kit comes with the Ultra Handle Upright for RED® DSMC3™, a 4” extension, and a 1” extension. The upright has a 3-pin connector to allow Run/Stop functionality and includes dual ¼”-20, anti-twist screws for mounting to the Top Cheese Plate, RED® RMI adapter or directly to the camera. The handle includes multiple ⅜”-16 and ¼”-20, anti-twist mounting points throughout for mounting additional accessories. Included Items: 1” Ultra Handle Extension 4” Ultra Handle Extension 3/16" Hex T Handle Ultra Handle Upright for RED® DSMC3™ Specifications: Weight: 234 g (0.5 lbs) Dimensions: 152 x 63.7 x 70 mm (6 x 2.5 x 0.75 in)

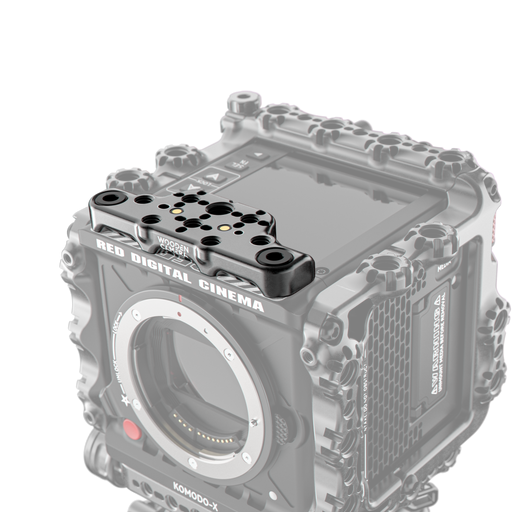

The Top Cheese Plate securely mounts to the KOMODO® or KOMODO-X™ using two ¼”-20 screws with anti-twist pins and adds seven ¼”-20, anti-twist mounting points. The plate connects directly to the top of the camera, allowing the contact pins to pass Run/Stop connection through the plate. This Top Plate can be used in tandem with the Ultra Handle Upright for RED® DSMC3™ as well as the Rigging Top Plate. Included Items: 3/16” Hex Key Specifications: Weight: 52 g (0.11 lbs) Dimensions: 31.4 x 85 x 10.5 mm (1.2 x 3.3 x 0.4 in)

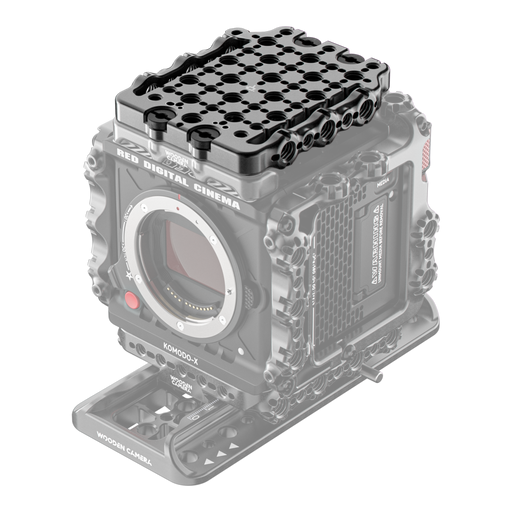

Developed based on a direct request from a user, the Rigging Top Plate for RED® KOMODO-X™ expands the possibilities of adding accessories to the top of the camera body. This Top Plate offers an abundance of ⅜”-16 and ¼”-20, anti-twist mounting points on the top and sides of this plate allowing users to reposition the top handle or mount additional accessories. Additionally, this Top Plate protects the top screen of the camera and allows for added rigging for car mounts or camera arrays. Designed to be used with the Top Cheese Plate and Rear Cage , four ¼”-20 screws securely attach all these elements adding stability and function. Included Items: 3/16” Hex Key Specifications: Weight: 144.5 g (0.3 lbs) Dimensions: 105.6 x 86 x 16.5 mm (4.2 x 3.4 x 0.65 in)

The ARCA Base Plate was designed for dual 15mm LW rods and allows for maintaining optimal lens height for studio-style builds. This Base Plate comes with a quick-release lever to be used with the ARCA Riser when lightweight builds are necessary. This Base Plate includes a Bridge Plate Dovetail for use with either 15mm or 19mm Bridge Plates and tripod plates. Our ARCA system allows quick adjustments from a studio build to a Steadicam or Handheld build in seconds. Included Items: Bridge Plate Dovetail P00109 Specifications: Weight: 337 g (0.75 lbs) Dimensions: 88.25 x 117.5 x 44.5 mm (3.5 x 4.6 x 1.75 in)

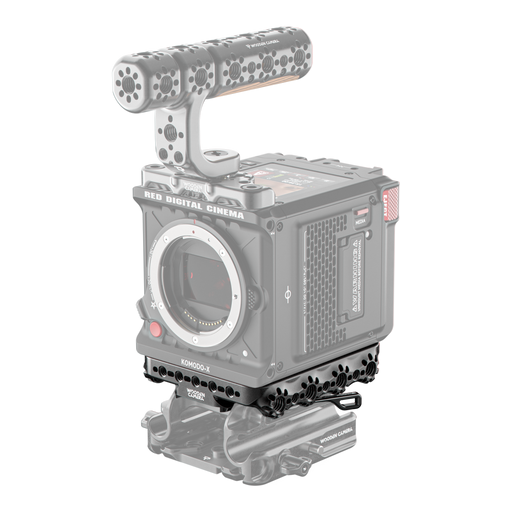

The ARCA Riser incorporates an anti-twist block design built into the bottom of the camera. The Riser was intended for use with the ARCA Baseplate , allowing users to transition to a lightweight rig when rods and lens support are no longer needed. The design prevents any movement on the Riser itself providing the user with a safe and secure connection. Safety features prevent the camera from sliding off the baseplate. The ARCA Riser plate keeps the camera at its optimal lens height while offering mounting points along the base of the system as well as Lens Support mounts to prevent mount shift on Cine-style lenses. Included Items: 3/16” Hex Key Specifications: Weight: 157 g (0.3 lbs) Dimensions: 108 x 95.25 x 20.8 mm (4.25 x 3.75 x 0.8 in)

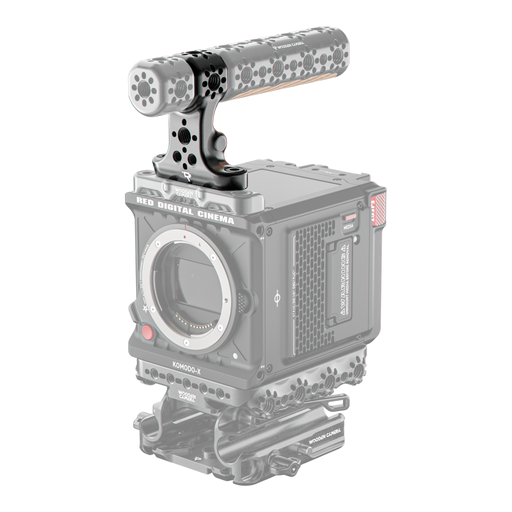

The Ultra Handle Upright for the RED® system has the appropriate ¼”-20 spacing for use with KOMODO-X™, KOMODO® and V-RAPTOR® camera s. This Upright includes pogo pins for the 3-pin connector that allows for Run/Stop trigger function. The design also includes six ⅜”-16, anti-twist pin inserts and dual front-facing ¼”-20 screw holes. This Upright is also compatible with the DSMC3™ RED® Touch 7.0” Monitor’s RMI connection. Specifications: Weight: 97.3g (0.21 lbs) Dimensions: 25.4 x 63.7 x 70 mm (1 x 2.5 x 2.75 in)

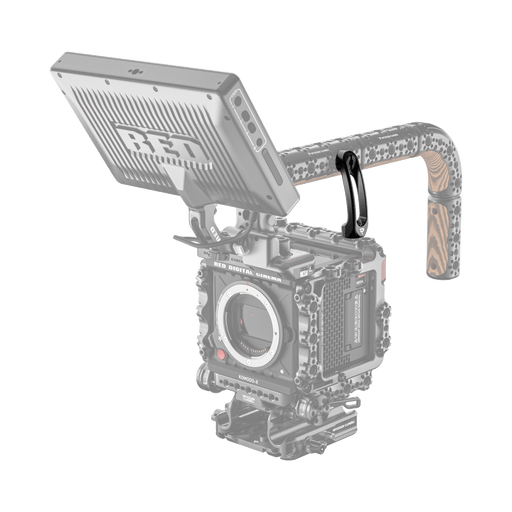

The Ultra Handle Support Bracket is a lightweight, yet sturdy bracket designed to stabilize longer handle configurations and offset any flexing. This bracket mounts to the Ultra Handle using either the ¼”-20 mounting option or the ⅜”-16 option. This works on systems with threaded hole patterns that are on 1” centers. Included Items: 3/16” Hex Key Specifications: Ultra Handle Support Bracket (1/4"-20): 28.5 g (0.06 lbs) | 18.5 x 22 x 65.4 mm (0.04 x 0.9 x 2.6 in) Ultra Handle Support Bracket (3/8"-16): 28.5 g (0.06 lbs) | 18.5 x 22 x 65.4 mm (0.04 x 0.9 x 2.6 in)

The Bolt-On Rosettes give users the ability to mount Rosette Handle Grips anywhere on their build. These rosettes have locking pins to prevent twisting and were designed with tool passthrough for secure mounting. The Bolt-On Rosettes come in either ⅜”-16 and ¼”-20 options. Included Items: 4mm Hex Key Specifications: 25mm Bolt-On Rosette (1/4"-20) : 10.3 g (0.02 lbs) | 25 x 25 x 16 mm (1 x 1 x 0.6 in) 25mm Bolt-On Rosette (3/8"-16) : 10.3 g (0.02 lbs) | 25 x 25 x 16 mm ( 1 x 1 x 0.6 in)

The Shoulder Plate - ARCA was made to allow users to quickly swap from studio to handheld setups when using the ARCA Base Plate. This Shoulder Plate is easy to unscrew and slides off the ARCA Base Plate in seconds with one press of the safety release. Users can adjust the plate on the ARCA Base Plate for optimal shoulder pad position. Specifications: 214 g (0.5 lbs) | 180 x 110.5 x 16 mm (7.1 x 4.4 x 0.6 in)

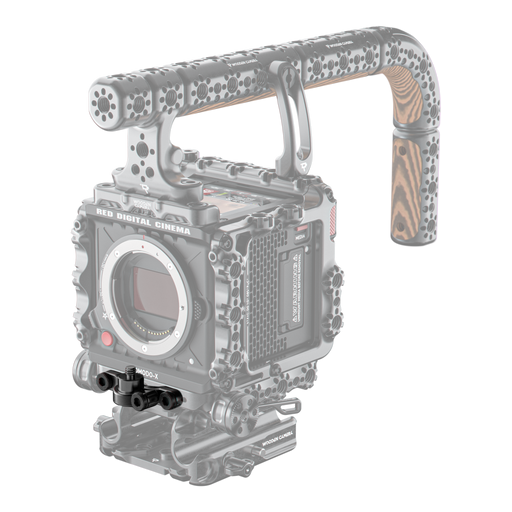

There are three options in Mount Support for KOMODO-X™ between RF to LPL and RF to PL that are compatible with the ARCA Riser for KOMODO-X. Mount supports help prevent any rotation in mount adapters, providing a solid connection when rotating the lens barrels for the desired shot. The RF to PL Supports offer a secure mounting point between the PL mount and Riser, users can adjust the height and tighten the clamp to the riser screw to prevent mount flex. V1 is compatible with the Canon RF to PL Mount Adapter (Pro) and V2 is compatible with the Canon RF to PL Mount Pro (RED® V-Raptor®, KOMODO®, KOMODO-X™) The RF to LPL Support secures your LPL mount to the Riser and allows users to adjust the height as well as tighten the clamp to the riser screw to prevent mount flex. This Support is compatible with the Canon RF Mount to ARRI LPL Mount Adapter. Included Items: 3/16” Hex Key Specifications: RF to PL (V1) Mount Support (RED® KOMODO-X™): 42.5 g (0.09 lbs) | 20.5 x 60.6 x 15 mm (0.8 x 2.4 x 0.6 in) RF to PL (V2) Mount Support (RED® KOMODO-X™): 53.8 g (0.1 lbs) | 25.2 x 60.6 x 20 mm (1 x 2.4 x 0.8 in) RF to LPL Mount Support (RED® KOMODO-X™): 1.53 g (0.1 lbs) | 21.8 x 60.6 x 17 mm (0.85 x 2.4 x 0.7 in)

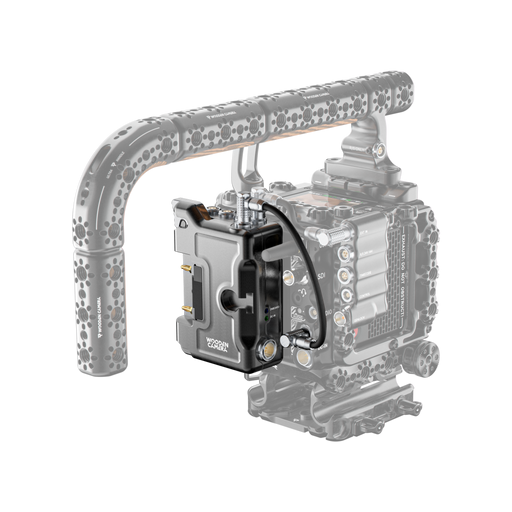

This cable connects from the EXT port of the camera to the D-Box® for KOMODO-X™ system providing Run/Stop abilities to the 3-pin connector port.

These EXT Cables connect from the camera's EXT port to the B-Box for (KOMODO®, KOMODO-X™, V-RAPTOR®) directly, breaking out control options like Timecode, Control, Genlock and 3-pin Run/Stop ability. Two length options of 4” or 12“ were intended to keep your B-Box in the place that works best for the user's needs. The 4” length was designed to be used with the Rear Cage and keeps the build tidy. The 12” length allows users to place the B-Box anywhere that works best for them, this could be along the camera's cage system like Side Rails or 3rd party system options. Please note, the 3-pin port will not provide 24V power in this configuration unless connected to the D-Box® for KOMODO-X. Pre-Order Terms and Conditions

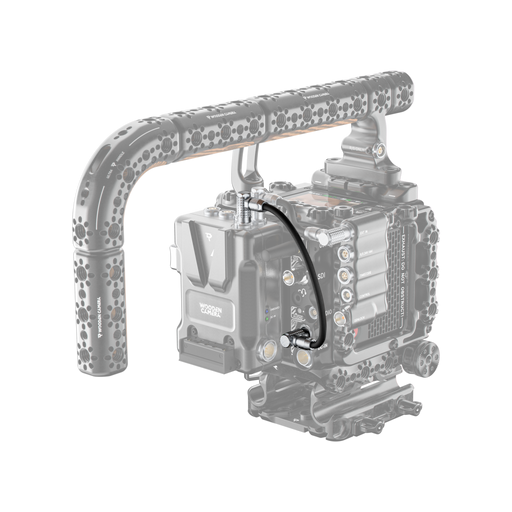

These EXT cables connect from the D-Box® for KOMODO-X™ to the B-Box (KOMODO®, KOMODO-X, V-RAPTOR®), allowing for EXT options like Timecode, Control, Genlock as well as 24V power and Run/Stop ability to the 3-pin port on the B-Box. When the Rear Cage is in use and the B-Box is connected, the 3” Right Angle cable is the best option. The 5” and 12” Right Angle to Straight adds length to allow for alternative placement of the B-Box.

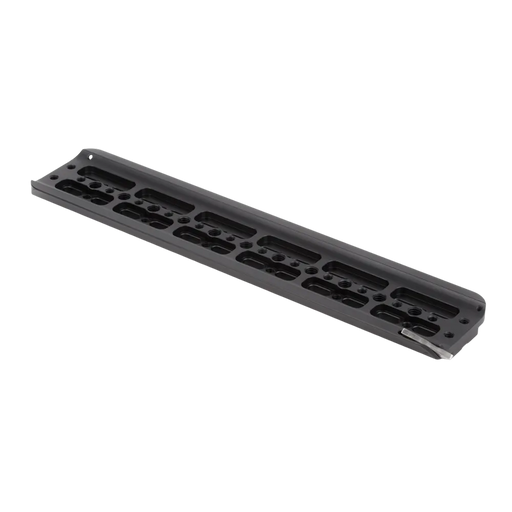

12 inch ARRI standard dovetail with safety catches on each end. Attaches natively to: O'Connor 2060 O'Connor 2575 O'Connor 120EX Sachtler Cine 30 Also attaches to any tripod head via screws. Specifications: Weight: 610g (1.3 lbs) Dimensions: 304.8 x 95.2 x 23 mm (12.0 x 3.7 x 0.9 in) Review by Finner Knows Best Bridgeplates, Dovetails, & Dovetail Clamp Overview:

8" ARRI standard dovetail with safety catch on one end to prevent accidental camera removal. Threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. Attach to Shoulder Pad for custom handheld configurations Perfect for Manfrotto, Miller, Cartoni, and more. Specifications: Weight: 292g (0.6 lbs) Dimensions: 203.2 x 68.2 x 13.2 mm (8.0 x 2.7 x 0.5 in) Bridgeplates, Dovetails, & Dovetail Clamp Overview:

12" ARRI standard dovetail with safety catch on one end to prevent accidental camera removal. Threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. Attach to Shoulder Pad for custom handheld configurations Perfect for Manfrotto, Miller, Cartoni, and more. Specifications: Weight: 427g (0.9 lbs) Dimensions: 304.8 x 68.4 x 13.4 mm (12.0 x 2.7 x 0.5 in) Bridgeplates, Dovetails, & Dovetail Clamp Overview:

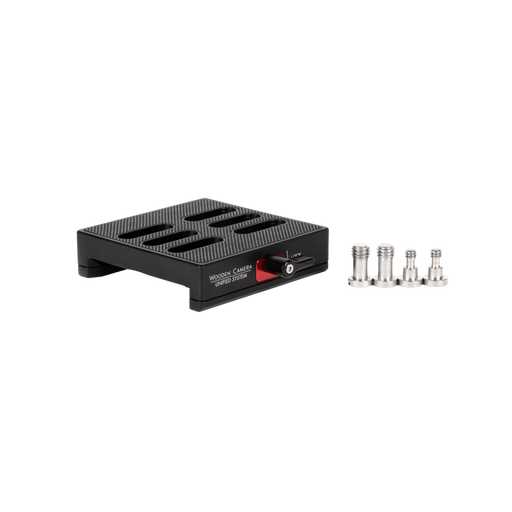

Dovetail Clamp adapts any camera system, baseplate, or accessory to an ARRI standard dovetail. Great for use with our Fixed Bases, Quick Bases, Universal Baseplate, and Riser systems. Includes: (2) Unified Bridgeplate Screw (3/8-16) (2) Unified Bridgeplate Screw (1/4-20) Specifications: Weight: 164g (0.4 lbs) Dimensions: 89.8 x 99 x 18.9 mm (3.5 x 3.9 x 0.7 in) Bridgeplates, Dovetails, & Dovetail Clamp Overview:

Quick Release Bridgeplate (19mm) is an ARRI standard bridgeplate with 19mm rod openings. The new design allows the bridgeplate to drop down and lock on, anywhere along an ARRI standard dovetail. A safety catch adds security to the lever release function. Unlock the lever half way to slide on the dovetail or push the release button to allow the lever to move further and release the camera vertically. ARRI standard height makes it compatible with most camera rigs including those using our Unified Baseplates . Rubberized top coating prevents twisting and slotted design accommodates non-standard screw spacings. When combining this Bridgeplate with a RED® DSMC2™ or earlier RED® systems, the lens height will be approximately +3mm too tall. If you need to achieve the correct RED® lens height spacing, please choose our Unified Bridgeplate (19mm) . QR Includes: (2) 3/8-16 screws Specifications: Weight: 420g (0.93 lbs) Dimensions: 101.6 x 152.4 x 31.75 mm (4 x 6 x 1.25 in)

Quick Release Bridgeplate (15mm Studio) is an ARRI standard bridgeplate with 15mm studio offset spacing (rods spaced 100mm center to center). The new design allows the bridgeplate to drop down and lock on, anywhere along an ARRI standard dovetail. A safety catch adds security to the lever release function. Unlock the lever half way to slide on the dovetail or push the release button to allow the lever to move further and release the camera vertically. ARRI standard height makes it compatible with most camera rigs including those using our Unified Baseplates . Rubberized top coating prevents twisting and slotted design accommodates non-standard screw spacings. When combining this Bridgeplate with a RED® DSMC2™ or earlier RED® systems, the lens height will be approximately +3mm too tall. If you need to achieve the correct RED® lens height spacing, please choose our Unified Bridgeplate (15mm Studio) . QR Includes: (2) 3/8-16 screws Specifications: Weight: 420g (0.93 lbs) Dimensions: 101.6 x 152.4 x 31.75 mm (4 x 6 x 1.25 in)

LW15mm Baseplate (RED® KOMODO™, KOMODO-X) provides 15mm lightweight rod openings at the correct distance to the center of the lens. ARRI standard M6 rosettes are on both sides along with 1/4-20 threaded holes. 3/8-16 ARRI accessory mount also available on camera-right side. Baseplate features upper ARCA Swiss standard dovetail with center screw channel and vertical lens support post system. Attach one 1/4-20 and 3/8-16 screw to camera bottom and position vertical, 1/4-20 rod post underneath lens adapter like Canon RF to PL Mount Pro (RED® KOMODO™) . Lower dovetail slot is ARRI standard for attaching to ARRI dovetails or the included Quick Dovetail. With Quick Dovetail attached, the baseplate and camera combination can be combined with an ARRI standard bridge plate like Quick Release Bridgeplate (19mm) or Quick Release Bridgeplate (15mm Studio) . Includes: (2) 1/4-20 low profile screws (2) 3/8-16 low profile screws Specifications: Weight: 389 g (0.86 lbs) Dimensions: 114.3 x 101.6 x 58.42 mm (4.5 x 4 x 2.3 in)

Top Mount Only for RED KOMODO-X & KOMODO is a Top Mount that attaches to the camera body using two captive 3/4" screws and provides a center ARCA Swiss dovetail clamping slot along with 1/4-20 and 3/8-16 threaded holes for attaching accessories. Includes 3/4" screws for mounting directly to top of camera as well as one 1/3" screw for attaching on top of the KOMODO™™ Outrigger Handle sold by RED®. Items like Top Handle Only , Monitor Hinge Only , and Top Plate Only (RED® KOMODO™, ARCA Swiss) can be purchased separately and installed into this device. Includes: 2x 3/4" Screws 1x 1/3" Screw Specifications: Weight: 65 g (0.15 lbs) Dimensions: 107.95 x 31.75 x 12.7 mm (4.25 x 1.25 x .5 in)

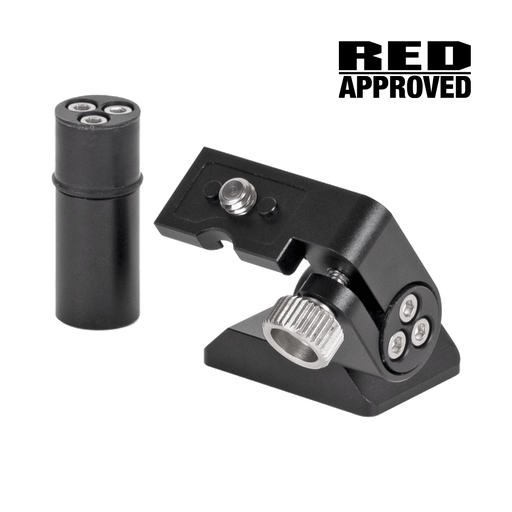

Monitor Hinge Only for RED KOMODO-X & KOMODO can attach into ARCA slot like the one found on Top Mount Only (RED® KOMODO™) which is sold separately. When combined with Top Mount, system provides a direct 1/4-20 mount for SmallHD monitors . Included rubber pad can be added for attaching third party monitors. A 15mm mounting spud is included and allows monitor arm to be quick released and attached onto Top Handle (RED® KOMODO™) which is also sold separately. Specifications: Weight: 60 g (0.14 lbs) Dimensions: 50.8 x 50.8 x 38.1 mm (2 x 2 x 1.5 in)

Canon RF to PL Mount Pro adapts PL lenses to Canon RF Mounts. Flange focus is set to match camera prior to shipping but shims are included should further adjustment be desired. This mount works with RED® cameras such as the V-Raptor™, KOMODO-X, KOMODO™ and Canon cameras such as the Canon EOS C70, C80 and C400. Tabs on PL collar allow for easy lock and unlock and 1/4-20 on mount base allows for lens support to be added like that on the LW 15mm Baseplate (RED® KOMODO™), ARCA Riser Plate for Canon EOS C80, or ARCA Riser Plate for Canon EOS C400. Includes: (3) Vertical lens support posts (Small, Medium, Large) Specifications: Weight: 240 g (0.53 lbs) Dimensions: 95.25 x 95.25 x 57.15 mm (3.75 x 3.75 x 2.25 in)

RED® KOMODO™ Accessory Kit (Advanced) is an accessory kit for RED KOMODO-X & KOMODO that includes the LW 15mm Baseplate , Complete Top Mount Kit , and 2x 15mm Rods (12”) . The LW 15mm Baseplate (RED® KOMODO™) provides 15mm lightweight rod openings at the correct distance to the center of the lens. ARRI standard, M6 rosettes are on both sides along with 1/4-20 threaded holes. 3/8-16 ARRI accessory mount also available on camera right side. Baseplate features upper ARCA Swiss standard dovetail with center screw channel and vertical lens support post system. Attach one 1/4-20 and 3/8-16 screw to camera bottom and position vertical, 1/4-20 rod post underneath lens adapter like Canon RF to PL Mount Pro (RED® KOMODO™) . Lower dovetail slot is ARRI standard for attaching to ARRI dovetails or the included Quick Dovetail . With Quick Dovetail attached, the baseplate and camera combination can be combined with an ARRI standard bridge plate like Quick Release Bridgeplate (19mm) or Quick Release Bridgeplate (15mm Studio) . The Complete Top Mount Kit (RED® KOMODO™) features a Top Mount that attaches to the camera body using two captive 1/4-20 screws and provides a center ARCA Swiss dovetail clamping slot along with 1/4-20 and 3/8-16 threaded holes for attaching accessories. Included Top Handle slides into ARCA slot and leaves camera control screen easily accessible. Shoe mount on top can hold on-camera lights and microphones and side 15mm opening can hold included monitor arm or UVF Mount V2 . 1/4-20 and 3/8-16 ARRI accessory mount in several places and 15mm lightweight rod bracket on front for attaching lens motors and more. Monitor Hinge can attach into ARCA slot and provides a direct 1/4-20 mount for SmallHD monitors . Included rubber pad can be added for attaching third party monitors. A 15mm mounting spud is included and allows monitor arm to be quick released and attached onto Top Handle. Top Plate slides into ARCA slot to provide rows of 1/4-20 and 3/8-16 ARRI accessory mounts in standard spacing and can be adjusted forwards to allow camera control screen access. Great for attaching to gimbal and drone systems or for using legacy Wooden Camera products. Specifications: Weight: 1038 g (2.29 lbs) Dimensions: 304.8 x 158.75 x 63.5 mm (12 x 6.25 x 2.5 in)

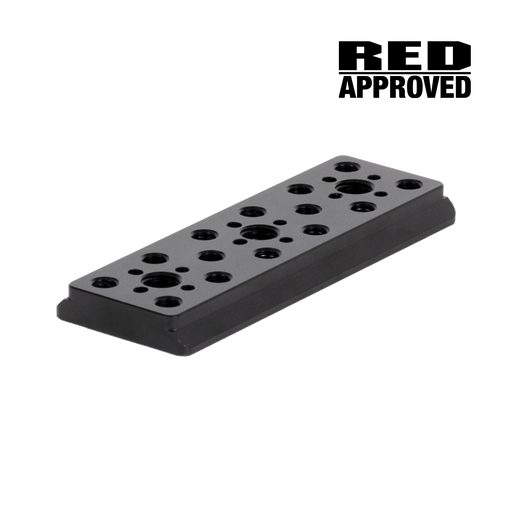

Top Plate Only for RED KOMODO-X & KOMODO slides into an ARCA Swiss slot like the one found on Top Mount Only (RED® KOMODO™) which is sold separately. When combined with Top Mount, system provides rows of 1/4-20 and 3/8-16 ARRI accessory mounts in standard spacing and can be adjusted forwards to allow camera control screen access. Great for attaching to gimbal and drone systems or for using legacy Wooden Camera products. Specifications: Weight: 47 g (0.11 lbs) Dimensions: 101.6 x 38.1 x 12.7 mm (4 x 1.5 x .5 in)

Timecode In/Out Cable for RED® V-Raptor™, KOMODO-X, KOMODO™ is a female, 5pin to right angle, RED EXT, 9pin. The connector exits toward the operator side, leaving other ports or accessories on the back of the camera accessible. Cable length: 12 inches (30cm) Specifications: Weight: 90 g (0.2 lbs) Dimensions: 25.4 x 127 x 152.4 mm (1 x 5 x 6 in)

Control Cable for RED® V-Raptor™, KOMODO-X, KOMODO™ CTRL is a Female 4pin 00 connector to a right angle, RED® EXT, 9pin. The connector exits toward the operator side, leaving other ports or accessories on the back of the camera accessible. Please note that the RED KOMODO-X & KOMODO utilizes RCP2 protocol so the device being attached may be incompatible or require a firmware update. Cable length: 12 inches (30 cm) Specifications: Weight: 90 g (0.2 lbs) Dimensions: 25.4 x 127 x 152.4 mm (1 x 5 x 6 in)

3pin Fischer Trigger Cable for RED® V-Raptor™, KOMODO-X, KOMODO™ is a Female 3pin Fischer wired in ARRI standard configuration to a right angle, RED® EXT, 9pin. The connector exits toward the operator side, leaving other ports or accessories on the back of the camera accessible. Please note this is for simple triggering only. No power, tally, or any other functionality is available. Cable length: 36 inches (91cm) Specifications: Weight: 90 g (0.2 lbs) Dimensions: 25.4 x 127 x 152.4 mm (1 x 5 x 6 in)

Genlock Cable for RED® V-Raptor™, KOMODO-X, KOMODO™ is a female BNC connector to a right angle, RED EXT, 9pin. The connector exits toward the operator side, leaving other ports or accessories on the back of the camera accessible. Cable length: 12 inches (30 cm) Specifications: Weight: 90 g (0.2 lbs) Dimensions: 25.4 x 127 x 152.4 mm (1 x 5 x 6 in)

Replacement Upper ARCA Dovetail for the LW15mm Baseplate (RED® KOMODO™) also compatible with KOMODO-X . Includes: (1) 1/4-20 low profile screws (1) 3/8-16 low profile screws Specifications: Weight: 38 g (0.09 lbs) Dimensions: 101.6 x 38.1 x 19 mm (4 x 1.5 x .75 in)

RED® KOMODO™, KOMODO-X Revolva Riser provides clearance for the Wooden Camera RED® KOMODO™ Top Mount Kits to be utilized with the KipperTie Revolva RF/PL. Includes: (2) 1/4-20x3/8” Button Specifications: Weight: 24 g (0.06 lbs) Dimensions: 82.55 x 20.32 x 6.35 mm ( 3.25 x .8 x .25 in)

Safety NATO Arm (RED® KOMODO™, KOMODO-X) is a NATO standard side mounting arm for the RED KOMODO-X and KOMODO camera with arrays of 1/4”-20 and 3/8”-16 mounting points in standard spacing provide additional mounting for NATO handles, clamps and accessories. Attaches via M4 screws on either side of the camera featuring spring loaded pins on each end prevent accidental accessory removal. Includes: (2) M4 x 7mm Socket Cap Specifications: Weight: 35 g (0.08 lbs) Dimensions: 95 x 23 x 18 mm ( 3.75 x .91 x .71 in)

Oconnor Easy Load ARRI Dovetail (2575, 2065, 120EX, 12”) is a 12 inch ARRI standard dovetail with safety latches on each end. New easy-load safety latches allow for smoother camera installation. Provides 1/4-20 and 3/8-16 mounting points as well as mounting points for rack gear to be used on OConnor 120ex heads for driving heavy feature film payloads back and forth for accurate balancing. Also attaches to any tripod head via screws. Attaches natively to: OConnor 2560 OConnot 2575 OConnor 2060 OConnor 2065 OConnor 120EX Specifications: Weight: 758g (1.68 lbs) Dimensions: 365.76 x 95.25 x 25.4 mm (14.4 x 3.75 x 1 in)
