WC Pro Gold Mount (Alexa Mini / Mini LF)

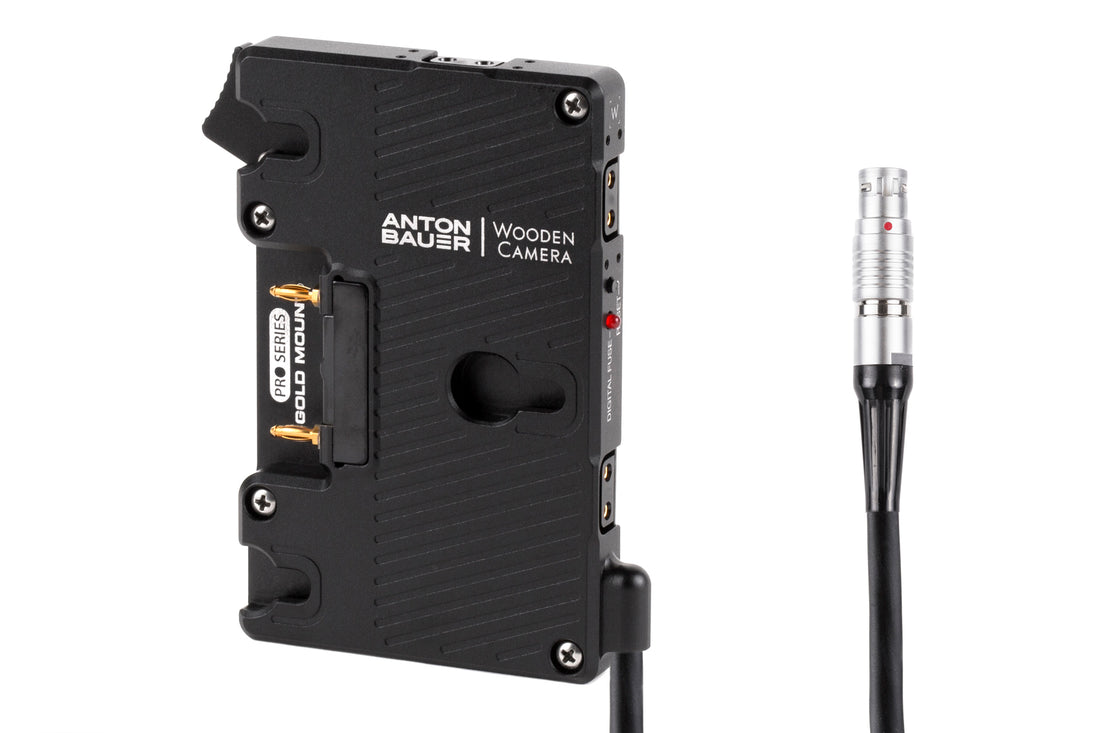

WC Pro Gold Mount (Alexa Mini / Mini LF) is a metal power plate, created in partnership with Anton Bauer, and has a rugged aluminum body for durability and secure battery mounting and an Alexa Mini / Mini LF connector. Features 3x D-Taps for accessory power at battery voltage (12-16V), a digital fuse with reset button, rear cover plate, and captive mounting screws.
Should the user exceed the set current for accessories, only the accessory outputs are disabled leaving the camera running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again.
16" cable exits the right side of the plate allowing easy insertion into the camera. Custom lengths available up to 6ft for no additional charge. Additional lengths available as needed. Send us an email with your requirements: email@example.com
To mount the WC Pro Gold Mount onto the Alexa Mini, we recommend the below combination:
Quick Cage (Alexa Mini + LW) - cage that surrounds the camera and provides standard mounting points
Battery Slide - an adjustable battery mounting plate that attaches a V-Mount or Gold Mount plate to Quick Cage (Alexa Mini)
For an adjustable mount system attached to rods, use the Battery Slide or Recorder Slide paired with the appropriate Rod Clamp: Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm).
Weight: 186g (0.41 lbs)
Dimensions: 146.1 x 76.2 x 19.1 mm (5.75 x 3 x 0.75 in)
