UVF Mount v2

Sold out
$449.00
SKU 157100

UPC 610079106499

DISCONTINUED

IN STOCK Complete purchase by 3pm CST and order will ship same business day.

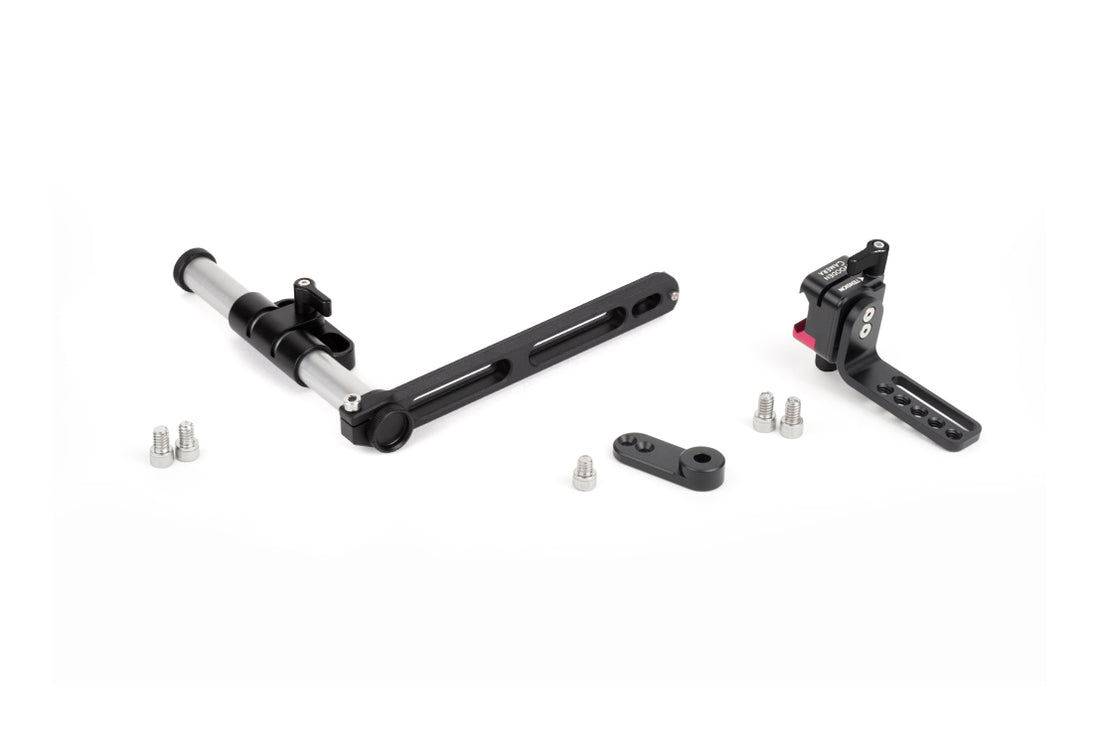

UVF Mount v2 accepts most EVFs and LCDs. Three points of adjustment: 15mm tube clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of EVF. Tool-less design allows quick installation and removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach directly to any NATO-style rail and includes adapter for using SmallHD and Alphatron viewfinders.

NATO Arm length approximately 5"

The included 15mm Tube Clamp bolts directly to two 1/4-20 screw holes spaced between 25mm and 36mm center to center. Can attach directly to RED® Dragon/Epic/Scarlet and AJA CION. Can also attach to other cameras via Wooden Camera cages and cheeseplates.

Includes:
(4) 1/4-20 x 3/8" screws
(1) 1/4-20 x 1/4" screws

Specifications:
Weight: 320g (0.7 lbs)
Dimensions: 206.8 x 158.8 x 60.9 mm (8.1 x 6.3 x 2.4 in)

Introduction to UVF Mount V2:
UVF Overview:
