UVF Mount (URSA)

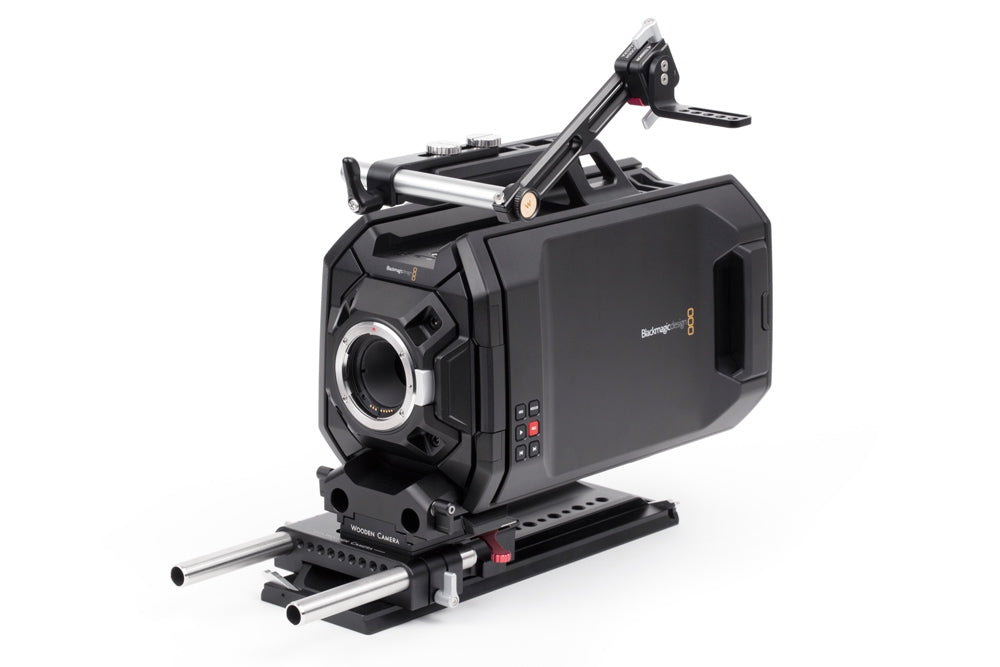

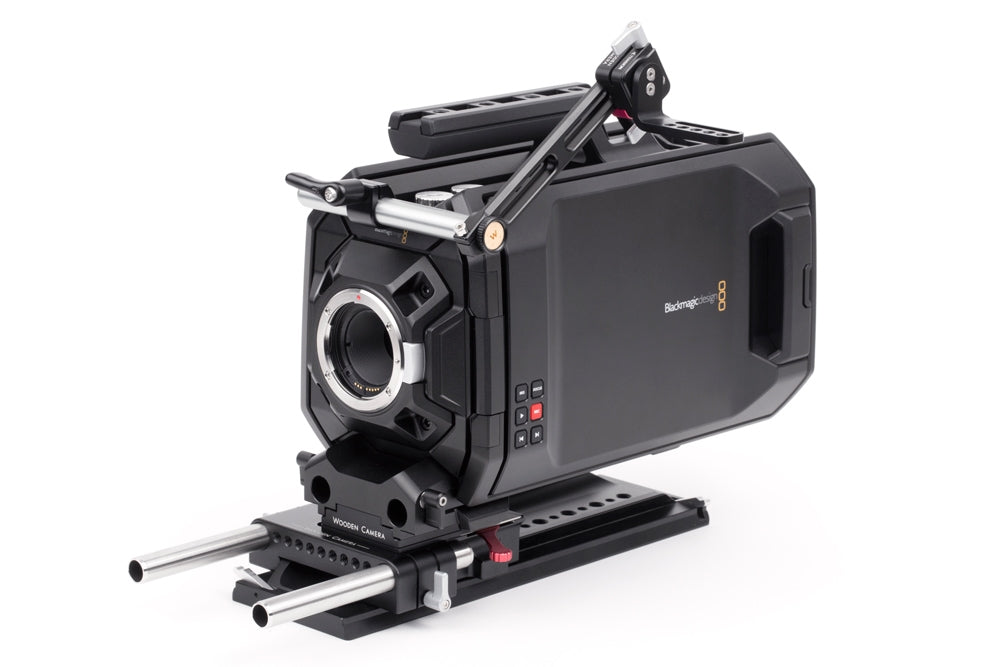

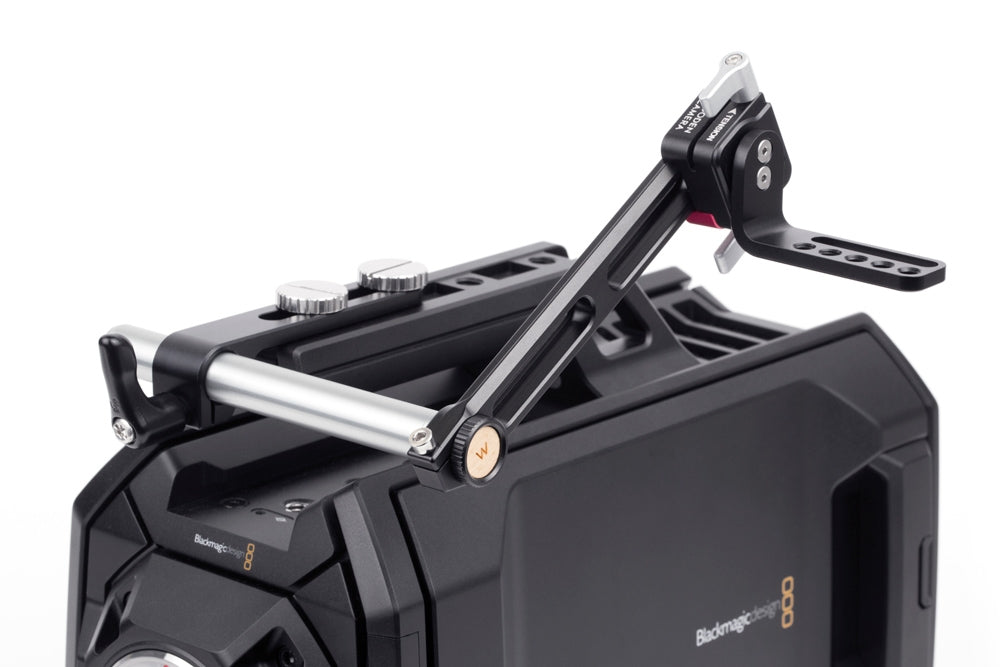

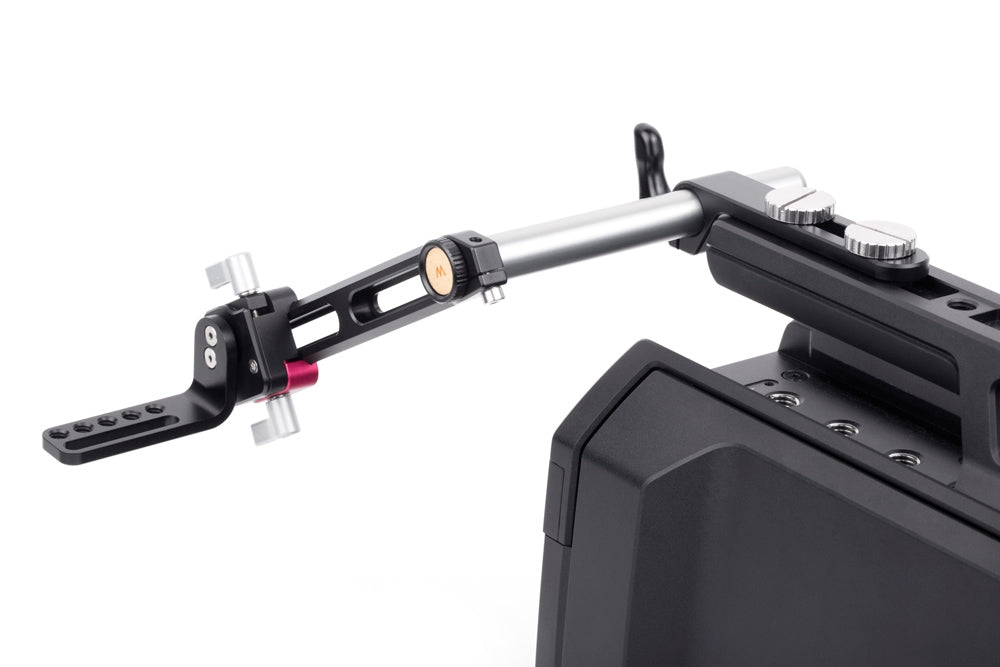

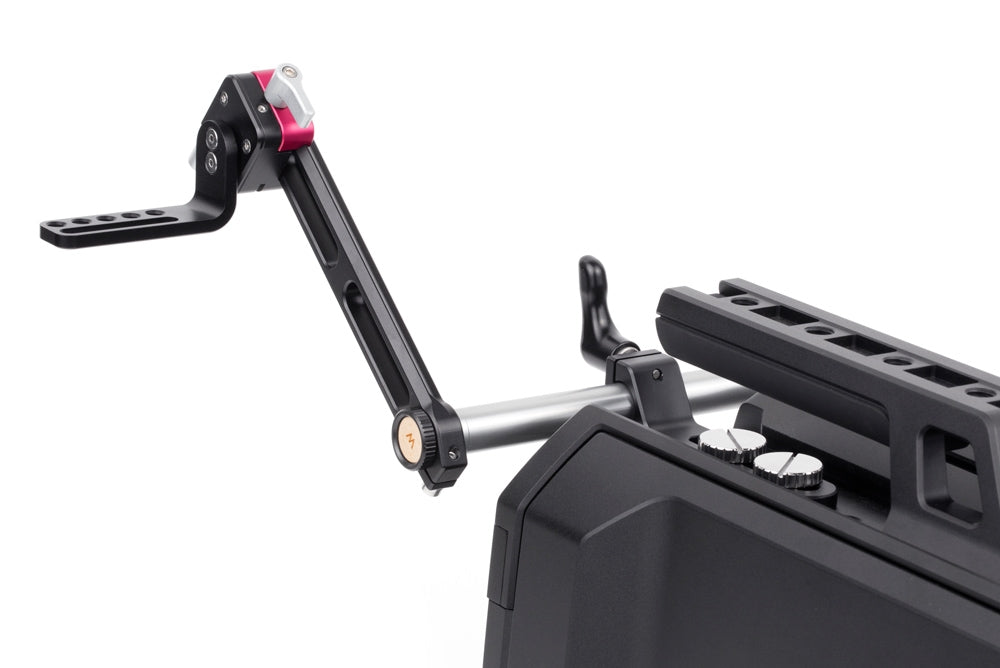

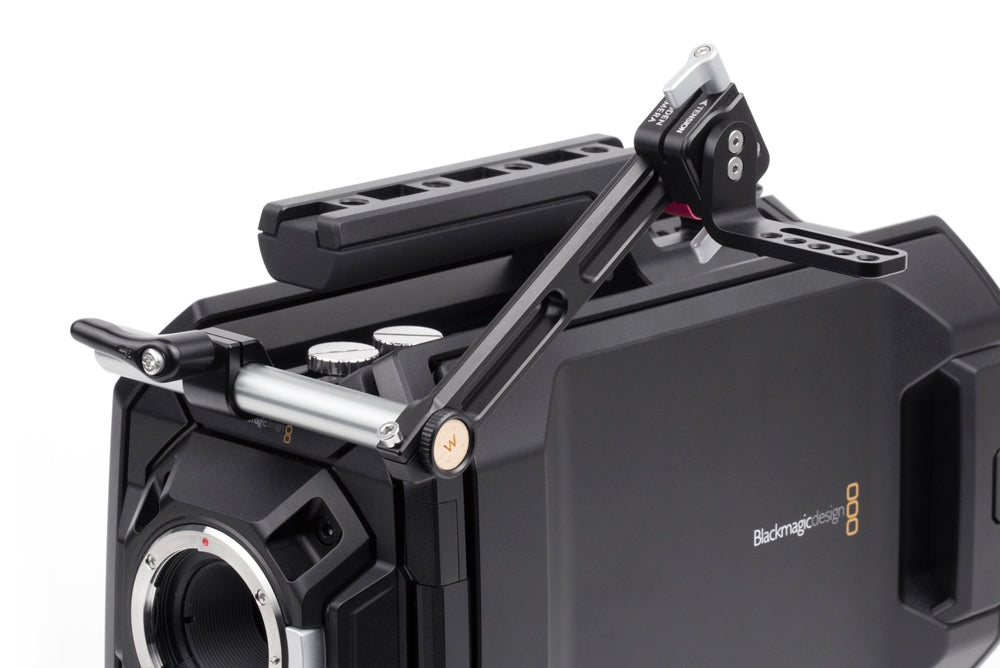

UVF Mount (URSA) attaches conveniently to the camera body under the Blackmagic URSA handle. It can also attach to the top of the handle if desired. The UVF Mount accepts most EVFs and LCDs. Three points of adjustment: 15mm tube clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of EVF. Tool-less design allows quick installation and removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach directly to any NATO-style rail.

NATO Arm length approximately 4"

Includes adapter for using SmallHD and Alphatron viewfinders.
Bolts directly to two 1/4-20 screw holes spaced between 25mm and 36mm center to center.

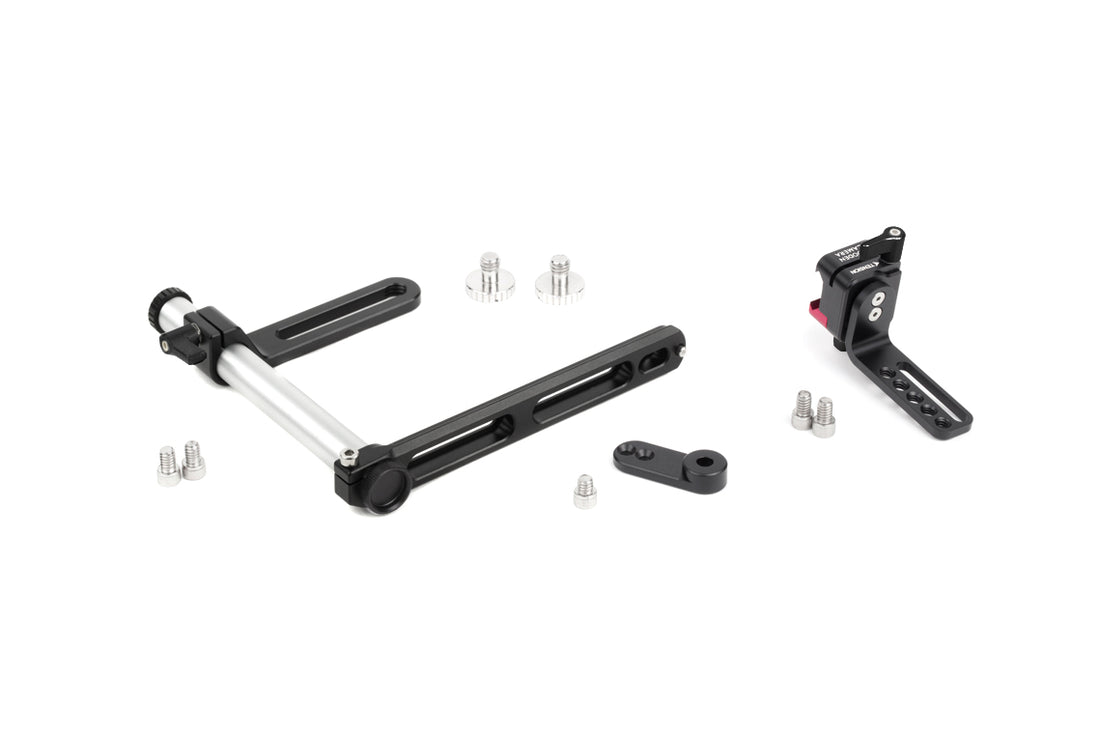

Includes:
(2) 3/8-16 thumb knobs
(2) 1/4-20 x 3/8" screws
(1) 1/4-20 x 1/4" screws

Specifications:
Weight: 362.8 g (0.8 lbs)
Dimensions: 50.8 x 177.8 x 177.8 mm ( 2 x 7 x 7 in)
