UVF Mount (No Clamp)
IN STOCK Complete purchase by 3pm CST and order will ship same business day.

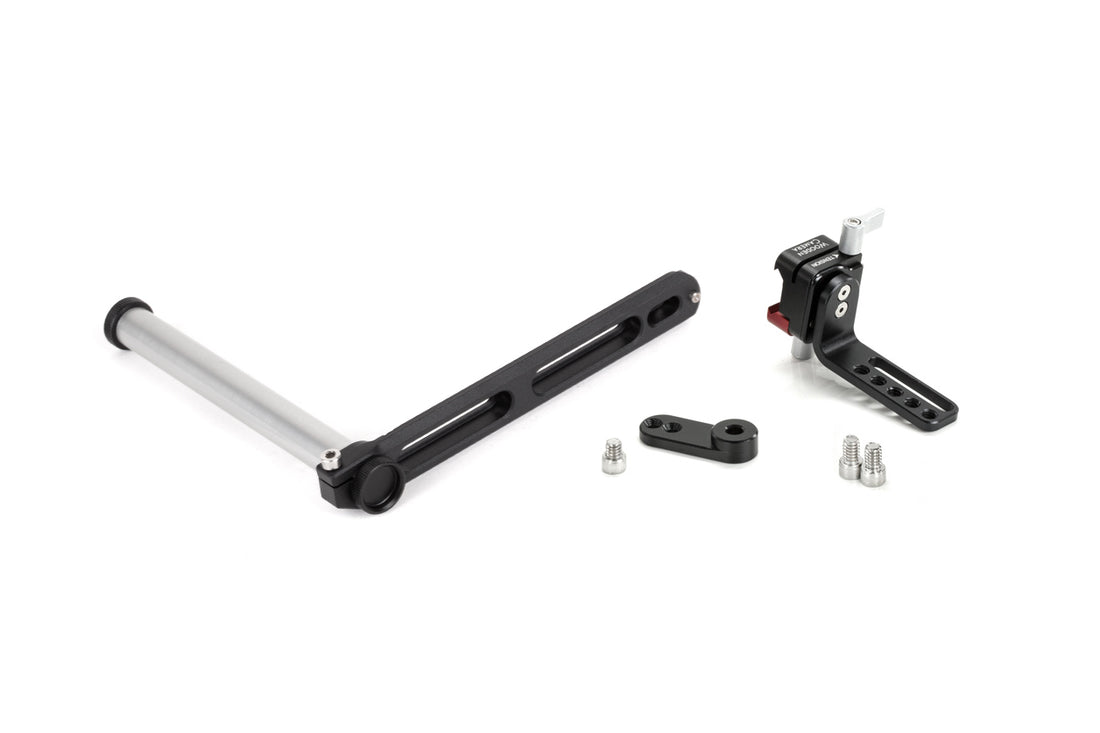

UVF Mount (No Clamp) is a version of our popular UVF Mount v2 without the 15mm Tube Clamp portion. This kit works great with NATO Handle (Plus) which has an integrated 15mm clamp.
Accepts most EVFs and LCDs and has three points of adjustment: 15mm tube clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of EVF. Tool-less design allows quick installation and removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach directly to any NATO-style rail and includes adapter for using SmallHD and Alphatron viewfinders.
NATO Arm length approximately 5"
The horizontal 15mm rod can attach directly to AJA CION handle, Sony FS7 Handle, and other third party 15mm rod interfaces.
(2) 1/4-20 x 3/8" screws
(1) 1/4-20 x 1/4" screws
Weight: 222g (0.5 lbs)
Dimensions: 169.9 x 21.6 x 15.6 mm (6.7 x 0.9 x 0.6 in)
UVF Mount (No Clamp) Instructions
