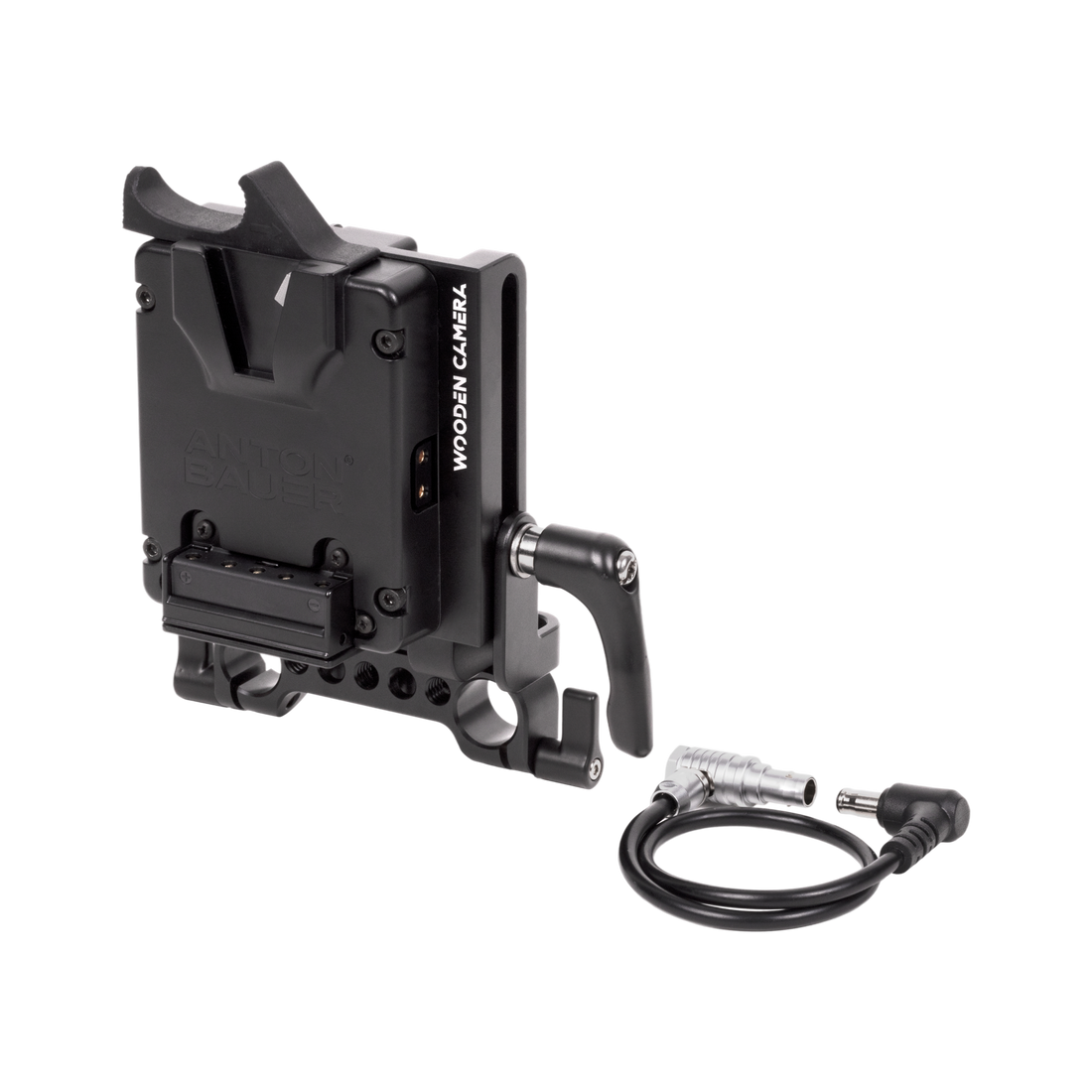

Micro V-Mount Battery Slide Pro (Panasonic BGH1)

$399.00
SKU A10013

UPC 606184860500

Micro V-Mount Battery Slide Pro (Panasonic BGH1) utilizes an Anton/Bauer micro battery plate which provides a regulated 12v to a 3-Pin LEMO compatible connector for camera power.  The plate attaches to two 15mm LW rods via integrated 15mm LW Rod Clamp and position can be adjusted along the battery slide.

The user retains the ability to hot swap between the onboard Panasonic AG-VBR59 and external battery. The Micro Battery Slide is compatible with both micro and full-sized batteries.

It also features two D-Tap (5.8 Amps) ports for accessory power as well as a digital fuse which cuts off accessory outputs, should the user exceed the set current for accessories, while leaving the camera powered. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again.

Connectors used in this assembly are not manufactured by LEMO but are made to the same specifications and are LEMO compatible.

Compatible Cameras:
- Sony FS5
- Sony FS7
- Panasonic EVA1

Includes:
- BGH1 Power Cable (10")

Specifications
:
Weight: 300g (0.6 lbs)
Dimensions: 145 x 115 x 40 mm (5.7 x 4.5 x 1.5 in)
