Micro Battery Slide Pro (Blackmagic Pocket Cinema Camera 4K / 6K / 6K Pro, V-Mount)

SKU A10023

UPC 606184860456

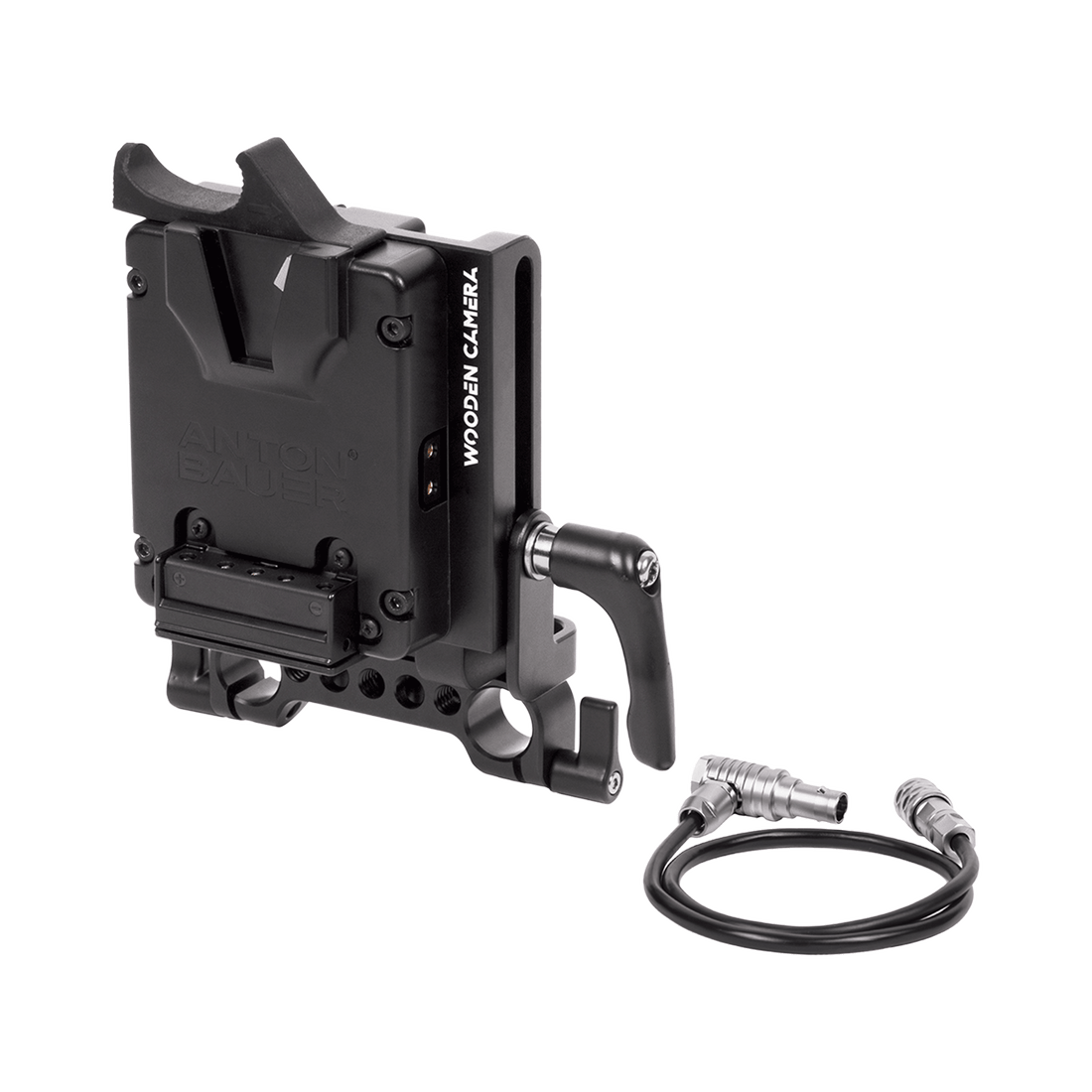

Micro Battery Slide Pro (Blackmagic Pocket Cinema Camera 4K / 6K / 6K Pro, V-Mount) utilizes an Anton/Bauer micro battery plate which provides unregulated 14v to a 2-Pin connector for camera power. The 2-Pin connector is compatible with both Blackmagic Pocket Cinema Camera 6K Pro and Blackmagic Pocket Cinema Camera 4K / 6K cameras. The plate attaches via two 15mm rods and position can be adjusted along the battery slide.

The user retains the ability to hot swap between the onboard Sony NPF-Series and external cinema battery. The Micro Battery Slide Pro is compatible with both micro and full-sized cinema batteries.

It also features 2x D-Tap (5.8 Amps) port for accessory power as well as a digital fuse which cuts off accessory outputs, should the user exceed the set current for accessories, while leaving the camera powered. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again.

Connectors used in this assembly are not manufactured by LEMO but are made to the same specifications and are LEMO compatible.

Weight: 315 g (0.69 lbs)
Dimensions: 145 x 115 x 40 mm (5.7 x 4.5 x 1.5 in)


*Manufactured under licence
