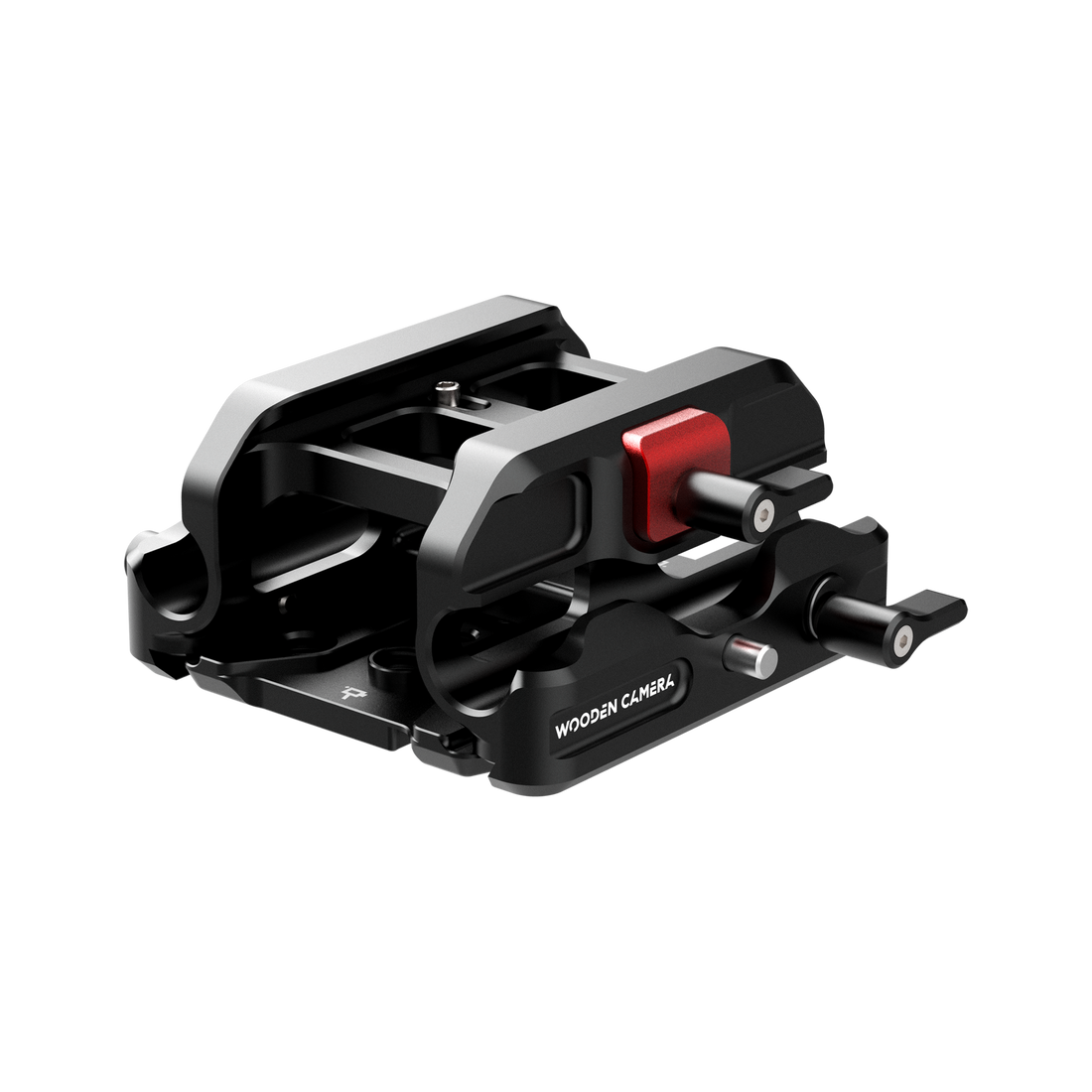

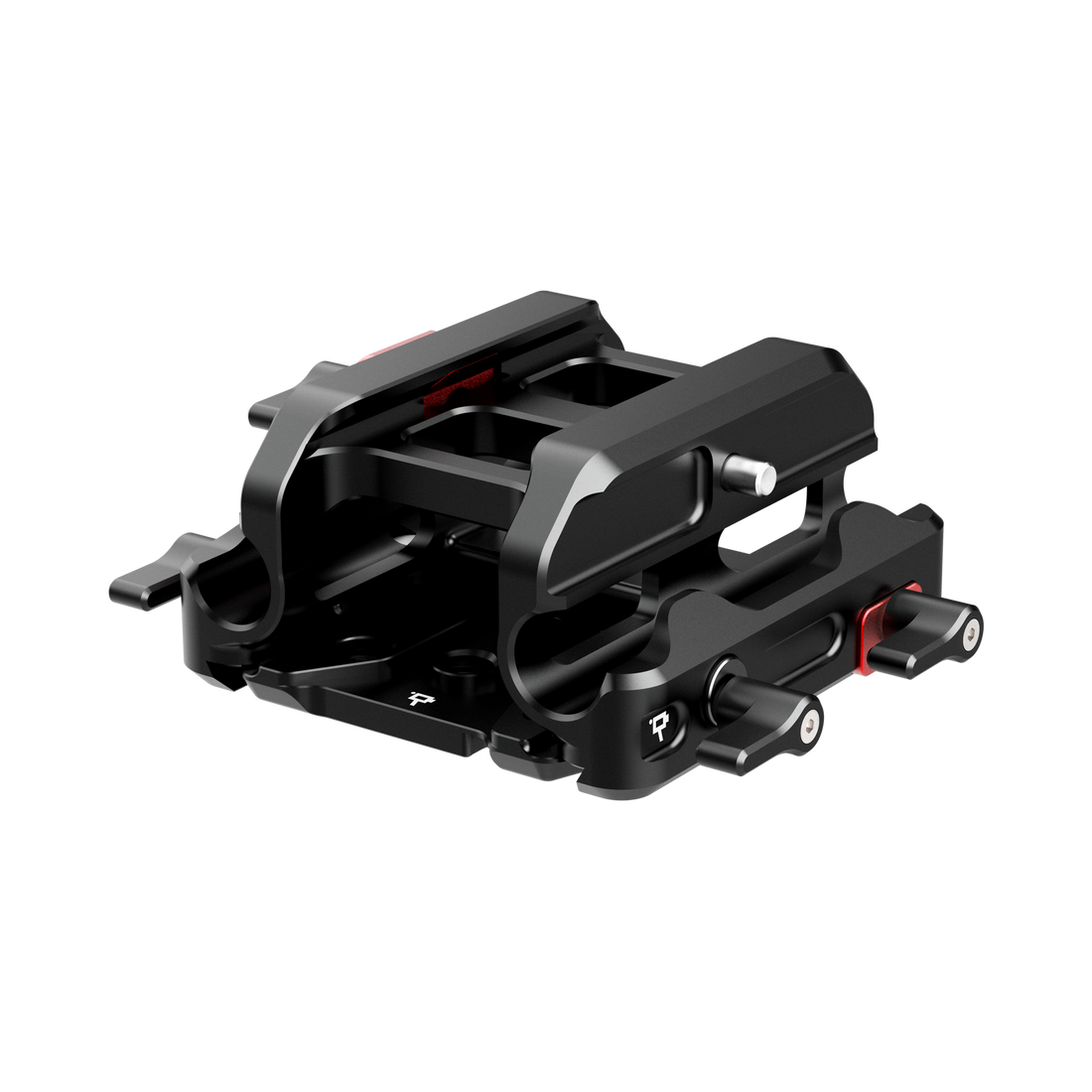

LW 15mm Baseplate

The LW 15mm Baseplate is a quick release baseplate that provides lightweight 15mm rod support at the correct lens height compatible with Sony FX3, FX30, Fujifilm GFX100S, X-H2S, X-H2 and Panasonic GH6/GH7 cameras. 15mm rods pass through front to back and have two locking thumb screws per side. The baseplate quick releases in two ways, giving the user the option to take the 15mm lightweight rods or to leave them behind.

Baseplate features an updated ARCA safety system, as well as an updated ARRI standard safety dovetail system, a vertical lens support post system, and two standard 15mm LW rod clamps.

Baseplate features an updated upper ARCA Swiss standard dovetail with two 3/8”-16 screws for attaching to the bottom of the camera. Updated for safety, the upper ARCA Swiss standard dovetail slides into the LW 15mm Baseplate core, and includes a safety release button for removal. Engraved arrows assist installing the dovetail in the correct direction.

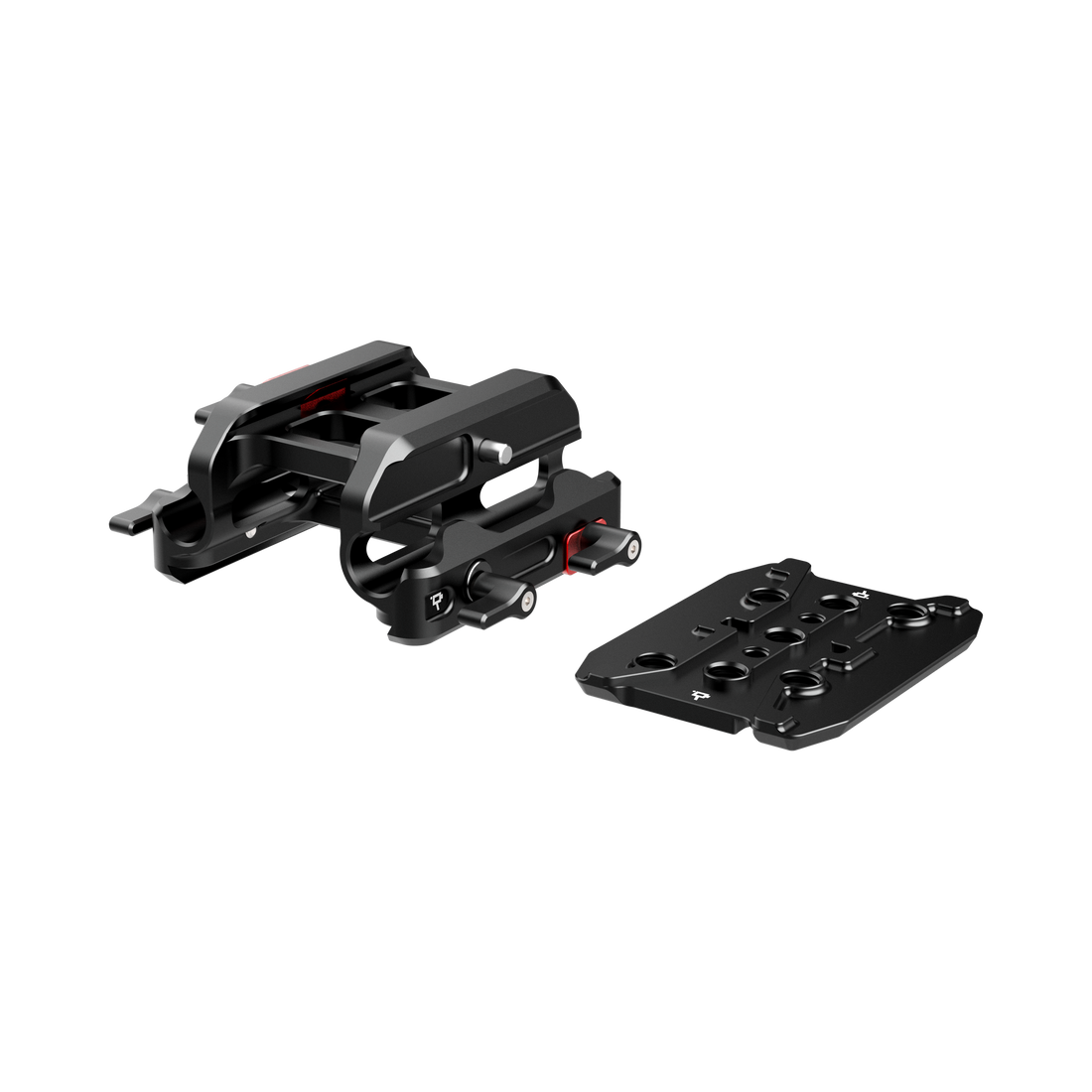

Lower dovetail slot is ARRI standard, for attaching to compatible ARRI dovetails or the included Quick Dovetail. The updated Quick Dovetail is now more user friendly; utilizing a new shape and locating pins, the Quick Dovetail can easily be installed at the same position every time. The offset bolt pattern allows for mounting to any bridge plate following the ARRI Standard bolt pattern and optical height. With Quick Dovetail attached, the baseplate and camera combination can be attached to an ARRI standard bridge plate like Quick Release Bridgeplate (19mm) or Quick Release Bridgeplate (15mm Studio).

Specifications:
Weight: 348g (0.77 lbs)
Dimensions: 50x118x90 mm (1.9x4.65x3.6 in)
