LW 15mm Adapter

$79.00
SKU 168400

UPC 700987993929

IN STOCK Complete purchase by 3pm CST and order will ship same business day.

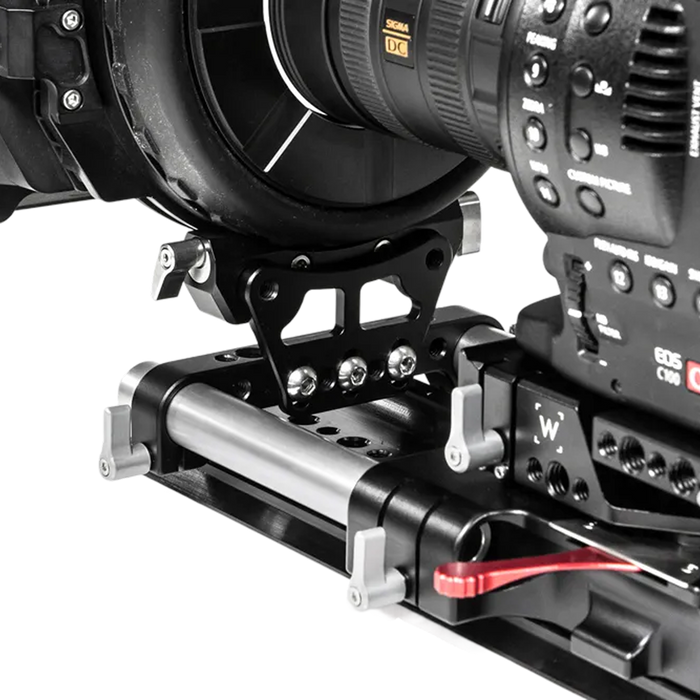

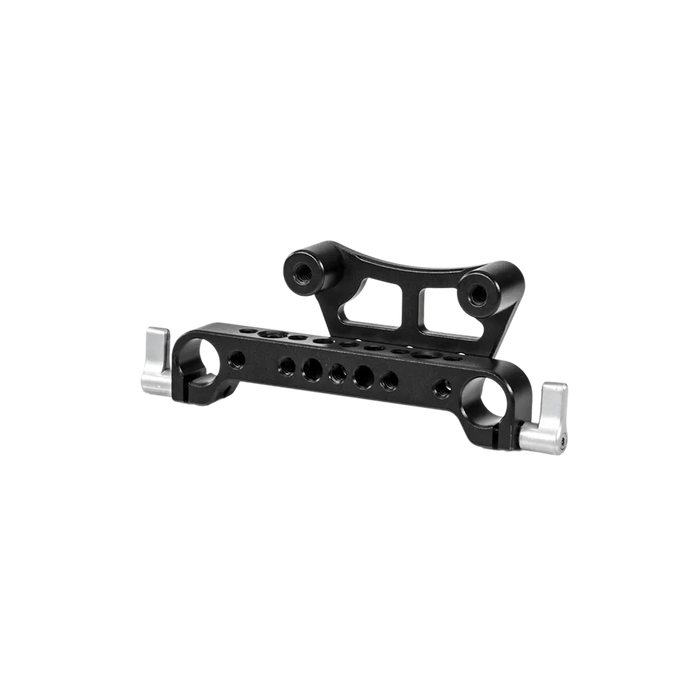

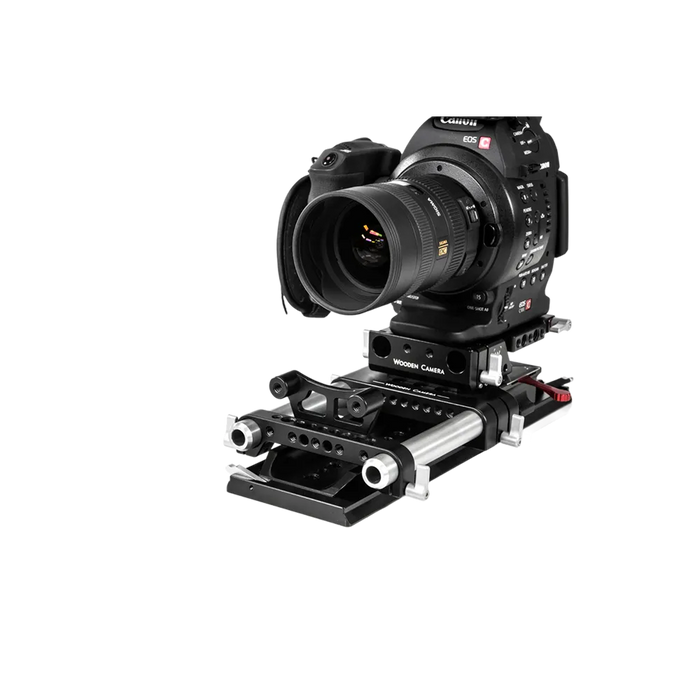

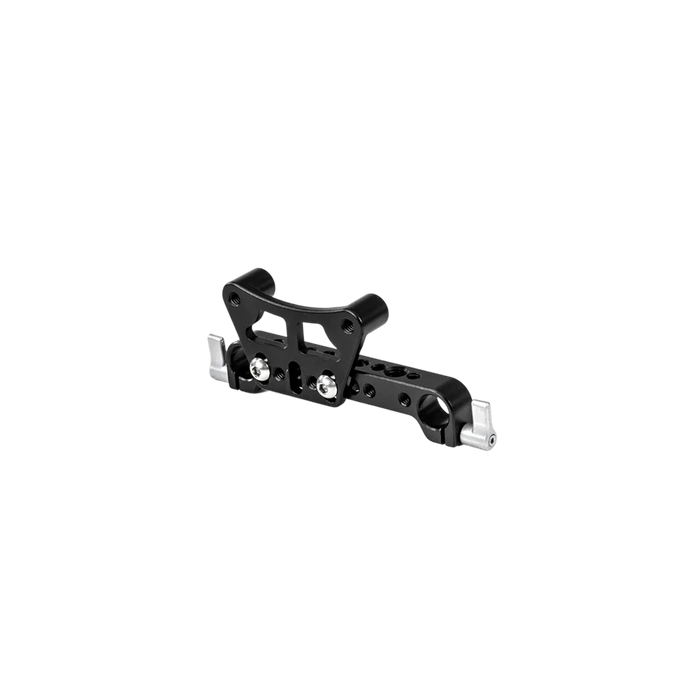

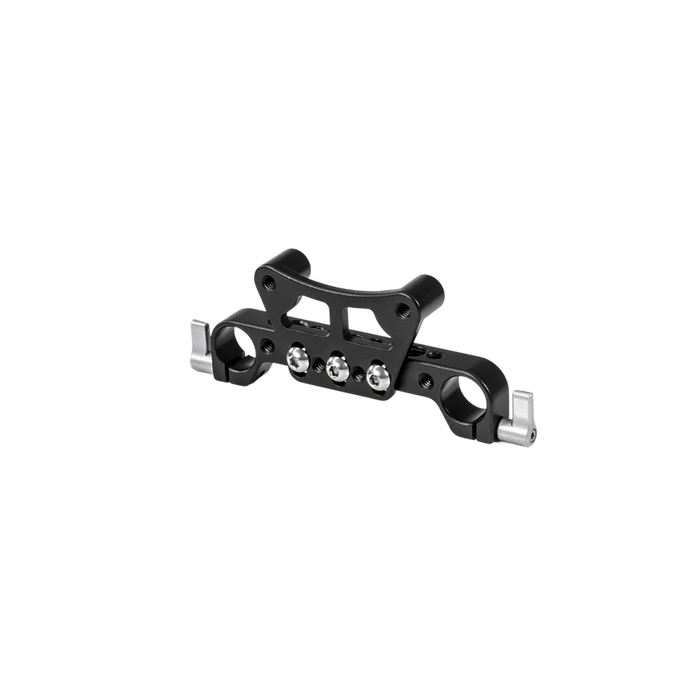

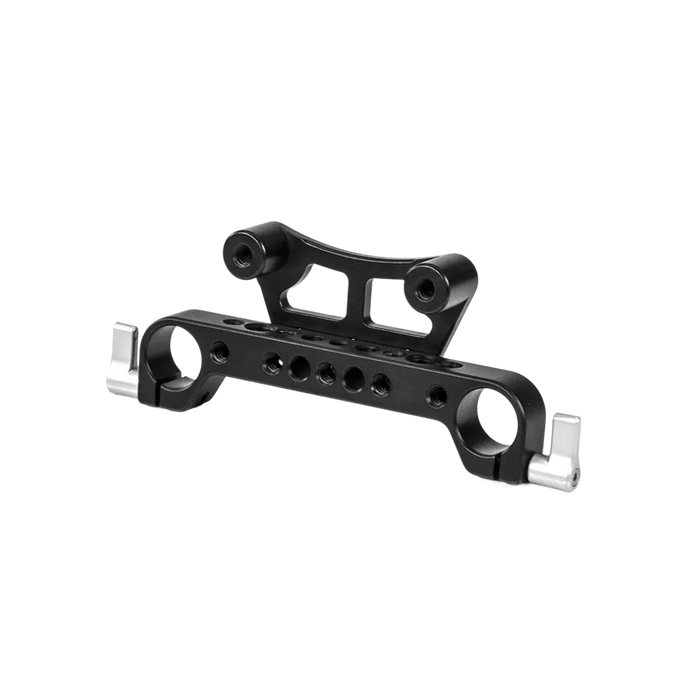

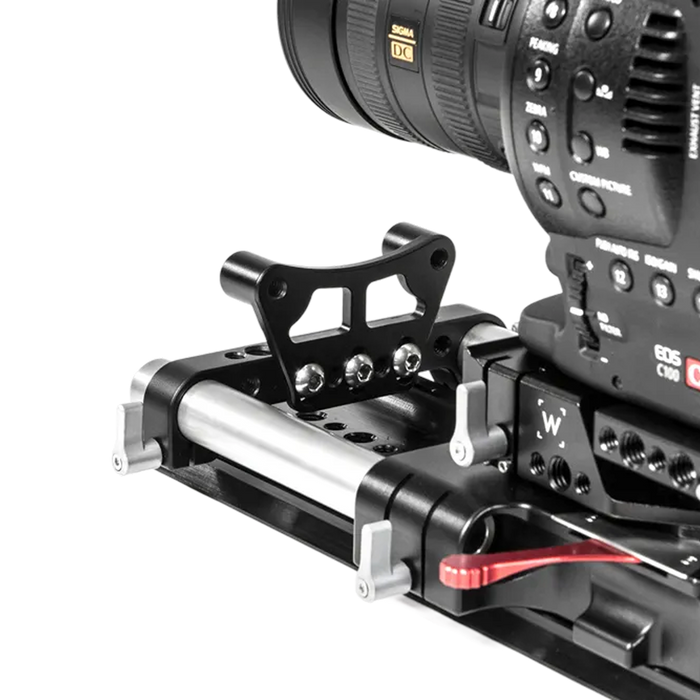

The LW 15mm Adapter attaches to our Rod Clamp (19mm) and Rod Clamp (15mm Studio) to adapt 15mm lightweight accessories. The Adapter is height adjustable so LW 15mm matteboxes with no height adjustment can be vertically aligned if necessary. The 15mm posts on the adapter have 1/4-20 threaded holes for adding Bolt On 15mm Rods if longer mounting area is needed. Note that the Rod Clamp portion of this item is not included and must be added separately.

The LW 15mm Adapter works great with the O'Connor O-Box & O'Focus, ARRI MMB-1, MMB-2, MFF-1, MFF-2, Redrock Mattebox & Follow Focus, and many more.

Features:
- 15mm Rod Posts for attaching LW 15mm accessories
- Height adjustment
- Threaded holes for attaching 15mm extensions

Includes:

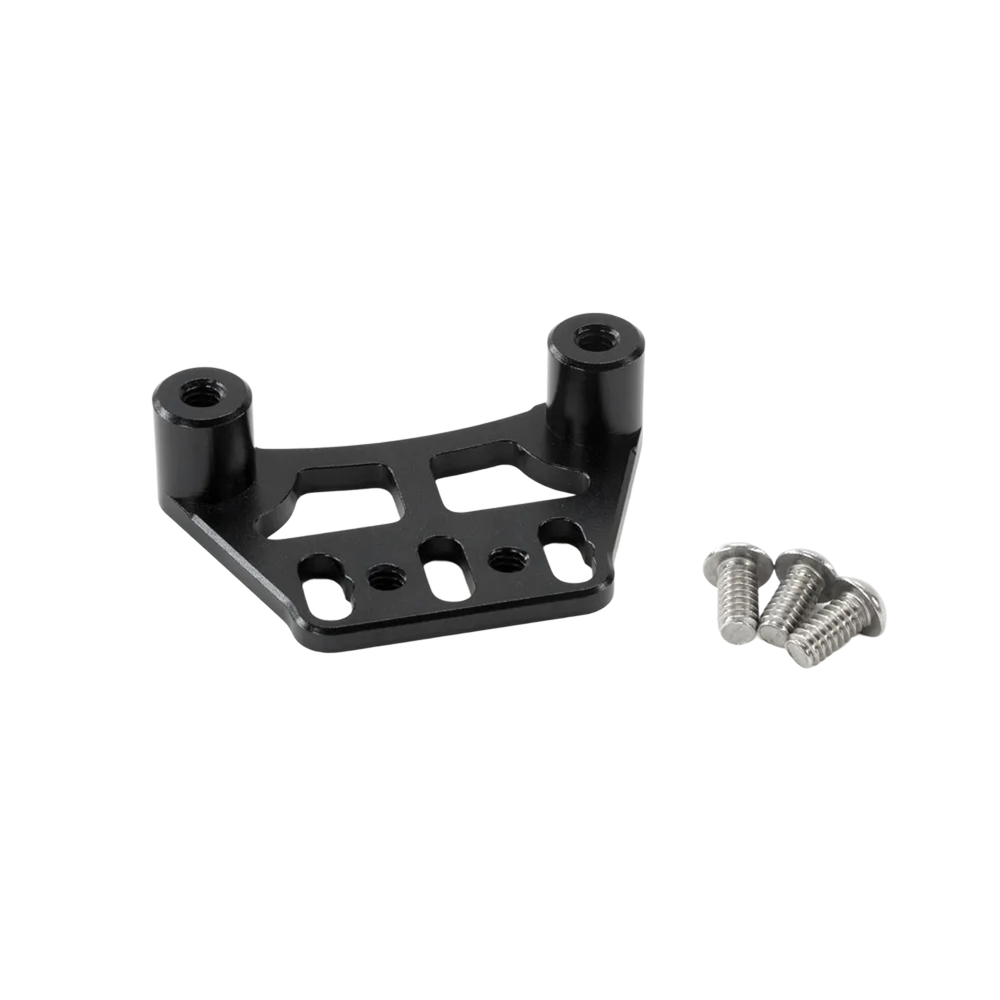

(3) 1/4-20 x 1/2 button head screws

Specifications:
Weight: 52g (0.1 lbs)
Dimensions: 48.3 x 75.2 x 20.4 mm (1.9 x 3.0 x 0.8 in)

Shoulder Rig Assembly:
Video from Redfine Rentals with the adapter in action:
Rod Standards Tutorial:
