Battery Swing

SKU 245700

UPC 606184853885

Ships in 1-2 Business Days

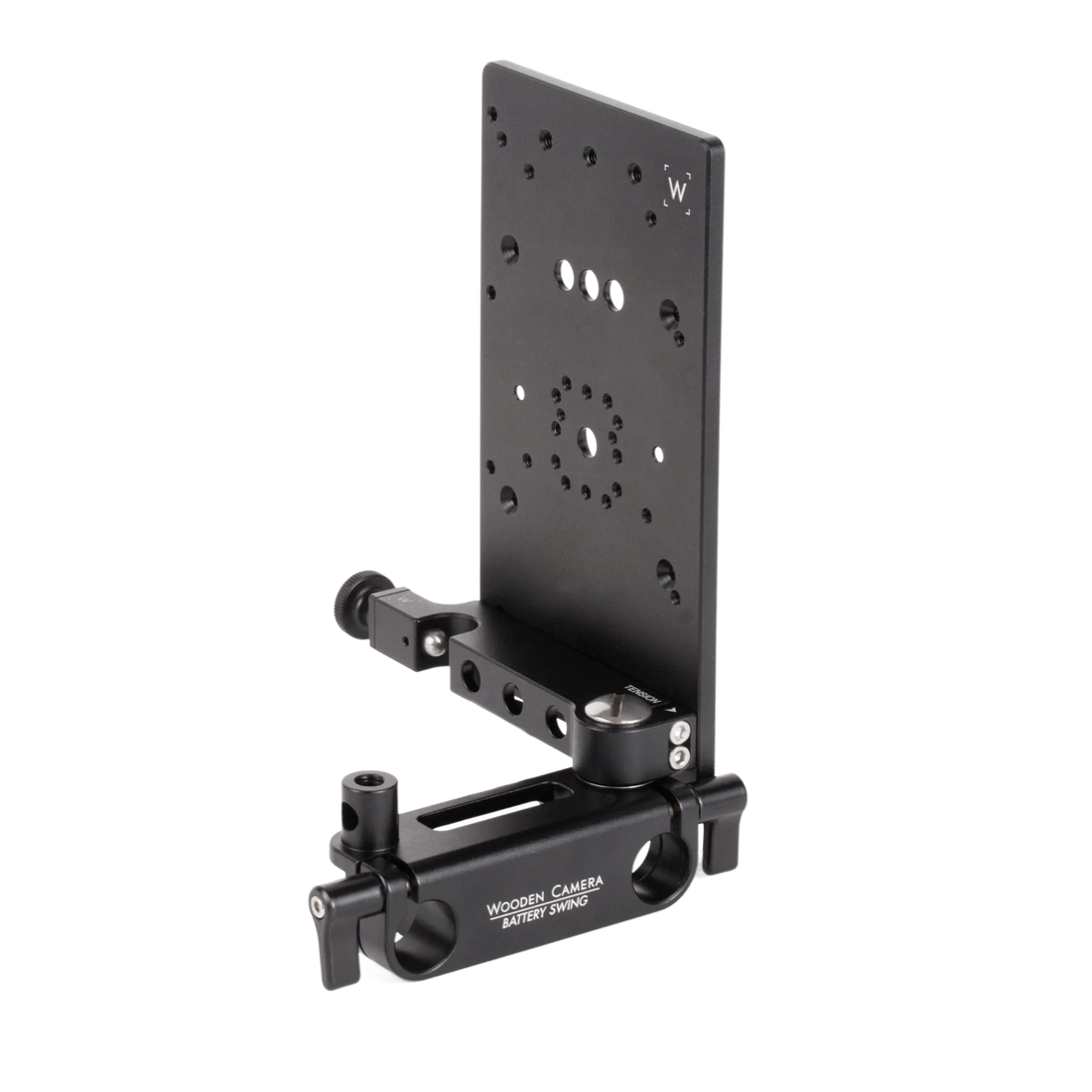

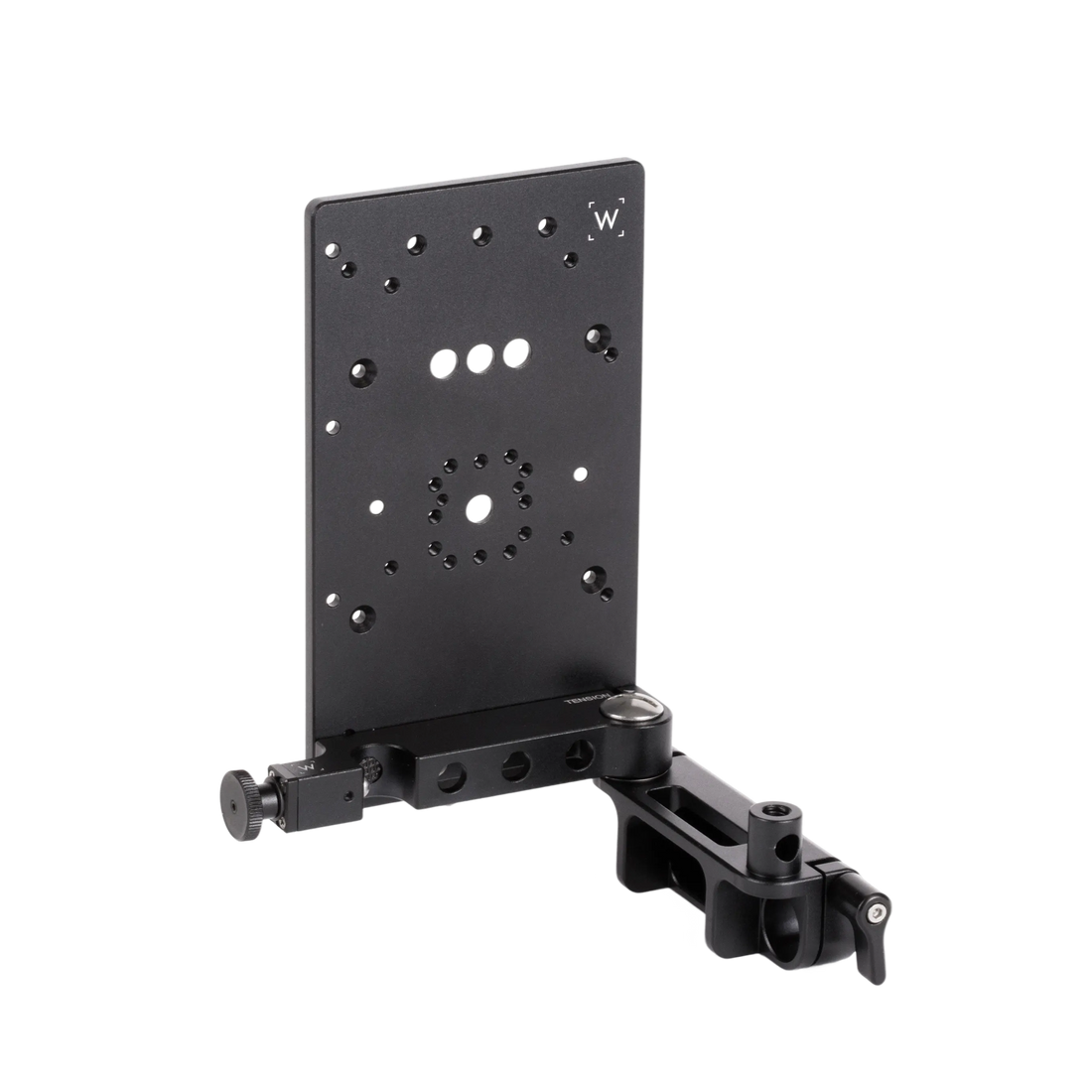

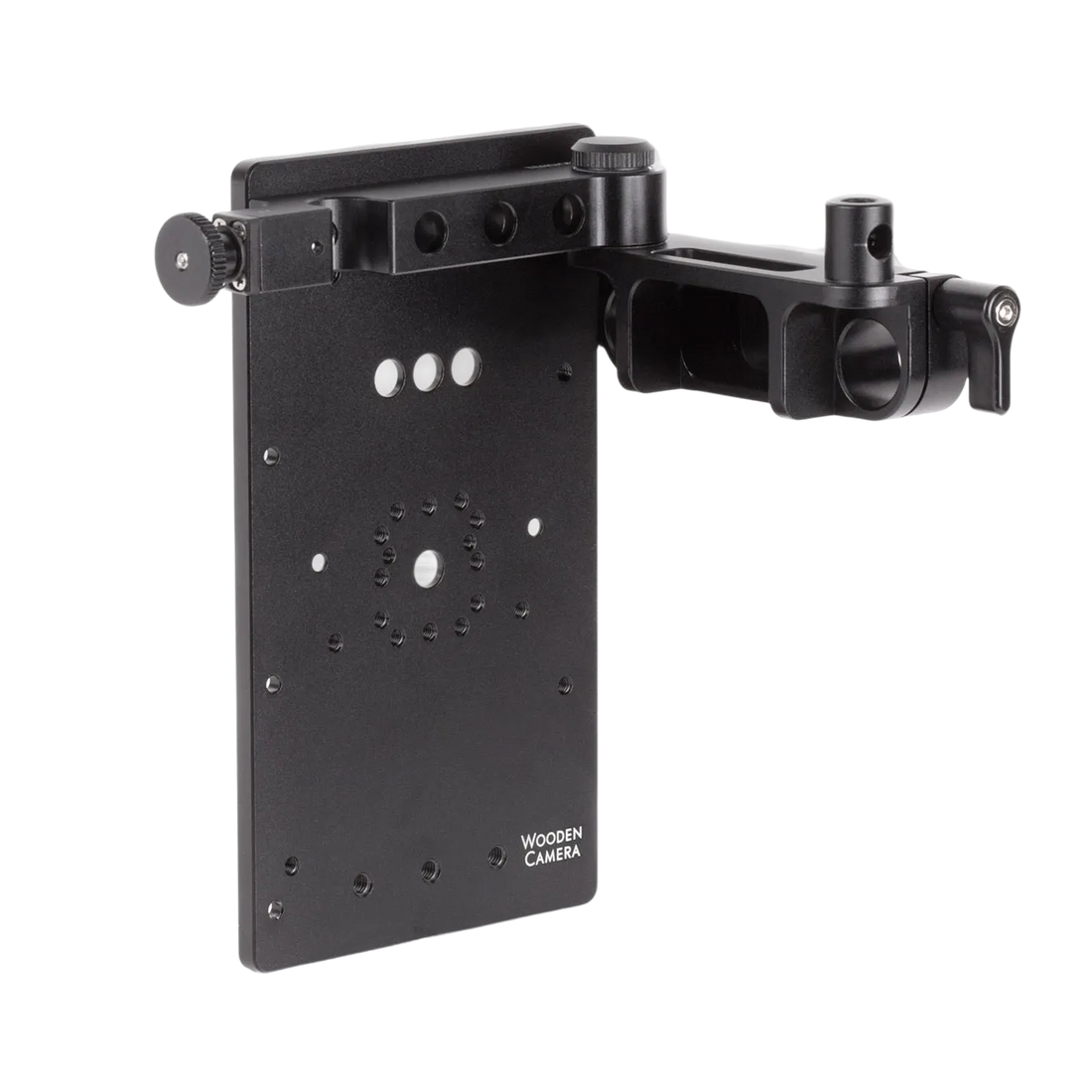

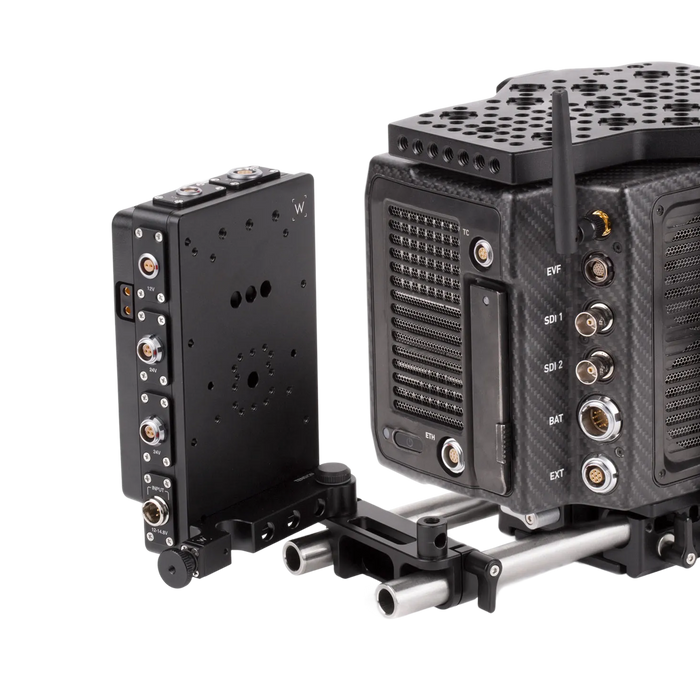

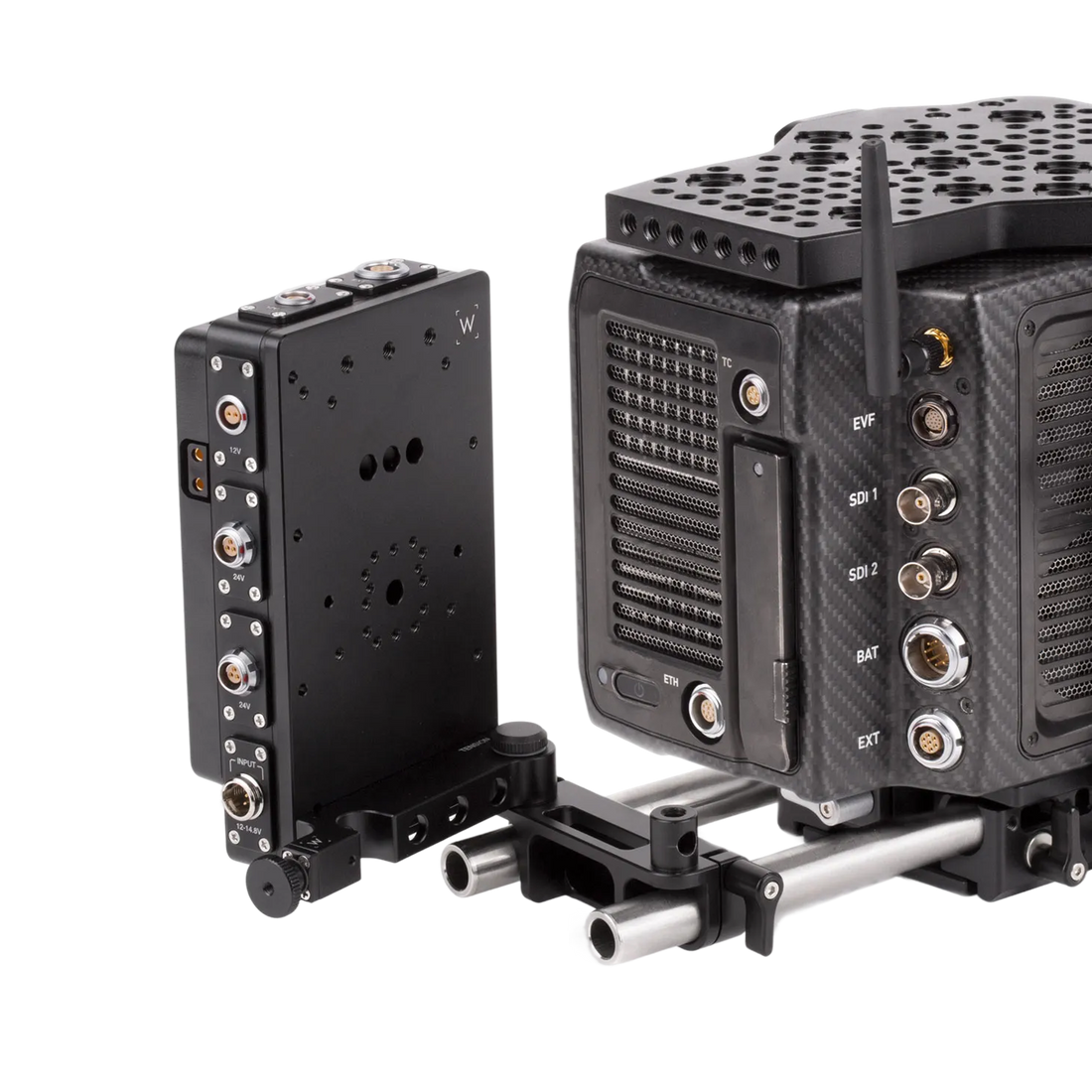

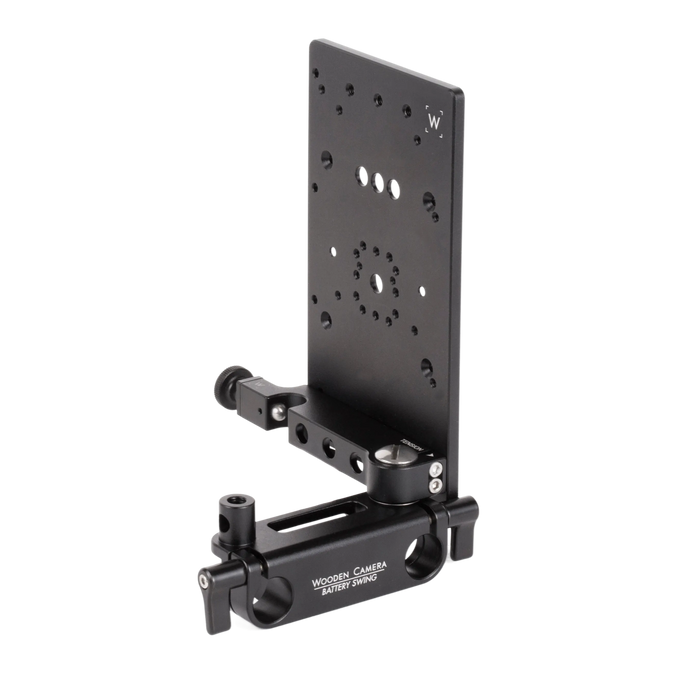

Battery Swing provides standard V-Mount and Gold Mount hole patterns for mounting WC battery plates and the D-Box (Alexa Mini). Quickly access the back of the camera by pulling the black pin and swinging open. Mounting bracket has integrated 15mm rod openings and is most commonly used in the lower position for bottom rods. Battery Swing can be mounted to top rods by moving the swing arm to the top row of holes on the battery bracket.

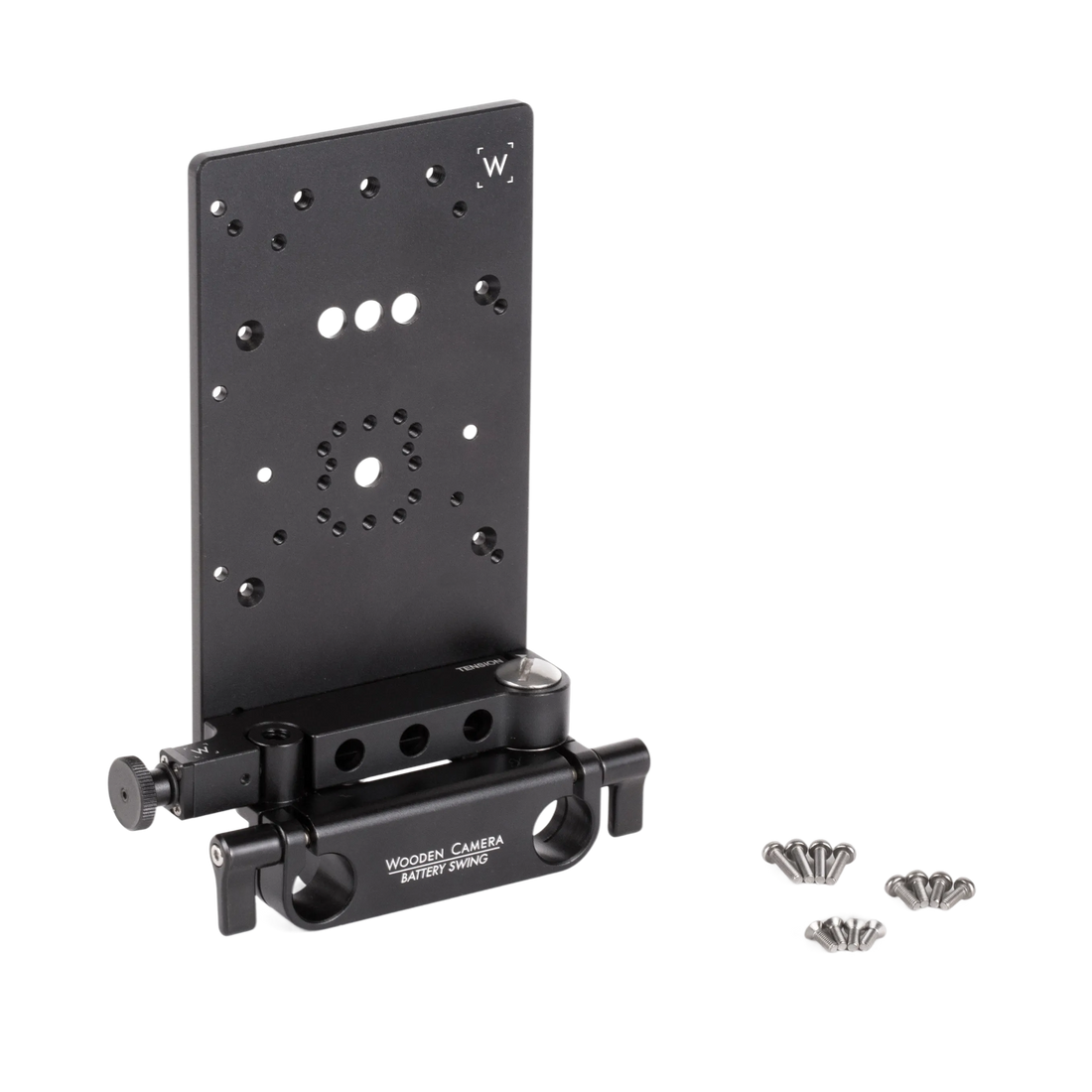

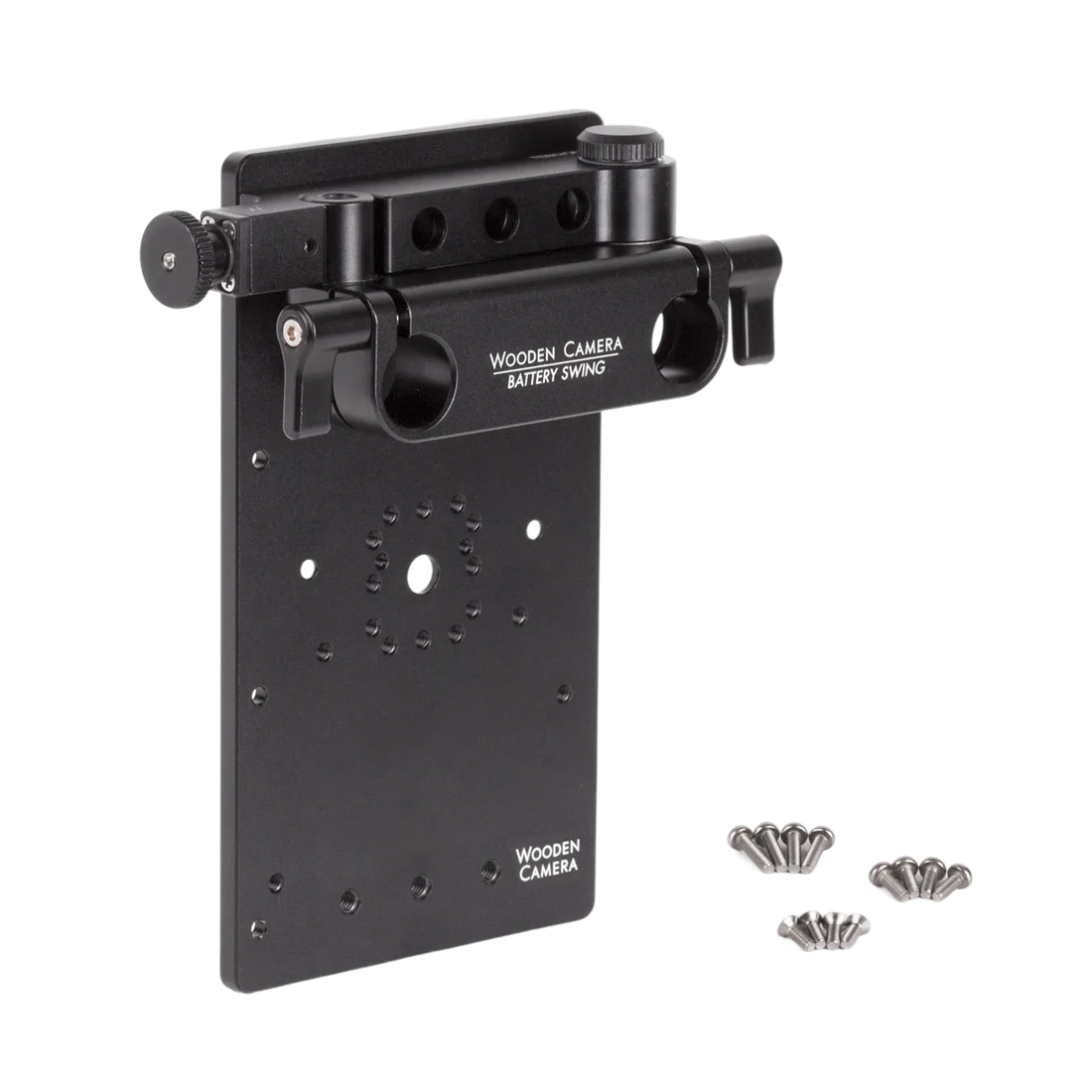

(4) M3 x 12mm Pan Head Screws
(4) M3 x 8mm Pan Head Screws
(4) M3 x 6mm Phillips Flat Head Screws (for attaching D-Box if original screws were lost)

Weight: 226.80g (0.5 lbs)
Dimensions: 152.4 x 114.3 x 45.7 mm (6.0 x 4.5 x 1.8 in)

Battery Swing Demonstration:


*Manufactured under licence
