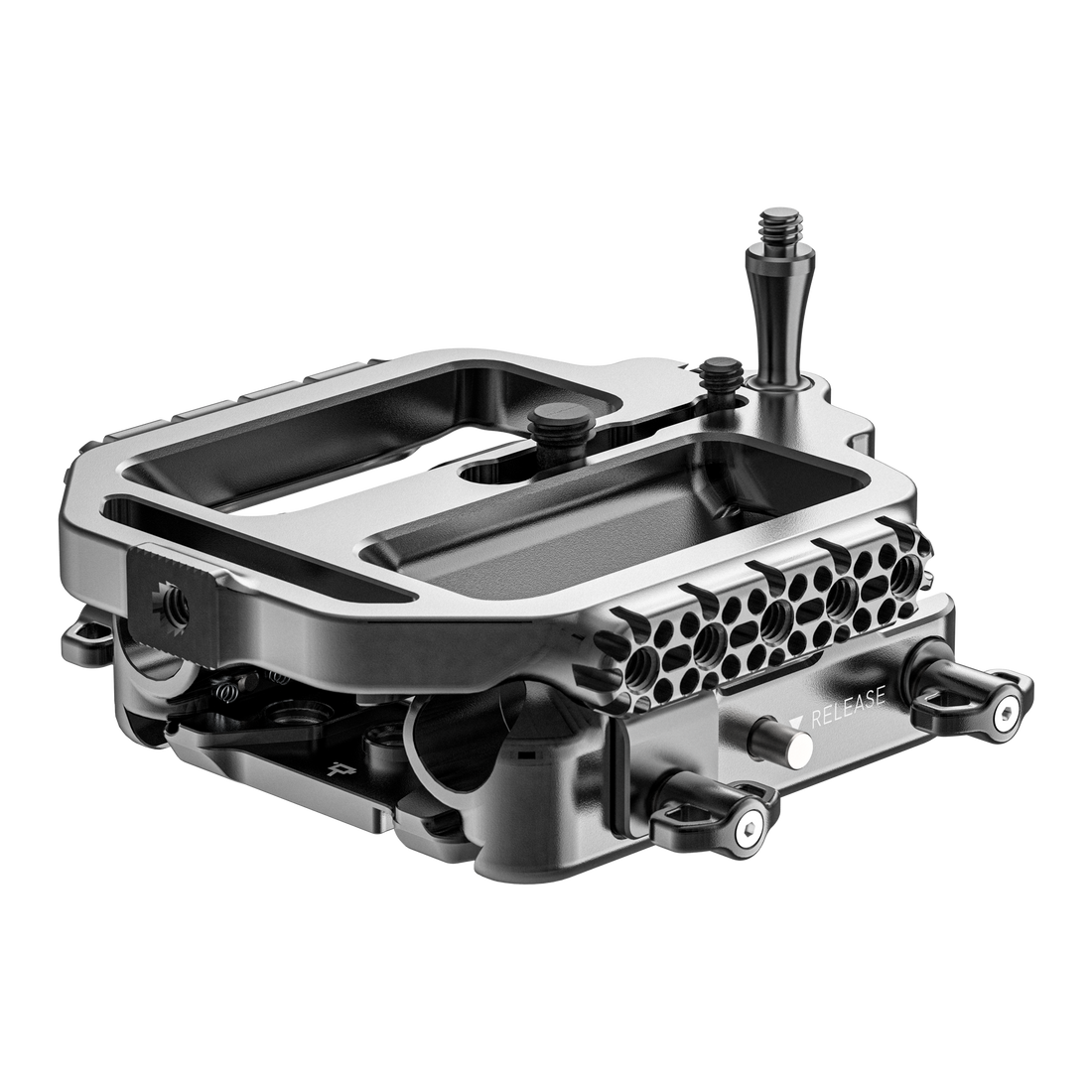

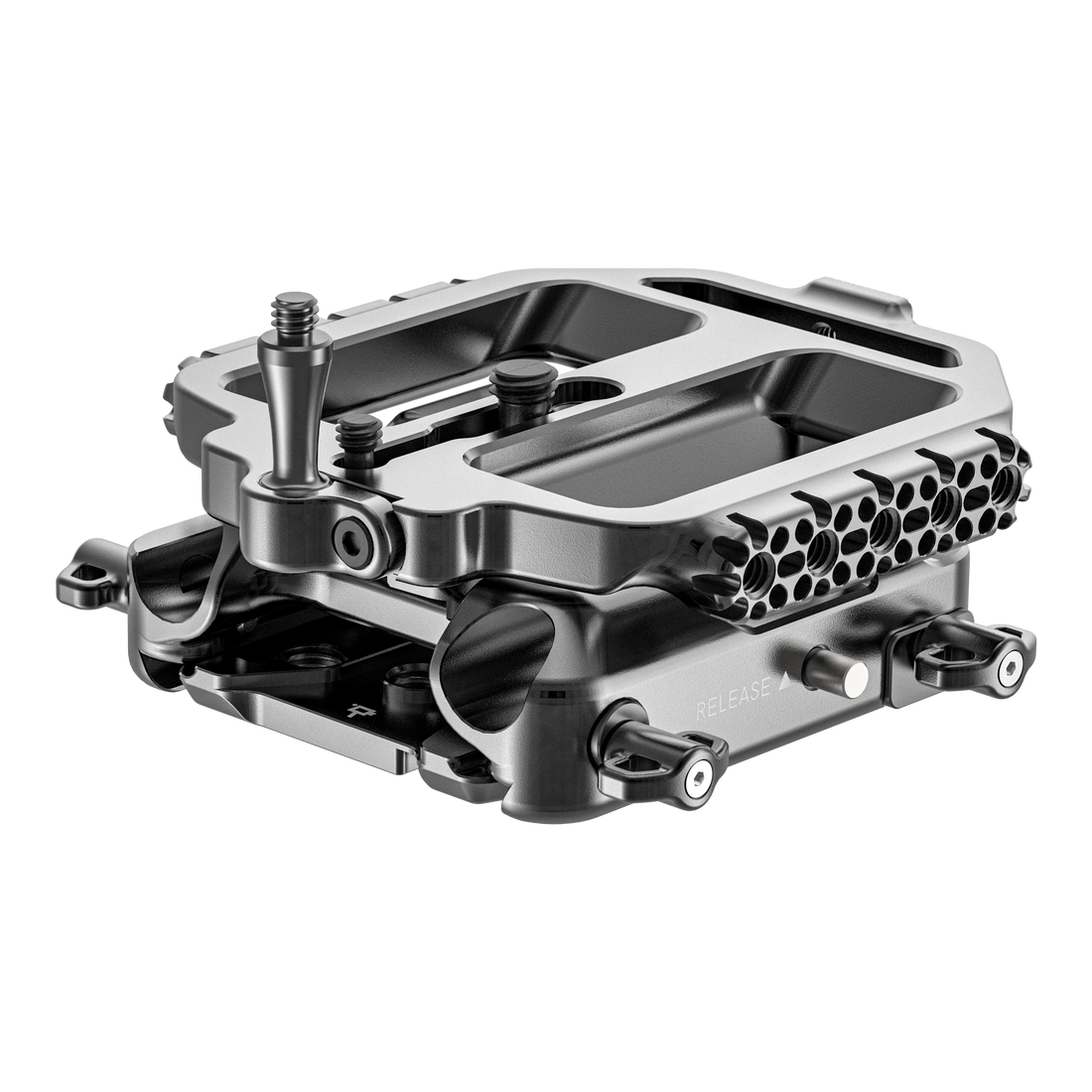

Base Plate System for Canon EOS C80

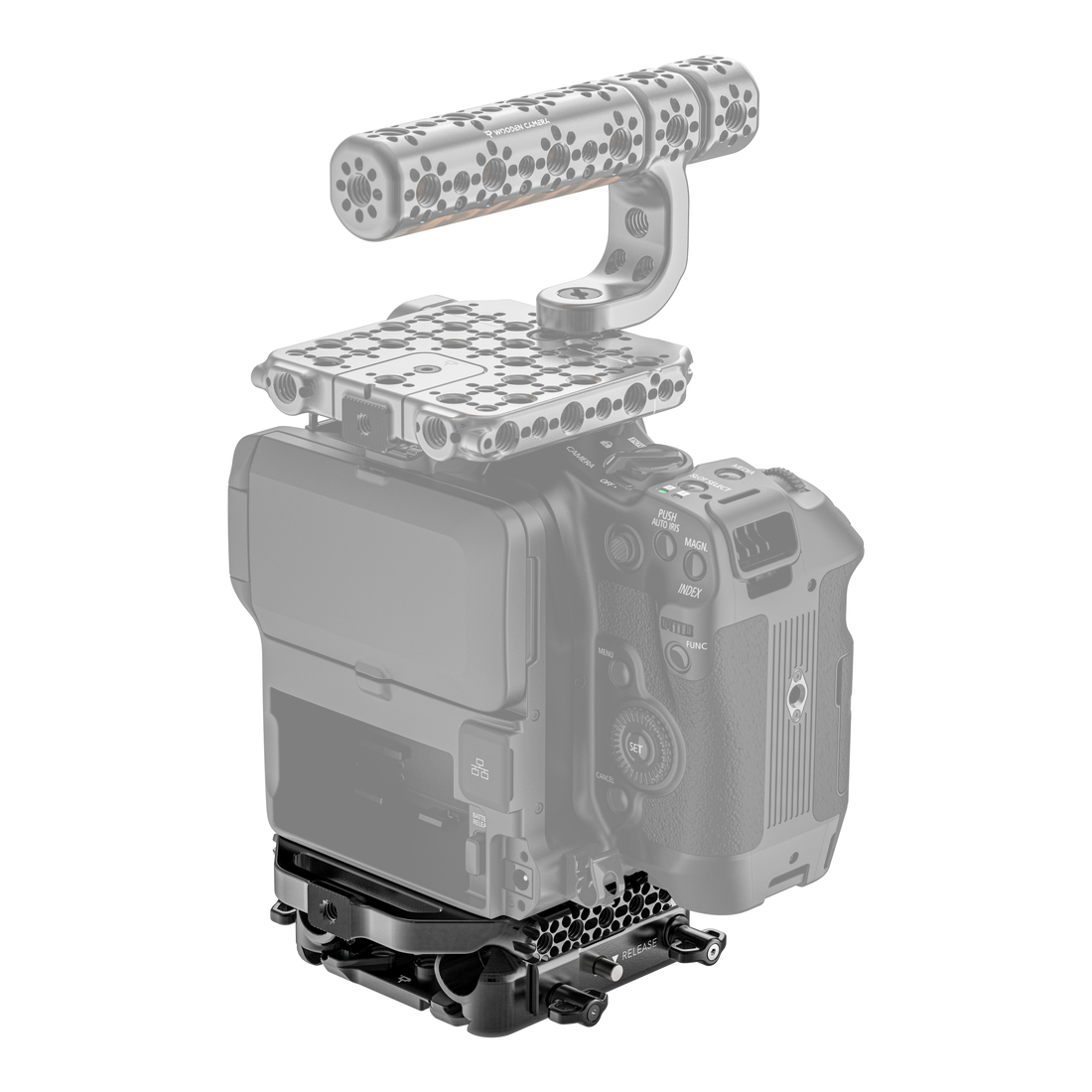

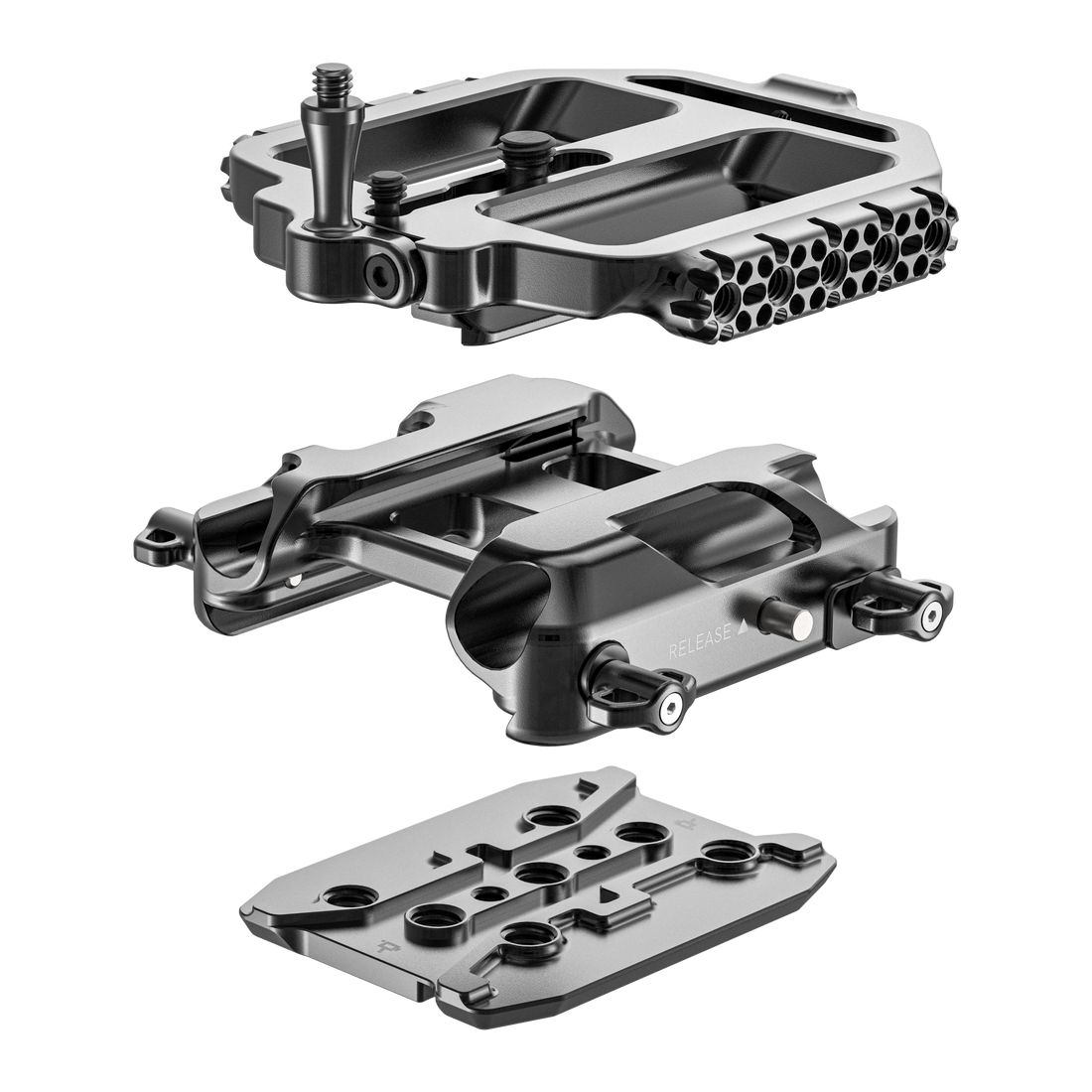

The Base Plate System includes an ARCA Base Plate and ARCA Riser that positions the camera at the appropriate optical height for mounting accessories and allows for quick setup transitions. The Riser Plate can be used alone with the ARCA Shoulder Plate or ARCA Steadicam Plate; the Base Plate is required for tripod or dovetail systems.

The ARCA Riser Plate includes a Lens Mount Adapter with an adjustable rail to distribute any strain from the lens mount to the camera body. This Adapter also prevents the shifting of accessories (like the RF to PL mount) while adjusting lenses. Side-facing ¼”-20 mounting points let you keep accessories attached while transitioning between setups.

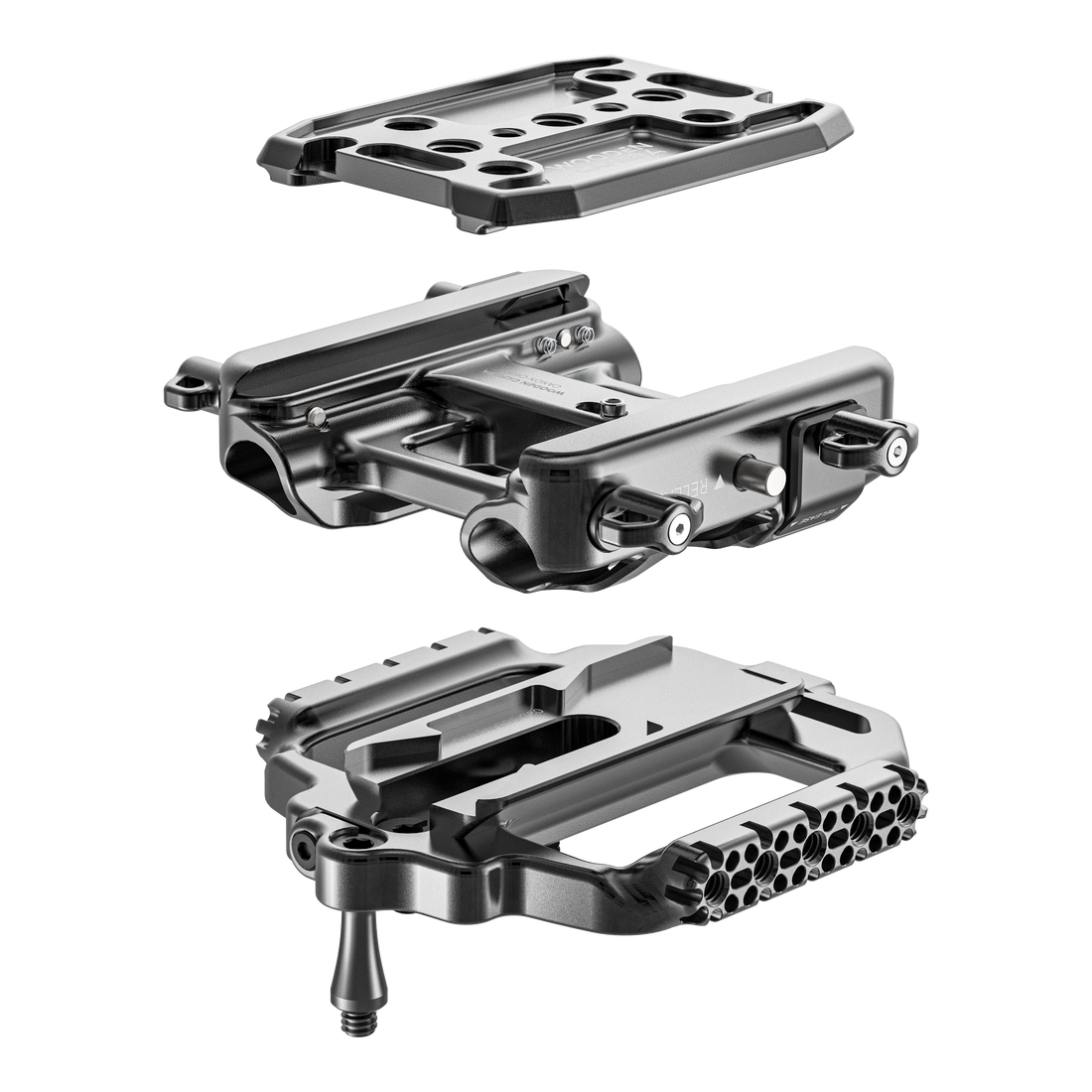

The Base Plate allows you to remove the Bridge Plate Dovetail to attach to a Studio Base Plate or directly to a safety dovetail. This plate includes spacing to add support to your setup with other LWS accessories, like the Universal Lens Support (15mm LWS). Tie-downs let you quickly adjust the positioning of the Bridge Plate on accessories like the Safety Dovetail 8”, Unified Bridge Plate, or the Shoulder Rig V3.

Included Items:
ARCA Riser Plate for Canon EOS C80
ARCA Base Plate for Canon EOS C80/ C400



Specifications:
Weight: 535.2 g (1.18 lbs)
Dimensions: 120 x 117.7 x 70.4 mm (4.7 x 4.6 x 2.8 in)
