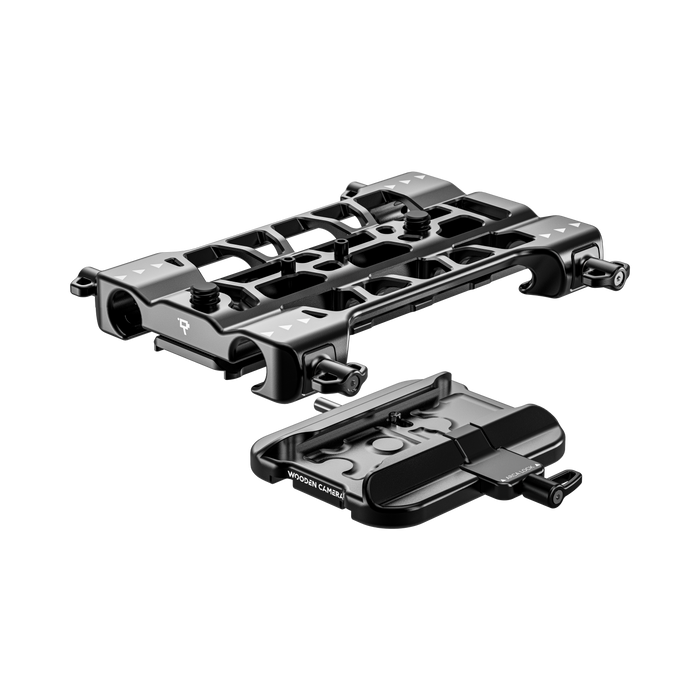

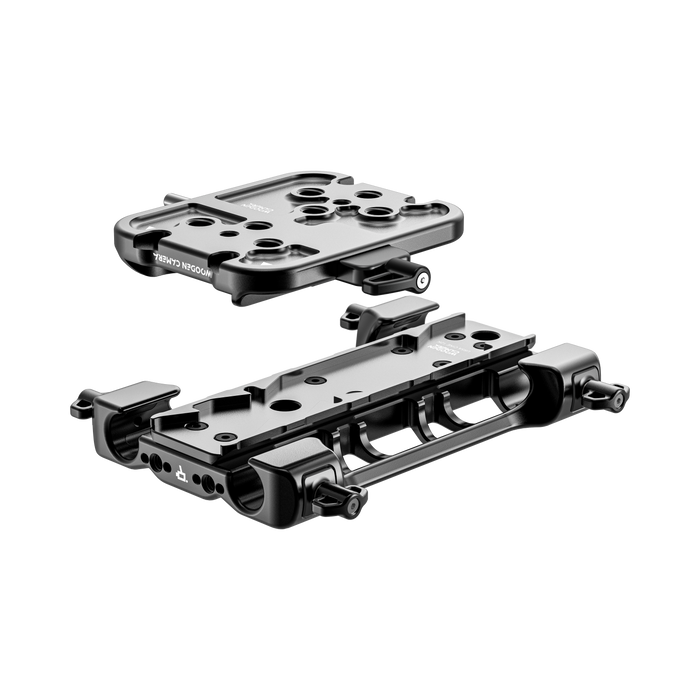

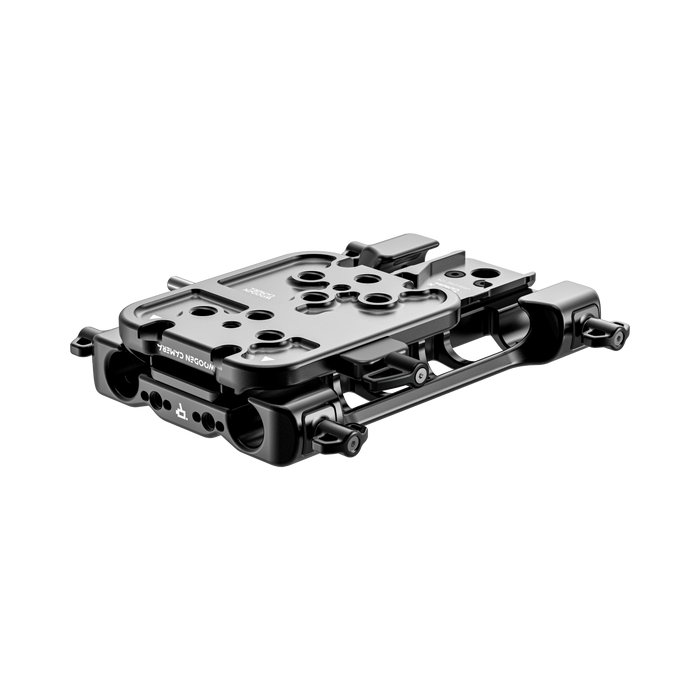

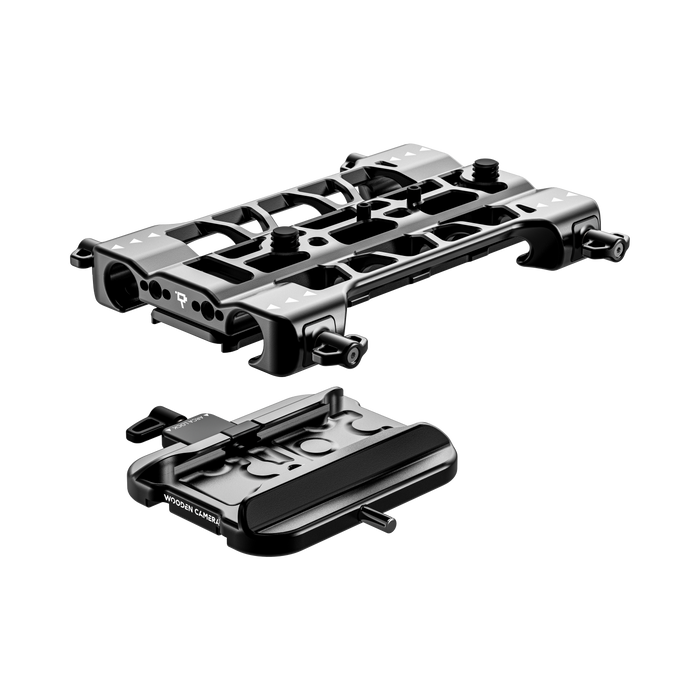

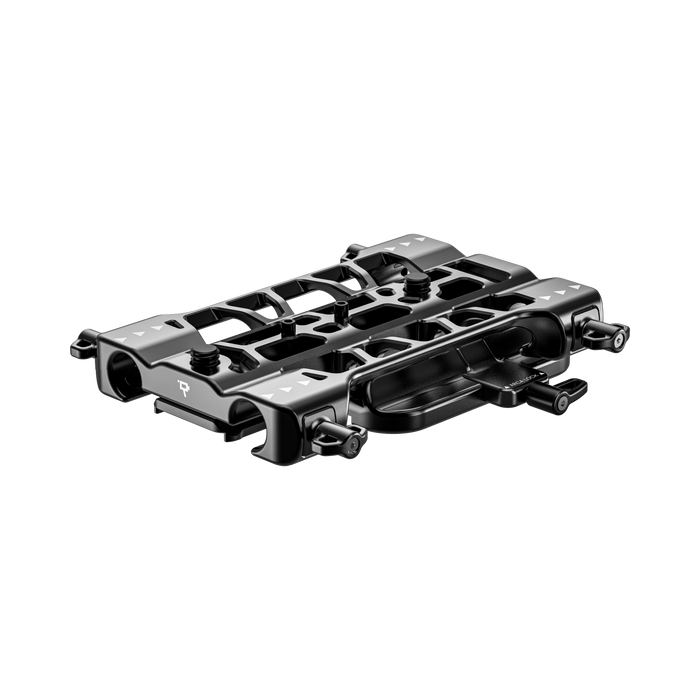

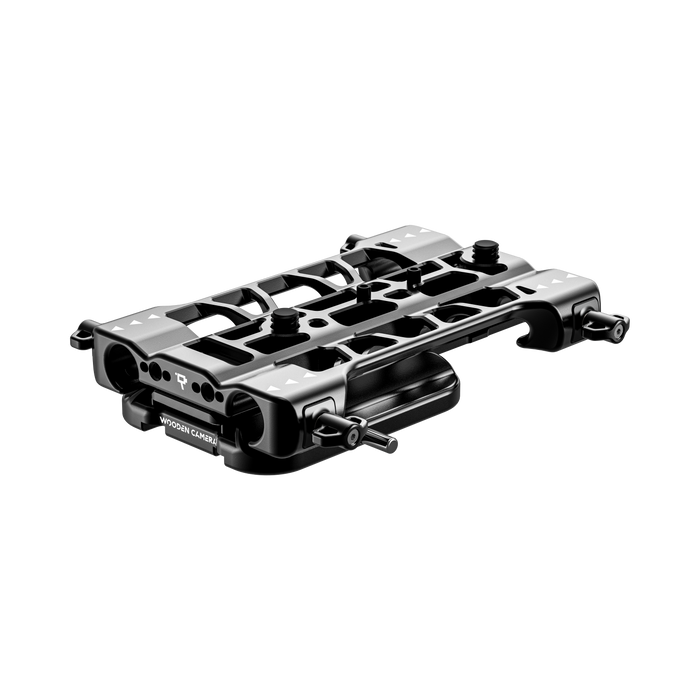

Base Plate System for Blackmagic URSA Cine 12K/17K

This system includes a Riser Plate and ARCA Base Plate that keeps your build at the appropriate optical height for mounting accessories in traditional cinema workflows. The Riser Plate facilitates an open design, allowing efficient airflow to the camera. These plates combined are compatible with any bridge plates that use ARRI Standard height. Utilizing the built-in ARCA system, it allows for quick transitions between Steadicam, shoulder, or tripod workflows with Wooden Camera ARCA accessories.

Four rod clamps– two on either side of the riser plate– provide powerful friction to prevent torque and rotation from your lens motors. Two included ⅜”-16 screws allow the plate to fasten to the bottom of the camera, while two pins incorporated into the riser plate prevent the riser from twisting, making for a secure connection.

The Riser Plate features an intuitive wedge-clamp locking system with a thumb-screw for added security and comes with ⅜”-16 mounting points to attach the Riser Plate.

These plates combined are compatible with any bridge plates that use ARRI Standard height such as our 19mm Bridge Plate.

Included Items:
Riser Plate for Blackmagic URSA Cine 12K/17K
ARCA Base Plate

Specifications:
Weight: 675.9 g (1.49 lbs)
Dimensions: 160.6 x 135 x 43.1 mm (4.2 x 5.3 x 1.7 in)
