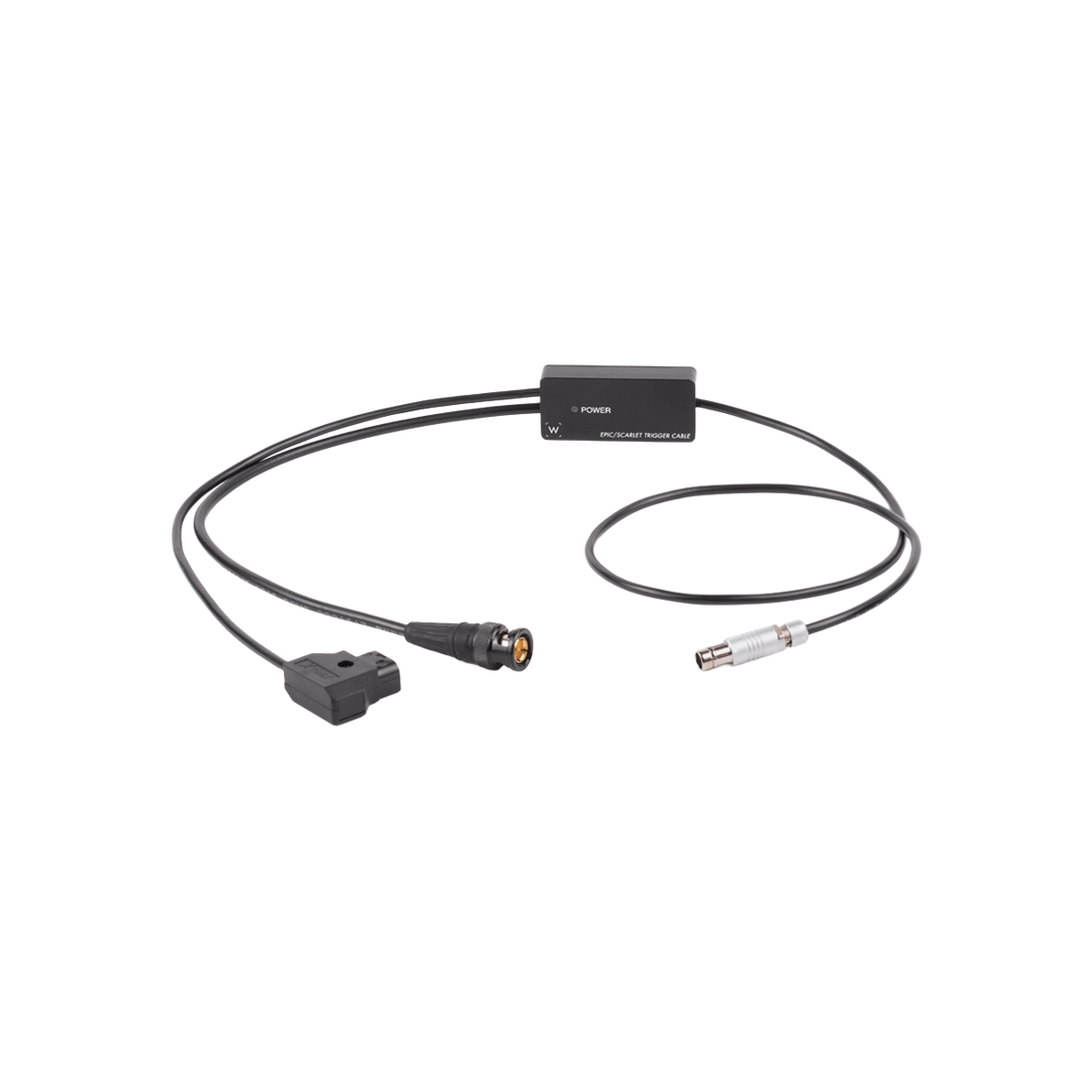

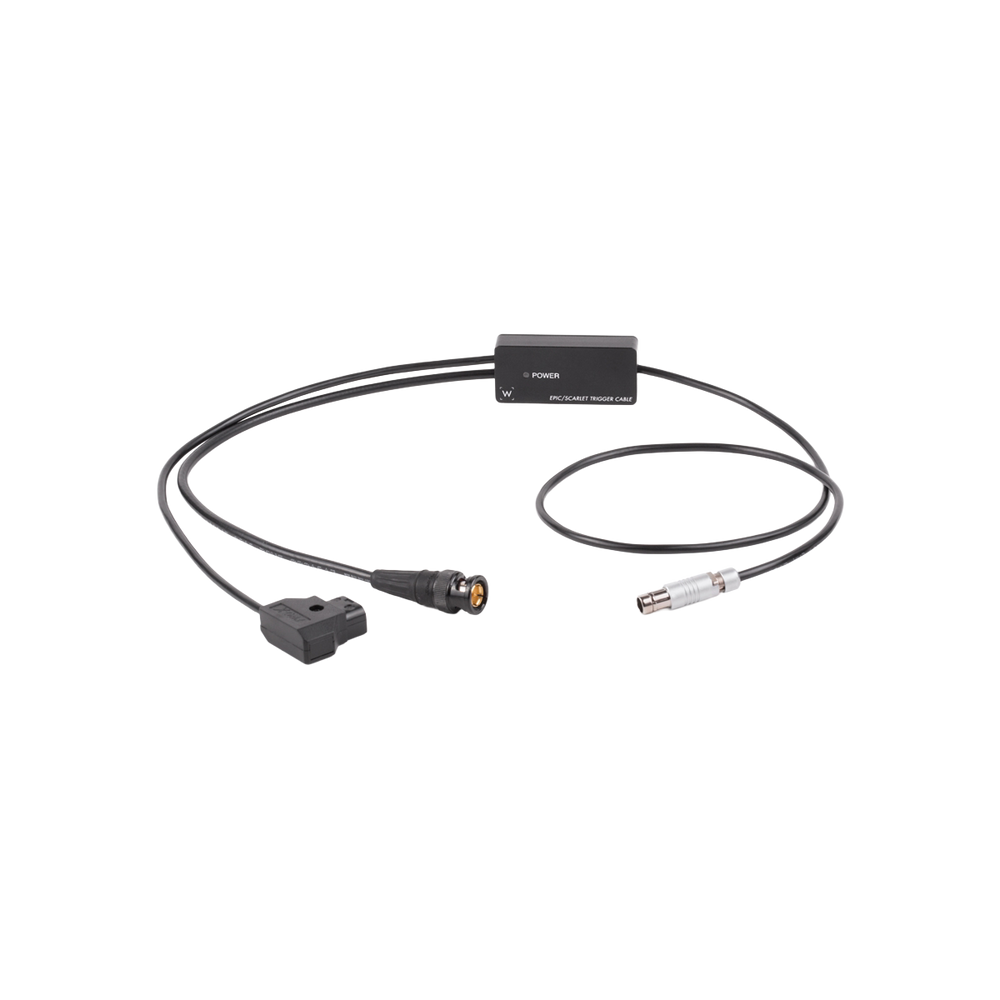

3pin Fischer Trigger Cable BNC (RED DSMC1, DSMC2)

SKU 239200

UPC 606184852741

IN STOCK Complete purchase by 3pm CST and order will ship same business day.

3pin Fischer Trigger Cable BNC for RED cameras connects the Wooden Camera Handgrip Trigger Box to add start/stop functionality when combined with the B-Box (RED DSMC1, DSMC2). This system is ideal for RED Epic and Scarlet, as well as RED Weapon, Epic Weapon (Epic-W), Scarlet Weapon (Scarlet-W), and Raven when using the Base Expander Module but note the B-Box is also required. D-Tap power source is required so the internal board can provide 5V to the camera to start and stop recording.

The same control box works with both the Left and the Right grip. Simply remove the captured M3 screws and insert them from the opposite side.

Special Note: If you do not own the Wooden Camera B-Box but do own the Trigger Box, you should instead choose 3pin Fischer Trigger Cable 00 LEMO (RED DSMC1, DSMC2), which is the 00 LEMO compatible connector version of this cable.

Connectors used in this assembly are not manufactured by LEMO but are made to the same specifications and are LEMO compatible.

Weight: 181.4 g (.5 lbs)
Dimensions: 50.8 x 101.6 x 177.8 mm ( 2 x 4 x 7 in)
