ARRI LPL Mount for Sony Venice, Venice 2 Cameras

SKU: 269200

$1,449.00 USD $1,085.00 USD

Ships Same Day if Ordered by 10am PT

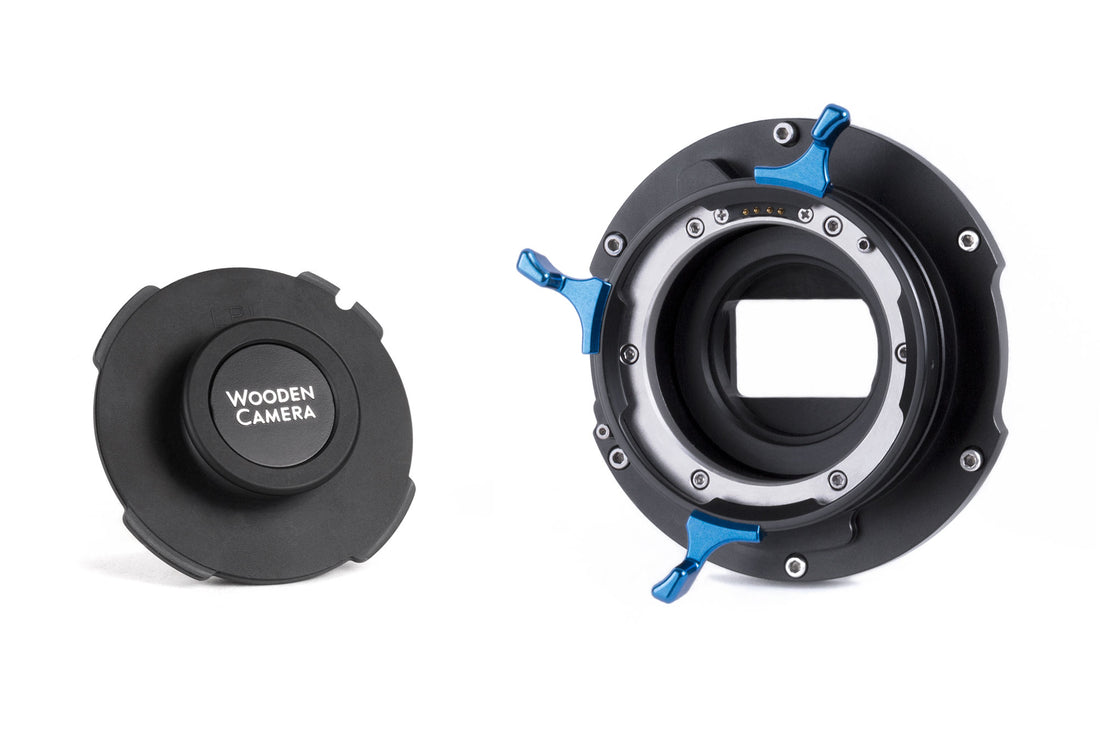

ARRI LPL Mount for Sony Venice, Venice 2 Cameras allows ARRI LPL Signature Prime Lenses to be used on Sony Venice, Venice 2 and connects lens pogos directly to the camera. LPL Cap included to prevent dust from entering sensor area when lens is not attached.

With Signature Prime SUP 2.1, Sony Venice, Venice 2 will be able to read Cooke /i metadata. Click here for more details.

In our factory, we set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity.

ARRI's LPL to PL Adapter is also compatible, allowing easy change from standard PL lenses to LPL lenses.

Shim Set (stackable to achieve necessary thickness)
Silver .0127mm (0.0005")
Amber .0254mm (0.001")
Purple .0381mm (0.0015")
Red .0508mm (0.002")
Green .0762mm (0.003")
Tan .1016mm (0.004")
Blue .127mm (0.005")
