D-Box (Alexa Mini / Mini LF, V-Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the ARRI Alexa Mini and Mini LF camera. Allows for up to 4 simultaneous outputs with a maximum draw of 3A per output (24V outputs 3A max combined) and 10A total draw limited by an easily accessible fuse. Two 16 inch (40cm) cables exit the power plate with one going to the 8pin power plug and the other going to the 7pin EXT port.

The bottom of the D-Box has (3) 1/4-20 holes which can attach directly to our Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm). For an adjustable mount system, use the Battery Slide or Recorder Slide paired with the same Rod Clamps listed above.

This product will attach to the ARRI BAP-1 and instructions on how to do this are included in the box.

Please Note: In addition to the digital or glass fuse governing the output panels of the D-box, his product contains a secondary fuse for the D-tap ports of the attached battery plate. This fuse is located in a fuse holder within the plate and replacements can be purchased here: F10A Fast Blow Fuse

Overview:
Authentic IDX V-Mount plate provides 2x D-Tap (unregulated) and is hard wired to the D-Box. Inside the D-Box is a 10A fuse.

D-Box Slots Included:

1. 7pin - EXT Port
- Replica of connector on rear of camera
- Maintains functionality of external communication, R/S, and power
- Note this slot is not swappable

2. 2pin - 12V Unregulated
- ARRI standard wiring
- This slot can be swapped for Hirose, 4pin, or D-Tap (note that only 1x D-Tap can occupy slot 2 or 3)

3. 2pin - 12V Unregulated
- ARRI standard wiring
- This slot can be swapped for Hirose, 4pin, or D-Tap (note that only 1x D-Tap can occupy slot 2 or 3)

4. 3pin Fischer - 24V Regulated
- Regulator built in to convert battery voltage to 24V
- Maximum 3A shared between slot 4/5
- Note this slot is not swappable

5. 3pin Fischer - 24V Regulated
- Regulator built in to convert battery voltage to 24V
- Maximum 3A shared between slot 4/5
- Note this slot is not swappable

6. 4pin Mini XLR - 12V Input
- Hot swappable power input with included 8 inch pigtail cable for standard 4 pin XLR (12V nominal)
- Capable of providing power to accessories and camera without brick battery attached
- Note this slot is not swappable

Specifications:
Weight: 534 grams (1.18 lbs)
Dimensions: 90 x 146 x 43mm (3.5 x 5.7 x 1.7 inches)

Free Ground Shipping in the U.S.

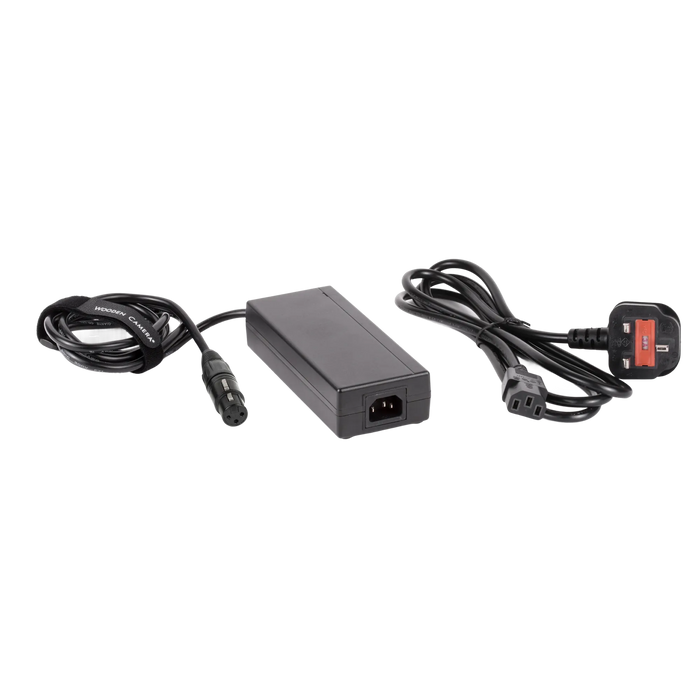

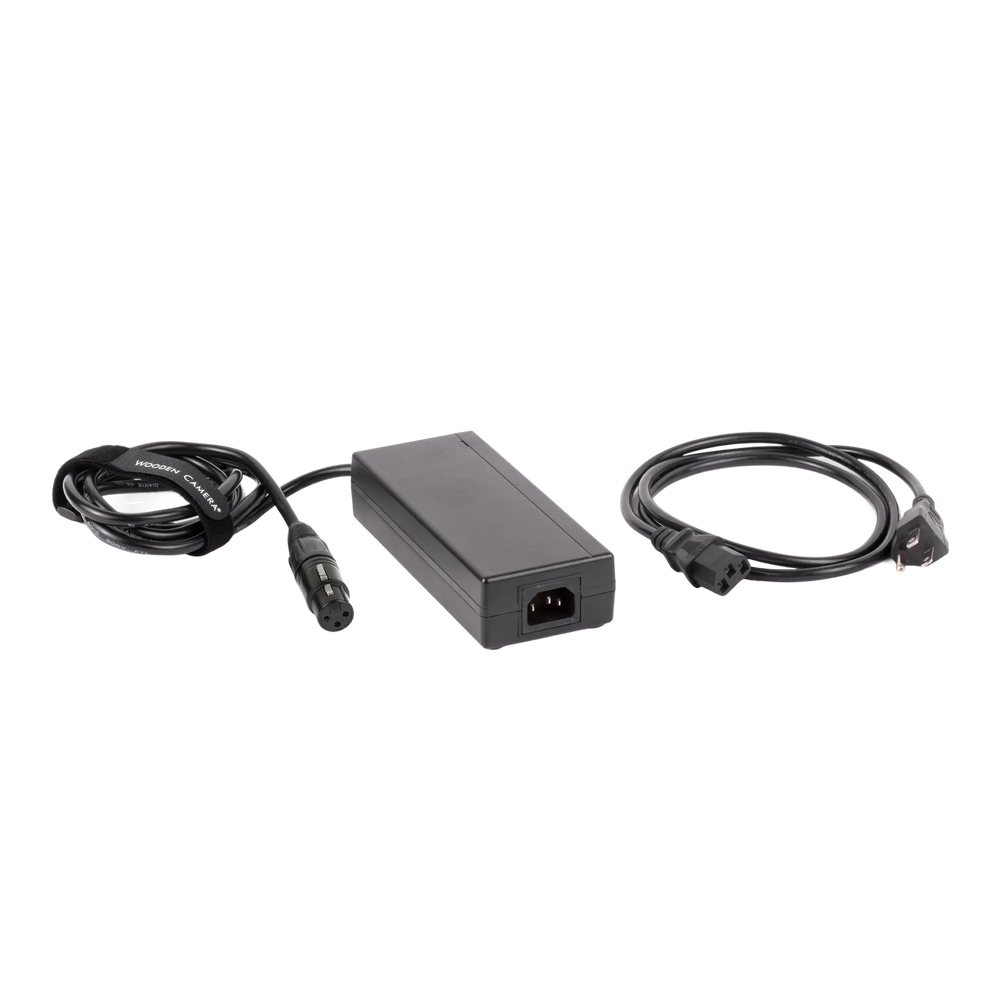

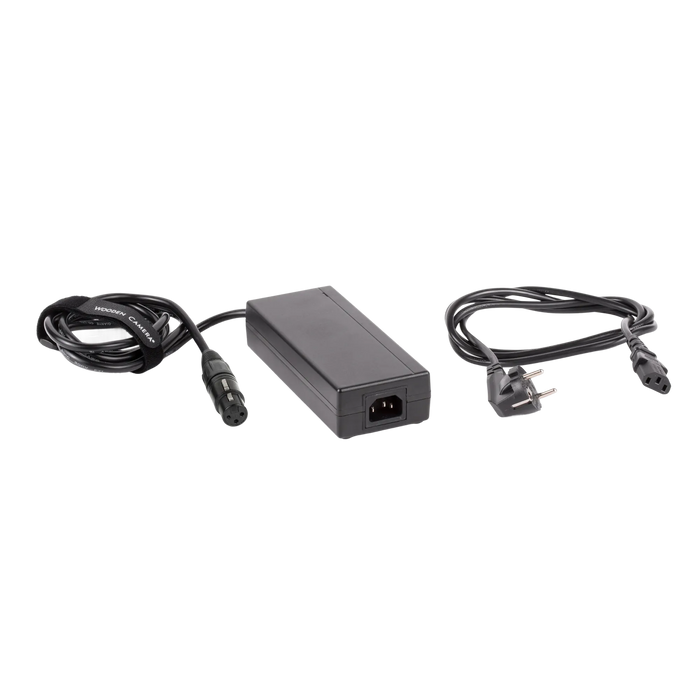

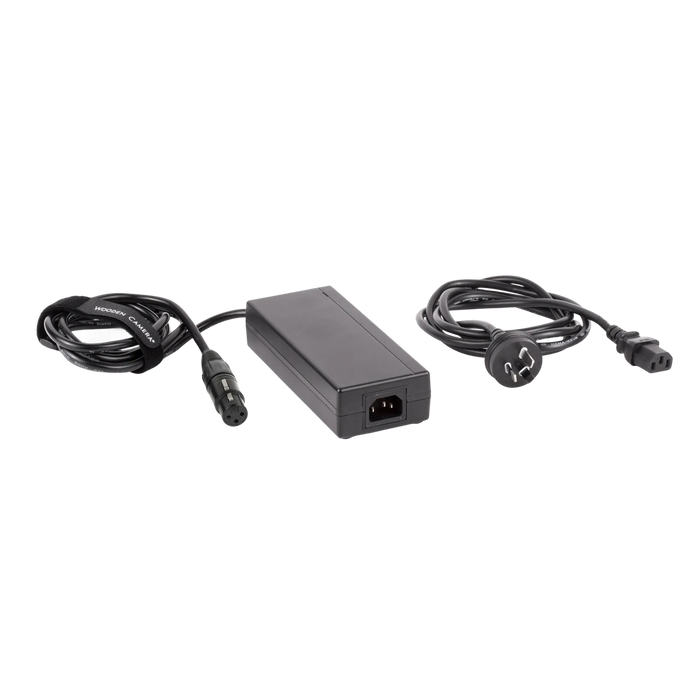

24V Power Supply (3pin XLR Female)
