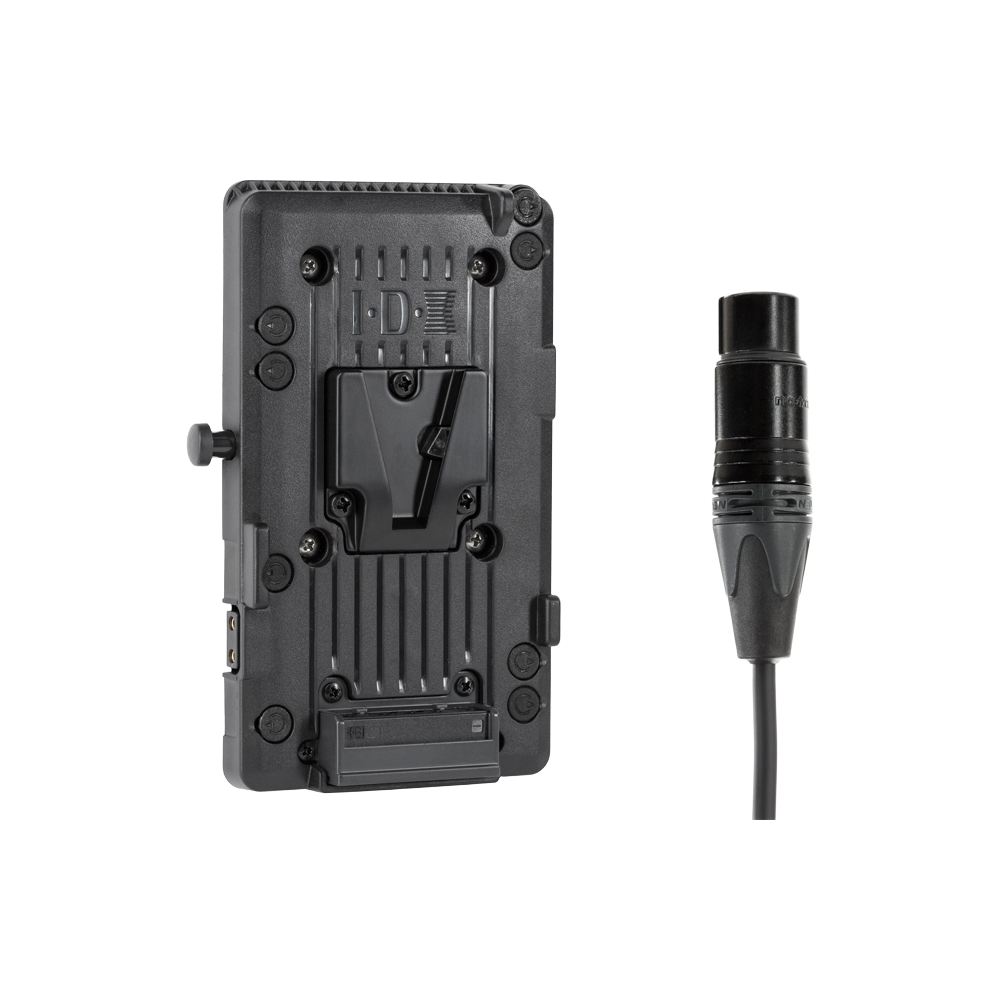

WC V-Mount (XLR 4 Pin)
IN STOCK Complete purchase by 3pm CST and order will ship same business day.
Wooden Camera brand V-Mount plate utilizing an IDX V-Mount and standard 4 pin XLR power connector. Plate provides unregulated 12V power (12-16V depending on battery connected). Great for cameras like Blackmagic Studio Camera (BMSC), Panasonic GH4-YAGH, Sony F55/F5, AJA CION, Canon C500mkII and more.
2x D-Taps on plate provide 12-16V depending on battery connected.
Cable length: 16 inches (40cm)
Weight: 234g (0.5 lbs)
Dimensions: 142.4 x 90.8 x 21.3 mm (5.6 x 3.6 x 0.8 in)
Cable exits the right side of the plate allowing neat looping and insertion into the camera. Length allows minimal cable excess while still being able to reach positions further away from the camera as necessary. For an adjustable mount system attached to rods, use the Battery Slide or Recorder Slide paired with the appropriate Rod Clamp: Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm).
Custom lengths up to 6ft available at the same price (additional length available with a small fee). Send us an email with your requirements: firstname.lastname@example.org
