Quick-Disconnect Receivers

Anti-Twist Swivel Mounts for QD Camera Strap System

The Quick-Disconnect Receivers offer filmmakers, photographers, and riggers a secure and adjustable mounting solution. You’ve got options in design and mounting points.

Mounting Options:
⅜”-16 (Single)
¼”-20 (Single or Dual)

Design Options:
8-Position
360º

Adjustable Non-Spin Positioning

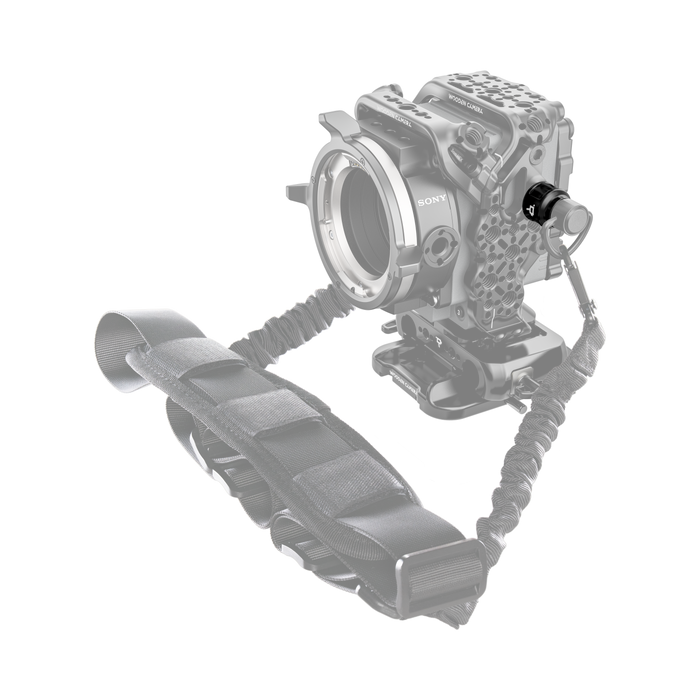

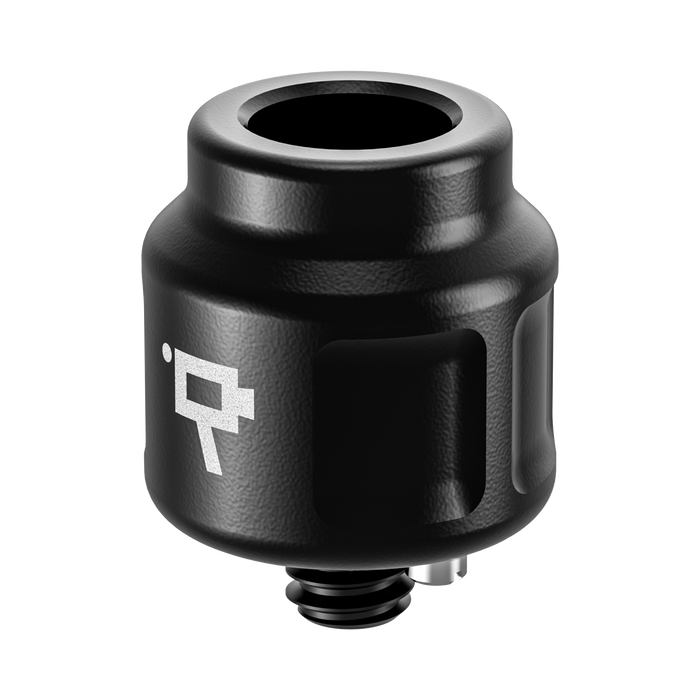

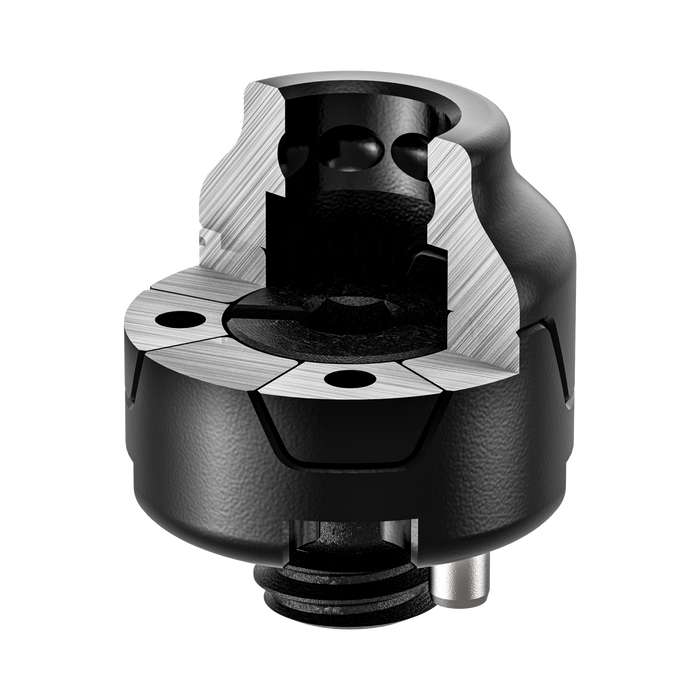

The 8-Position biconvex detent design firmly locks D-rings in place, preventing accidental detachment and twisting, unlike free-spring versions. Eight adjustable positions allow customized Triangle Ring orientation for optimal balance. This receiver provides a sturdy connection for cinema rigs, camera accessories, and professional mounting systems, offering precision, security, and versatility for dynamic shooting setups

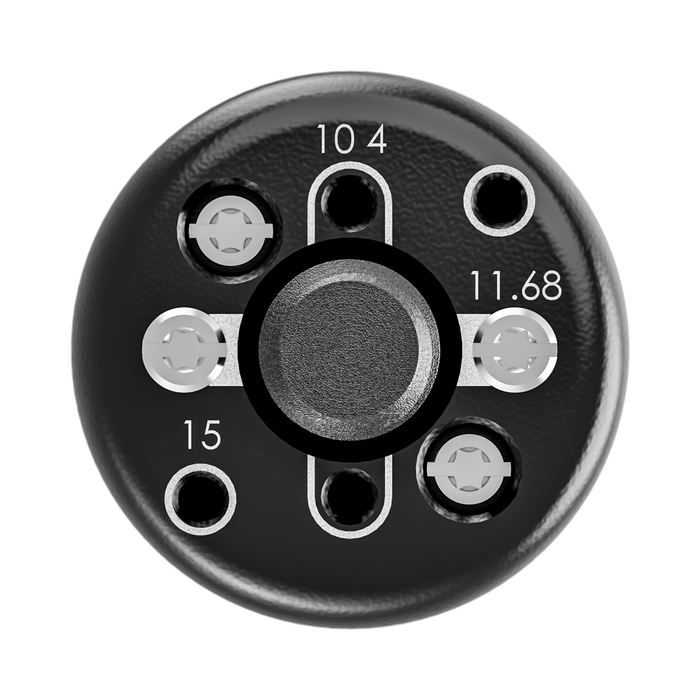

The ¼”-20 receivers include removable anti-twist pins that adjust to 10.4mm, 11.68mm, and 15mm patterns, with two spares in the base. A 3/16” hex tool secures the receiver to ¼”-20 screw holes.

Unlimited Rotation Range of Motion

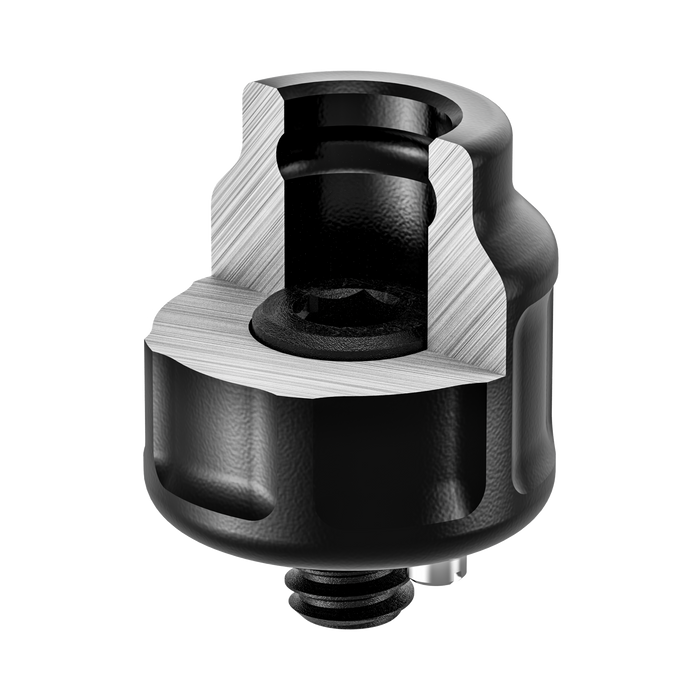

The 360º design offers seamless mobility for camera and cinema setups. Its free-spinning mount allows flexible strap positioning and smooth movement. Freely swiveling triangle rings enhance usability and a secure connection. The fixed anti-twist pins provide stability, leveraging the 360º rotation. A 3/16” hex tool ensures secure attachment to 3/8"-16 or 1/4"-20 screw holes; the dual option for each provides a lower profile solution. Ideal for cinema rigs, stabilizers, and camera supports, this versatile receiver enhances workflow with a secure, low-profile, and adjustable quick-release system.

Specifications:

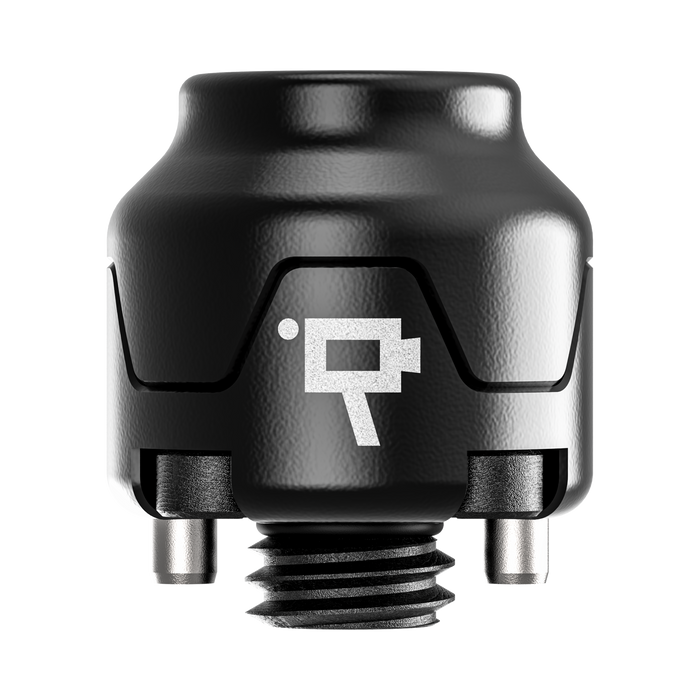

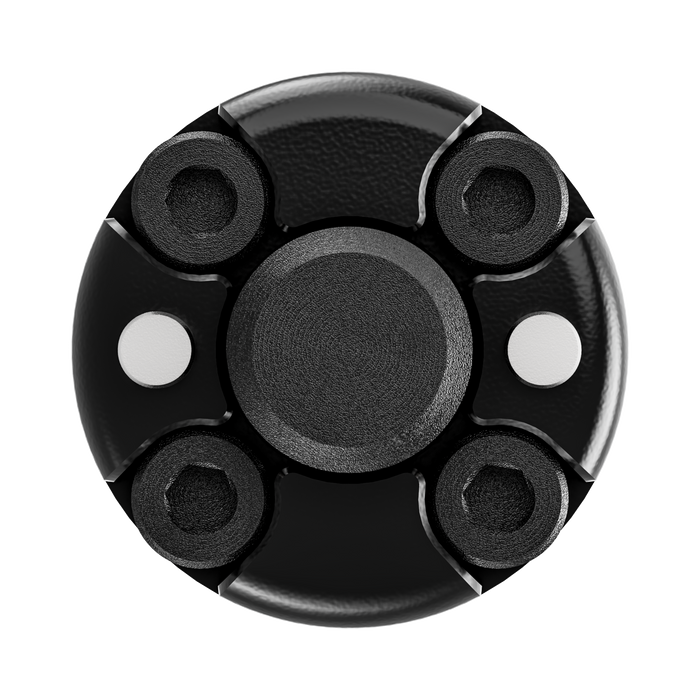

A00822 | Quick-Disconnect Receiver (3/8"-16, 8-Position): Weight: 21.27 g (0.047 lbs) | Dimensions: 21.9 x 21.9 x 24.9 mm (1.83 x 1.83 x 2.08 in)

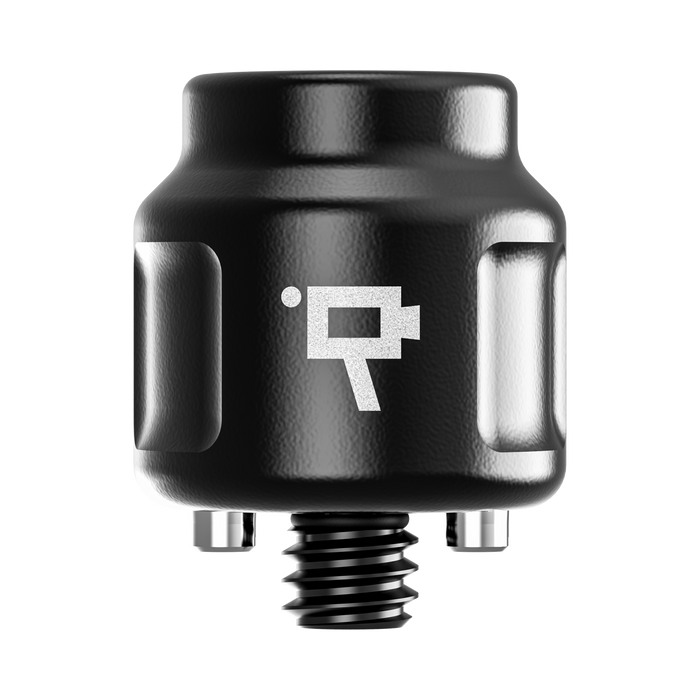

A00809 | Quick-Disconnect Receiver (1/4"-20, 8-Position): Weight: 14.97 g (0.033 lbs) | Dimensions: 19.5 x 19.5 x 25.5 mm (1.63 x 1.63 x 2.13 in)

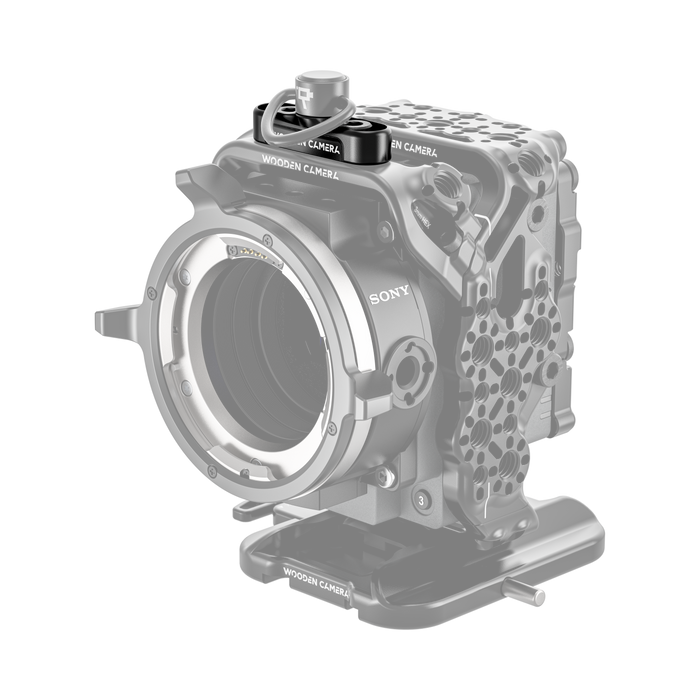

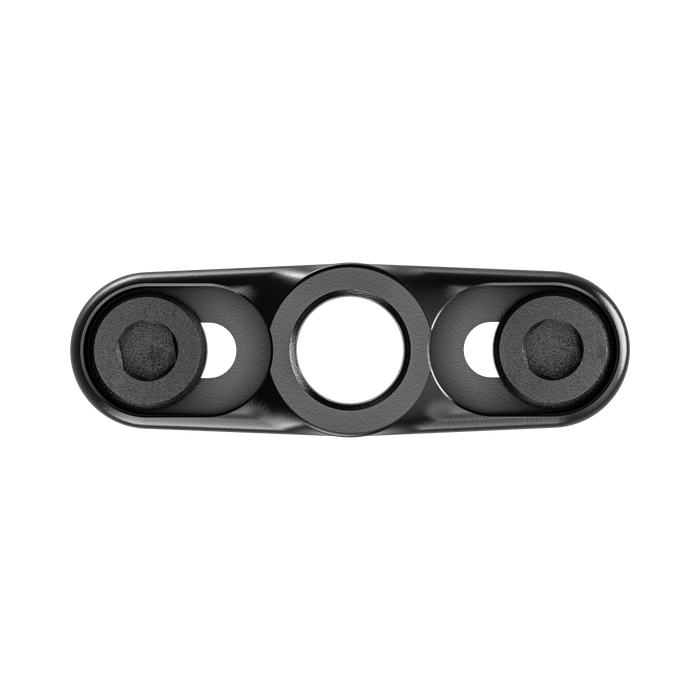

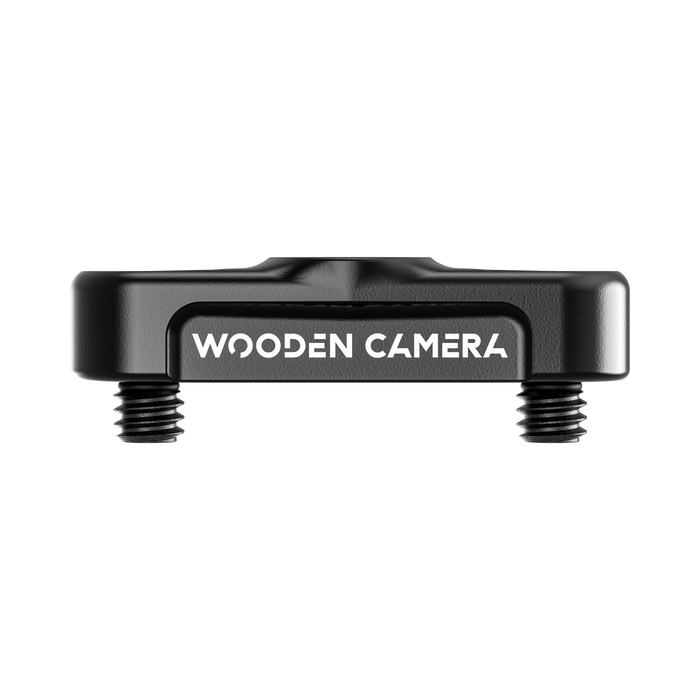

A00820 | Quick-Disconnect Receiver (Dual 1/4"-20, 8-Position): Weight: 17.37 g (0.038 lbs) | Dimensions: 19.5 x 19.5 x 25.5 mm (1.63 x 1.63 x 2.13 in)

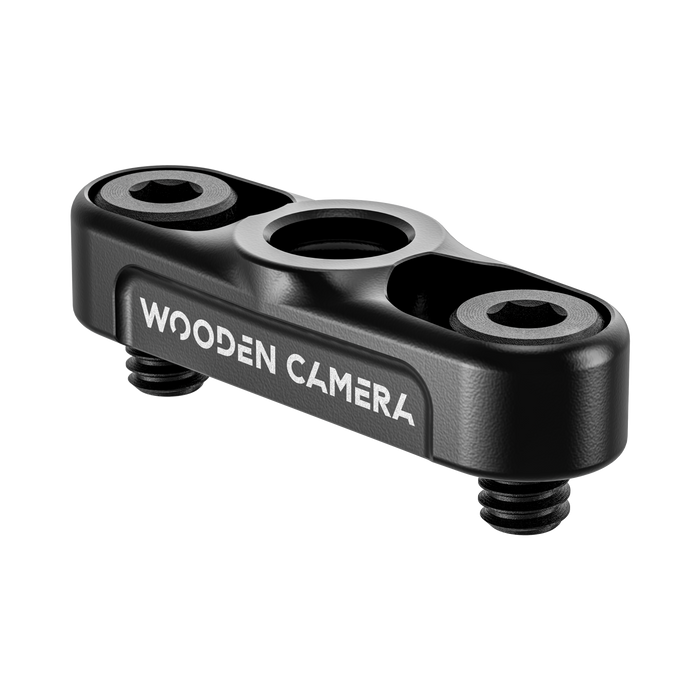

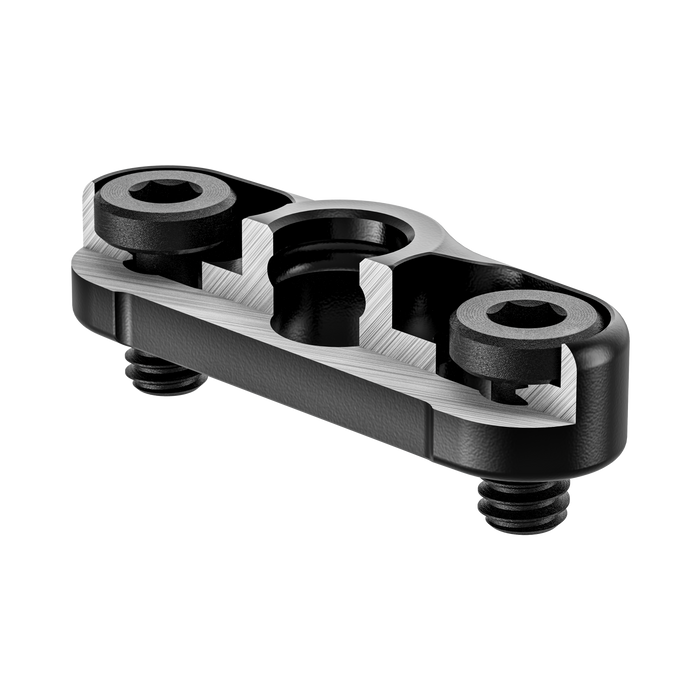

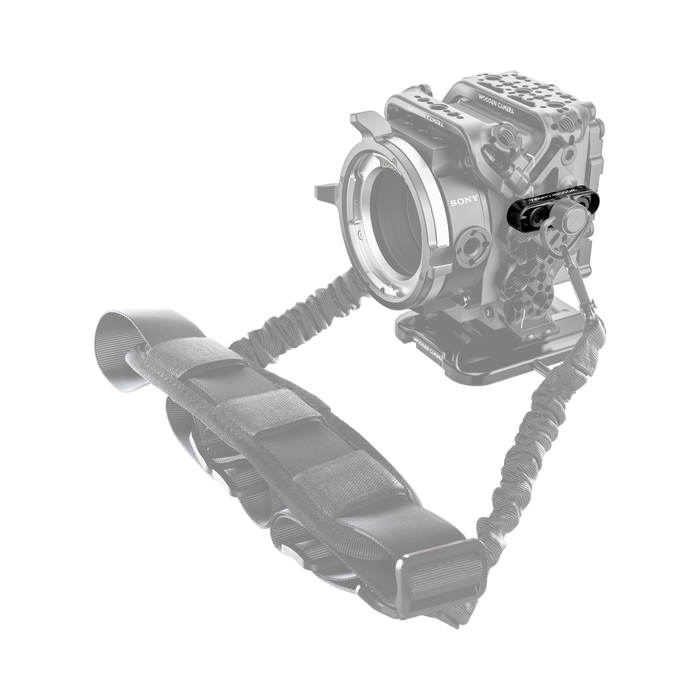

A00813 | Quick-Disconnect Receiver (Dual 1/4"-20 Mount, 360º): Weight: 17.33 g (0.038) lbs | Dimensions: 19.5 x 19.5 x 25.5 mm (1.63 x 1.63 x 2.13 in)

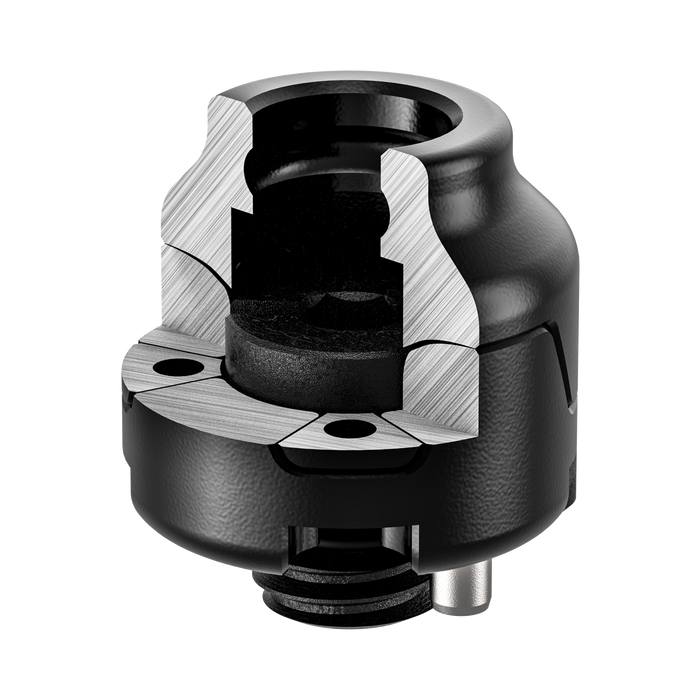

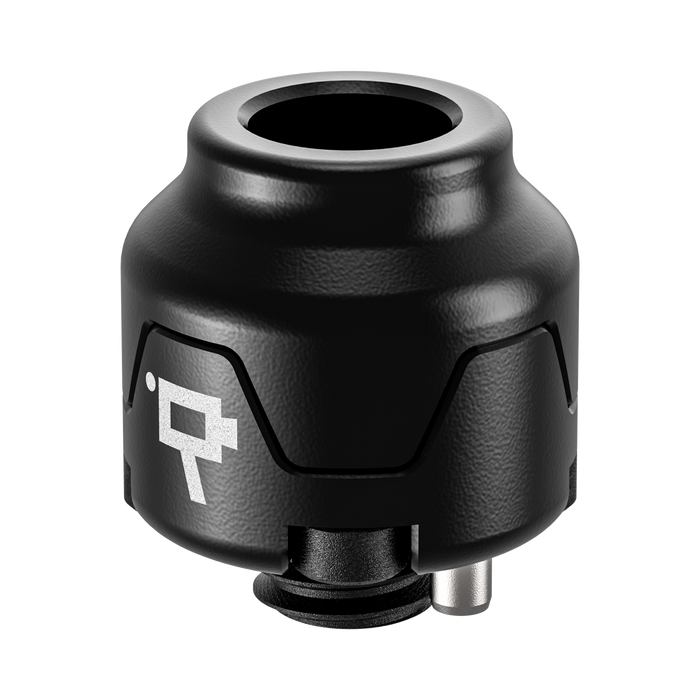

A00812 | Quick-Disconnect Receiver (3/8"-16, 360º): Weight: 21.23 g (0.047 lbs) | Dimensions: 21.9 x 21.9 x 24.9 mm (1.83 x 1.83 x 2.08 in)

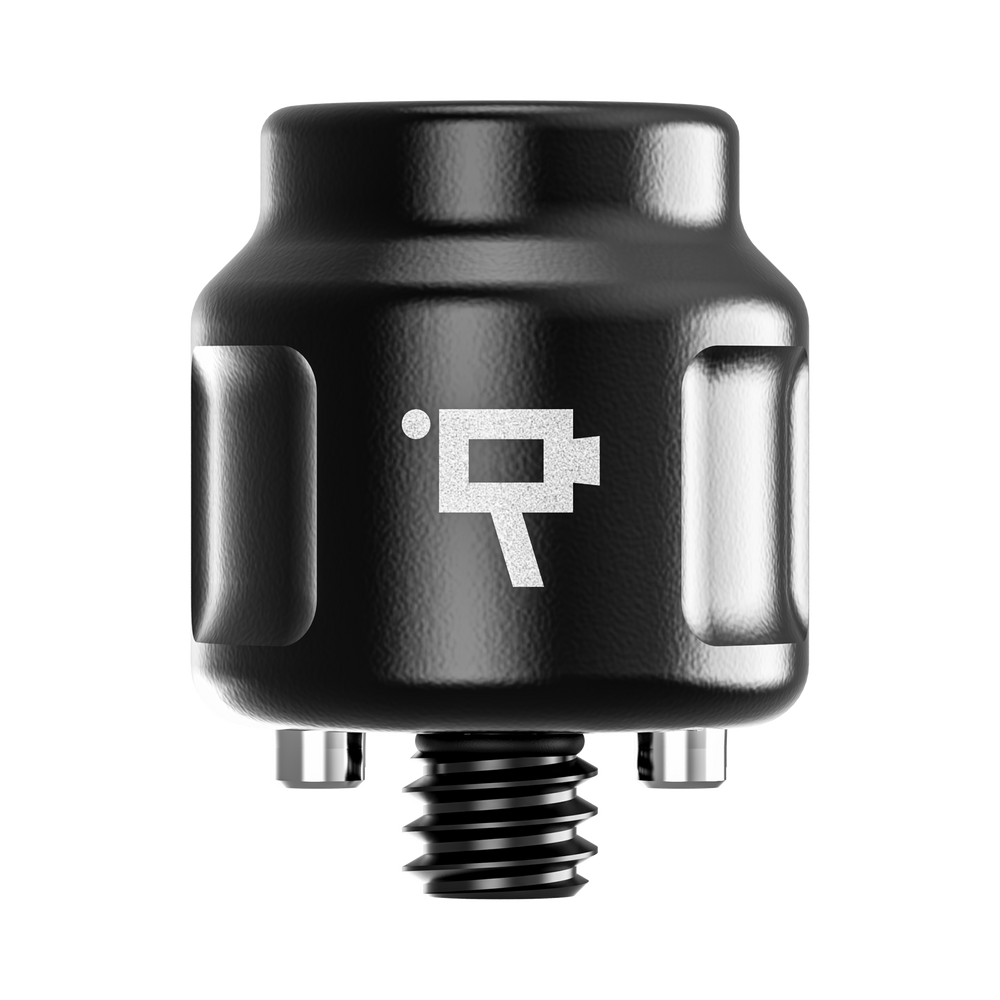

A00809 | Quick-Disconnect Receiver (1/4"-20, 360º): Weight: 14.92 g (0.033 lbs) | Dimensions: 19.5 x 19.5 x 25.5 mm (1.63 x 1.63 x 2.13 in)
