D-Box® (URSA Mini, URSA Mini Pro / 12K, V-Mount)

This D-Box® is not compatible with the Blackmagic URSA Cine 12K & 17K

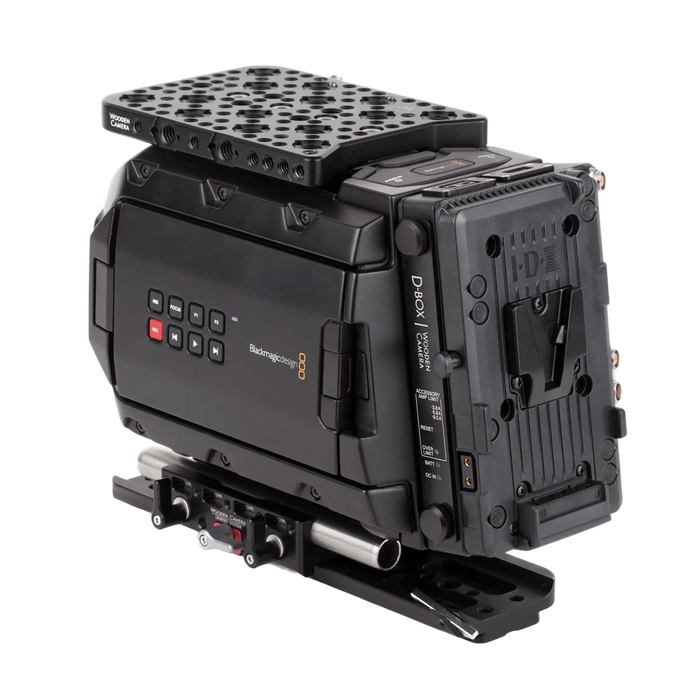

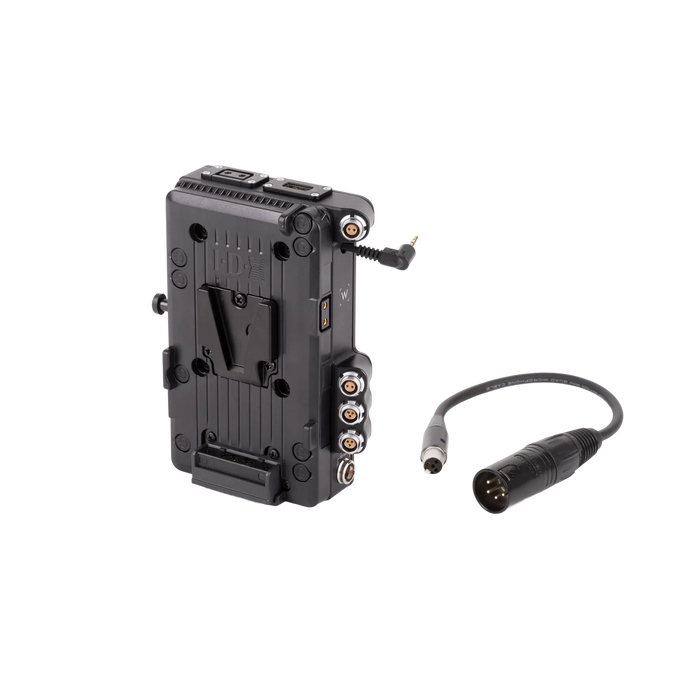

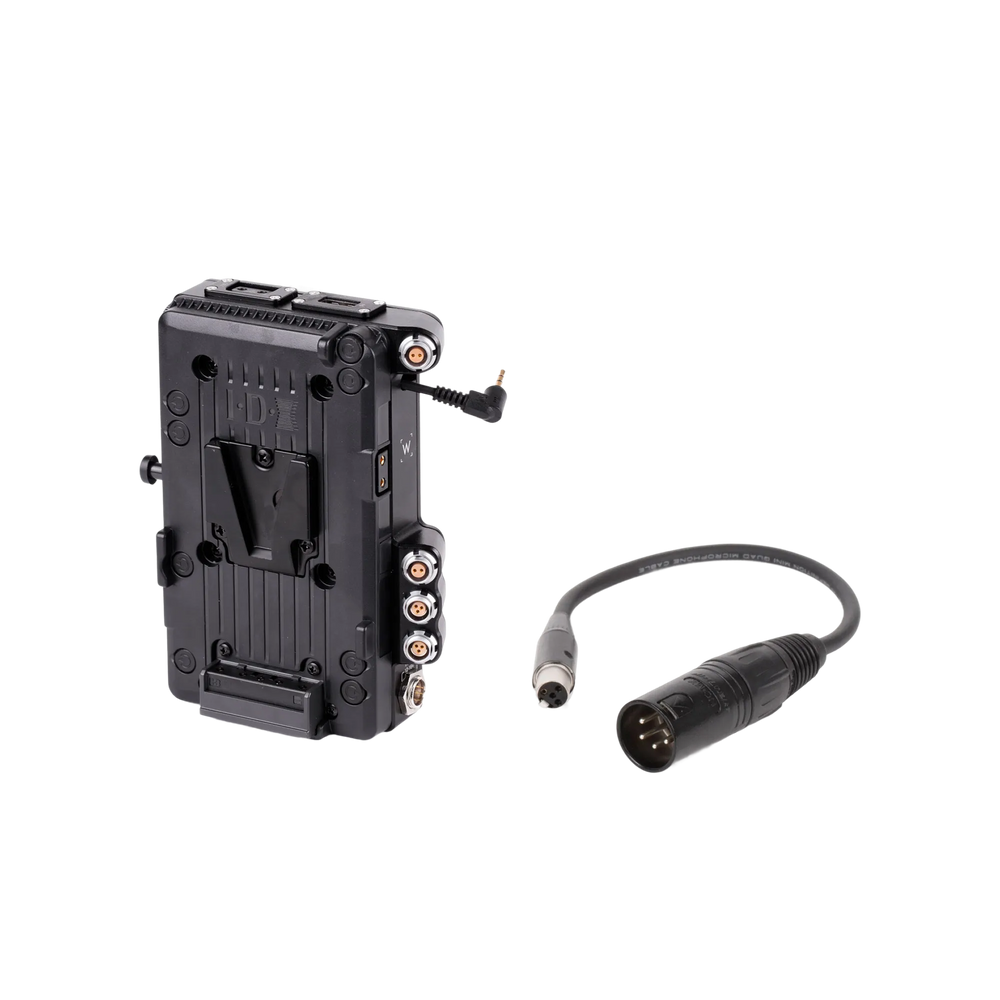

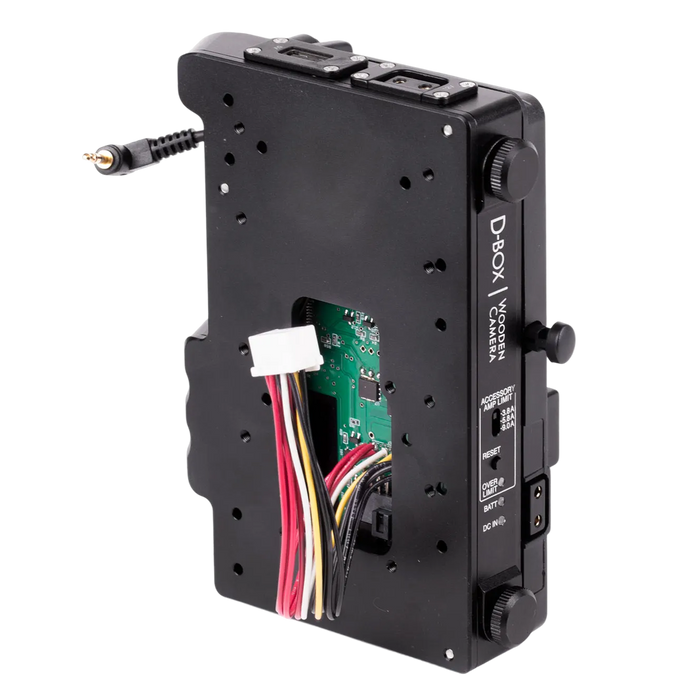

D-Box® (URSA Mini, URSA Mini Pro / 12K, V-Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap capability to the Blackmagic URSA Mini Pro / 12K, EF Mount, PL Mount, and B4 Mount cameras. The D-Box attaches directly to the back of the camera body using a special Molex connector eliminating external cabling. It also interfaces with the rear LANC port which is how the D-Box controls the camera's run/stop.

Connectors on the D-Box are contoured inline with the URSA Mini body, streamlining port connections and cable management. The module also provides two 3-pin Fischer ports, allowing start/stop with any ARRI standard trigger device.

The D-Box is equipped with a Mini 4-pin XLR DC Input and includes a Mini 4-pin XLR to Full 4-pin XLR pigtail cable allowing an AC power supply or external power plate to be connected to power the camera and accessories during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged. The OEM AC Power Supply provided with the URSA Mini Pro does not have a high enough amperage rating to power a D-Box with accessories or perform a Hot Swap from battery power to DC input. Wooden Camera offers a higher rated unit for these requirements: 15V Power Supply (4-pin XLR Female).

Overview:
Authentic IDX V-Mount plate provides 2x D-Tap (unregulated) on the power plate itself but we should note that one D-Tap may be obscured by the right side BNC connectors when in use. The camera receives an unfused connection to the power source and the D-Box connectors share a 7.5A fuse. When using D-Box battery modules it is important to know what amount of power your batteries are capable of providing. Most high-end cinema batteries can supply up to 10A with the URSA Mini camera generally consuming 3–4A in standard configuration. Although the remaining power is available from the D-Taps, 2-pin connectors, Fischers, etc., it is best to limit the power draw to 5A or less for best results.

D-Box Connections:

1. D-Tap – 12V Unregulated
2. USB – 5V Regulated
3. 2-pin connector – 12V Unregulated
   - ARRI standard wiring
4. 2-pin connector – 12V Unregulated
   - ARRI standard wiring
5. 3-pin Fischer – 24V Regulated
   - Regulator built in to convert battery voltage to 24V
   - Maximum 2A continuous (3A surge) shared between the two 3-pin Fischers
   - ARRI standard start/stop capabilities
6. 3-pin Fischer – 24V Regulated
   - Regulator built in to convert battery voltage to 24V
   - Maximum 2A continuous (3A surge) shared between the two 3-pin Fischers
   - ARRI standard start/stop capabilities
7. DC Input – 12–16V
   - DC input on the D-Box is a Mini 4-pin XLR but a pigtail cable is included to full-size 4-pin XLR
   - Priority is given to DC Input to preserve battery charge when both sources are connected

Please Note: In addition to the digital or glass fuse governing the output panels of the D-Box, this product contains a secondary fuse for the D-Tap ports of the attached battery plate. This fuse is located in a fuse holder within the plate and replacements can be purchased here: F10A Fast Blow Fuse

Specifications:
Weight: 610g (1.3 lbs)
Dimensions: 228.6 x 177.8 x 127 mm (9 x 7 x 5 in)
