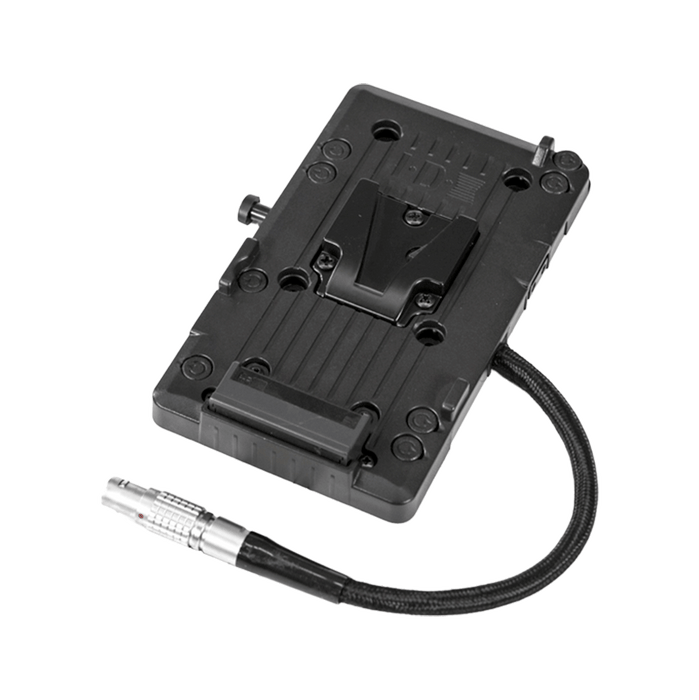

WC V-Mount (DSMC1/DSMC2)
IN STOCK Complete purchase by 3pm CST and order will ship same business day.

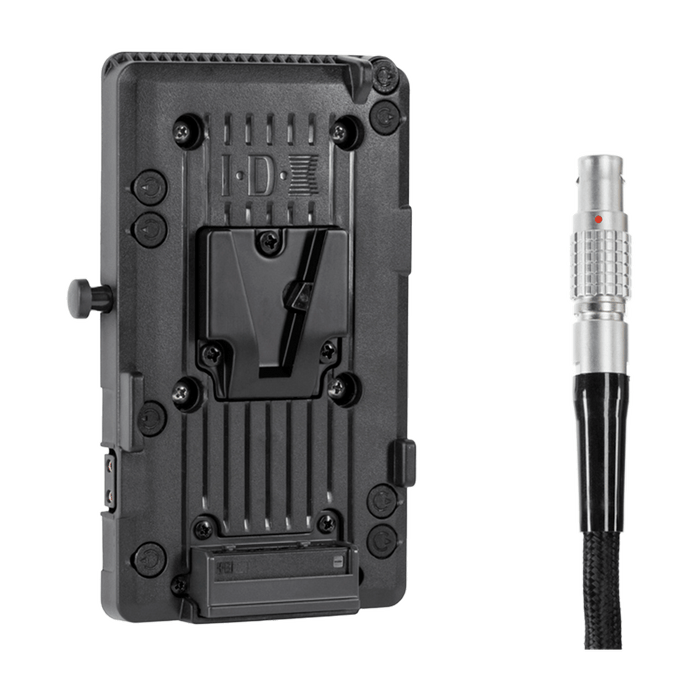

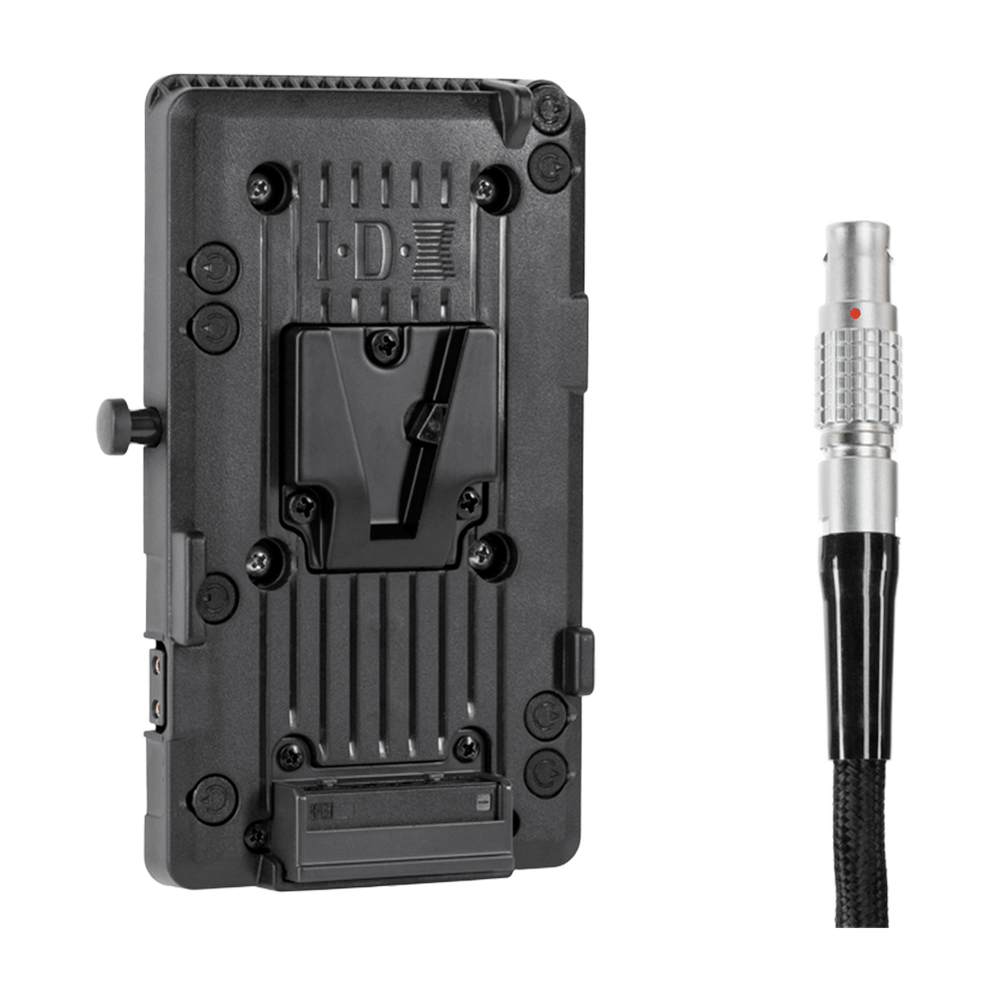

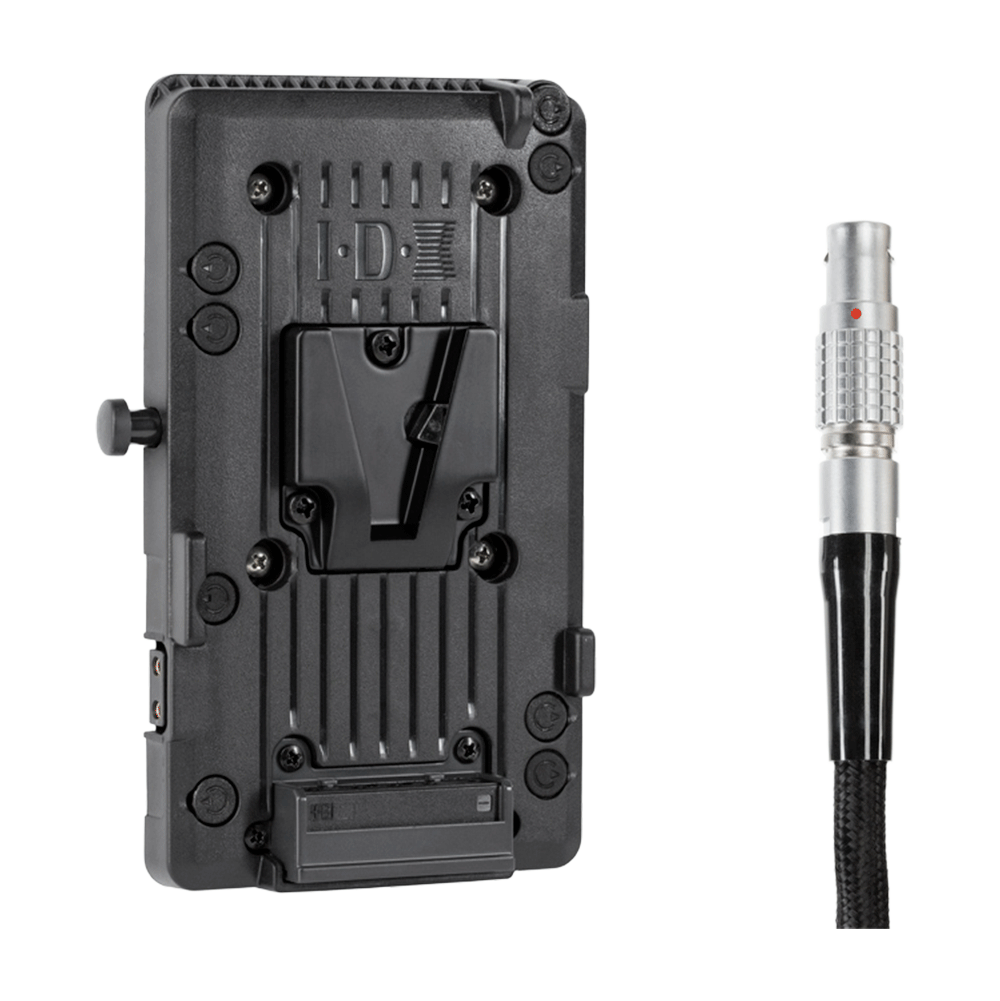

Wooden Camera brand V-Mount plate utilizing an IDX V-Mount and RED DSMC1/DSMC2 LEMO compatible connector. This plate is wired correctly to display RED Brick and smart V-mount battery percentage on displays.

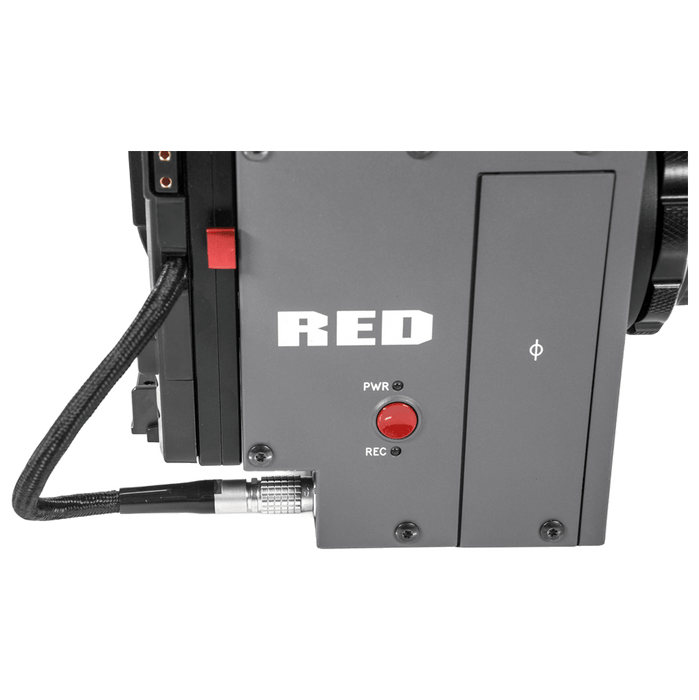

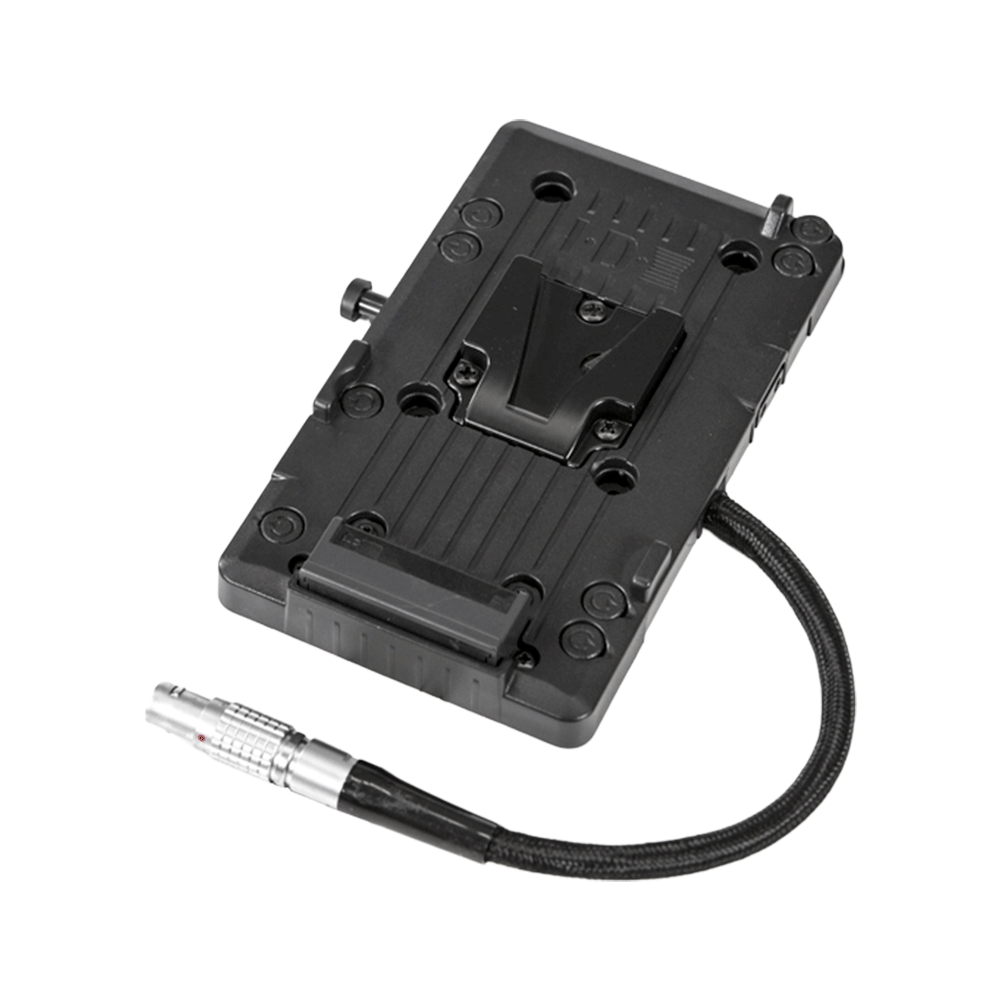

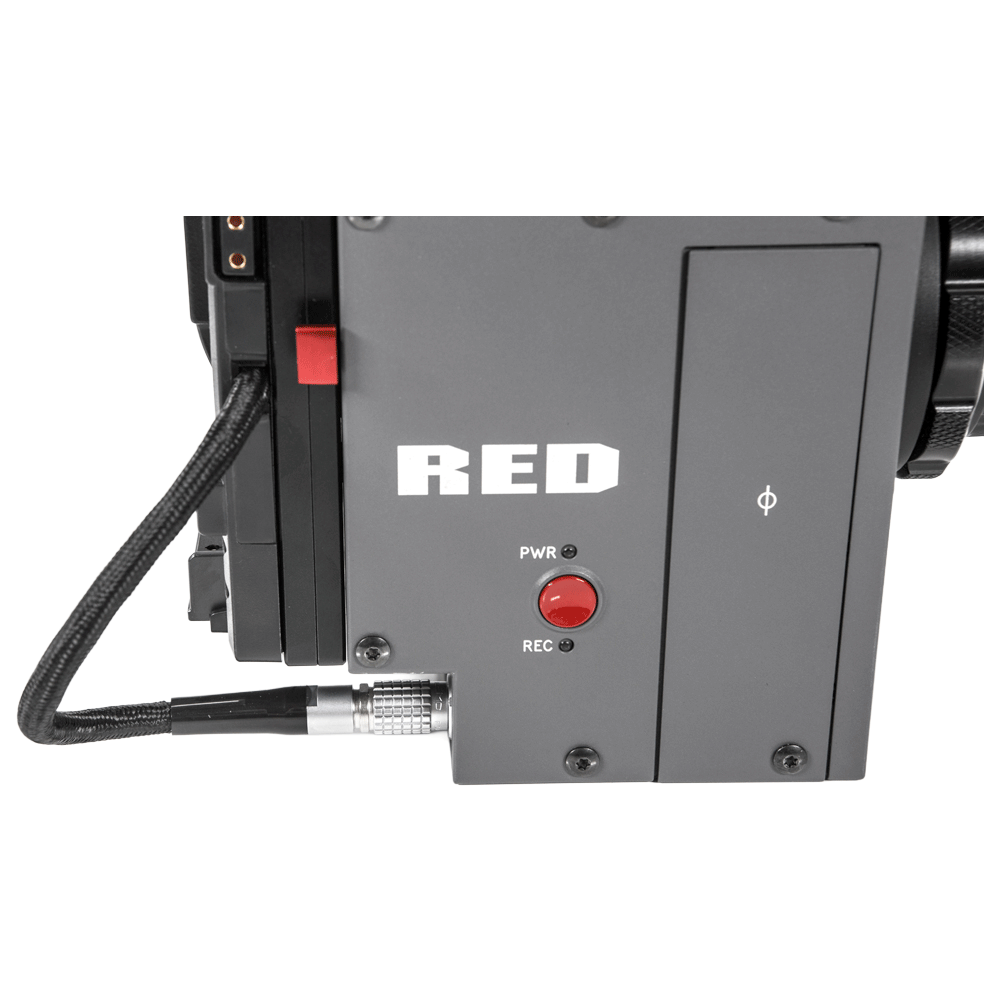

8" cable exits the right side of the plate allowing easy insertion into the camera. Design allows minimal cable excess while still being able to reach additional modules when necessary.
Custom lengths available up to 6ft at the standard price. Additional lengths available as needed. Send us an email with your requirements: firstname.lastname@example.org
2x D-Tap ports for accessory power.

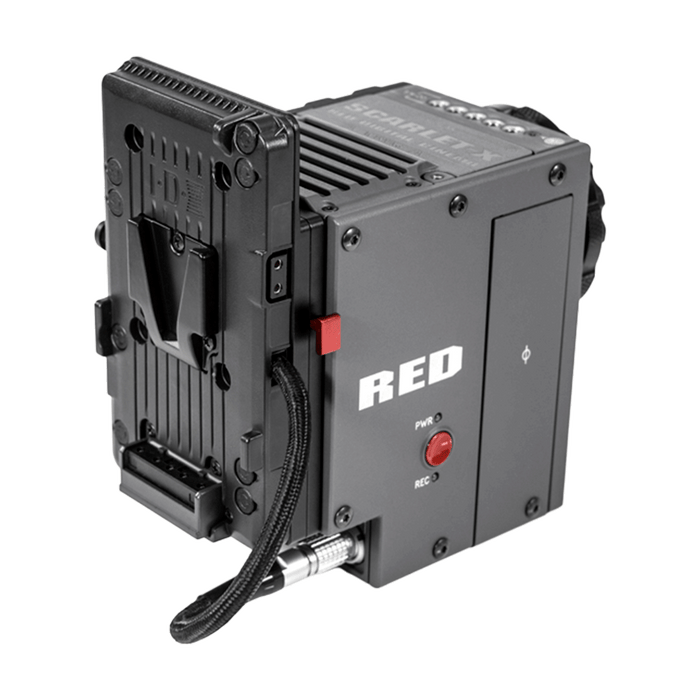

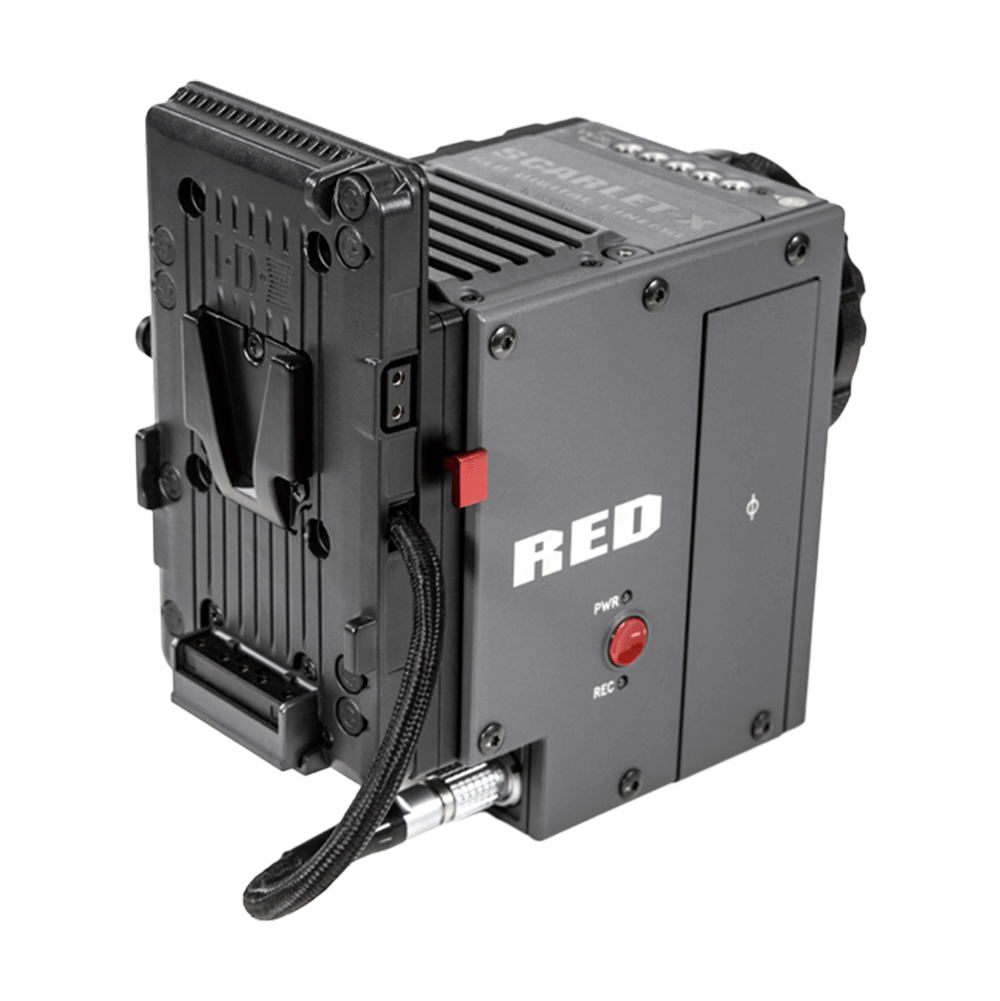

To mount the WC V-Mount onto the back of the DSMC1/DSMC2 one of these items is required:
Quick Back v2 - A quick release plate that can attach to the back of the brain or any RED module
Fixed Back - A bolt on battery mount that can only attach to the brain
For an adjustable mount system attached to rods, use the Battery Slide or Recorder Slide paired with the appropriate Rod Clamp: Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp
Connectors used in this assembly are not manufactured by LEMO but are made to the same specifications and are LEMO compatible.
Weight: 227g (0.5 lbs)
Dimensions: 143.2 x 92 x 21.9 mm (5.6 x 3.6 x 0.9 in)
RED DSMC1/DSCM2 Configuration Guides
