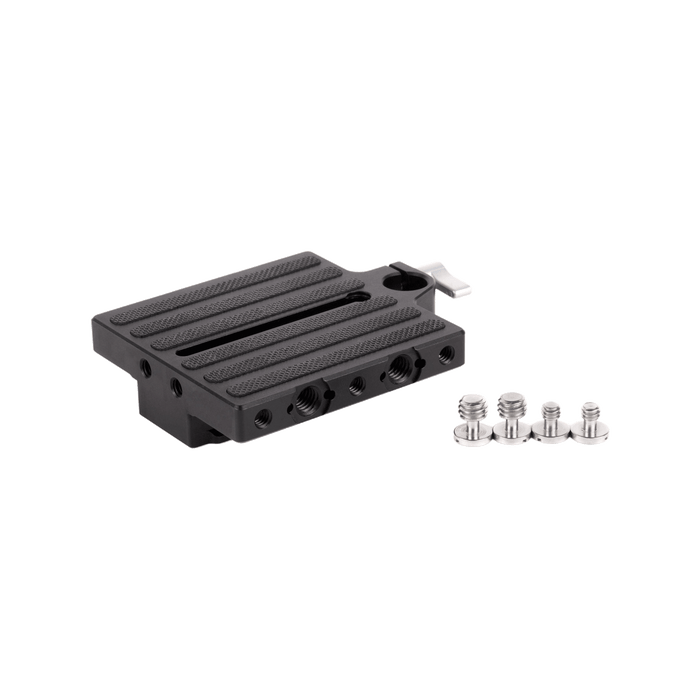

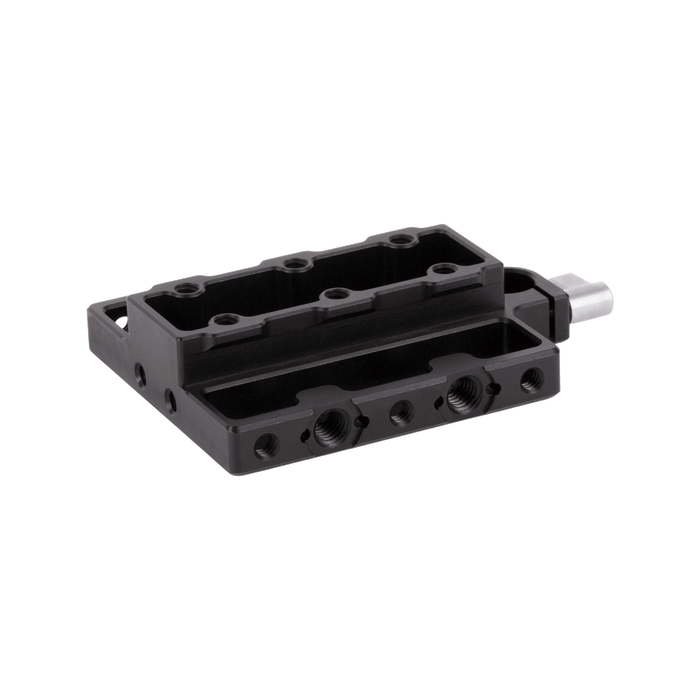

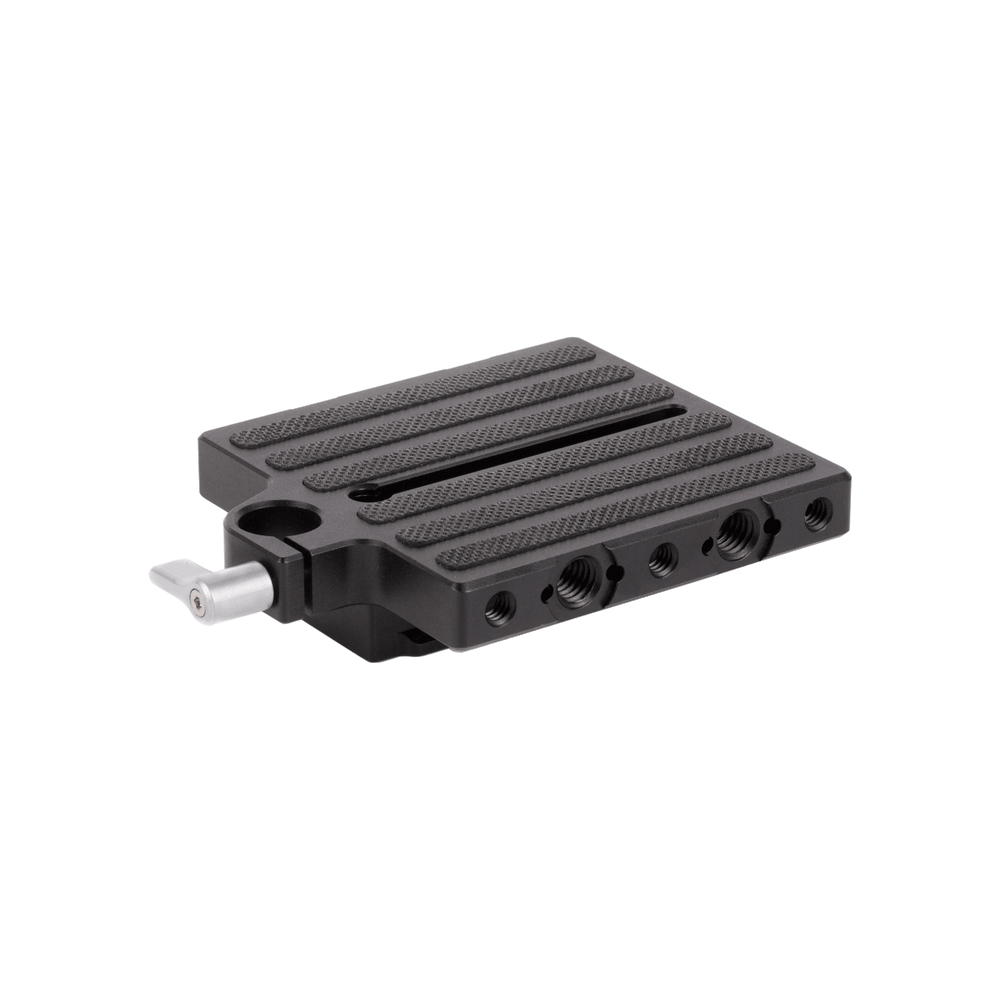

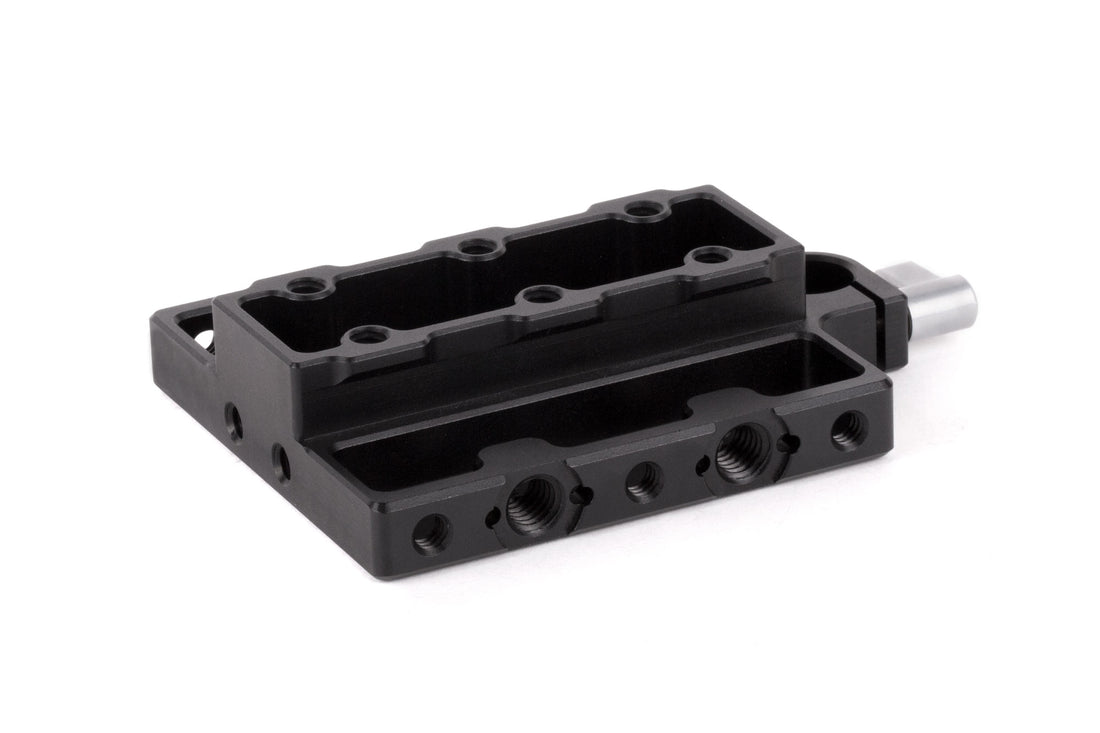

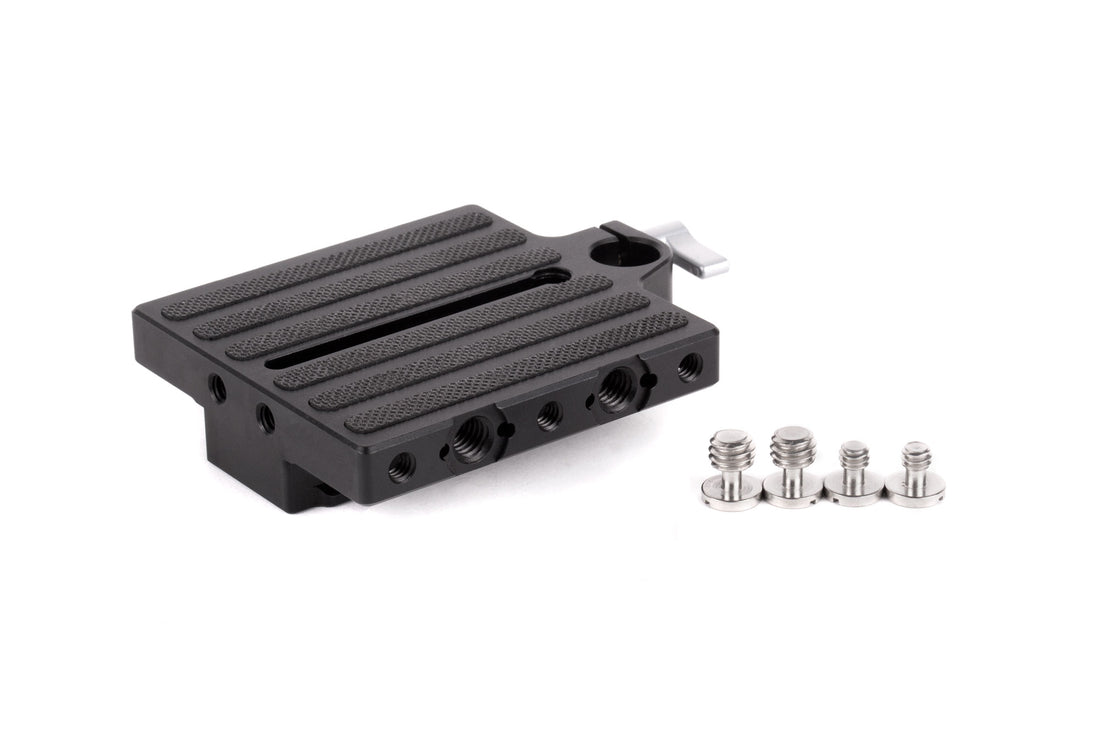

Unified Baseplate Camera Dovetail (Canon C200, C200B, C700)

$125.00
SKU 243200

UPC 606184853403

IN STOCK Complete purchase by 3pm CST and order will ship same business day.

Unified Baseplate Camera Dovetail (Canon C200, C200B, C700) is a plate which can attach to the base of those cameras and when combined with the Unified Baseplate Core Unit (No Dovetails), provides 15mm lightweight rods at the correct lens height. The slotted design allows multiple included 1/4-20 and 3/8-16 screws to be attached to the camera bottom up to 70mm apart center to center and non-slip, rubber surface prevents the camera from twisting. The bottom portion of this Unified Camera Dovetail features an ARCA Swiss standard dovetail shape, our patented serrated dovetail design, and 1/4-20 threaded holes for attaching to gimbal mounts and other devices. Additionally the 15mm vertical rod opening can be combined with our Unified Lens Adapter Support Kit components to attach adapters like Wooden Camera, Metabones, etc. securely onto a camera body.


Included:
(2) 1/4-20 low profile screws
(2) 3/8-16 low profile screws

Specifications:
Weight: 181.4 g (.5 lbs)
Dimensions: 101.6 x 127 x 25.4 mm (4 x 5 x 1 in)

Unified Baseplate Overview:
