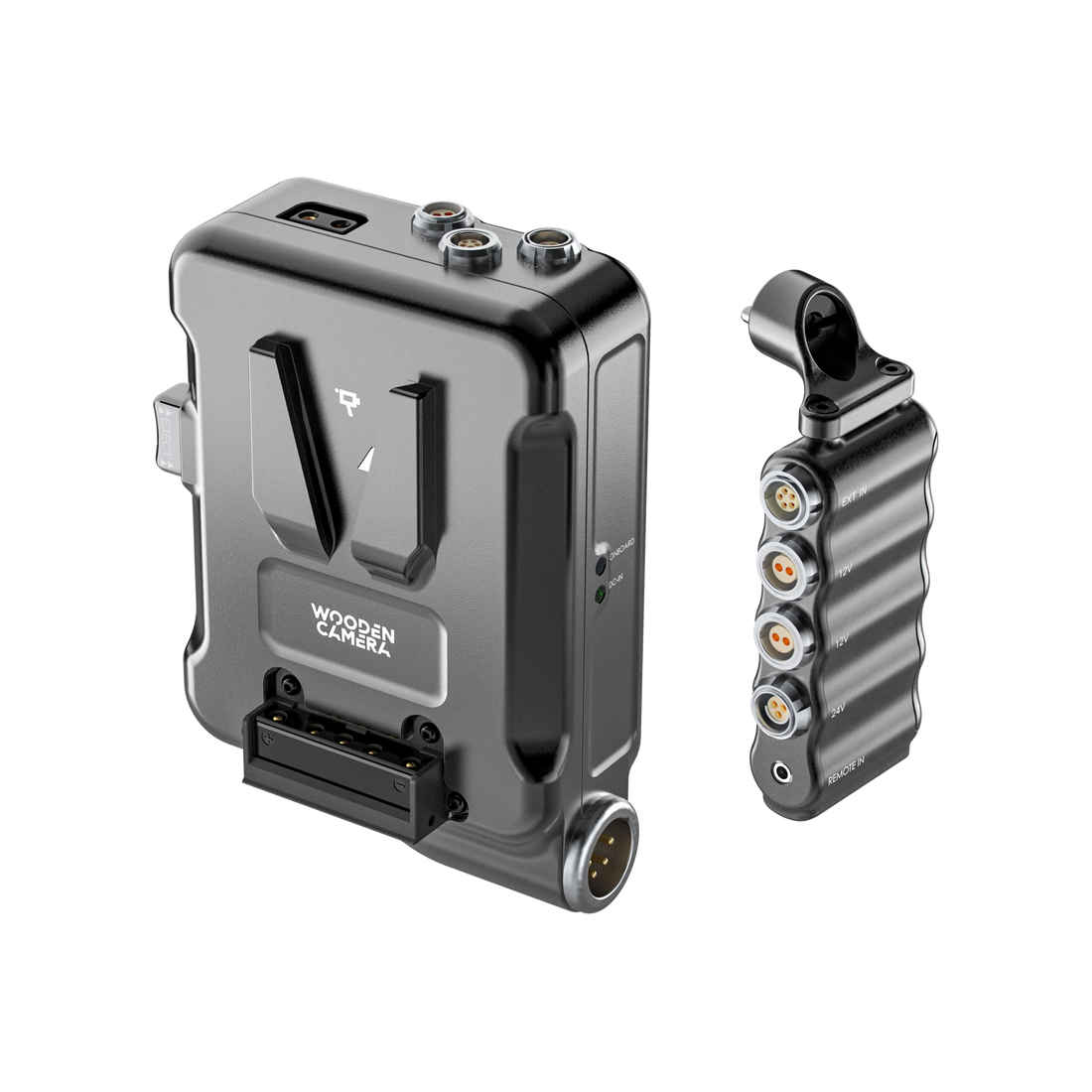

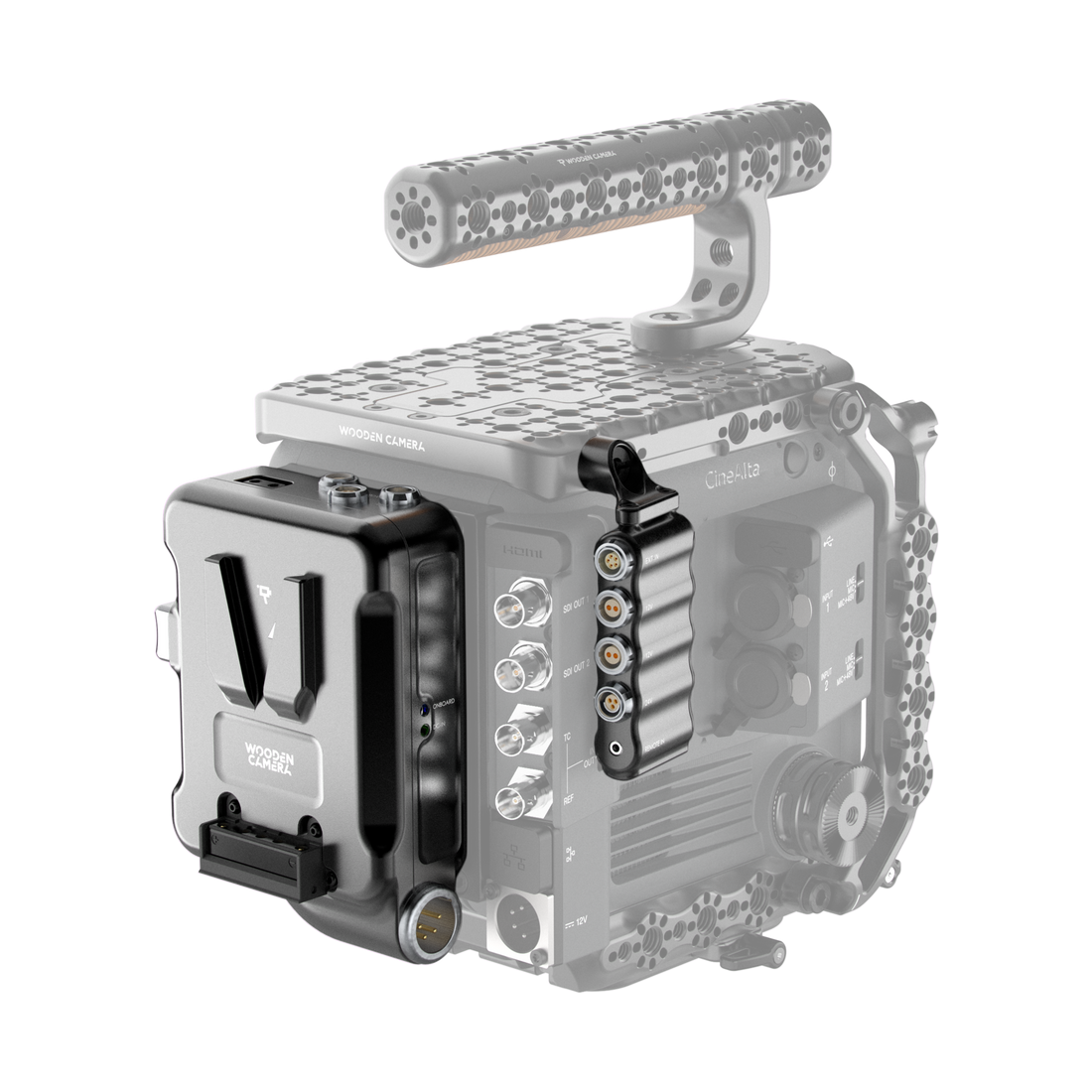

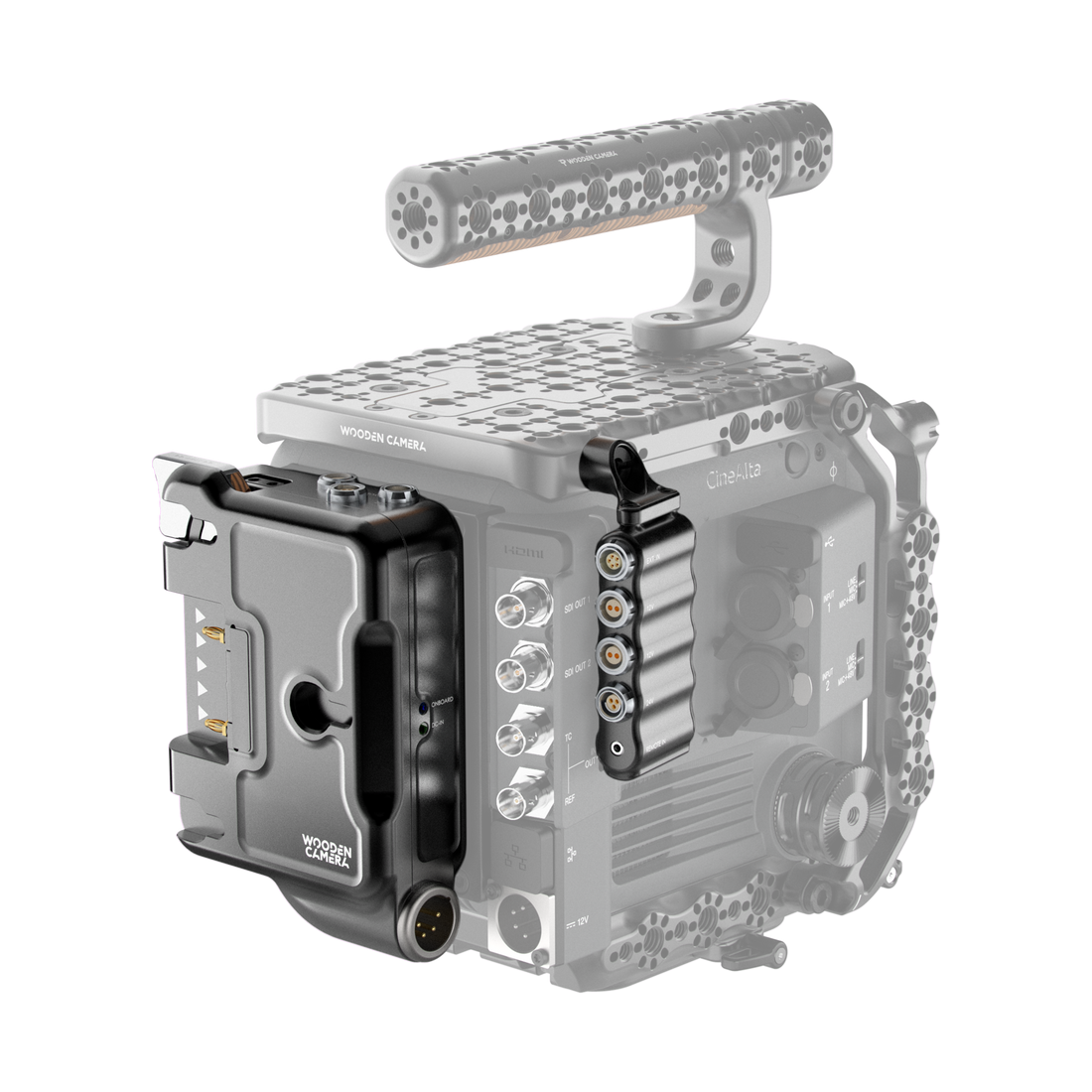

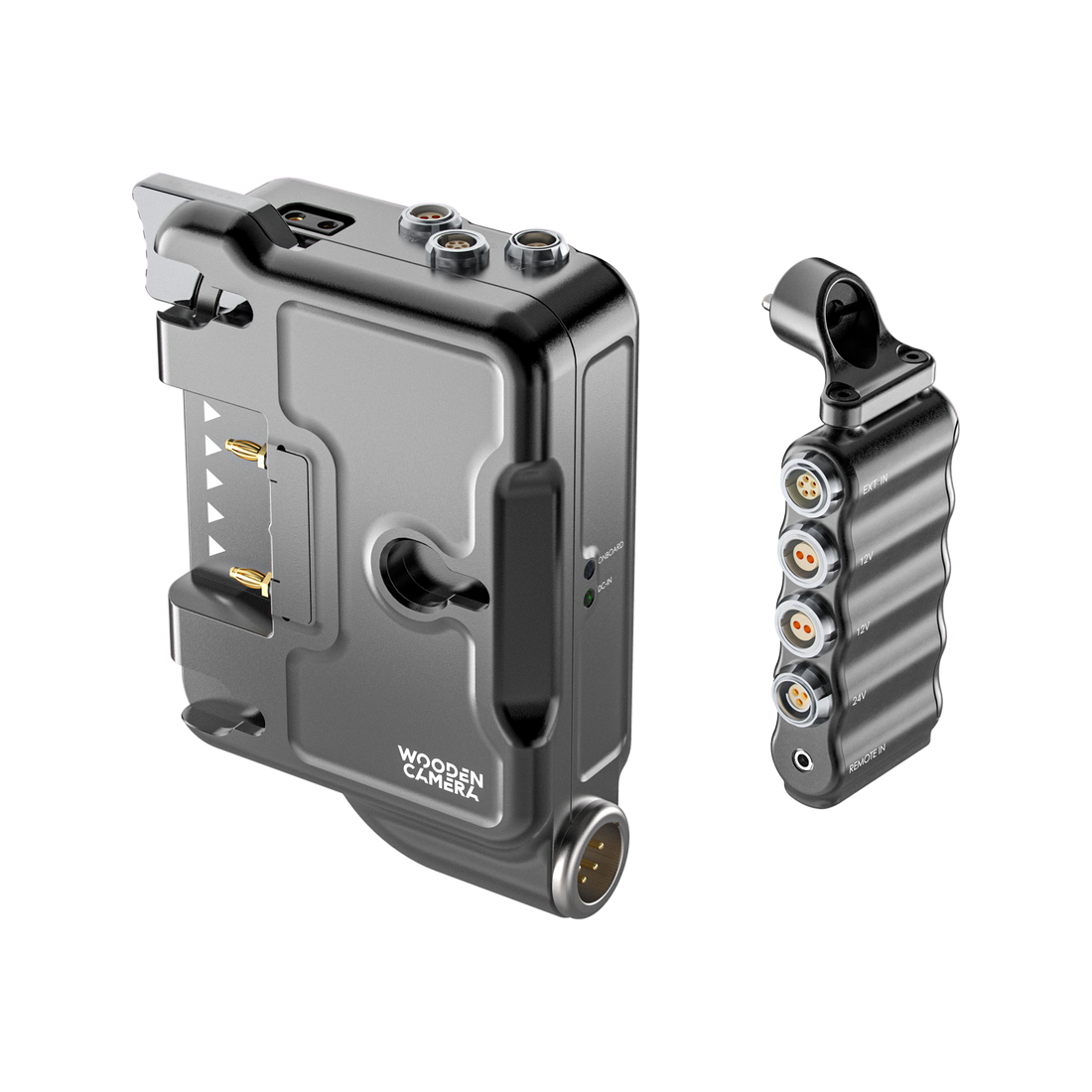

D-Box® and B-Box System (Sony BURANO)

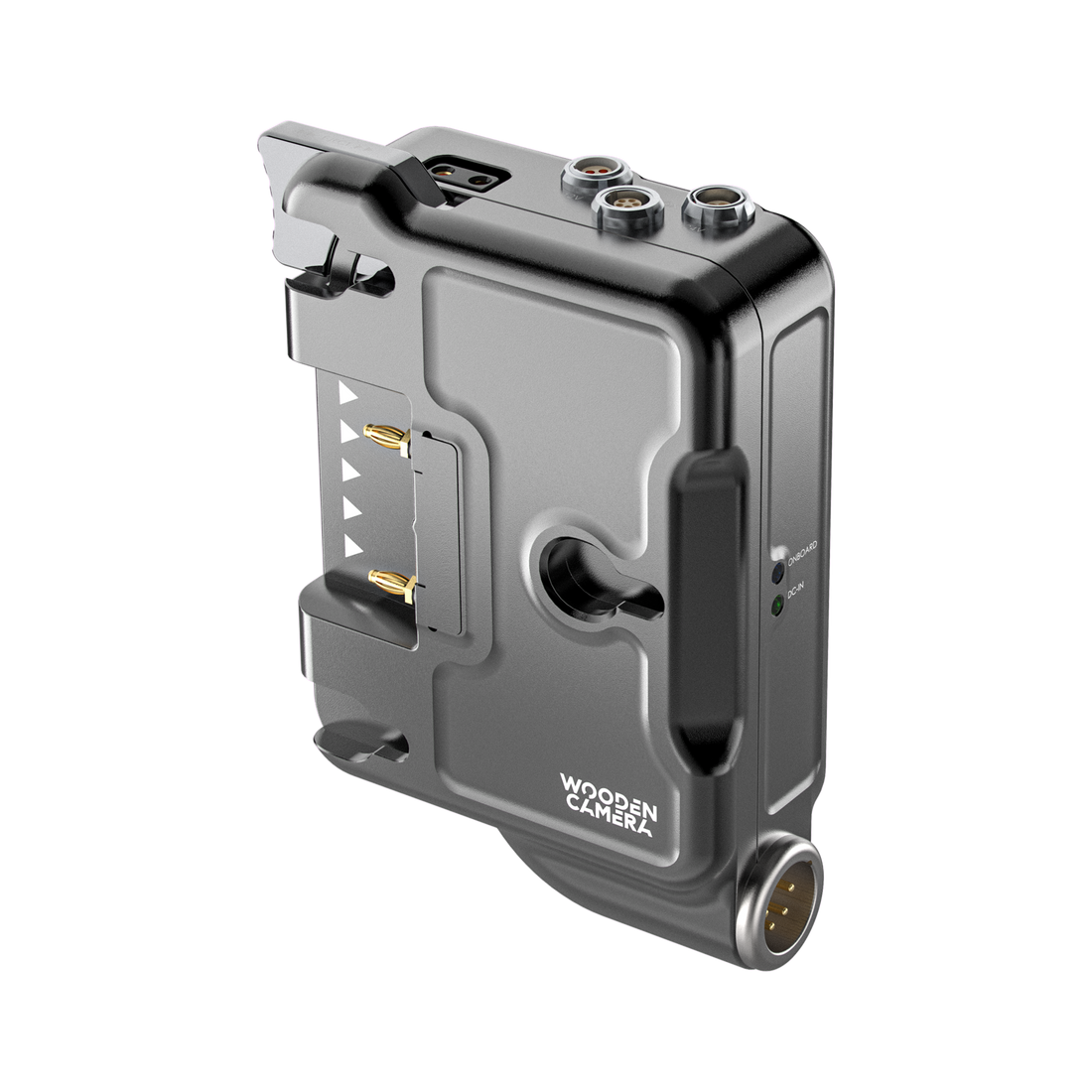

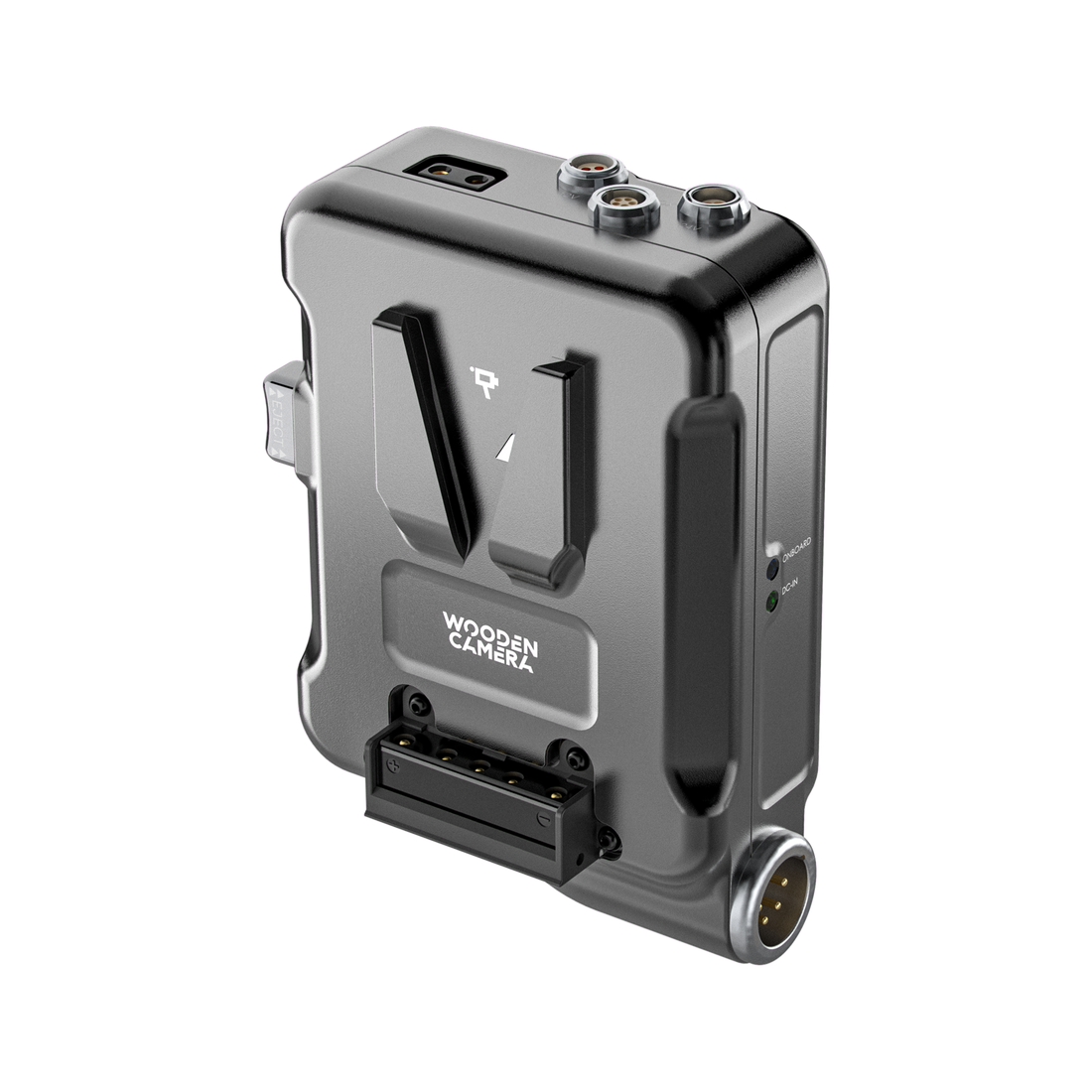

Add power accessory options to your build by adding the D-Box® and B-Box System to your Sony BURANO. The D-Box® provides additional 2-pin 12V - 5.8A (shared over all 12V outputs), a D-Tap port, and a 3-pin 24V - 3.8A (shared over all 24V outputs) power option. Additionally, the D-Box® allows for hot swap abilities when power is connected to the DC-In and an on-board battery.

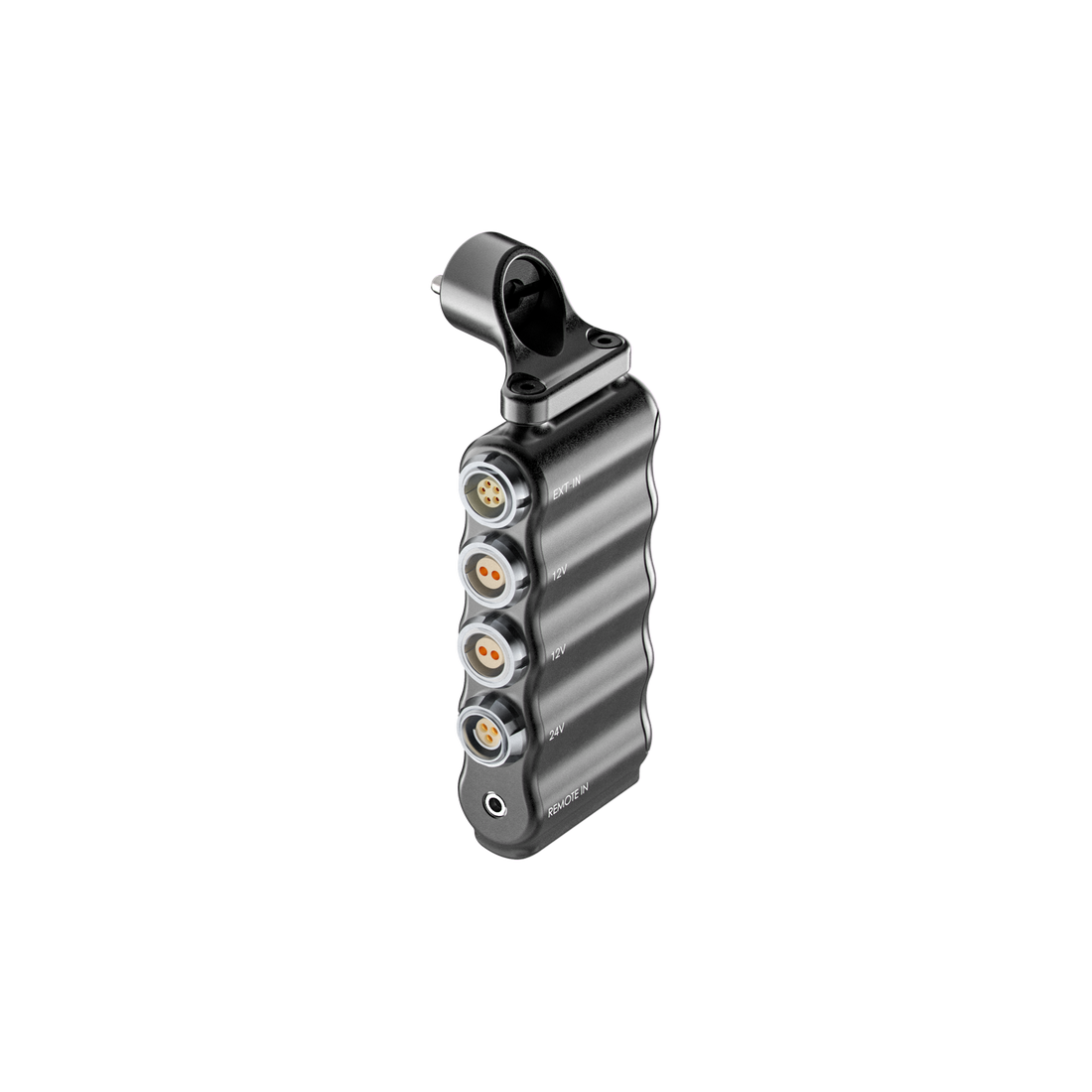

Expand the power distribution of the D-Box® by adding a B-Box*, which adds two 2-pin 12V, a 3-pin 24V, as well as a Remote-In port to your camera setup. This allows users to add even more functionality to the BURANO by adding the ability to power additional accessories. This connection is established using the included B-Box Link Cable attached to the EXT port on both units to allow power to be transferred. Establish more control with the use of the Remote Cable, allowing Run/Stop to the 3-pin connector port via the camera's Remote port when attached to the Remote-In port on the B-Box.

The B-Box Bolt-On Side Mount was designed to be used with the B-Box for Sony BURANO. It mounts using M2.5 threads along the B-Box and provides a 1/4”-20 mounting point with anti-twist pins.

D-Box® unit is available in either a Gold Mount or V-Mount option.

Included Items:

• D-Box® (Sony BURANO)
• B-Box System (Sony BURANO)

*B-Box requires D-Box® (Sony BURANO) connection via B-Box Link Cable (Sony VENICE, VENICE 2, BURANO) for power distribution.

Specifications:

D-Box® (V-Mount) + B-Box System (Sony BURANO)
Weight: 451.3 g (0.99 lbs)
Dimensions: 134 x 62 x 135 mm (5.3 x 2.4 x 5.3 in)

D-Box® (Gold Mount) + B-Box System (Sony BURANO)
Weight: 445.9 g (0.98 lbs)
Dimensions: 138 x 62 x 136 mm (5.4 x 2.4 x 5.3 in)
