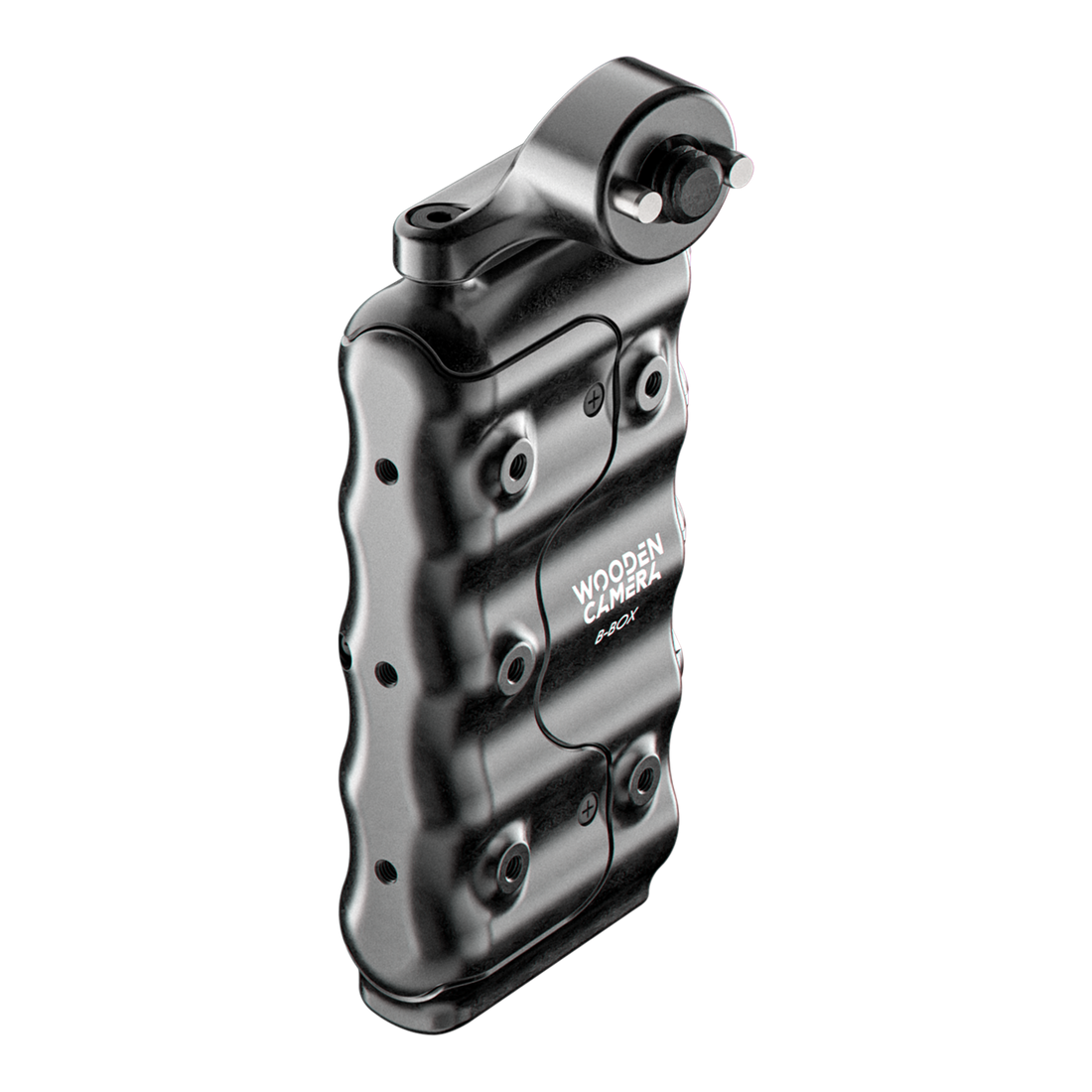

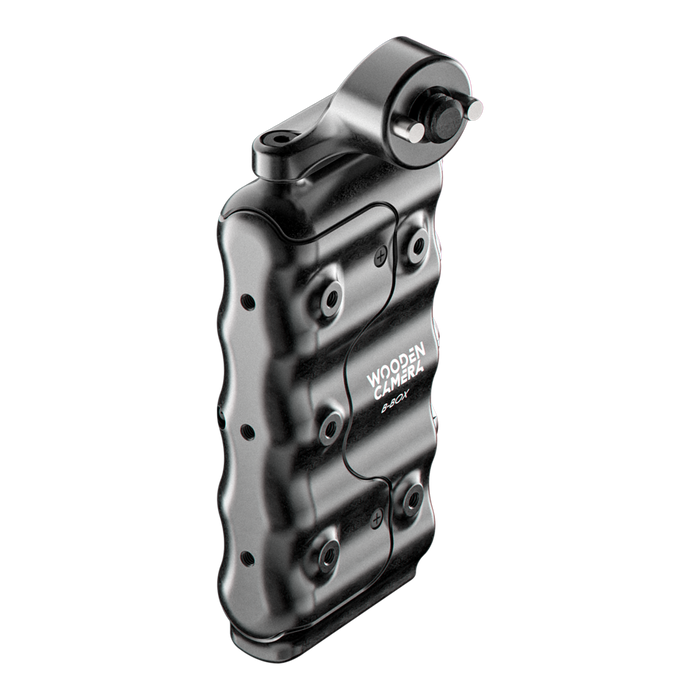

B-Box System (Sony BURANO)
UPC 655466718138
UPC 655466718138

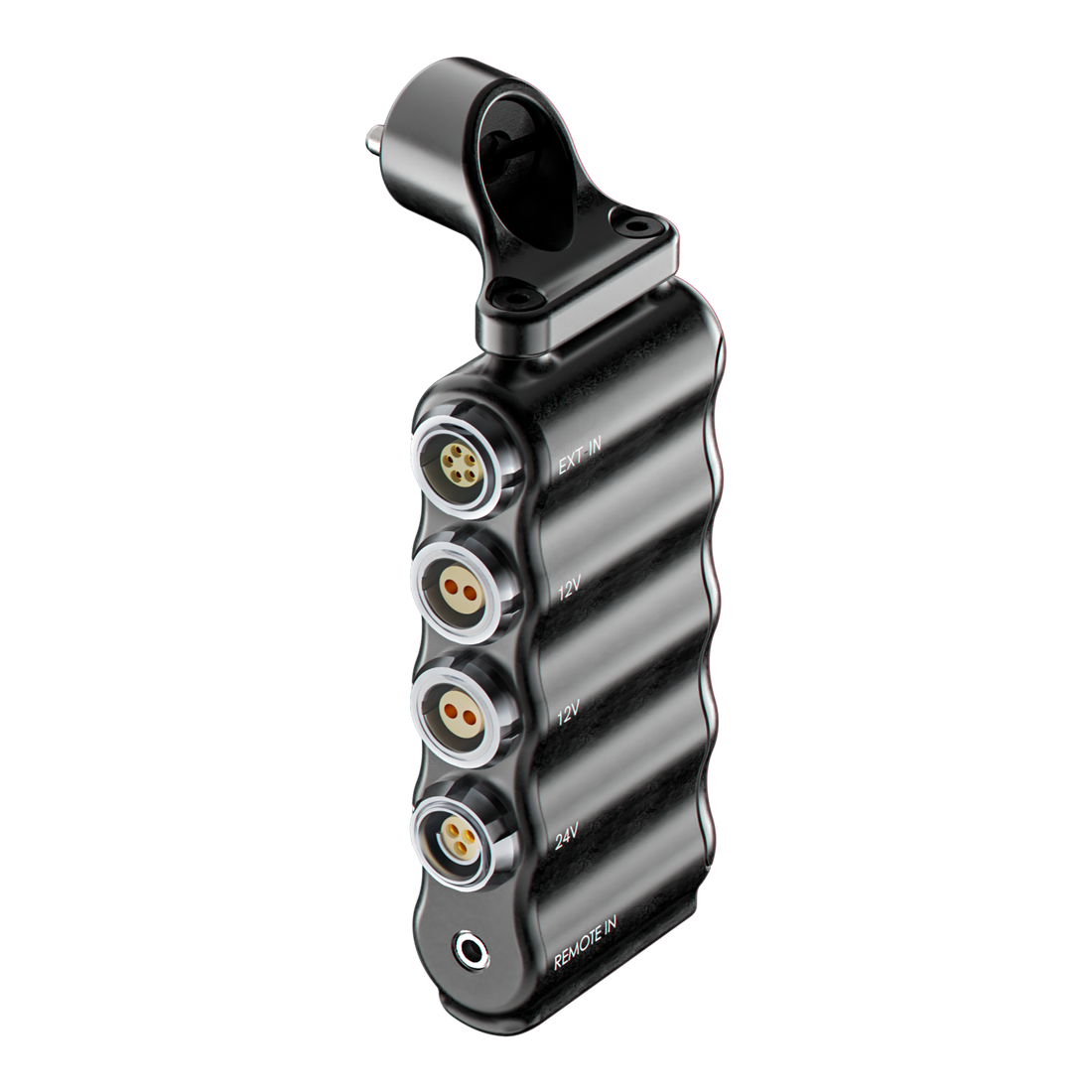

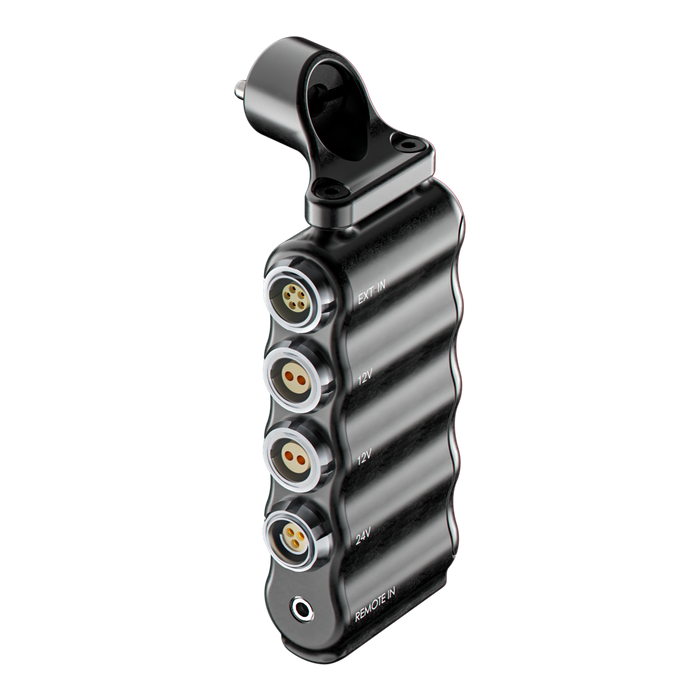

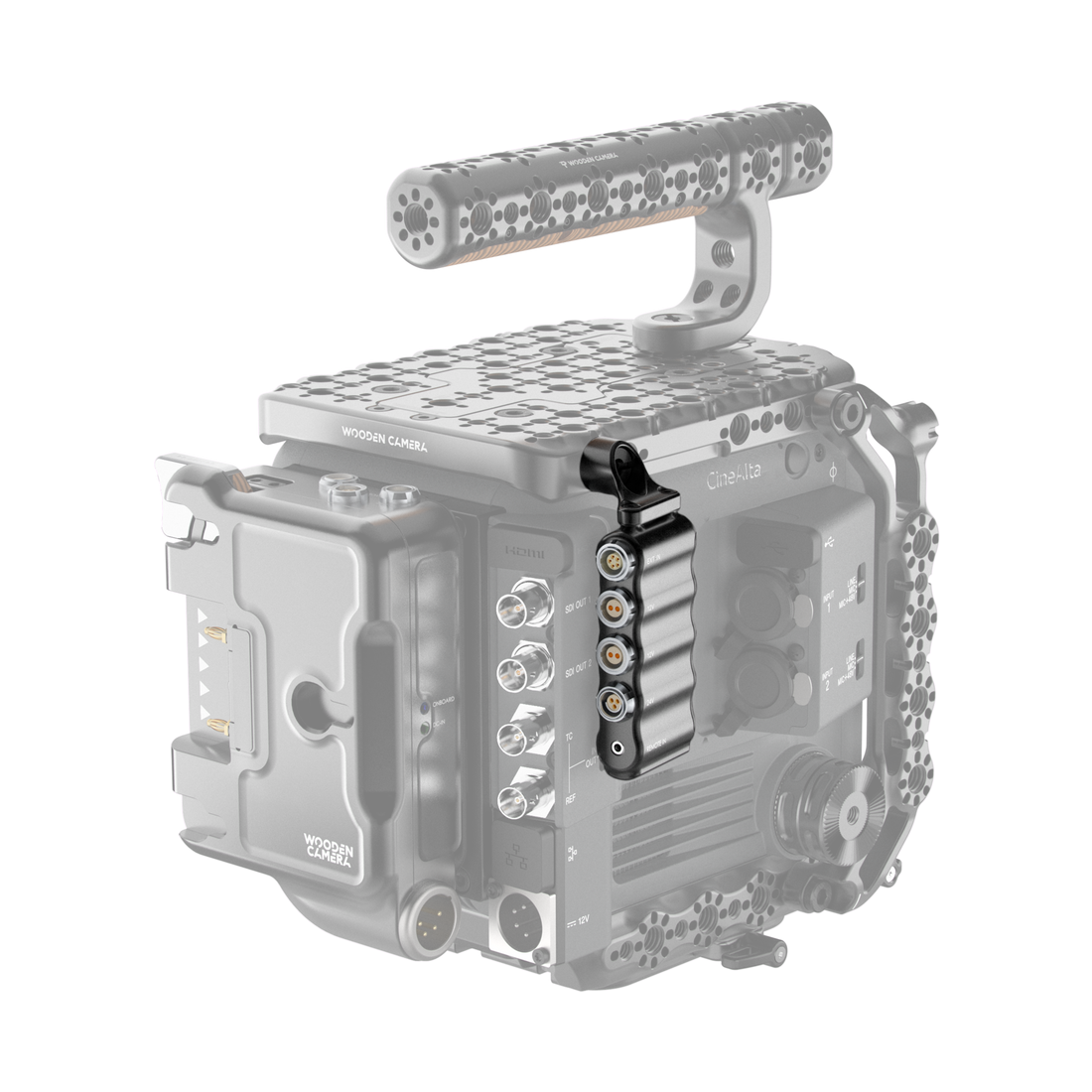

The B-Box System for Sony BURANO* expands the power distribution of the D-Box® by adding two 2-pin 12V - 5.8A (shared over all 12V outputs), a 3-pin 24V - 3.8A (shared over all 24V outputs) and a Remote-In port to your camera setup. This System allows users to power additional accessories and includes a mount to attach this system to the Top Plate for Sony BURANO.
The B-Box Bolt-On Side Mount was designed to be used with the B-Box for Sony BURANO. It mounts using M2.5 threads along the B-Box and provides a 1/4”-20 mounting point with anti twist pins.
This System is connected to the D-Box using the included B-Box Link Cable, it is attached to the EXT port on both units to allow power transfer. Users can take it a step further with the use of the Remote Cable, allowing Run/Stop to the 3-pin connector port via the camera's Remote port.

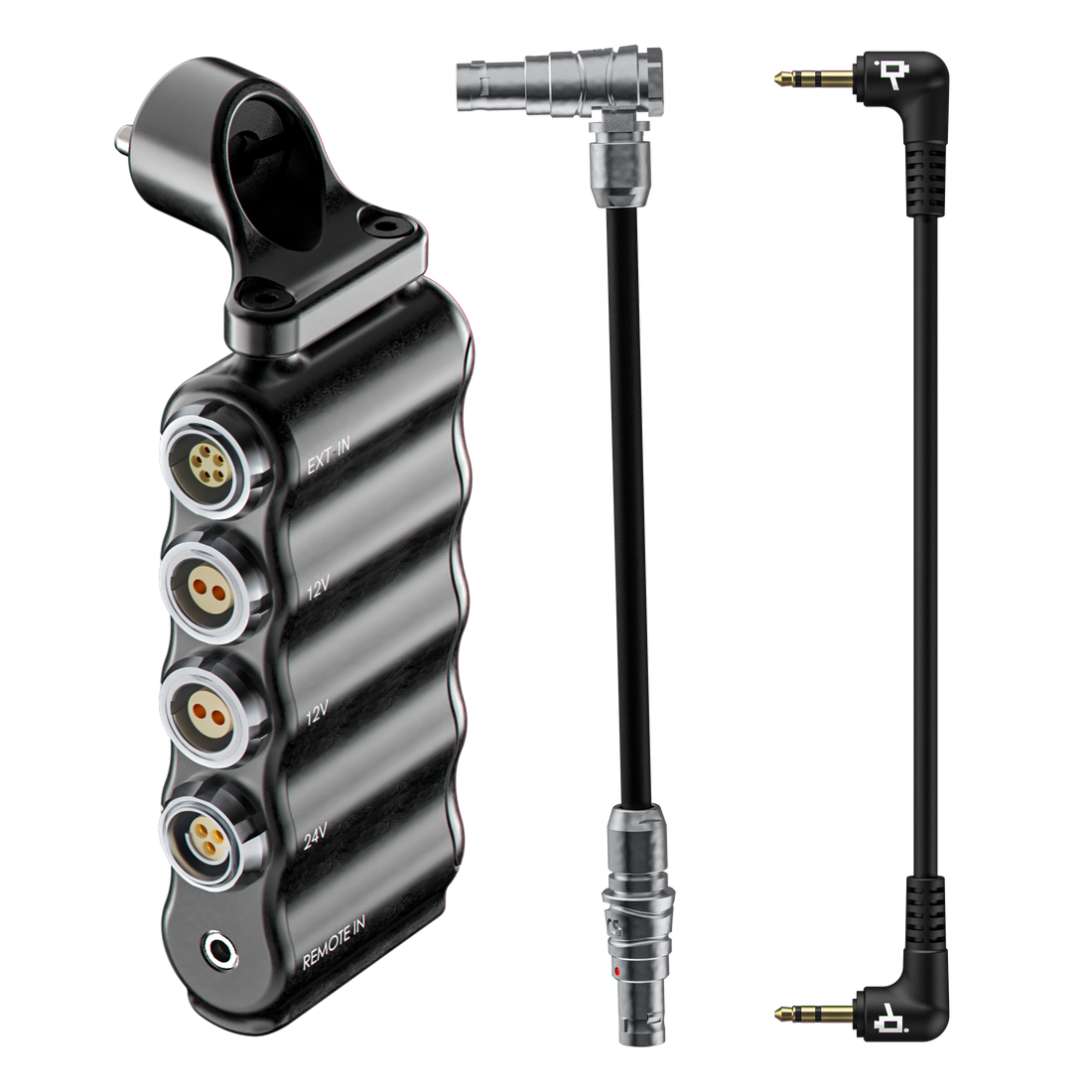

Included Items:
B-Box (Sony BURANO)
B-Box Bolt-On Side Mount (Sony BURANO)
B-Box Link Cable (Sony Venice, Venice 2, BURANO)
Remote Cable (Sony BURANO)
*Requires D-Box® (Sony BURANO) connection via B-Box Link Cable (Sony Venice, Venice 2, BURANO)
Specifications:
Weight: 51.26 g (0.11 lbs)
Dimensions: 46 x 24 x 73 mm (1.8 x 0.9 x 2.9 in)
