Legacy Complete Top Mount Kit (RED® KOMODO®, KOMODO-X™, ARCA Swiss)

Save 10%
SKU 279400

UPC 606184859122

Ships in 1-2 Weeks

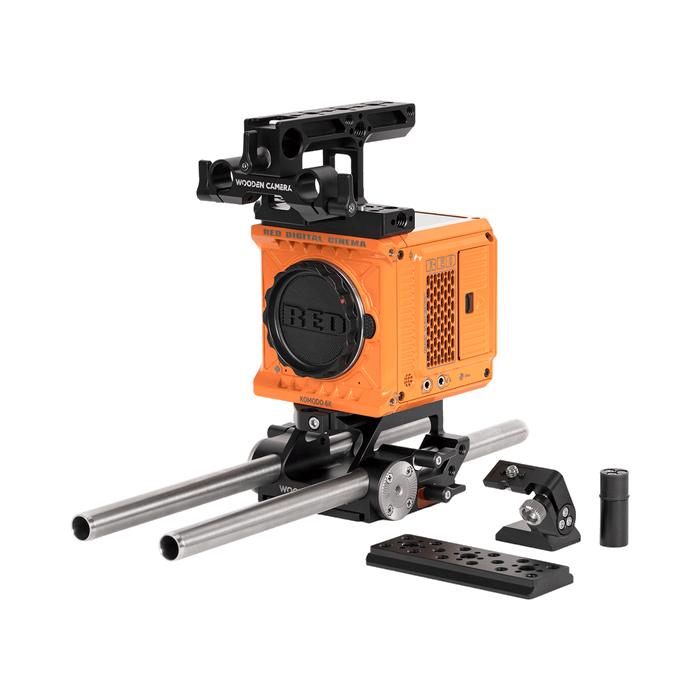

Complete Top Mount Kit for RED KOMODO-X & KOMODO features a Top Mount that attaches to the camera body using two captive 3/4" screws and provides a center ARCA Swiss dovetail clamping slot along with 1/4-20 and 3/8-16 threaded holes for attaching accessories.

Includes 3/4" screws for mounting directly to top of camera as well as one 1/3" screw for attaching on top of the KOMODO™ Outrigger Handle sold by RED®.

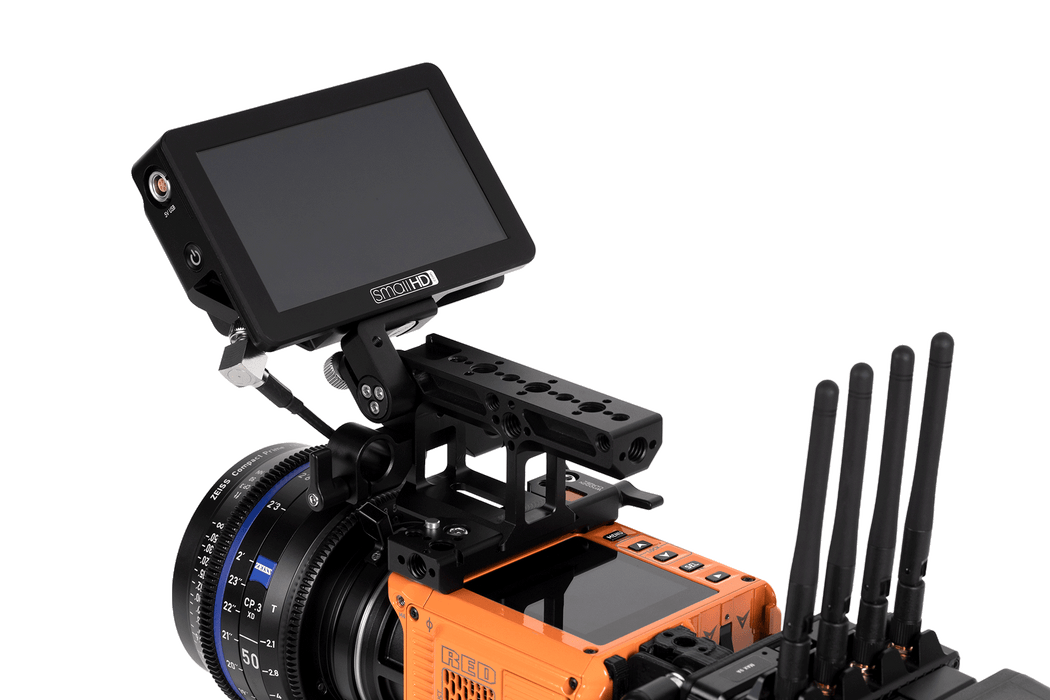

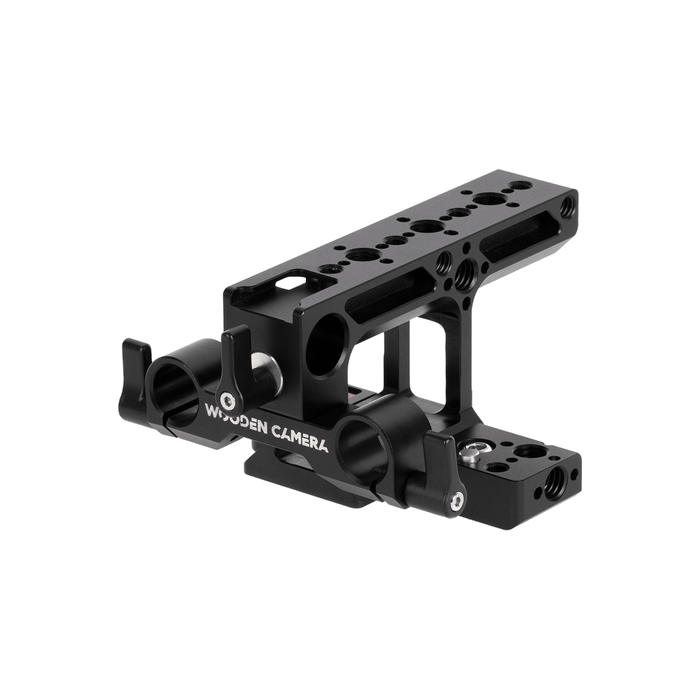

Included Top Handle slides into ARCA slot and leaves camera control screen easily accessible. Shoe mount on top can hold on-camera lights and microphones and side 15mm opening can hold included monitor arm or UVF Mount V2. 1/4-20 and 3/8-16 ARRI accessory mount in several places and 15mm lightweight rod bracket on front for attaching lens motors and more.

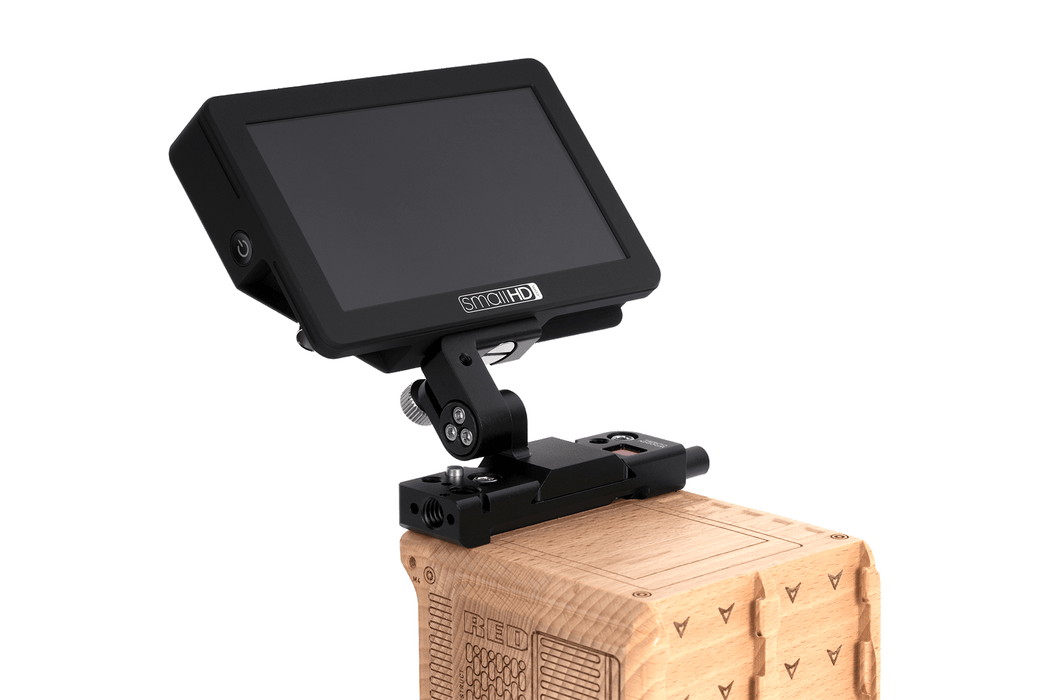

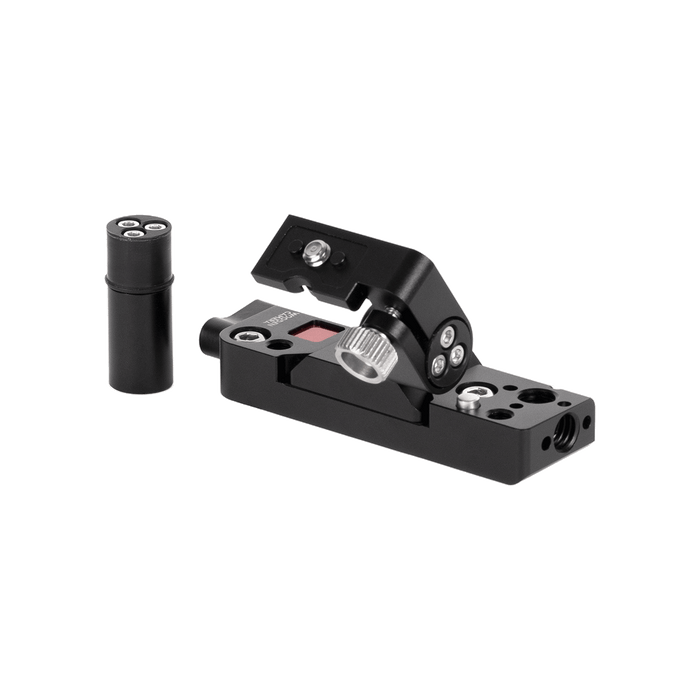

Monitor Hinge can attach into ARCA slot and provides a direct 1/4-20 mount for SmallHD monitors. Included rubber pad can be added for attaching third party monitors. A 15mm mounting spud is included and allows monitor arm to be quick released and attached onto Top Handle.

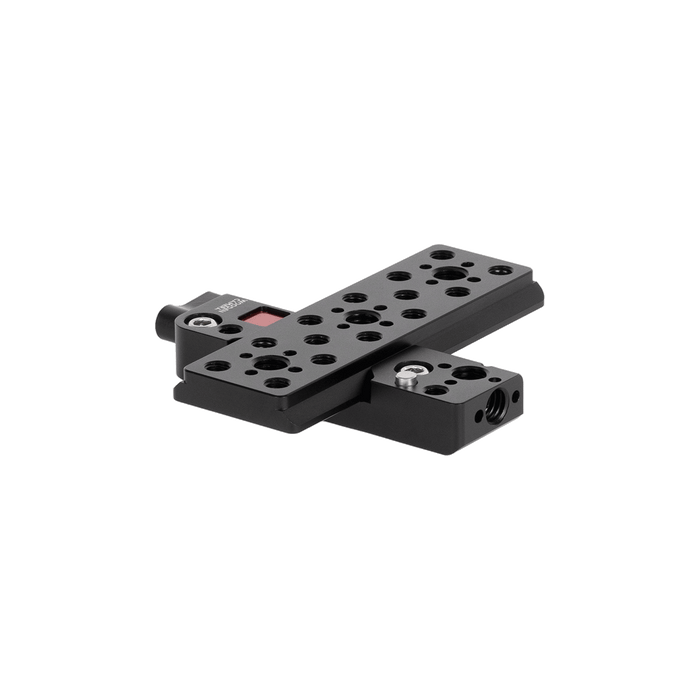

Top Plate slides into ARCA slot to provide rows of 1/4-20 and 3/8-16 ARRI accessory mounts in standard spacing and can be adjusted forwards to allow camera control screen access. Great for attaching to gimbal and drone systems or for using legacy Wooden Camera products.

Kit Includes:
- Top Handle
- Monitor Hinge
- Top Plate
- Top Mount
- Rubber Pad
- 15mm Mounting Spud

2x 3/4" Screws
1x 1/3" Screw

Weight: 349 g (0.77 lbs)
Dimensions: 177.8 x 127 x 57.15 mm (7 x 5 x 2.25 in)


*Manufactured under licence
