Legacy B-Box for RED® KOMODO®

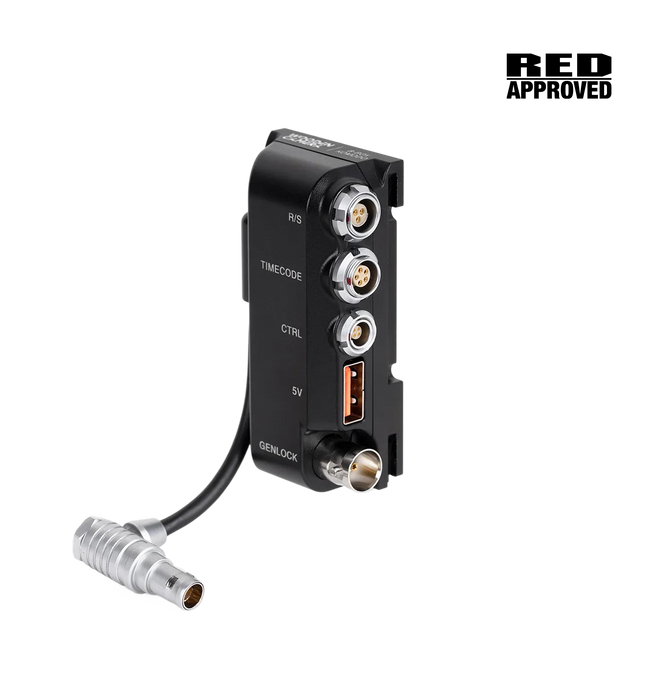

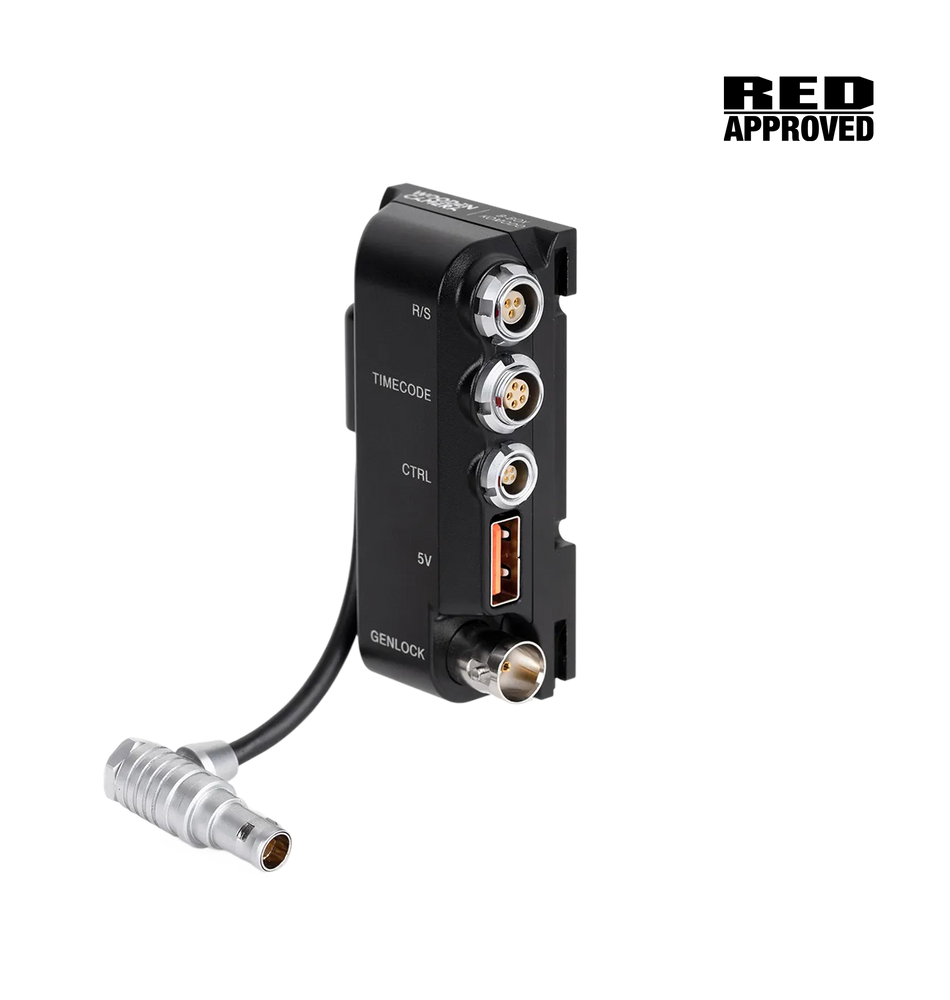

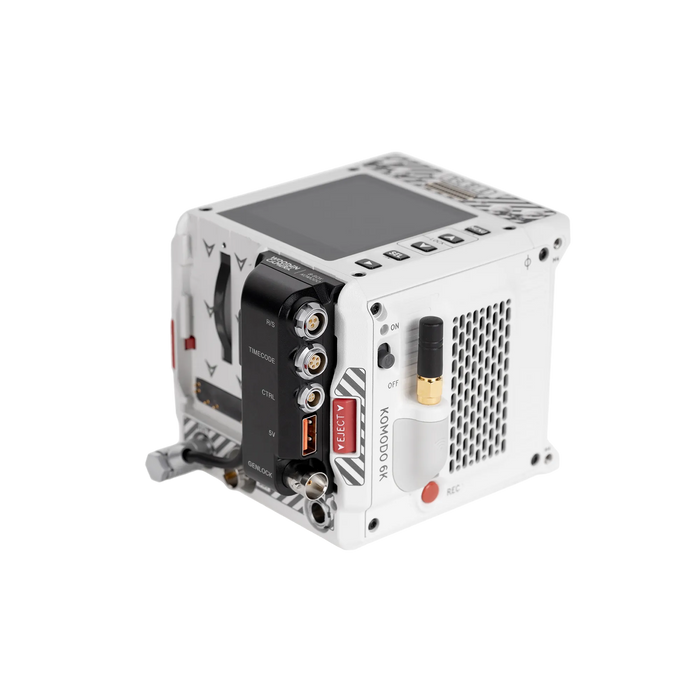

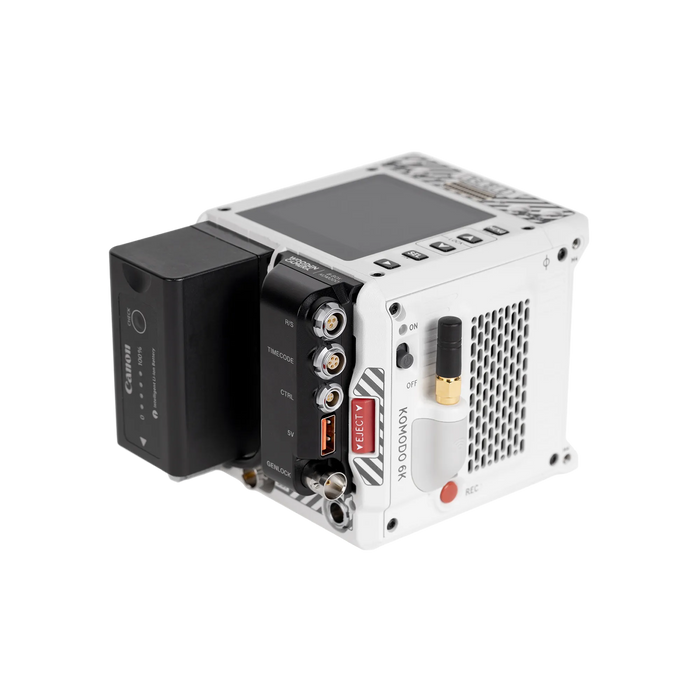

B-Box (RED® KOMODO™) attaches to the camera-right BP-9 battery slot and provides a breakout for the camera’s EXT connector. Battery Slide Pro V-Mount or Gold Mount for KOMODO can be used simultaneously and custom right-angle compatible connector allows for neat cable run. Canon BP-9 batteries could also be attached in camera-left slot while B-Box is used.

Available ports include:

R/S (3-pin Fischer)
- simple run/stop for Handgrip Trigger Box, Simple 3-pin Fischer Trigger Cable, etc.
- no power available
- devices like ARRI WCU-4 may require CTRL port interface with cable K2.0015758
- pin1: GND, pin2: N/C, pin3: GPI

Timecode (5-pin)
- standard wiring for timecode in/out
- pin1: GND, pin2: LTC-IN, pin3: N/C, pin4: N/C, pin5: LTC-OUT

CTRL (4-pin)
- standard wiring for RED® CTRL
- pin1: GND, pin2: UART-RX, pin3: GPO, pin4: UART-TX

5V (USB)
- 5V available at 500mA maximum
- power may need to be enabled in camera menu

Genlock (BNC)
- standard wiring for genlock
- center: signal, shell: GND

Specifications:
Weight: 100 g (0.23 lbs)
Dimensions: 107.95 x 82.5 x 25.4 mm (4.25 x 3.25 x 1 in)
