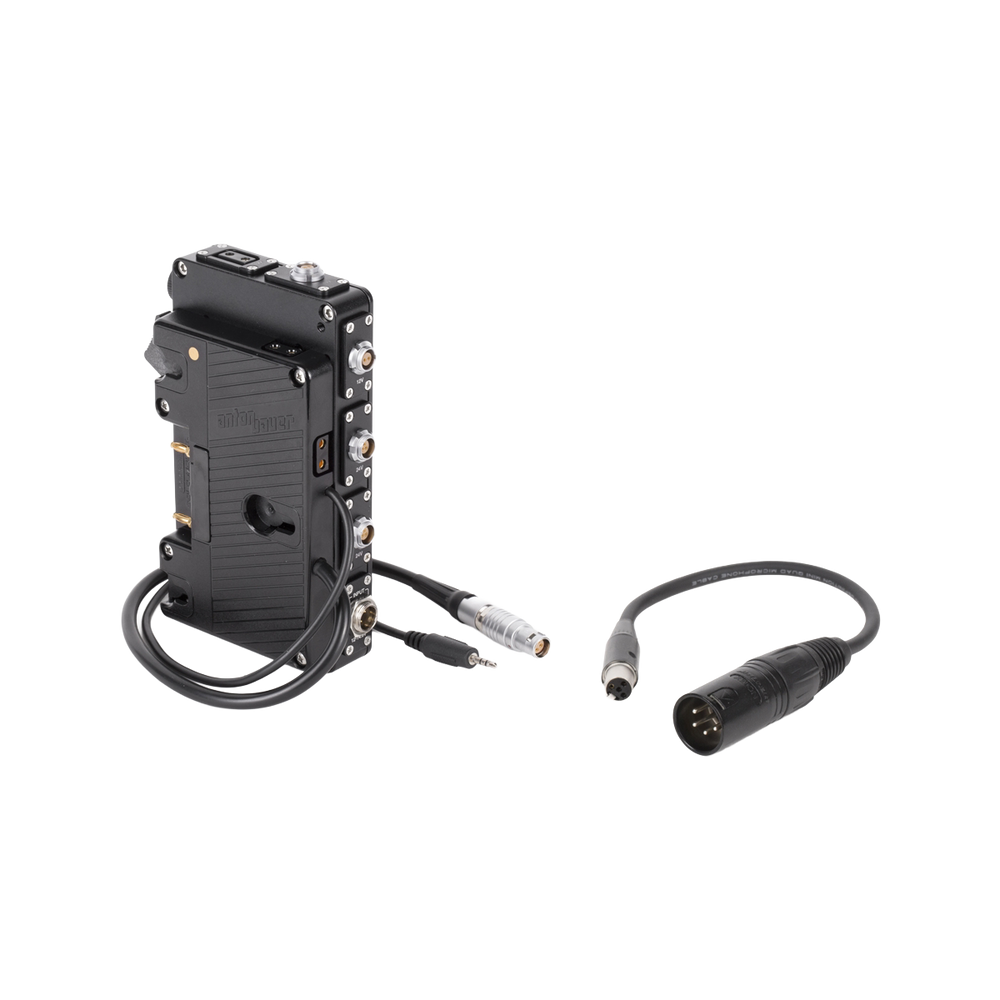

D-Box™ (Canon C200, C200B, C300mkII, Gold Mount)

D-Box (Canon C200, C200B, C300mkII, Gold Mount) is a custom version of our popular D-Box that adds power distribution, standardized remote start/stop, and hot swap abilities for the Canon C200, C200B, and C300mkII. Allows for up to 5 simultaneous outputs with a maximum draw of 3A per output (24V outputs 3A max combined) and 10A total draw limited by an easily accessible fuse. Two 12 inch (30cm) cables exit the power plate with one going to the 4pin power plug and the other going to the Remote port. There is a LANC control board inside the D-Box that communicates with the camera so that any ARRI standard start/stop can be used in the 3pin Fischer ports.

The bottom of the D-Box has (3) 1/4-20 holes which can attach directly to our https://woodencamera.com/products/recorder-slide paired with the same Rod Clamps listed above.

Please Note: In addition to the digital or glass fuse governing the output panels of the D-box, his product contains a secondary fuse for the D-tap ports of the attached battery plate. This fuse is located in a fuse holder within the plate and replacements can be purchased here: F10A Fast Blow Fuse

Specifications:
Weight: 534 grams (1.18 lbs)
Dimensions: 90 x 146 x 43mm (3.5 x 5.7 x 1.7 inches)
