Crossbar for Elite Handheld Accessories

The Crossbars are durable, high-performance support solution built for speed, flexibility, and strength in professional camera setups. Available in three configurations—19mm Studio, 15mm Studio, and 15mm LWS—each Crossbar is precision-machined from 7075 aluminum, ensuring it holds up in even the most demanding shooting environments.

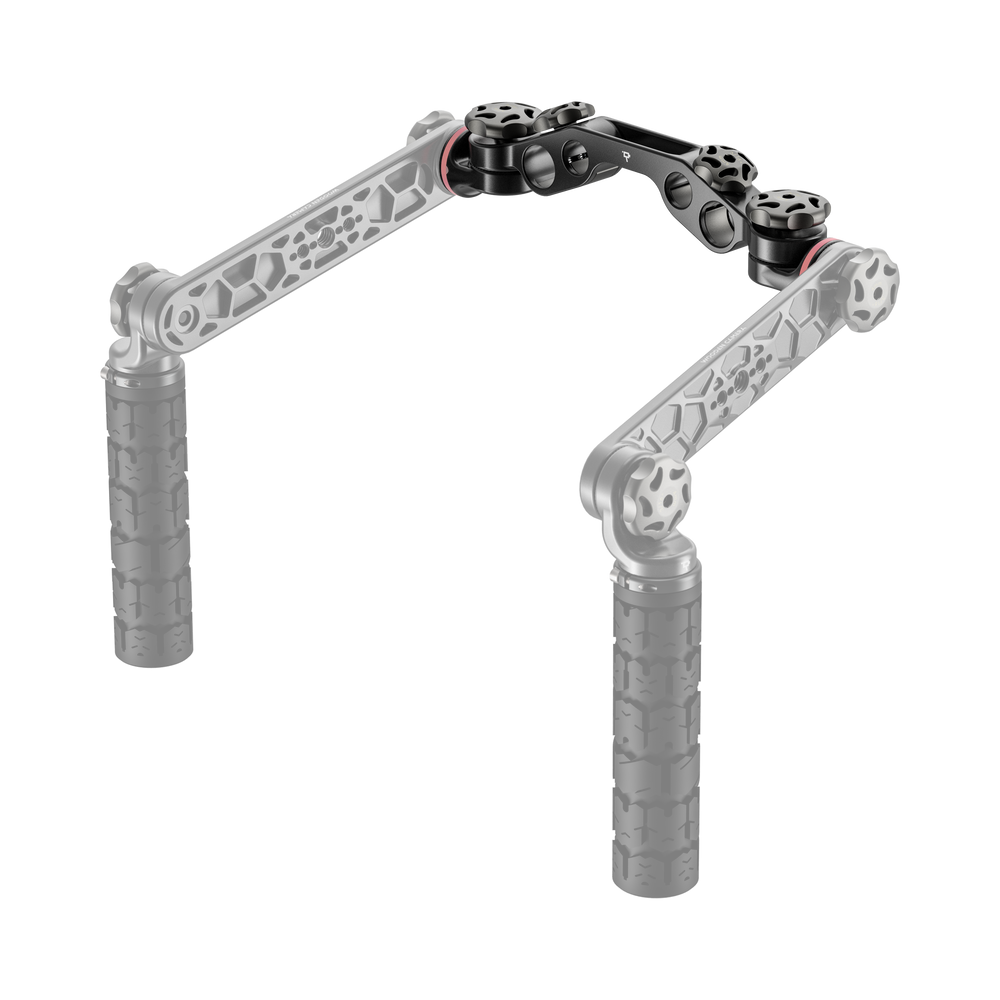

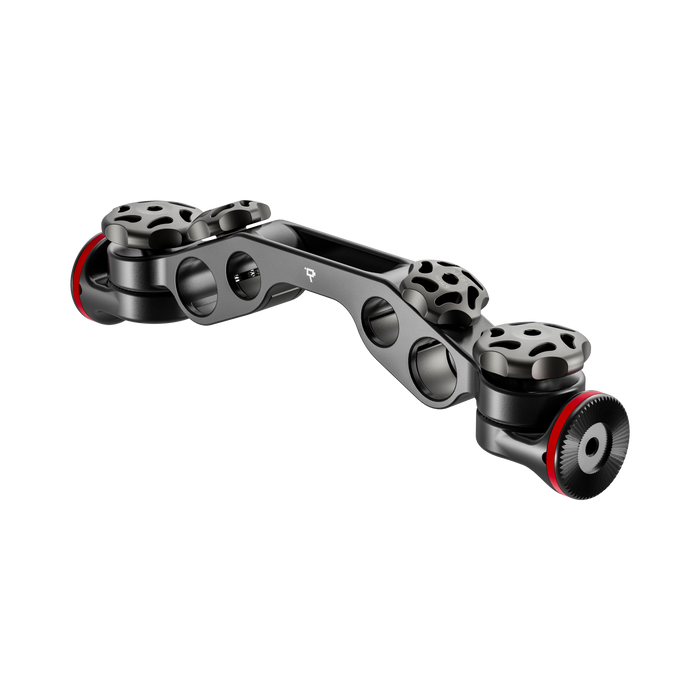

All three versions feature a unique design that allows the Crossbar to remain mounted to the rods while the camera is attached to an ARRI-standard dovetail, making transitions between handheld and tripod setups faster and more efficient. Integrated 32mm pivoting rosettes allow for dynamic adjustment of accessories or handgrips to and from the camera.

The 19mm Studio and 15mm Studio versions include additional 15mm LWS cut-outs, adding even more versatility to your build.

Every Crossbar includes stainless steel, DLC-coated knobs with ergonomic finger grooves for easy tightening by hand. A center hole on each knob accommodates a 3/16” or 4mm hex tool for added torque when needed.

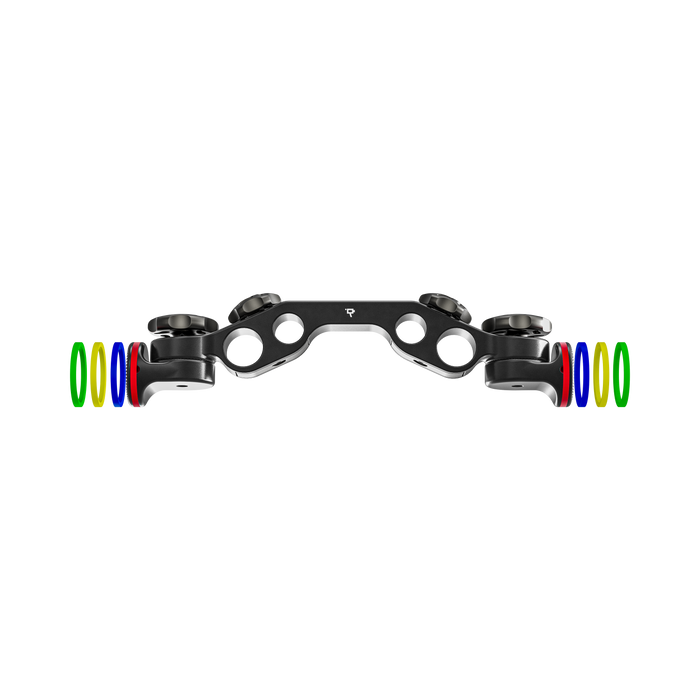

To help with fast camera identification or build personalization, each Crossbar also comes with eight color rings (two each of red, blue, green, and yellow).

Choose your configuration from the dropdown:

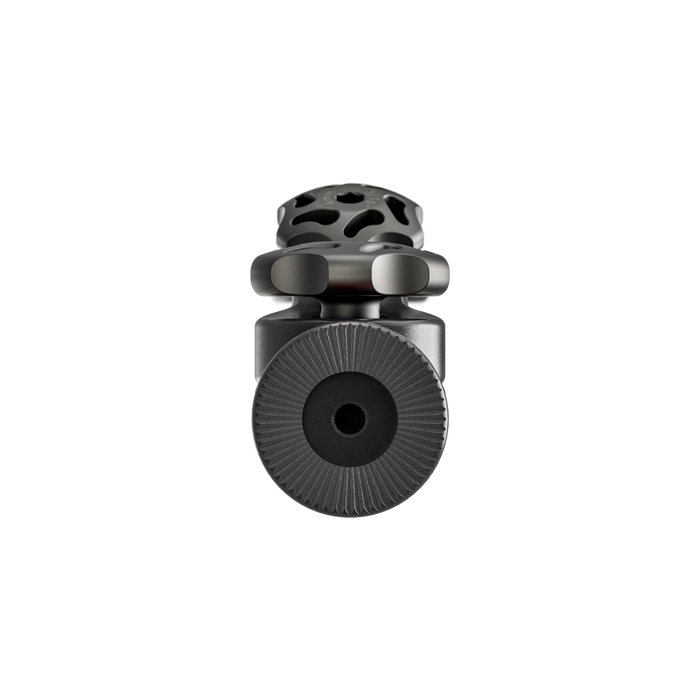

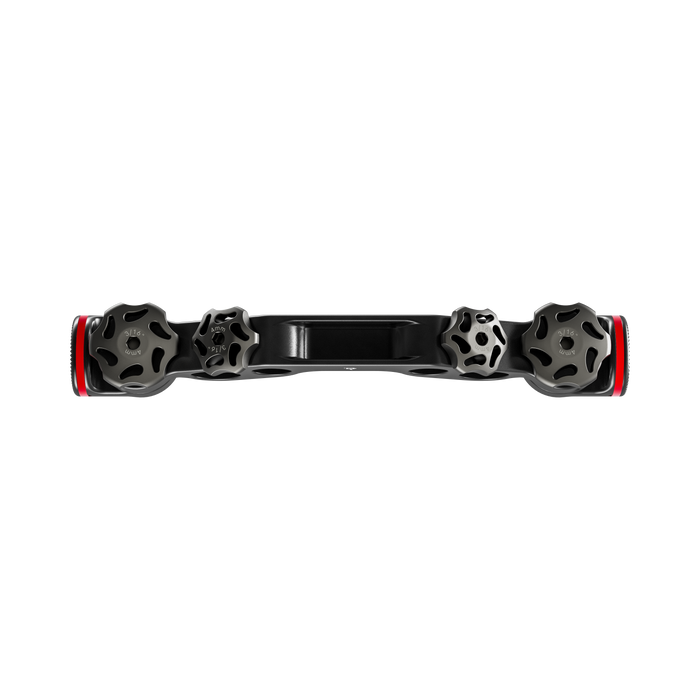

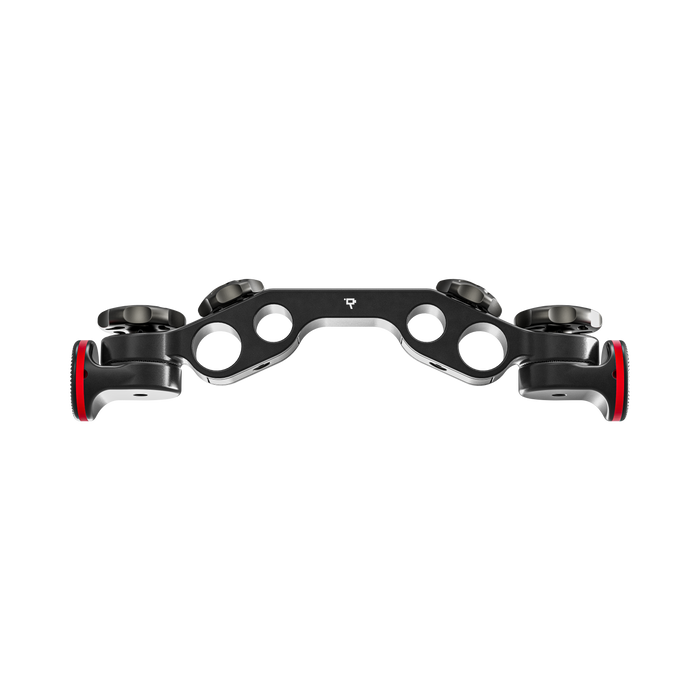

• 19mm Studio Crossbar

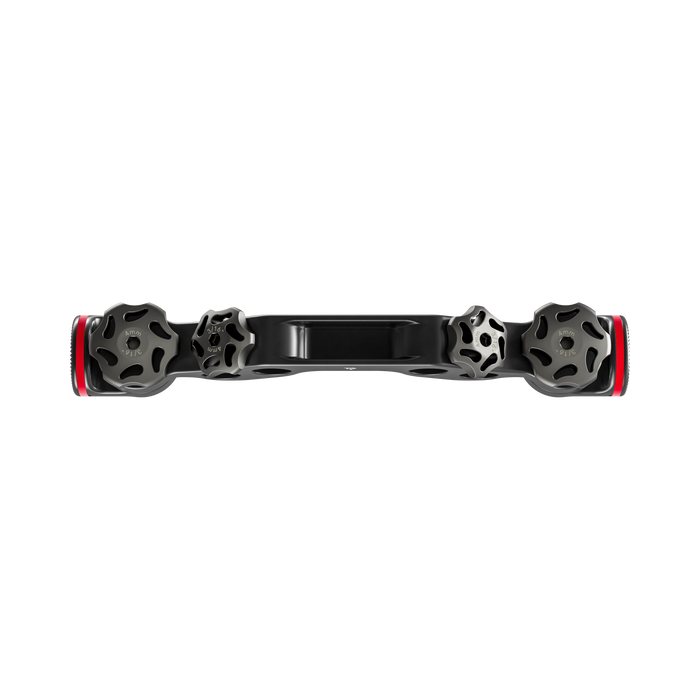

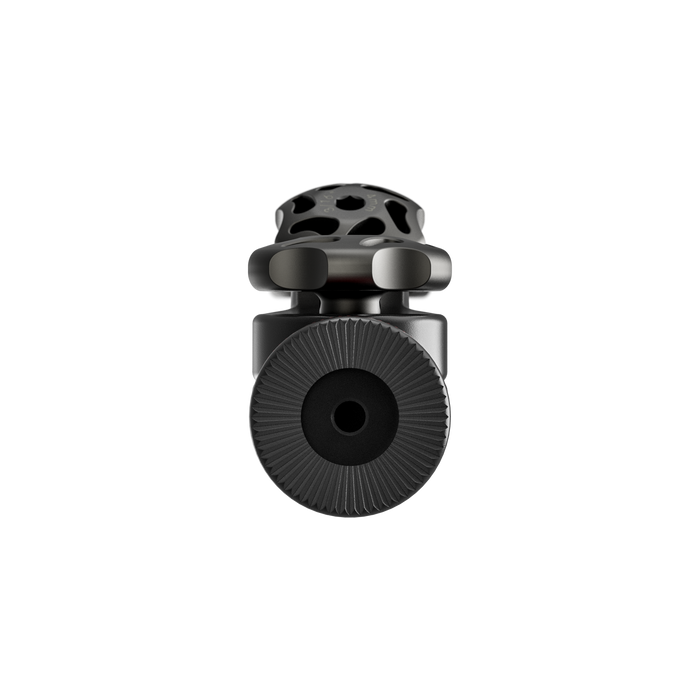

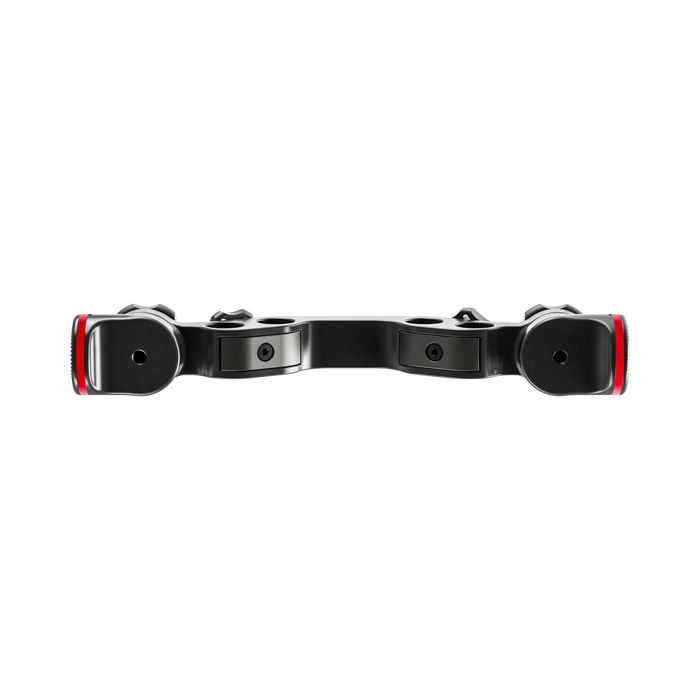

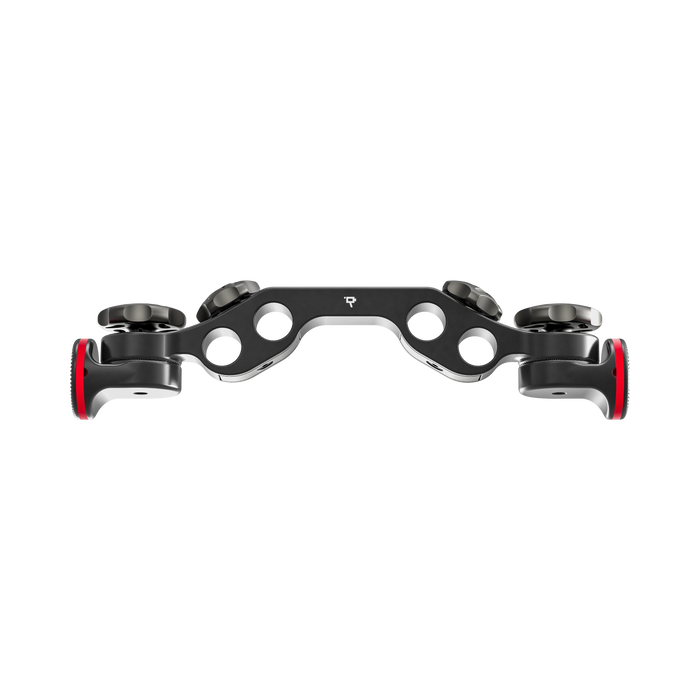

• 15mm Studio Crossbar

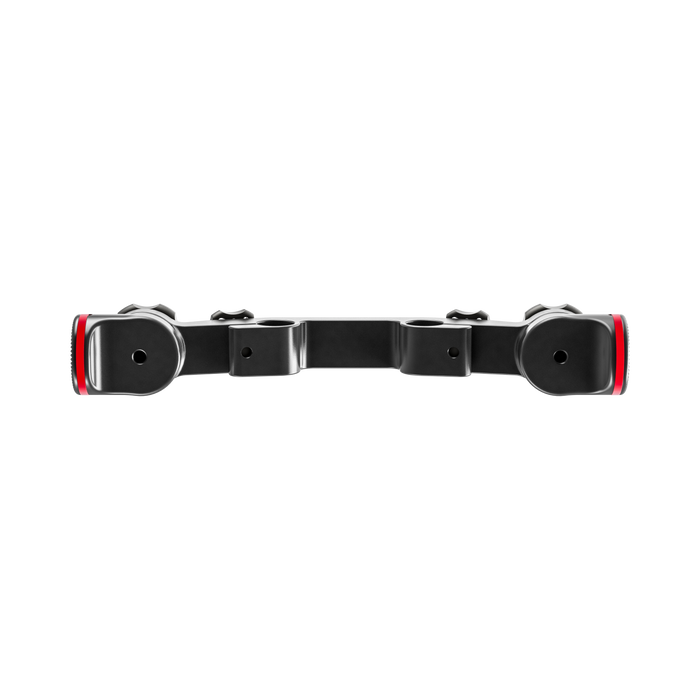

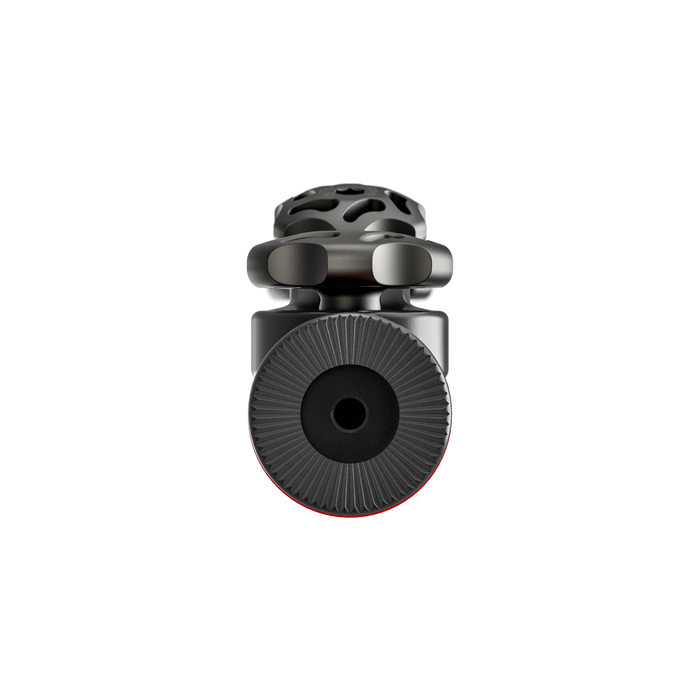

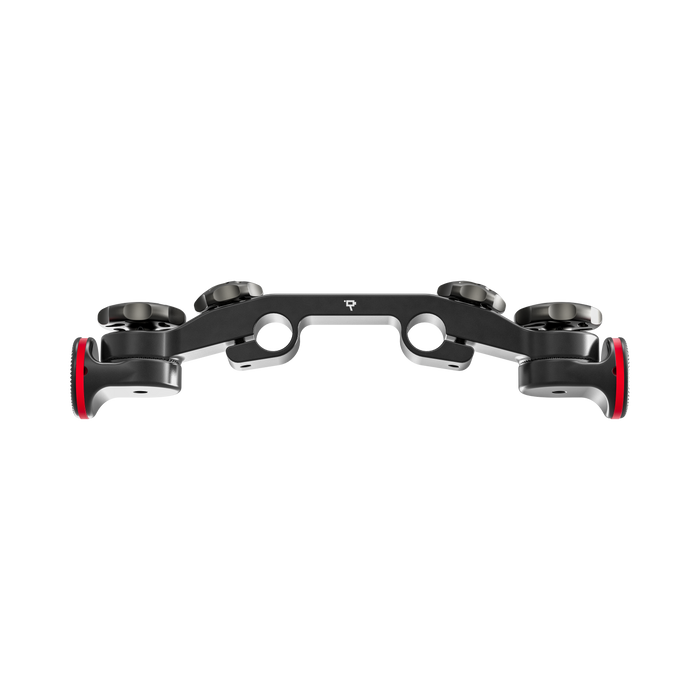

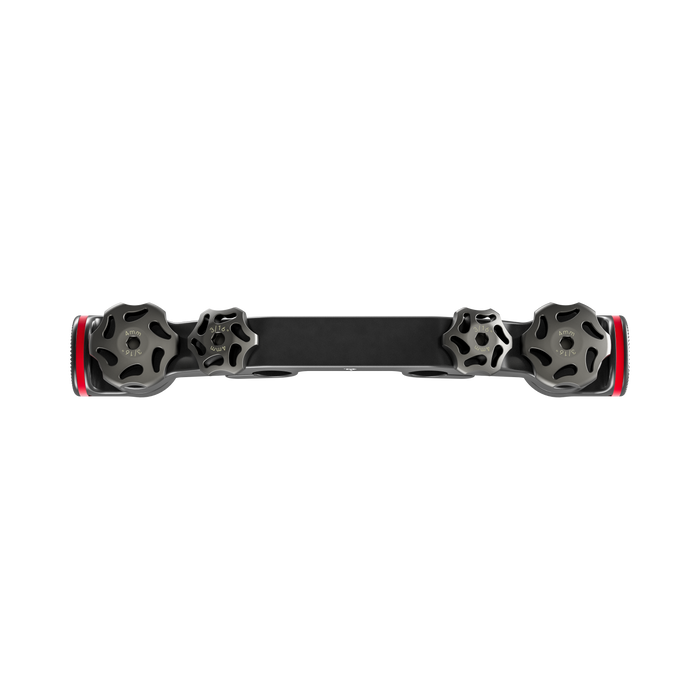

• 15mm LWS Crossbar

Included Items:
Elite Handheld Accessories Color Ring Pack

Specifications:
19mm Studio Crossbar: Weight: 363.8g (0.8 lbs) | Dimensions: 216 x 23.7 x 56.3 mm (8.5 x 0.93 x 2.22 in)
15mm Studio Crossbar: Weight: 397.8g (0.88 lbs) | Dimensions: 216.5 x 32 x 54.8 mm (8.52 x 1.26 x 2.16)
15mm LWS Crossbar: Weight: 377.4 g / (0.83 lbs) | Dimensions: 216.5 x 33.2 x 53.8 mm (8.52 x 1.31 x 2.12)
