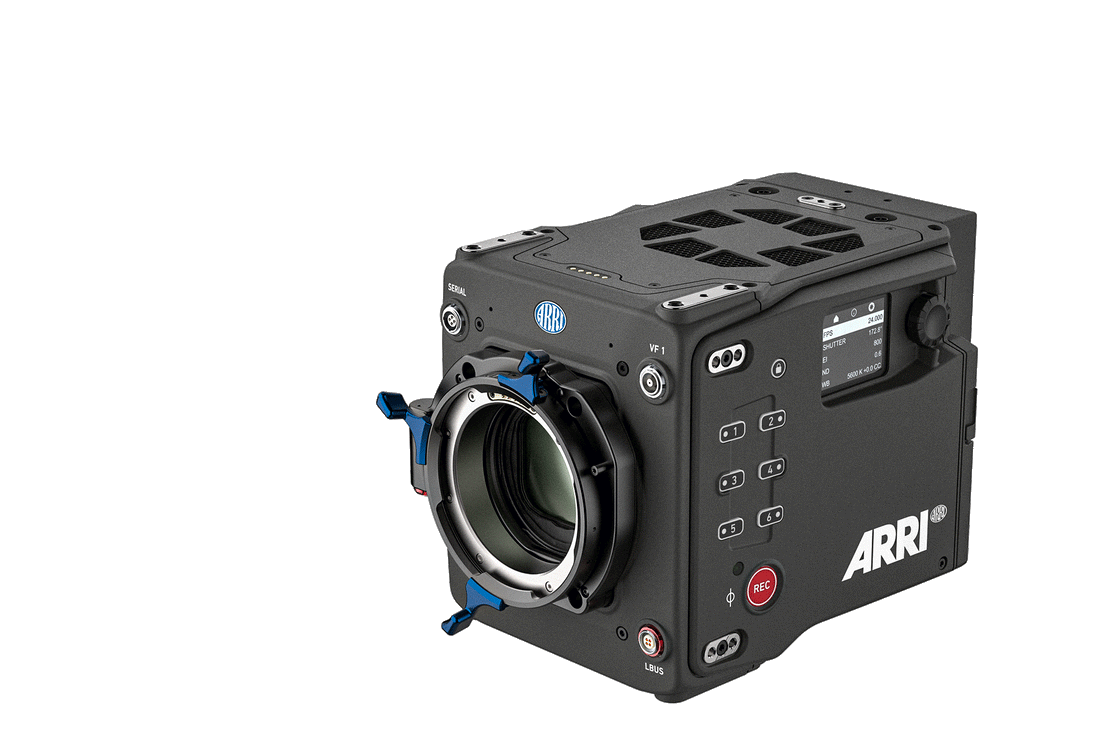

The modular three-piece Top Plate reflects an open-system approach that allows for multiple configurations and total compatibility with Wooden Camera, ARRI, and third-party accessories. Customizable and adaptable, the bolt pattern allows for Rod Brackets and accessories to be mounted anywhere on top of the camera body. Comes with Front Top Plate, Dual Rod Clamp, and the Antenna Guard Color Kit.
Included Items: ALEXA 35 Front Top Plate, ALEXA 35 Middle Top Plate, ALEXA 35 Rear Top Plate, Top Plate Dual Rod Clamp - Front, Top Plate 15mm Upper Dual Rod Clamp, Antenna Guard Color Kit
Specifications: Weight: 522 g(1.1 lbs) Dimensions: 203 x 122 x 50 mm (8 x 4.8 x 1.97 in)
A La Carte
A00358 | Top Plate - Front (ALEXA 35)
Ideal standalone Top Plate segment for a minimalist rig. Supports LCS-1 handle, Ultra Handle, rod brackets and EVF viewfinder.
Specifications: Weight: 143 g (0.31 lbs) Dimensions: 64.5 x 122 x 13 mm (2.54 x 4.8 x 0.12 in)

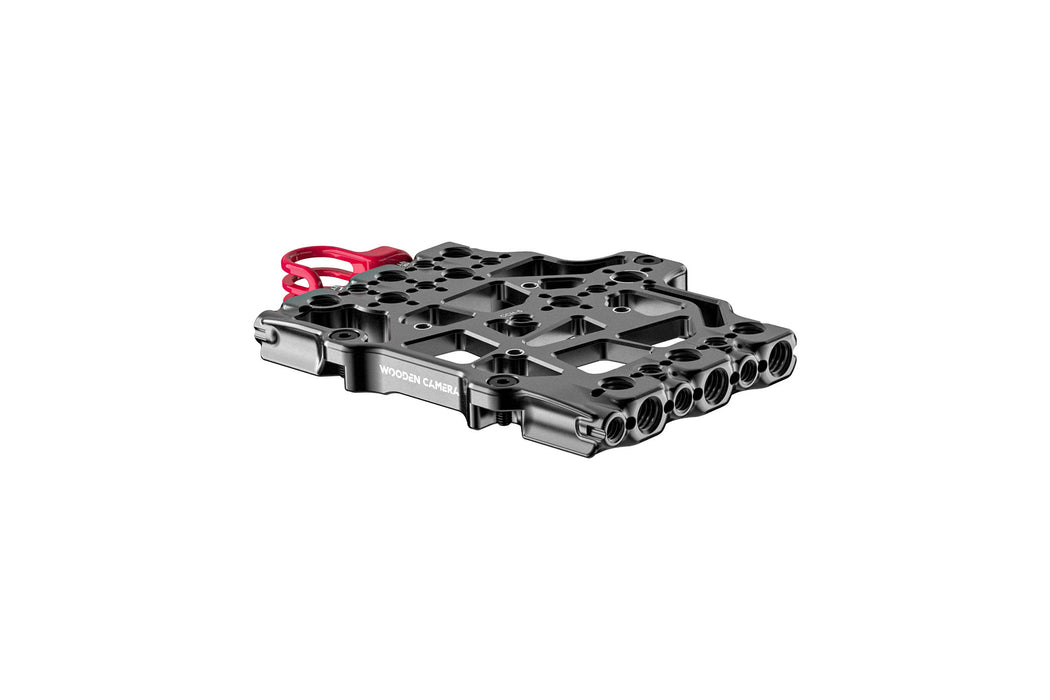

A00359 | Top Plate - Middle (ALEXA 35)
Expands the Front Top Plate, giving you extra mounting points and the ability to mount a CCH-5 handle and Dual Rod Bracket.
Specifications: Weight: 173 g (0.38 lbs) Dimensions: 107 x 122 x 13 mm (4.21 x 4.8 x 0.51 in)
A00409 | Top Plate - Rear (ALEXA 35)
Expands Front and Middle Top Plates for full functionality, adding side and top mounting points at the rear of the camera.
Specifications: Weight: 173 g (0.38 lbs) Dimensions: 31.6 x 4.8 x 13 mm (1.24 x 4.8 x 0.51 in)

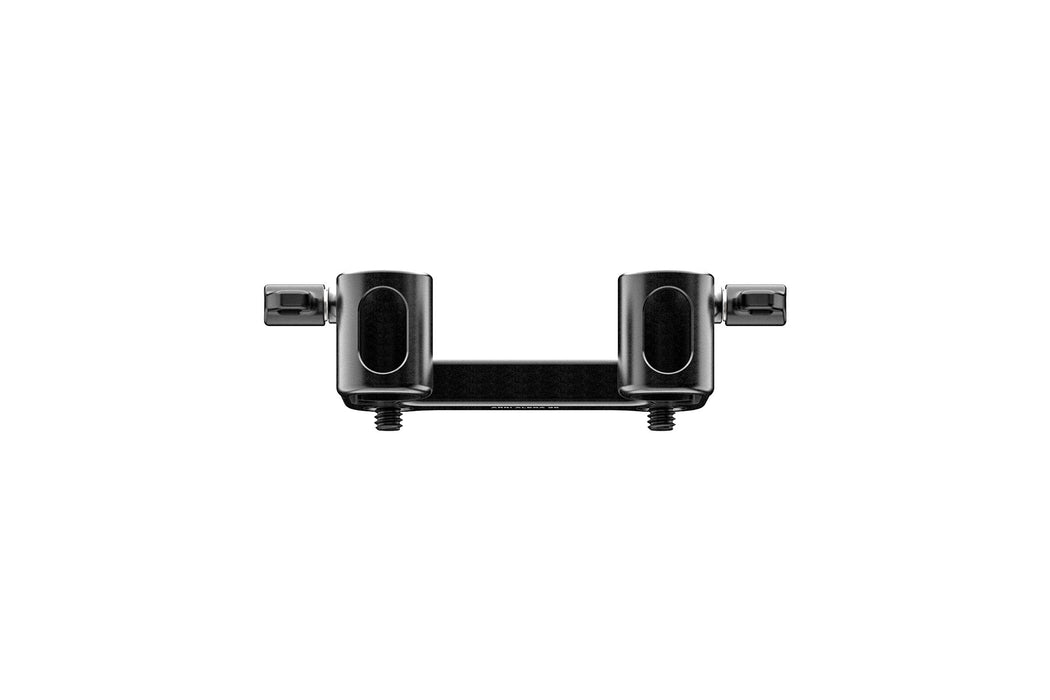

A00375 | Top Plate Dual Rod Clamp - Front
Standard-width independent Rod Clamps with enough separation between the rods to mount additional accessories. Attaches to front of Top Plate with 2x ⅜”-16 mounting points.
Specifications: Weight: 68 g (0.15 lbs) Dimensions: 26 x 113 x 46 mm (1 x 4.45 x 1.81 in)

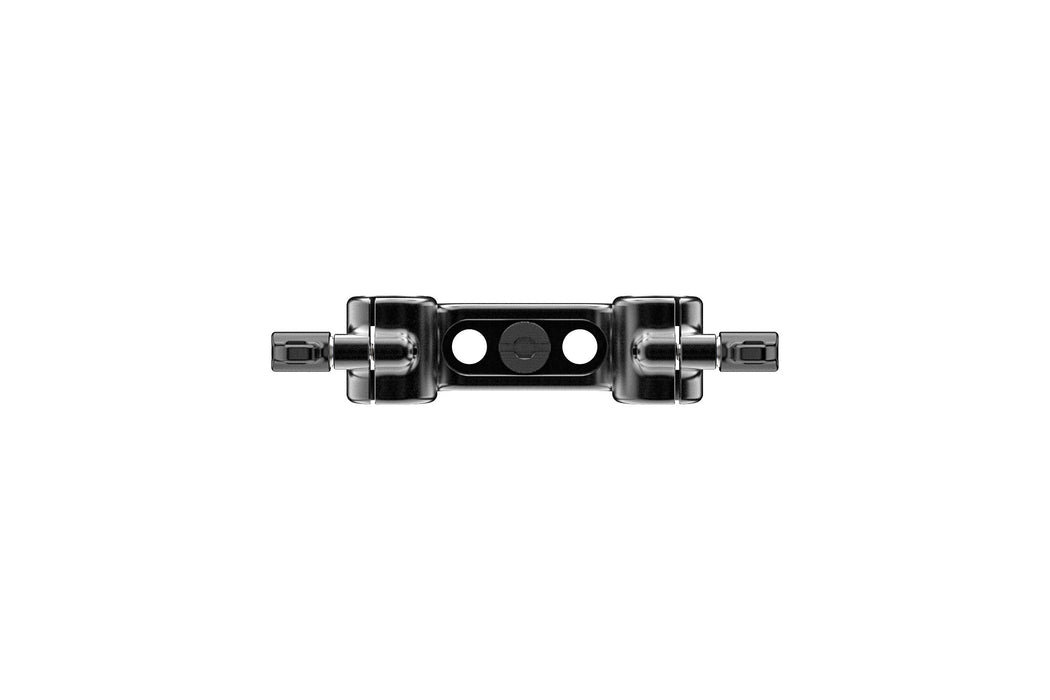

A00223 | Top Plate 15mm Upper Dual Rod Clamp
Lens-centered. 15mm Rear Rod Clamps with individual tightening screws offer a mounting location for an EVF, lens control motors, or distance measuring devices. Integrates with Front Dual Rod Clamps for more stability and flexibility with longer rods.
Specifications: Weight: 224 g (0.49 lbs) Dimensions: 100 x 116 x 16 mm (3.9 x 4.6 x 0.6 in)
A00411 | Antenna Guard Color Kit (ALEXA 35)
A set of 5 colored Antenna Guards (black, red, blue, green, yellow) to customize your setup and/or instantly identify camera designation.
Specifications: Weight: 30.5 g (0.07 lbs) Dimensions: 33.5 x 75 x 28.5 mm (1.5 x 2.95 x 1.12 in)
