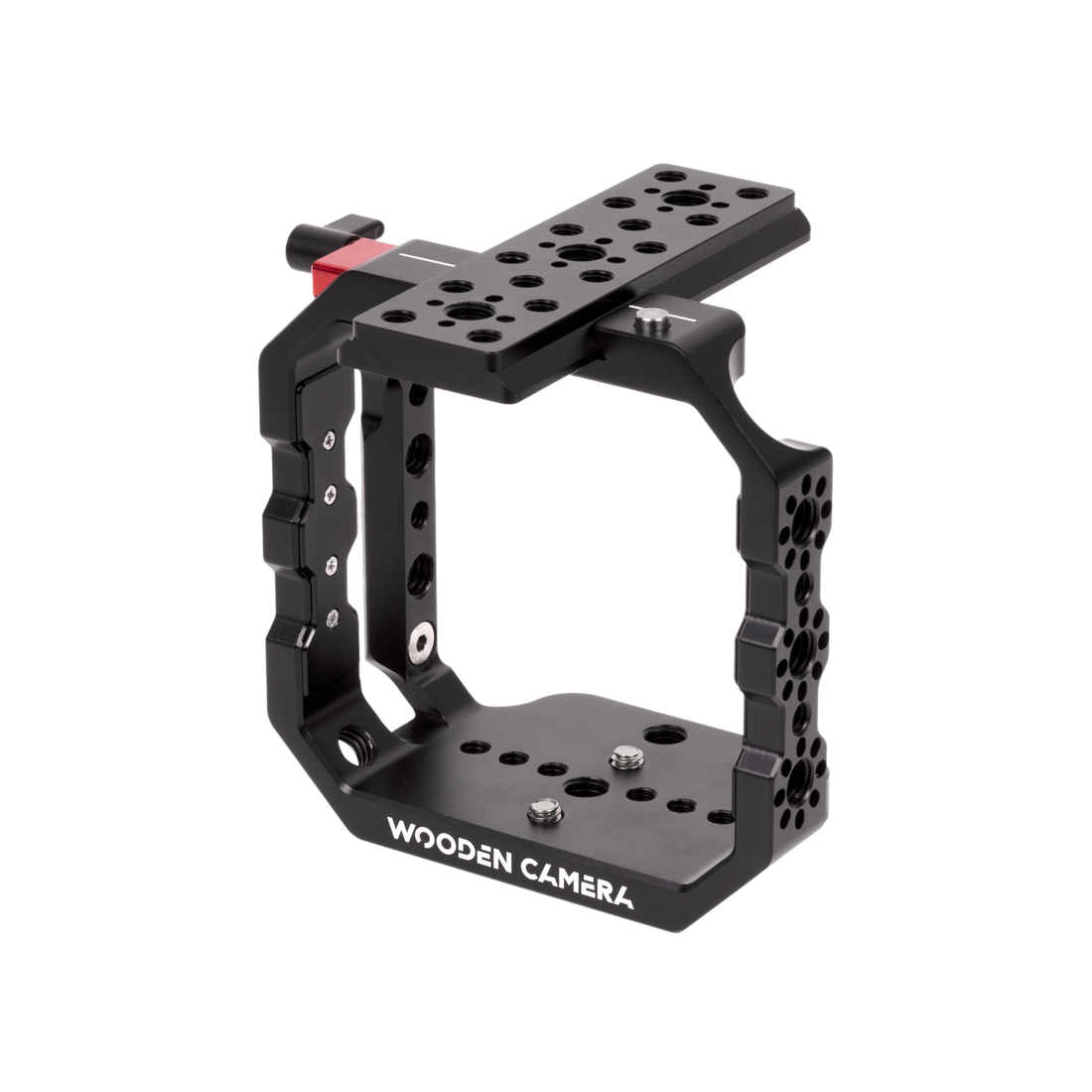

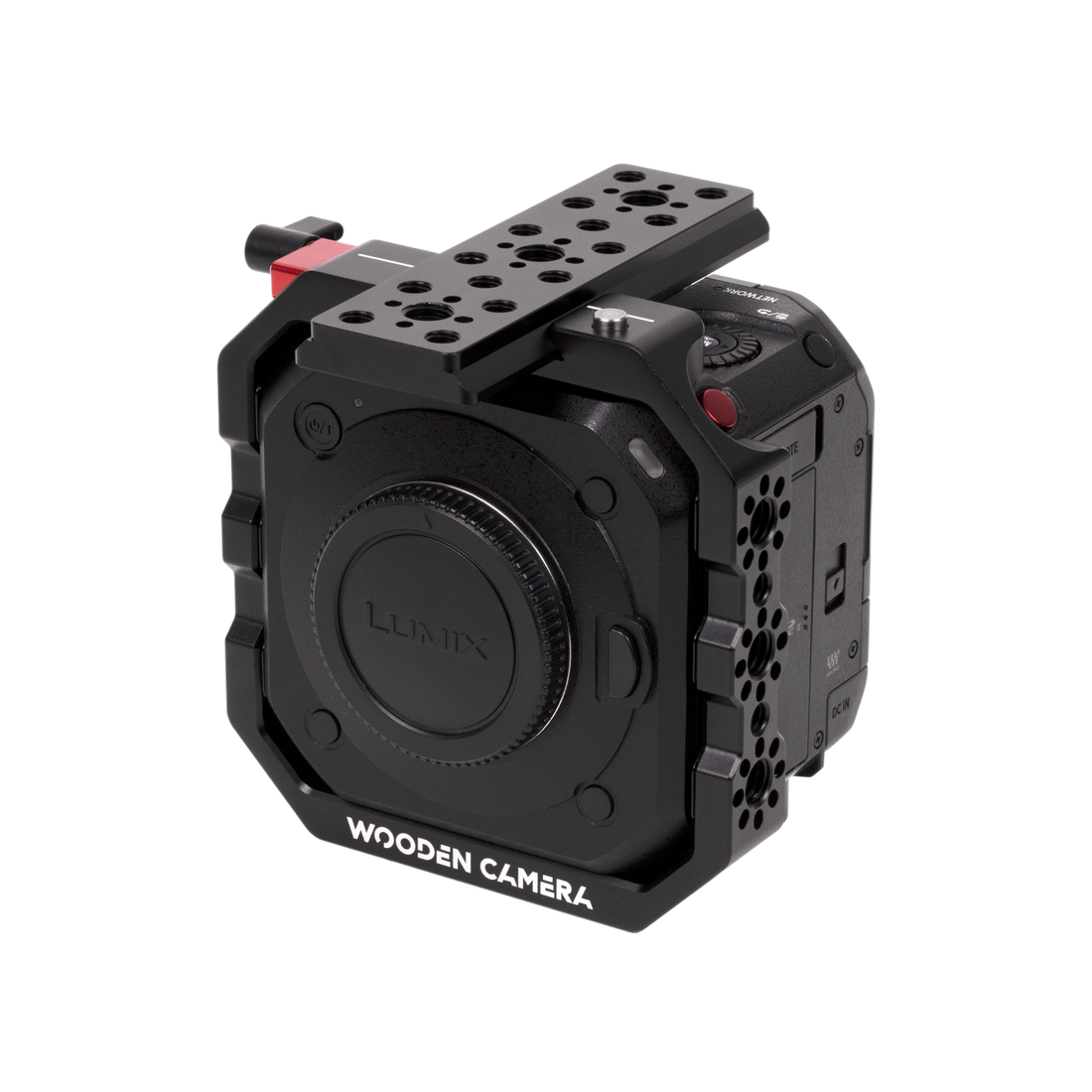

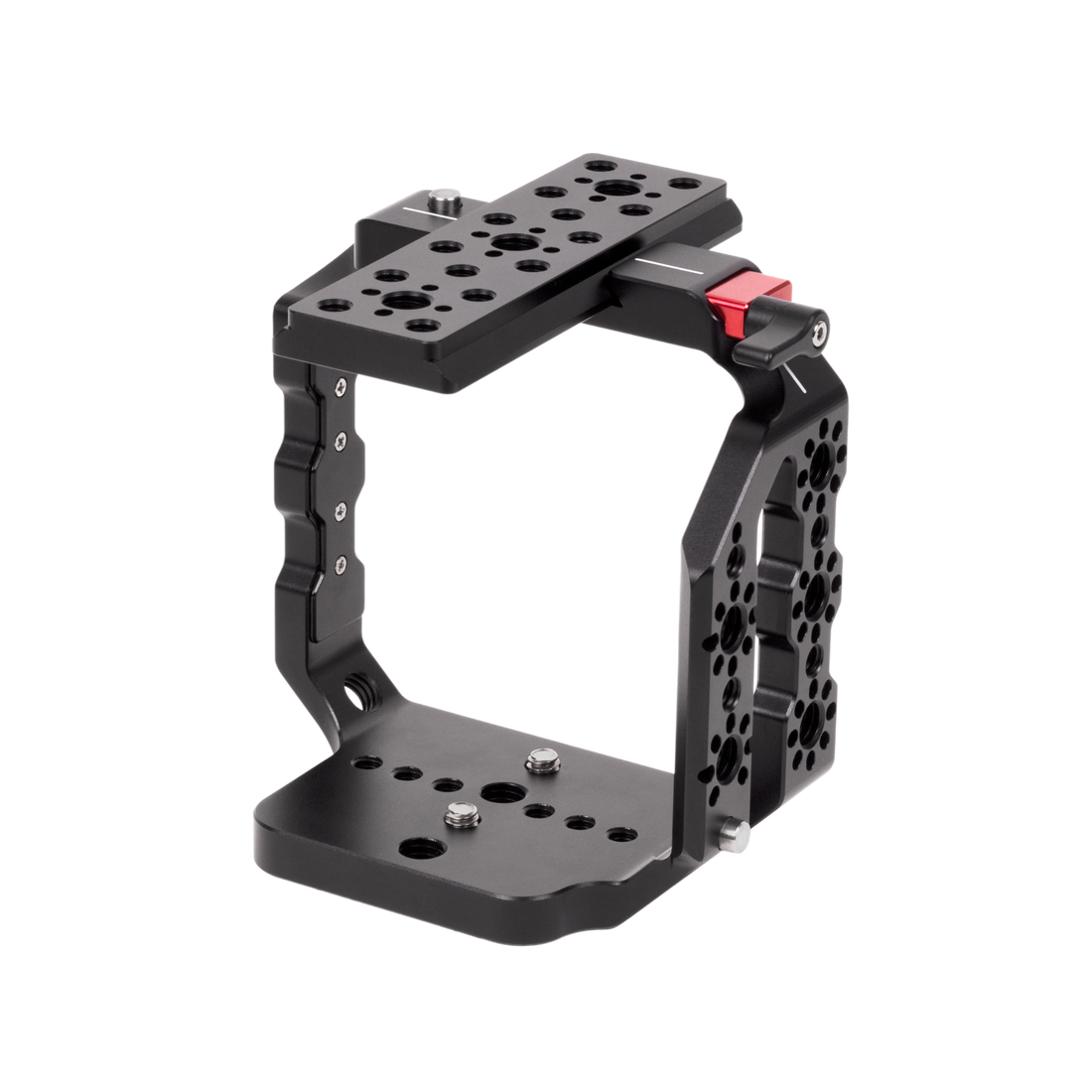

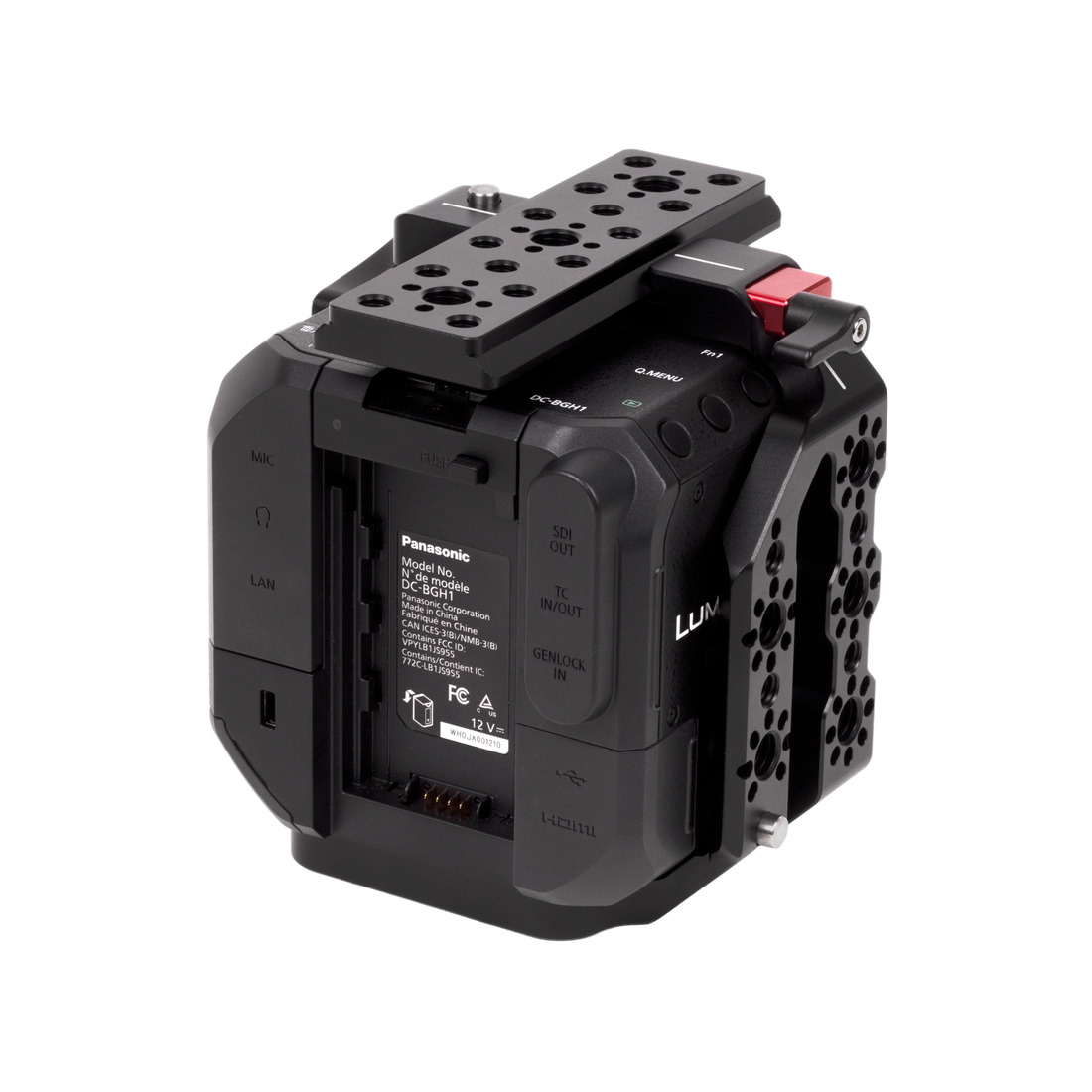

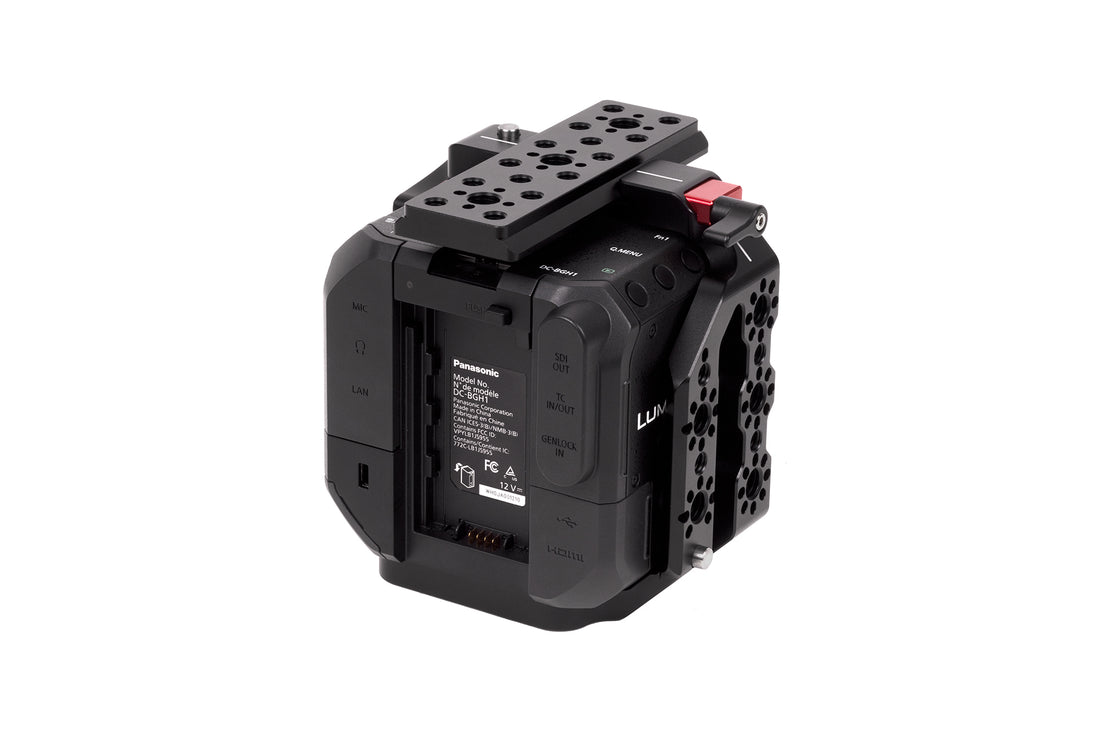

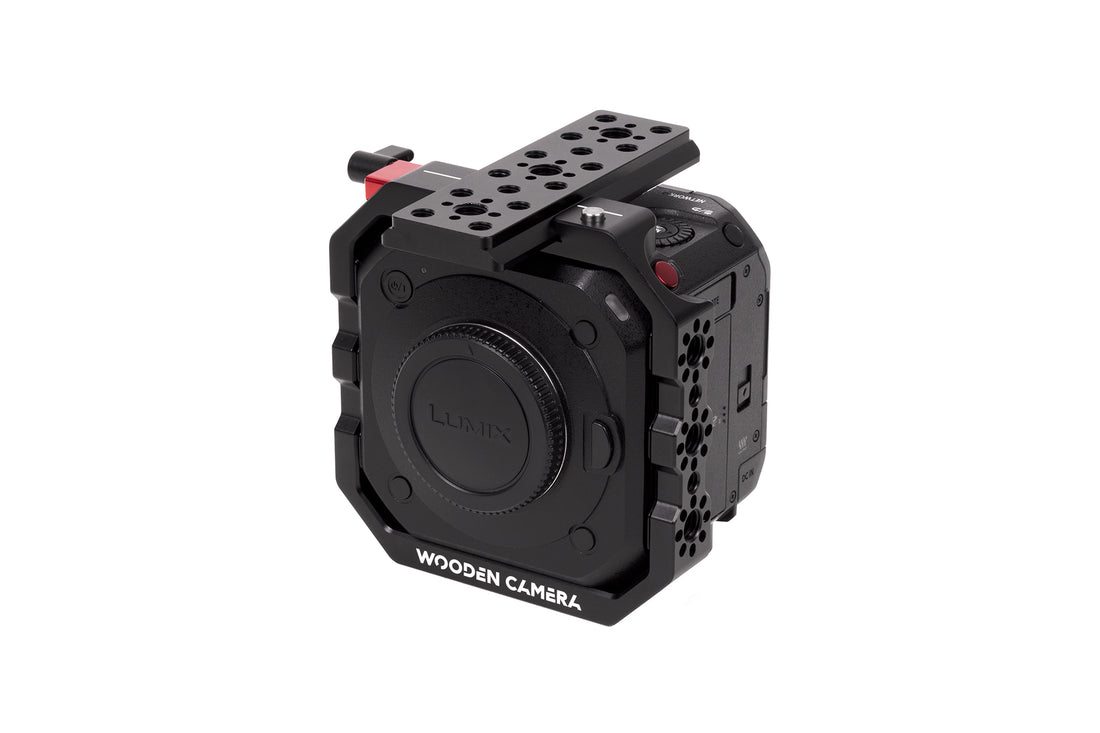

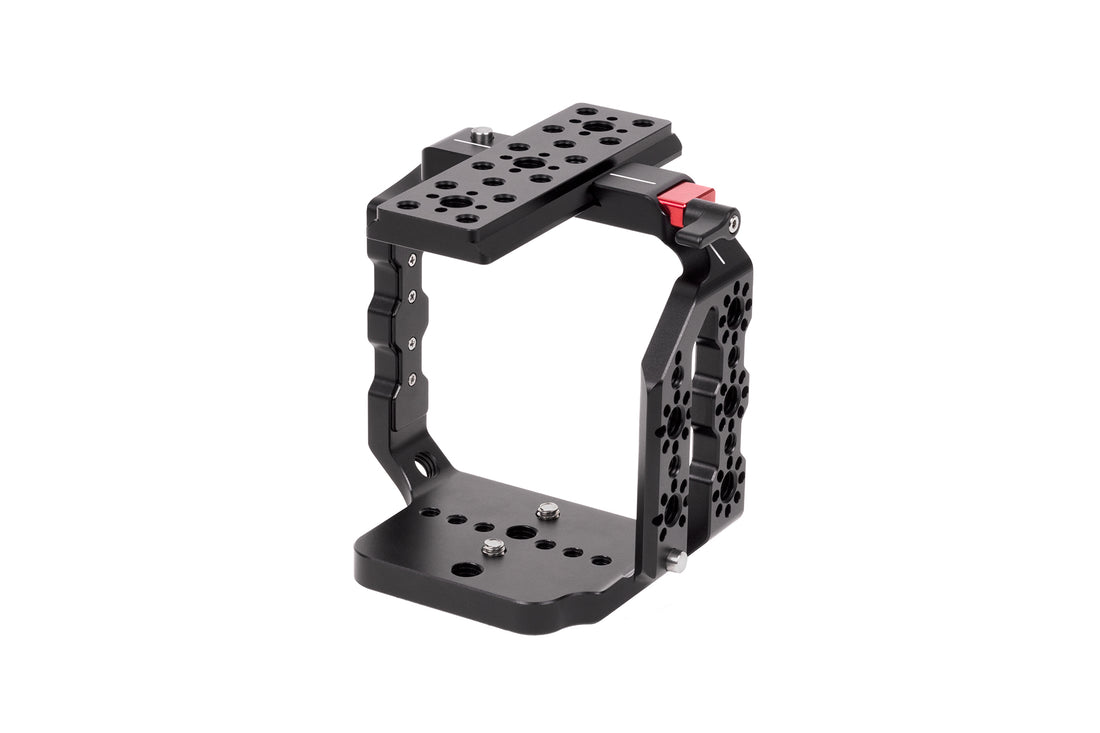

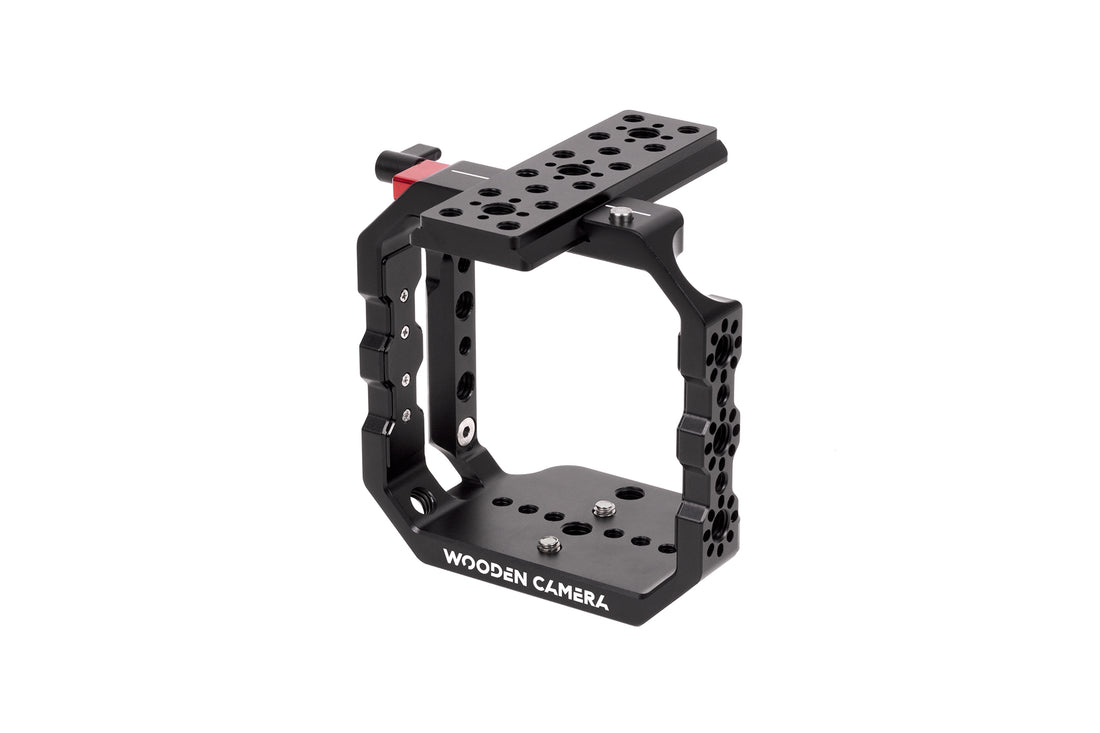

Panasonic BGH1/BS1H Camera Cage

$315.00
SKU A10006

UPC 606184860401

Orders placed before 12pm CST ship the same day

Panasonic BGH1/BS1H Camera Cage is a feature-rich wrap-around camera cage designed exclusively for the Panasonic LUMIX BGH1 and BS1H camera and features engraved markings to indicate the camera’s focal plane. The custom cage design offers added support and stability while providing an array of industry-standard 1/4"-20 and 3/8"-16 mounting points along the sides of the cage. The side of the cage also features a NATO standard rail with a spring loaded pin to prevent accidental accessory removal.

An ARCA Swiss Top Plate and dovetail clamping slot can be found on the top of the cage. Top Plate slides into ARCA Swiss slot to provide rows of 1/4-20 and 3/8-16 ARRI accessory mounts in standard spacing and can be adjusted forwards/backwards. Great for attaching to gimbal and drone systems or for using Wooden Camera products such as the Mini Top Handle (3/8-16) and Tilt Monitor Hinge (3/8-16).

Side mounting points feature a Wooden Camera standard locating hole pattern which is compatible with ARRI standard locating pin accessories.

Includes:
2x 1/4-20 Flat Head Screw

Specifications:
Weight: 260g (0.5 lbs)
Dimensions: 110 x 65 x 115 mm (4.3 x 6.5 x 4.5 in)
