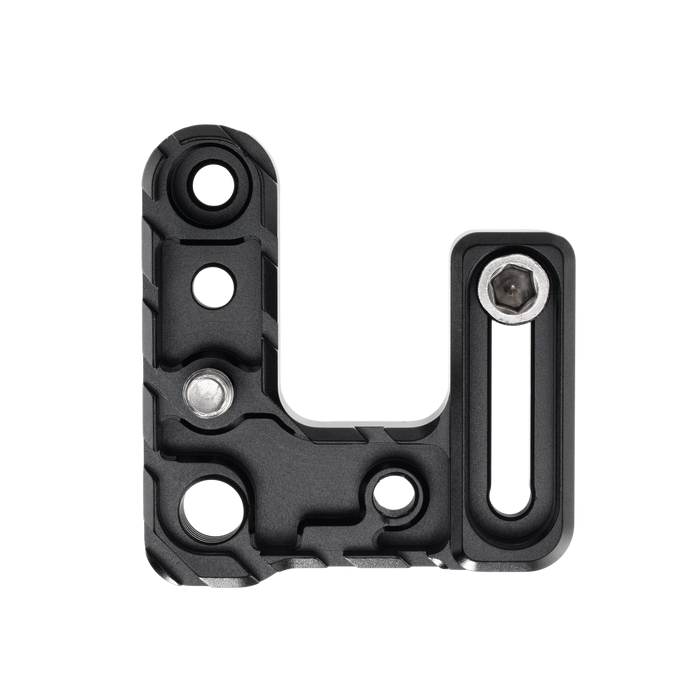

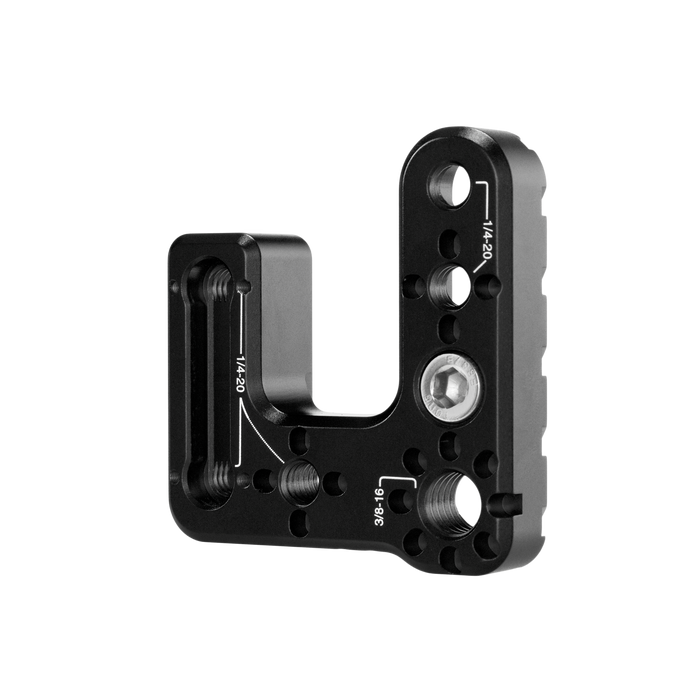

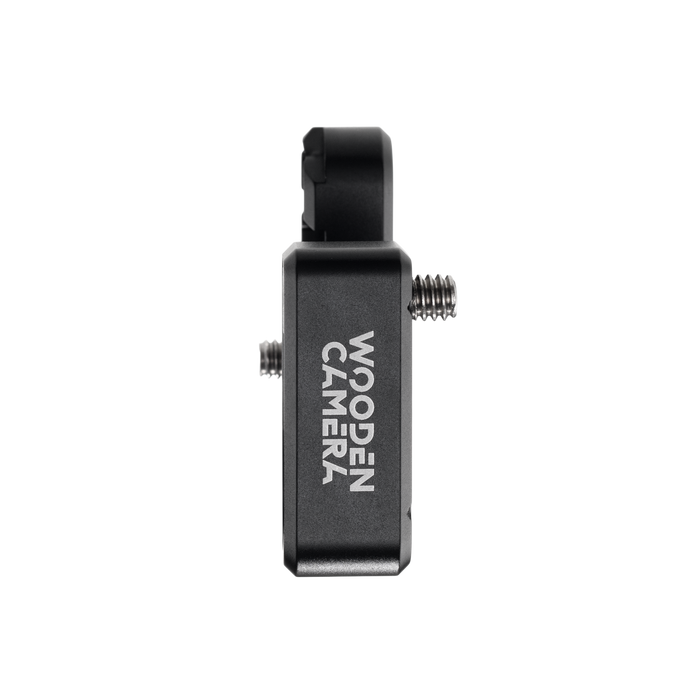

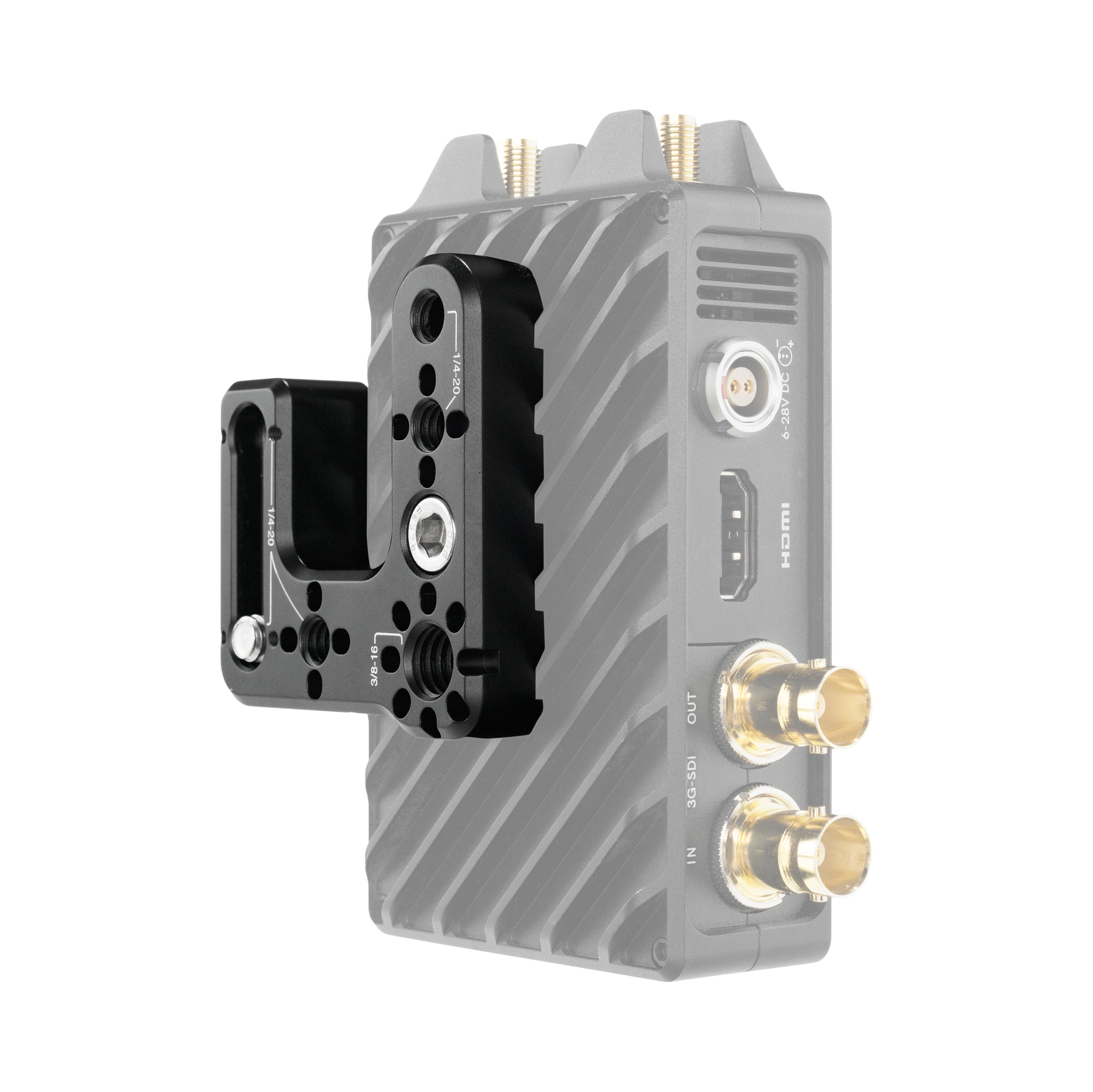

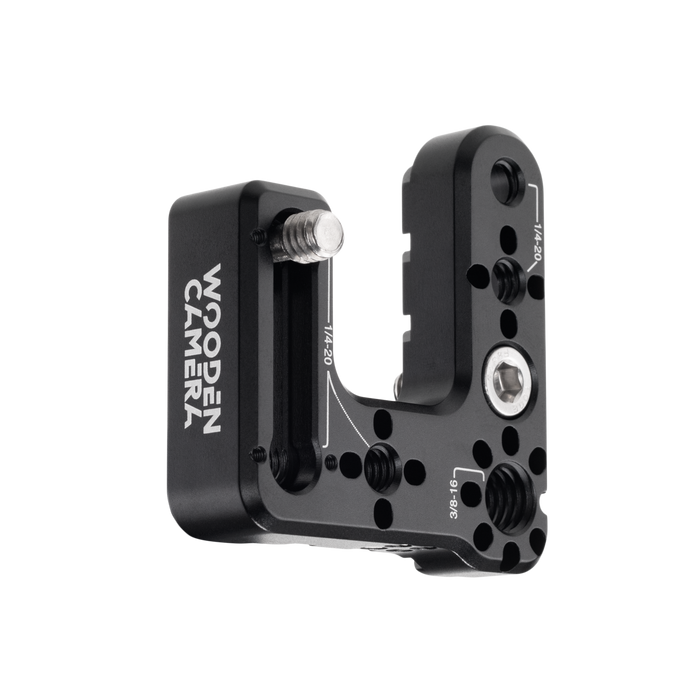

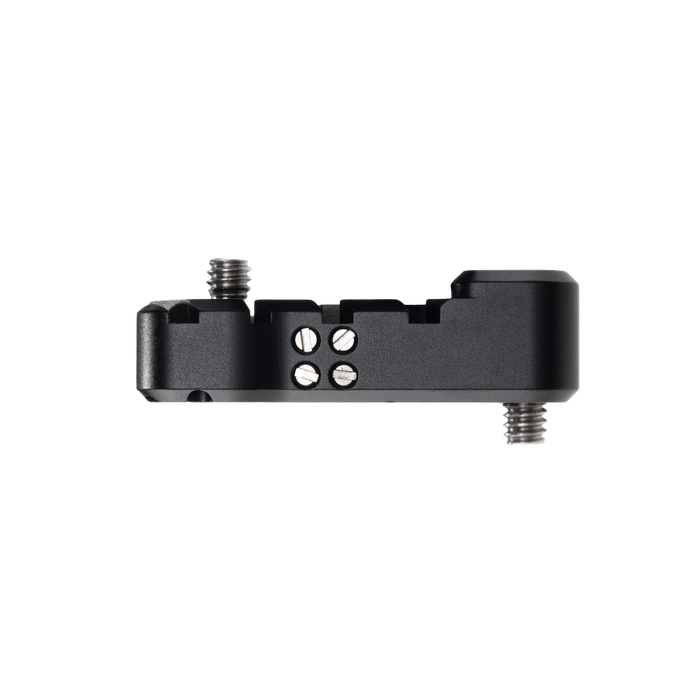

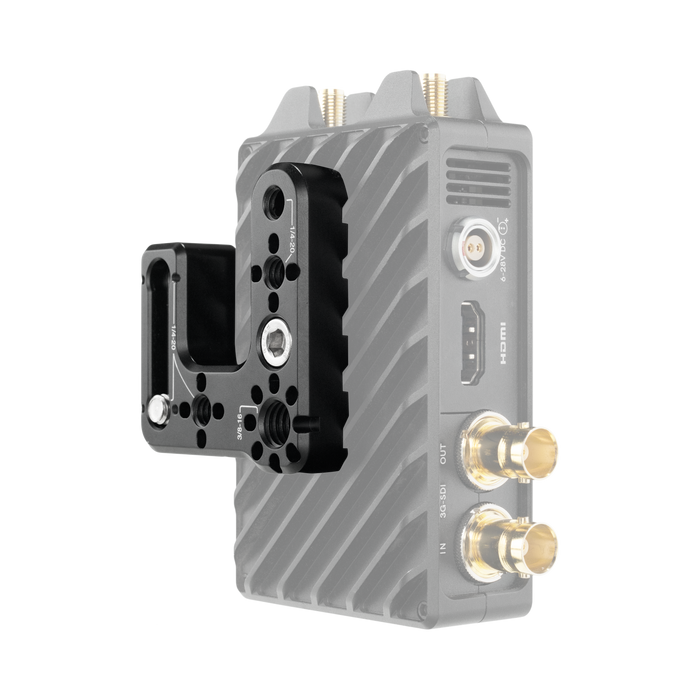

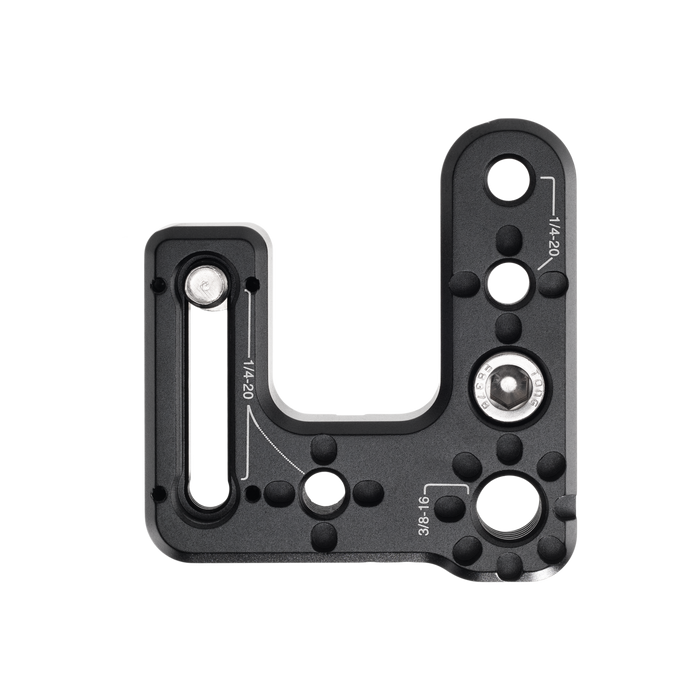

Offset Mount for Bolt 6 LT TX

SKU A20019

UPC 606184860807

Ships in 1-2 Business Days

Streamlined and versatile bracket designed for mounting the Teradek Bolt 6 LT TX in up to six different positions via a single captive 1/4"-20 screw.

Utilize the offset 1/4"-20 pass-through slot to mount the Offset Mount for Bolt 6 LT TX directly onto any 1/4"-20 mounting point. Featuring removable screw-in set pins located on both ends of the 1/4"-20 pass-through slot for added security that can be removed when not in use and stored on the side of the unit. The Offset Mount can also be mounted via one pass-through 1/4"-20 hole located at the top of the bracket.

It also features one 3/8"-16 and two 1/4"-20 mounting points with locating pin depressions for securely attaching additional mounting interfaces such as articulating arms, rod components, and mounting kits.

For a more compact option see Mount for Bolt 6 LT TX.

Also compatible with Bolt 4K LT TX

Weight: 48 g (0.1 lbs)
Dimensions: 54 x 58.2 x 16 mm (2.13 x 2.29 x 0.63 in)


*Manufactured under licence
