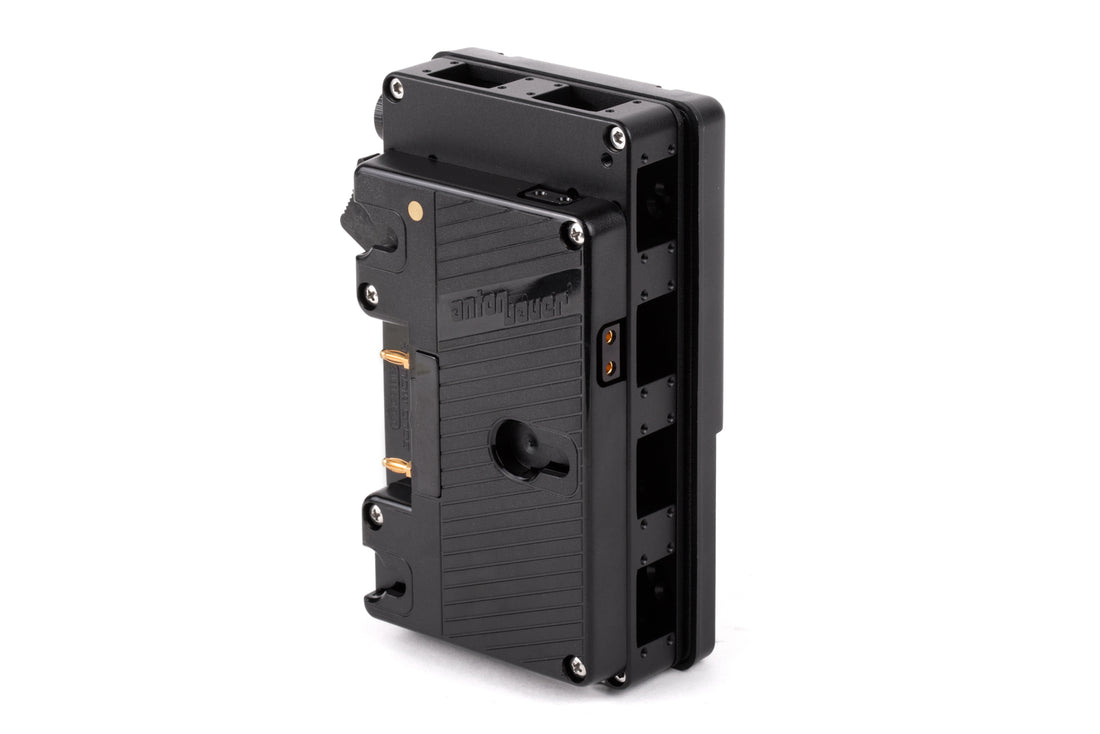

D-Box™ (Gold Mount Battery Side to V-Mount Camera Side, Base Unit)

Sold out
SKU 219000

UPC 702534256075


WC Pro Power Plate available for an additional $150 by emailing or making an order note.

D-Box™ (Gold Mount Battery Side to V-Mount Camera Side, Base Unit) is great for converting V-mount specific cameras to Gold Mount batteries. An example of this would be the Sony F55 or FS7 with extension unit which ships standard with a V-Mount plate. This device would allow you to have power distribution and use Gold Mount batteries. Power is passed though to D-Box™ and to camera.

D-Box™ (Power Distribution) allows for user selectable power outputs including 2pin connectors, 4pin connectors, 4pin Hirose, 3pin Fischer, D-Tap, and USB. Allows for up to 6 simultaneous outputs with a maximum draw of 3A per output (24V output is 1A max each) and 10A total draw limited by an easily accessible fuse. Left side panel opens to service fuse and to disconnect and remove connector panels.

Please Note: In addition to the digital or glass fuse governing the output panels of the D-Box™, his product contains a secondary fuse for the D-tap ports of the attached battery plate. This fuse is located in a fuse holder within the plate and replacements can be purchased here: F10A Fast Blow Fuse

Choose from any of the below (sold separately):
- 2pin Connector
- 4pin Connector
- 4pin Hirose
- 3pin Fischer
- D-Tap
- Blank

Note: Slots 2 & 3 cannot both host D-Taps due to internal interference with one another. Please select D-Tap for one slot or the other. If you are looking for a D-Tap Breakout Cable, choose 1 to 4 D-Tap Splitter Cable

Weight: 610g (1.3 lbs)
Dimensions: 50.8 x 101.6 x 152.4 mm ( 2 x 4 x 6 in)


*Manufactured under licence
