B-Box (RED® KOMODO™)

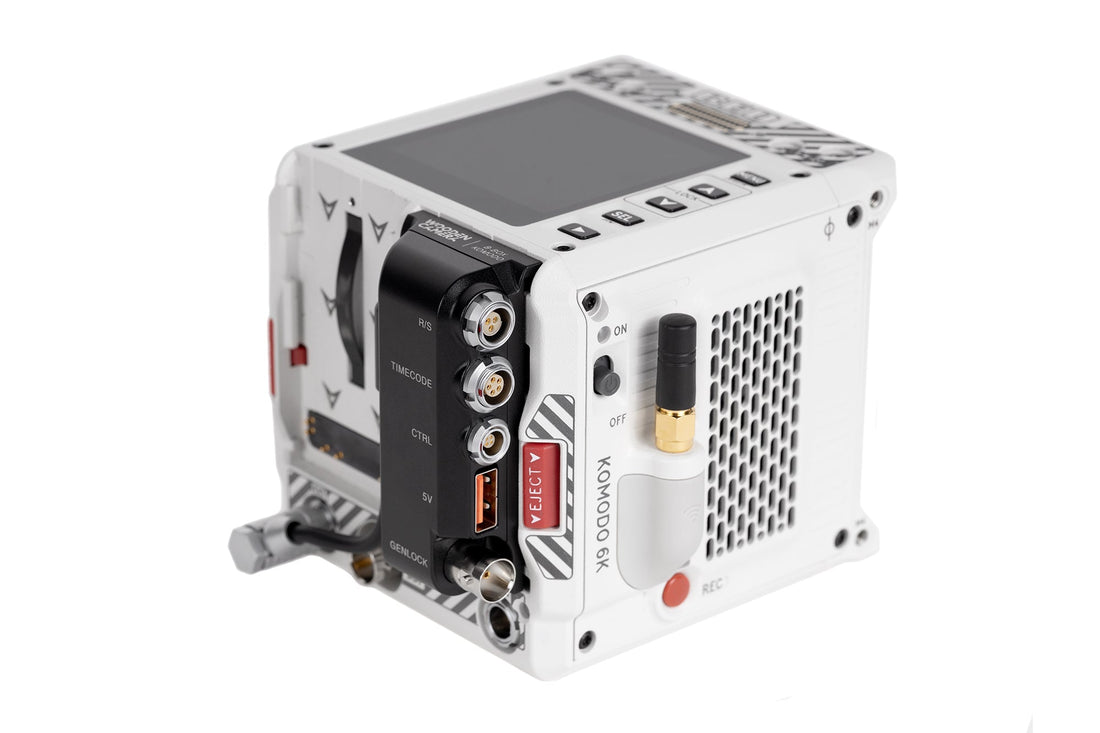

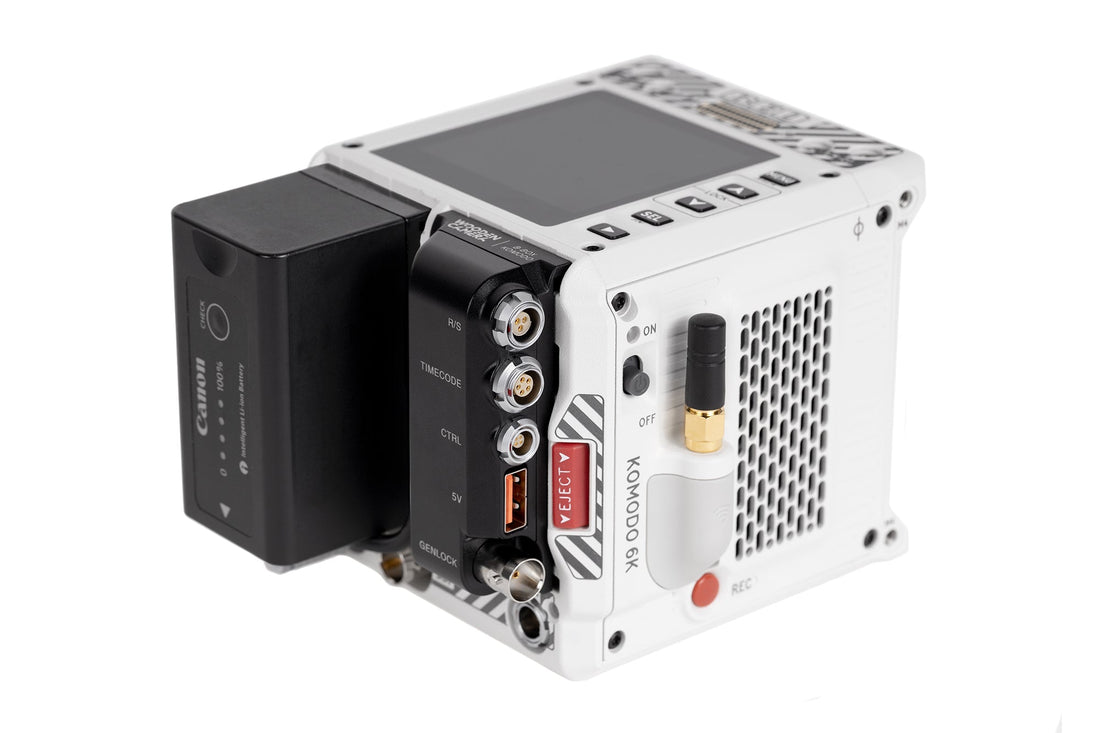

B-Box (RED® KOMODO™) attaches to the camera-right BP-9 battery slot and provides a breakout for the camera’s EXT connector. Battery Slide Pro V-Mount or Gold Mount for KOMODO can be used simultaneously and custom right-angle compatible connector allows for neat cable run. Canon BP-9 batteries could also be attached in camera-left slot while B-Box is used.

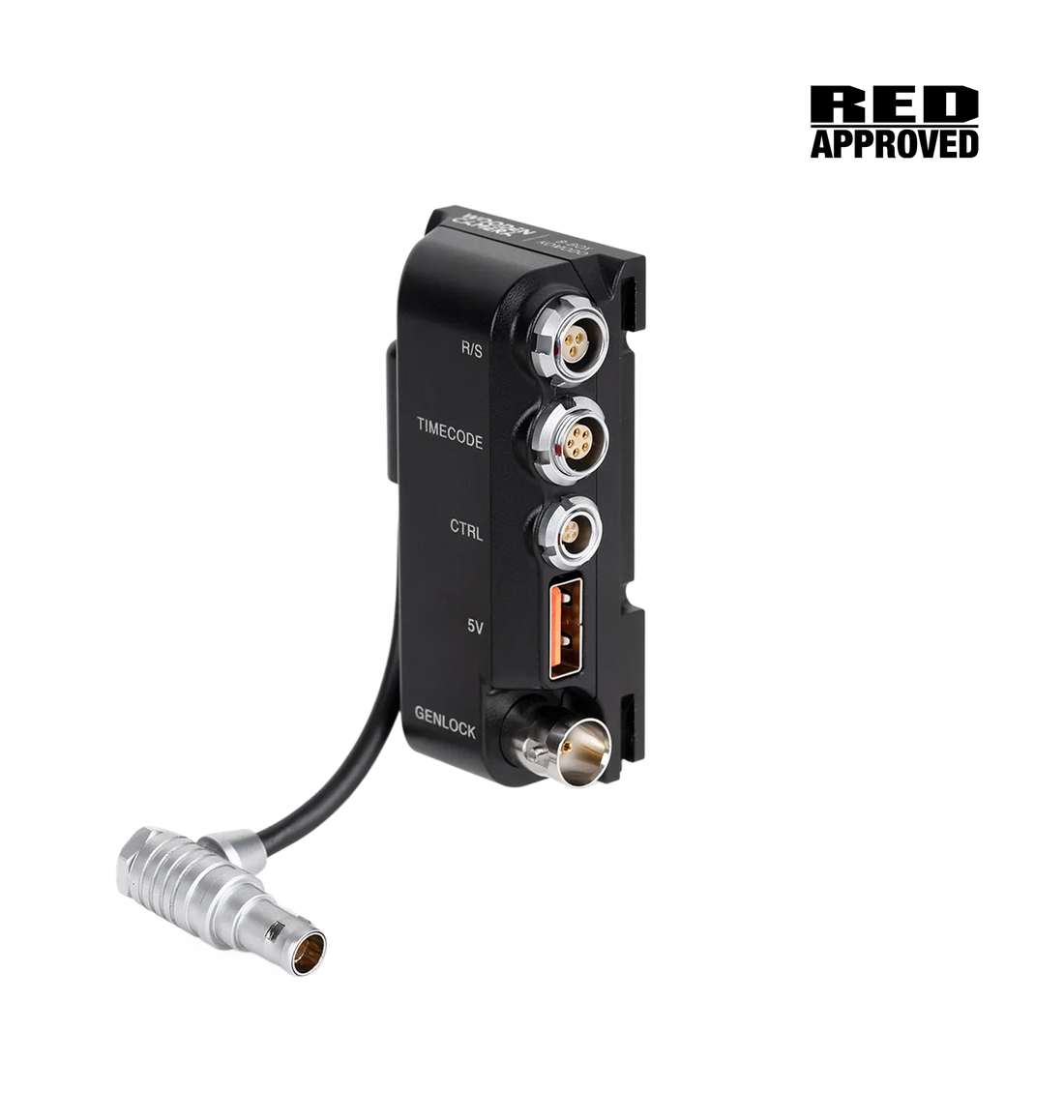

Available ports include:

- R/S (3pin Fischer)

• simple run/stop for Handgrip Trigger Box, Simple 3pin Fischer Trigger Cable, etc.
• no power available
• devices like ARRI WCU-4 may require CTRL port interface with cable K2.0015758
• pin1:GND, pin2:N/C, pin3:GPI

- Timecode (5pin)

• standard wiring for timecode in/out
• pin1:GND, pin2:LTC-IN, pin3:N/C, pin4:N/C, pin5:LTC-OUT

- CTRL (4pin)

• standard wiring for RED® CTRL
• pin1:GND, pin2:UART-RX, pin3:GPO, pin4:UART-TX

- 5V (USB)

• 5V available at 500mA maximum
• power may need to be enabled in camera menu

- Genlock (BNC)

• standard wiring for genlock
• center:signal, shell:GND

Specifications:
Weight: 100 g (0.23 lbs)
Dimensions: 107.95 x 82.5 x 25.4 mm (4.25 x 3.25 x 1 in)
