WC V-Mount (RED® One)

SKU 196800

UPC 702534253111

Ships in 2-3 Business Days

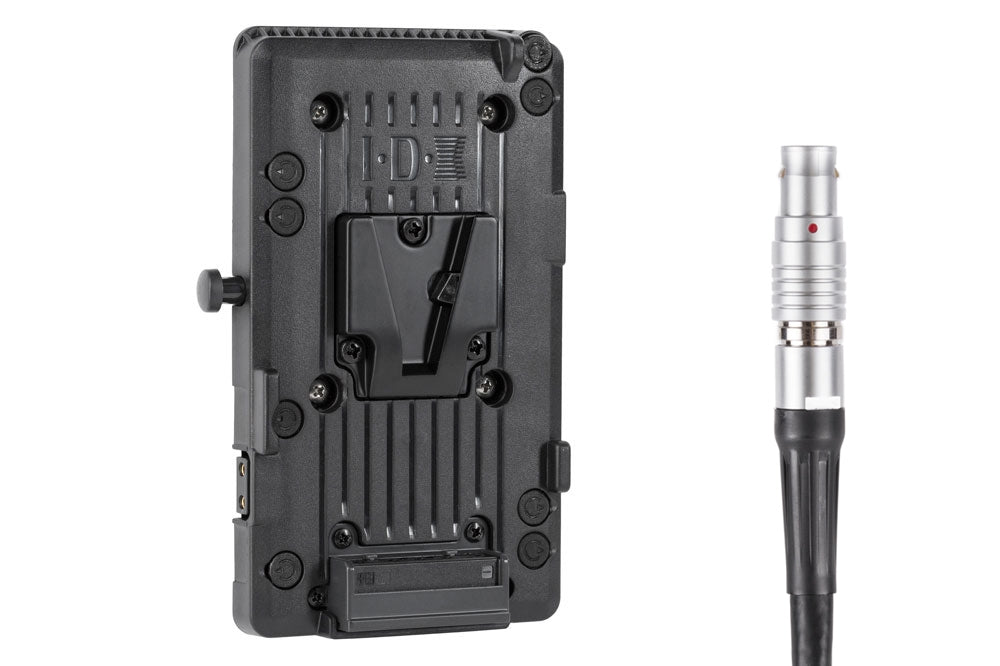

Wooden Camera brand V-Mount plate utilizing an IDX V-Mount and RED® ONE connector. This plate is wired correctly to display RED® Brick and smart V-mount battery percentage on displays.

16" cable exits the right side of the plate allowing easy insertion into the camera.

Custom lengths available up to 6ft at the standard price. Additional lengths available as needed. Send us an email with your requirements:

2x D-Tap ports for accessory power.

Mounting Options:
To mount the WC V-Mount onto the RED® ONE, we recommend the below combination:

Top Mount (RED® ONE) - mounting bracket that attaches to the top of RED® ONE camera

Bolt On Battery Mount - a bolt on mounting plate that attaches a V-Mount or Gold Mount plate to Top Mount (RED® ONE)

For an adjustable mount system attached to rods, use the Battery Slide or Recorder Slide paired with the appropriate Rod Clamp: Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm).

Weight: 272.155 g (0.6 lbs)
Dimensions: 143.2 x 92 x 21.9 mm (5.6 x 3.6 x 0.9 in)


*Manufactured under licence
